2008 Citroen C4 DAG Owner's Manual

18
2
3
11
2
3
A short press of the steering wheel controls TEL button accepts the
incoming call or ends the call in progress. A long press refuses the
incoming call. Select the YES tab to accept or NO
to refuse and conirm by pressing the
dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a super
imposed display
on the multifunction display.
YES
To hang up, press the PHONE button
or press the dial and select END
CALL then conirm by pressing the
dial.
END CALL
Press the PHONE button.
It is also possible to select a number from the add ress book. You
can select DIAL FROM ADDRESS BOOK. The system permi ts the
recording of up to 4 000 entries. Select DIAL NUMBER, then dial the
telephone number using the virtual
keypad.
Select the TELEPHONE MENU
function and press the dial to conirm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received app
ears under
TELEPHONE MENU. You can select a number and press t he dial to
make the call.
NO

19
08
5
6
1
2
3
4
CONFIGURATION
SETTING THE DATE AND TIME This function provides access to the options: SYSTE
M LANGUAGE, DATE AND TIME, DISPLAY
(BRIGHTNESS, COLOUR, MAP COLOUR), VEHICLE PARAMETER S, UNITS, SYSTEM
PARAMETERS.
Set the parameters one by one using
the direction arrows and conirm by
means of the dial. Select the DATE FORMAT function
and press the dial to conirm.
Conirm the format required using
the dial.
Select the SET DATE AND TIME
function and press the dial to conirm. Pressing the SET UP button for more than 2 seconds
permits access to:
Press the SET UP button.
Select the TIME FORMAT function
and press the dial to conirm.
Conirm the format required using
the dial.
SET DATE AND TIME
Select the DATE AND TIME function
and press the dial to conirm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
CEMO MODE
DATE AND TIME

20
09
4
1
23
51
2
1
23
4
5

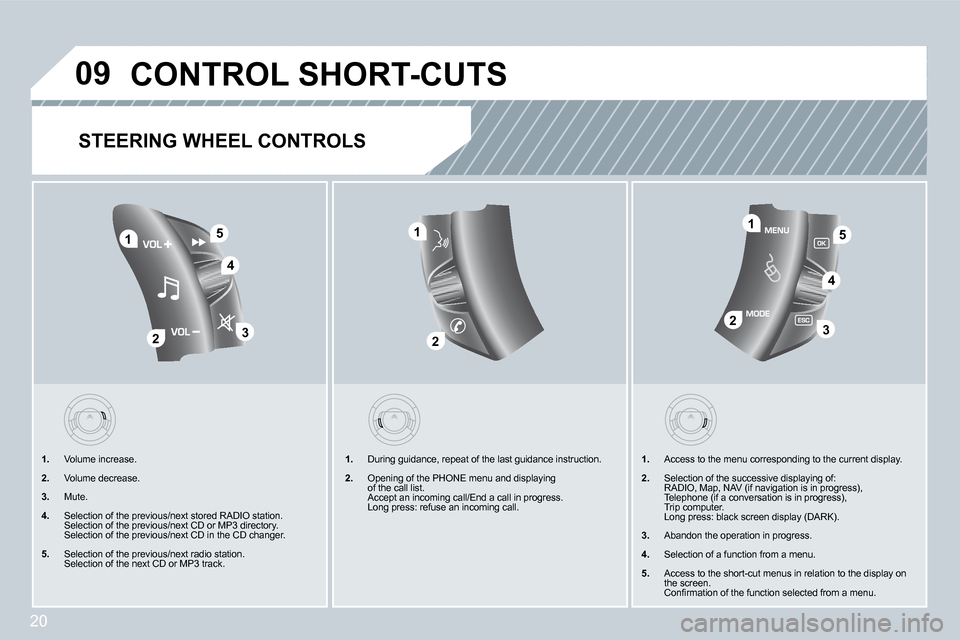

STEERING WHEEL CONTROLSCONTROL SHORT-CUTS
1. Volume increase.
2. Volume decrease.
3. Mute.
4. Selection of the previous/next stored RADIO statio n.
Selection of the previous/next CD or MP3 directory .
Selection of the previous/next CD in the CD change r.
5. Selection of the previous/next radio station.
Selection of the next CD or MP3 track. 1.
During guidance, repeat of the last guidance instr uction.
2. Opening of the PHONE menu and displaying
of the call list.
Accept an incoming call/End a call in progress.
Long press: refuse an incoming call. 1.
Access to the menu corresponding to the current di splay.
2. Selection of the successive displaying of:
RADIO, Map, NAV (if navigation is in progress),
Telephone (if a conversation is in progress),
Trip computer.
Long press: black screen display (DARK).
3. Abandon the operation in progress.
4. Selection of a function from a menu.
5. Access to the short-cut menus in relation to the d isplay on
the screen.
Conirmation of the function selected from a menu.

21
10
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
12332"RADIO" MENU
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B... DISPLAY FLOW CHARTS
"MUSIC" MENU
"TRAFFIC" MENU
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
GEOGRAPHICAL FILTER none
within 2 miles (3 km)
within 3 miles (5 km)
within 6 miles (10 km)
within 30 miles (50 km) SELECT MUSIC
SOUND SETTINGS
balance/fader
bass/treble
equalizernone
classical
jazz
rock/pop
techno
vocal
loudness
initialise sound settings WAVEBAND
FM
AM
MANUAL TUNE
SOUND SETTINGS balance/fader
bass/treble
equalizernone
classical
jazz
rock/pop
techno
vocal
loudness
initialise sound settings

22
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
ROUTE OPTIONSroute typefast route
short route
optimised route
STOPOVERS
add stopoveraddress input
navigate HOME
choose from address book
choose from last destinations
rearrange route
replace stopover
delete stopover
recalculate fast route
short route
optimised route
"NAVIGATION" MENU
ABORT/RESUME GUIDANCE
DESTINATION INPUT address inputcountry
city
street
number
start route guidance
post code
add to address book
intersection
city district
geo position
MAP
navigate HOME
choose from address book
choose from last destinations POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route SETTINGS
route dynamicstrafic independent
semi-dynamic
avoidance criteria avoid motorways
avoid toll roads
avoid ferries
recalculate

23
1
2
3
4
1
2
3
4
2
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
3
3
3
3
3
3
3
3
2
3
4
4
4
4
4
3
2
4
3
2
4
4
4
4
3
4
4
4
3
3
3
"TELEPHONE" MENUSETUP
DIAL NUMBER
DIAL FROM ADDRESS BOOK
CALL LIST
CONNECT PHONE search phone
phones connecteddisconnect phone
rename phone
delete pairing
delete all pairings
show details
SETTINGS
select ring tone
phone/ring tone volume
enter mailbox number SYSTEM LANGUAGE
deutsch
english
espanol
français
italiano
nederlands
polski
portuguese
DATE AND TIME set date and time
date format
time format
DISPLAY brightness
colourpop titanium
toffee
blue steel
technogrey dark blue
MAP COLOUR day mode for map
night mode for map
auto. day/night for map
VEHICLE PARAMETERS vehicle information
alert log
status of functions
UNITS temperaturecelsius
fahrenheit
Distance km and l/100
km and km/l
miles (mi) and MPG
SYSTEM PARAMETERS
factory reset
software version
automatic scrolling

24
There is a difference in
sound quality between
the different audio
sources (radio, CD,
CD changer...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
For optimum sound quality, the audio settings (Volu
me, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changi ng source (radio, CD,
CD changer...).
The CD is ejected
automatically or is not
played by the player. - Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the Audio section.
- The audio equipment's CD player does not play DVDs.
- Due to inadequate quality, certain recorded CDs will not be played by the audio system.
- The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, does
not contain any audio
data or contains an audio format which the player c annot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
The CD player sound
is poor. Insert good quality CDs and store them in
suitable conditions.
The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambienc
es) are unsuitable.
Set the treble or bass level to 0, without selectin g
an ambience.
The table below groups together the answers to the
most frequently asked questions.
QUESTION SOLUTION
RESPONSE
FREQUENTLY ASKED QUESTIONS

25
QUESTIONSOLUTION
RESPONSE
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by
the station listened to or
there is no transmitter in the geographical area th rough which the vehicle
is travelling.
The environment (hills, buildings, tunnels, basemen t car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for examp le when going
through a car wash or into an underground car park) .Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode. During this brief sound cut-out, the RDS searches f
or any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipmen
t operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switc hes to economy mode
and switches off to prevent discharging of the vehi cle's battery.Start the vehicle's engine to increase the battery
charge.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...)
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
