2008 Citroen C4 DAG Owner's Manual

149
XI
P R A C T I C A L A D V I C E
A wide range of CITROËN replace-ment parts and accessories is avail-able from the dealer network.
They are all from the CITROËN catalogue.
After being tested for reliability and safety, these parts and accessories are all adapted for your CITROËN safety, these parts and accessories safety, these parts and accessories
vehicle.
The range is structured around 5 groups:
"Security and safety": anti-intru-sion alarm, fi rst aid kit, warning trian-gle, high visibility vest, snow chains and anti-slip covers, front foglamp kit, rear parking assistance...
"Personalisation": seat covers, 15 and 17 inch light alloy wheel rims, wheel embellishers, stand-ard mudfl aps, style mudfl aps, door defl ectors, door aperture protectors, aluminium interior trim kit, door han-dle protectors...
"Boutique": screenwash fl uid, cleaning and maintenance products for interior and exterior...
"Navigation and communica-tion": Bluetooth®and hands-free kit, ®radios, portable navigation systems, CD changer, auxilliary cable for radio (e.g. connection between MP3 player and radio), speakers...
"Comfort and leisure": fl oor mats, boot protector, storage box under rear shelf, sun blinds, roof bars, arm rest, telephone carrier, child seats and booster cushions, air freshener cartridges...
To avoid any interference with the pedals:
- ensure that any over-mats are correctly fi tted,
- never superimpose one over-mat on another.
The fi tting of electrical equip-ment or accessories that are not recommended by CITROËN may result in a fail-are not recommended by are not recommended by
ure of your vehicle’s electronic system or excessive current consumption.
Please note this specifi c warning. It is advisable to contact a CITROËN Please note this specifi c warning. It Please note this specifi c warning. It
dealer to be shown the recommended equipment and accessories.
ACCESSORIES

150
XI
P R A C T I C A L A D V I C E
Luggage cover
This conceals the interior of the vehicle in combination with your rear shelf.
Installation
Take care to insert the fi xings A on the frame B.
Do not place hard or heavy objects on the luggage cover.
They could become dangerous projectiles in the event of sudden braking or a collision.
Stowage
To access the load area roll up the luggage cover.
Removal
It is possible to remove the luggage cover entirely.
C4 ENTERPRISE
Respect the authorisedload capacity.
Bicycle carrier
The installation of a bicycle carrier on the tailgate of 3 door models is prohibited.
Roof bars and roof boxes
The design of your vehicle is such that for your safety and to avoid damaging the roof and tailgate you should use roof bars and roof boxes that have been tested and approved by AUTOMOBILES CITROËN.that have been tested and approved that have been tested and approved
Recommendations
- Spread the load uniformly, taking care not to overload one side.
- Place the heaviest load as close as possible to the roof.
- Fix the load securely and attach warnings if the load is large.
- Drive gently, sensitivity to side winds is increased (the stability of your vehicle may be affected).
- Remove the roof bars when no longer needed.

151
XII
T E C H N I C A L S P E C I F I C A T I O N S
(1) After an oil change with fi lter change
Engine typeEngine oil capacity in litres(1)
1.4i 16V - 65 kW3.15
1.6i 16V - 80 kW3.35
1.6i 16V - 88 kW-
1.6i 16V - 110 kW-
1.6i 16V - 103 kW-
HDi 66 kW (90 hp)3.85
HDi 80 kW (110 hp)3.85
HDi 100 kW (135 hp)5.3
HDi 103 kW (140 hp)5.3
CAPACITIES
BVM: Manual gearbox.
BVMP: (6 speed) Electronic Gearbox System.
BVA: Automatic gearbox.
FAP: Diesel particulate fi lter system (DPFS).
"Michelin Energy Saver": tyres with very low rolling resistance.This tyre equipment contributes to the protection of the environment and the reduction of your vehicle’s fuel consumption.
BioFlex: A vehicle fi tted with a BioFlex engine can operate equally on unleaded petrol (95/98) or on bioethanol (See "Fuel").
Observe your vehicle’s towing limits.
It is essential to comply with the max. Gross Trailer Weights and speed limits as specifi ed by legislation in each country. For further information about the towing capacity of your vehicle and its max. authorised Gross Train Weight, contact your CITROËN dealer.Gross Train Weight, Gross Train
ENGINE TABLES LEGEND

152
XII
T E C H N I C A L S P E C I F I C A T I O N S
WEIGHTS - PETROL5-door model
Engine type1.4i 16V BVM1.6i 16V BVM1.6i 16V BVA
1.6i 16V 120 ch BVM
1.6i 16V 120 ch BVA
1.6i 16V 150 ch BVM
1.6i 16V 140 ch BVA
1.6i 16V manual BioFlex
Fuel tank capacityApproximately 60 litres
Recommended fuelUnleaded petrol RON 95 - RON 98E85
Turning circle between walls (in metres)11.311.311.311.311.311.311.311.3-
French fi scal rating67777997
Power (kW)658080888811010380-
Calculated maximum speed in km/h (mph) (in the highest gear)182194188----194-
Weights (kg)
Unladen weight1 1821 2001 2741 2201 2731 2761 2901 200-
Gross vehicle weight (GVW)1 7021 7321 7941 7311 7611 7631 7761 732-
Maximum rear axle weight850850850910910920910850-
Gross train weight (GTW)2 9022 9322 9943 0313 0313 1633 0762 932-
Gross trailer weight (with brakes) (within the Gross Train Weight limit)
10 to 12 % incline1 2001 2001 2001 3001 2701 4001 3001 200-
8 to 10 % incline1 2001 2001 2001 3001 2701 4001 3001 200-
Incline of up to 8 %1 5001 4001 4001 4001 3001 5001 3501 400-
Gross trailer weight (without brakes)Gross trailer weight (without brakes)Gross trailer weight (without brakes)628637674645670645680637-
Trailer nose weightTrailer nose weight6361626565707061-
Maximum roof bar load75

153
XII
T E C H N I C A L S P E C I F I C A T I O N S
3-door model
Engine type1.4i 16V BVM1.6i 16V BVM1.6i 16V BVA
1.6i 16V 120 ch BVM
1.6i 16V 120 ch BVA
1.6i 16V 150 ch BVM
1.6i 16V manual BioFlex
Fuel tank capacityApproximately 60 litres
Recommended fuelUnleaded petrol RON 95 - RON 98E85
Turning circle between walls (in metres)11.311.311.311.311.311.311.3-
French fi scal rating6777797
Power (kW)658080888811080-
Calculated maximum speed in km/h (mph) (in the highest gear)182194188---194-
Weights (kg)
Unladen weight1 1811 2001 2781 2171 2731 2711 200-
Gross vehicle weight (GVW)1 7011 7201 7981 7271 7571 7541 720-
Maximum rear axle weight850850850910900910850-
Gross train weight (GTW)2 9012 9202 9983 0273 0273 1542 920-
Gross trailer weight (with brakes) (within the Gross Train Weight limit)
10 to 12 % incline1 2001 2001 2001 3001 2701 4001 200-
8 to 10 % incline1 2001 2001 2001 3001 2701 4001 200-
Incline of up to 8 %1 5001 4001 4001 4001 3001 5001 400-
Gross trailer weight (without brakes)628637676645670645637-
Trailer nose weight63616365657061-
Maximum roof bar load75
WEIGHTS - PETROL

154
XII
T E C H N I C A L S P E C I F I C A T I O N S

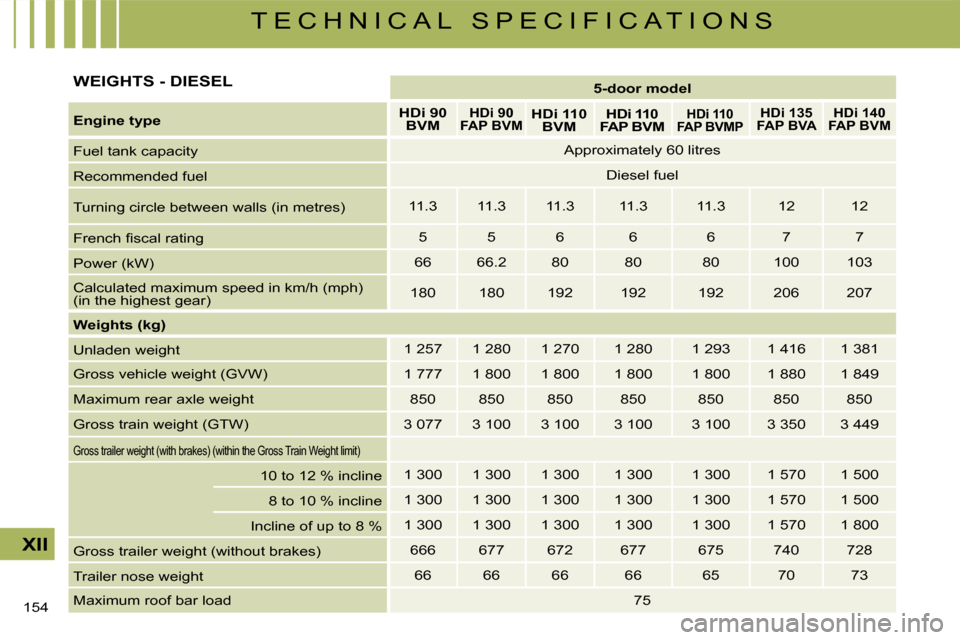

WEIGHTS - DIESEL5-door model
Engine typeHDi 90 BVMHDi 90 FAP BVMHDi 110 BVMHDi 110 FAP BVMHDi 110 FAP BVMPHDi 135 FAP BVAHDi 140 FAP BVM
Fuel tank capacityApproximately 60 litres
Recommended fuelDiesel fuel
Turning circle between walls (in metres)11.311.311.311.311.31212
French fi scal rating5566677
Power (kW)6666.2808080100103
Calculated maximum speed in km/h (mph) (in the highest gear)180180192192192206207
Weights (kg)
Unladen weight1 25712801 2701 2801 2931 4161 381
Gross vehicle weight (GVW)1 77718001 8001 8001 8001 8801 849
Maximum rear axle weight850850850850850850850
Gross train weight (GTW)3 07731003 1003 1003 1003 3503 449
Gross trailer weight (with brakes) (within the Gross Train Weight limit)
10 to 12 % incline1 30013001 3001 3001 3001 5701 500
8 to 10 % incline1 30013001 3001 3001 3001 5701 500
Incline of up to 8 %1 30013001 3001 3001 3001 5701 800
Gross trailer weight (without brakes)666677672677675740728
Trailer nose weight66666666657073
Maximum roof bar load75

155
XII
T E C H N I C A L S P E C I F I C A T I O N S
3-door model
Engine typeHDi 90 BVMHDi 90 FAP BVMHDi 110 BVMHDi 110 FAP BVMHDi 110 FAP BVMPHDi 135 FAP BVAHDi 140 FAP BVM
Fuel tank capacityApproximately 60 litres
Recommended fuelDiesel fuel
Turning circle between walls (in metres)11.311.311.311.311.31212
French fi scal rating5566677
Power (kW)6666.2808080100103
Calculated maximum speed in km/h (mph) (in the highest gear)180180192192192206207
Weights (kg)
Unladen weight1 25512791 2691 2791 2931 4101 379
Gross vehicle weight (GVW)1 77517991 7901 7991 7901 8801 835
Maximum rear axle weight850850850850850850850
Gross train weight (GTW)3 07530993 0903 0993 0903 4503 335
Gross trailer weight (with brakes) (within the Gross Train Weight limit)
10 to 12 % incline1 30013001 3001 3001 3001 5701 500
8 to 10 % incline1 30013001 3001 3001 3001 5701 500
Incline of up to 8 %1 30013001 3001 3001 3001 5701 800
Gross trailer weight (without brakes)665677672677675740727
Trailer nose weight66666666657073
Maximum roof bar load75
WEIGHTS - DIESEL

156
XII
T E C H N I C A L S P E C I F I C A T I O N S
3-door model5-door model
Engine typeHDi 90BVMHDi 110BVMHDi 90BVMHDi 90 FAP BVMHDi 110BVM
French fi scal rating666-6
Weights (kg)
Unladen1 2441 2761 247-1 265
Gross Vehicle Weight1 7701 8001 780-1 790
Payload (including driver)526524533-525
Gross Train Weight3 0703 1003 080-3 090
Trailer weight with brakes (within Gross Train Weight)1 3001 3001 300-1 300
Trailer weight without brakes655675660-670
Trailer nose weight525252-52
Maximum roof bar load75
* Applicable to all countries, except France and Overseas France.
For France and DOM-TOM countries, refer to the table on the "T echnical Specifi cations - Weights" page.
GENERAL: C4 ENTERPRISE*
