2008 Citroen C3 PLURIEL DAG Owner's Manual

A
C
B
II
20
R E M O T E C O N T R O L
Changing the remote control battery
First, retract the key-carrier if necessary.
Unclip the housing by lifting at the rear (see diagram).
Battery: CR 0523 of 3 V.
Re-initialisation of the remote control
After a change of battery, it may be necessary to re-initialise the remote control. To do that, switch on the ignition and immediately action button Aon your remote control to trigger the action desired. This may ta ke some ten seconds.Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a CITROËNdealer or deposited at a recognised collection point (a camera shop, for example).
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, wh en for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.Only use batteries that ies tha
Locating of the vehicle
To locate the vehicle on a carpark, press button A, the interior lamps come on and the direction indica-tors fl ash for a few seconds. The vehicle remains locked.
Folding and ejecting the key
Button C is for folding and eject-ing the key from its housing in the remote control.
If you do not press on button C, you could damage the key mecha-nism.

II
21
K E Y S
It is dangerous to operate the deadlocking when a person is in the vehicle as unlocking is impossible from the inside (without the remote control).
The key number is on the label attached to the key.
If you lose your keys
Visit your CITROËN dealer with your vehicle registr ation documents and your proof of identity.
Your CITROËN dealer will be able to recover the key and transponder code to enable your key to be replaced.
Electronic immobiliser key
The key operates all the vehicle’s locks as well as the ignition.Note: For safety reasons, a buzzer will sound if you have switched off the ignition and opened the driv-er’s door without having removed the ignition key.
The key can be used to deactivate the front passenger’s airbag. See “Airbags”.
Central locking using the key
A brief action with the key locks the vehicle.
Deadlocking: Central locking using the key
A second action straightaway with the key deadlocks the vehicle. It is then impossible to open the doors from either inside or outside the vehicle.Note:With the vehicle stationary and the engine switched off, locking is sig-nalled by the fl ashing of the interior locking control warning lamp.If any of the doors, or the boot, is open or not properly clo sed, the central locking does not operate.
Electronic immobiliser
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the igni tion.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle .
If this occurs, leave your vehicle immobilised and contact a CITRO ËN dealer.

B
A1
II
23
A N T I - I N T R U S I O N A L A R M
Your vehicle may be equipped with an ANTI-INTRUSION ALARM. This provides:Exterior perimeter protection by means of detectors on the vehi-cle access points (doors, boot, bonnet) as well as on the elec-trical supply.Interior volumetric protection by means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control 1.

II
24
Operating the alarm
First make sure all the doors are closed.
The alarm is armed by pressing button A on the remote control.
With the alarm armed, the protections are active after 5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion will trigger the siren for 30 seconds, accompanied by the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-ing remains memorised and is signalled by the rapid fl ashing of the warning lamp on control 1 after you have deactivated the alarm with a press on the unlocking button B. The fl ashing stops when you switch on the ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button B.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.

II
25
S: Steering lock
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M: Drive position
The steering is unlocked (by turn-ing the key in position M, if neces-sary move the steering wheel).
Depending on your vehicle ver-sion, the following warning lamps are tested:Briefl y:

II
26
Manual gearboxEnsure that the gear lever is in the neutral position.Do not touch the accelerator.For Diesel engines: Turn the key to the drive position. Wait for the preheater warning lamp to go off, if this has come on.Turn the key to action the starter (not for more than ten seconds), until the engine starts.In ambient temperatures lower than 0°C, depress the clutch while actioning the starter to facilitate starting. Then release the clutch pedal slowly.
-
--
-
-
Electronic Gearbox SystemCheck that you are in position N.Apply the brake pedal.Do not touch the accelerator.Turn the key to action the starter (not for more than ten seconds), until the engine starts.
----
Vehicles equipped with a Turbo
Never stop the engine without fi rst having allowed it to idle for a few seconds, this being the time required for the turbochargers to return to a normal speed.
Do not “fl ick” the accelerator at the moment you switch off the ignition as this could seriously damage the turbochargers.
Note: If it does not work at fi rst, switch off the ignition. Wait for ten seconds, then operate the starter again as described above.
WARNING
DO NOT RUN THE ENGINE IN A CLOSED SPACE OR IN ONE THAT IS INSUFFICIENTLY VENTILATED.
D R I V I N G
Advice

BCD
AF
E
D
IJGH
II
27

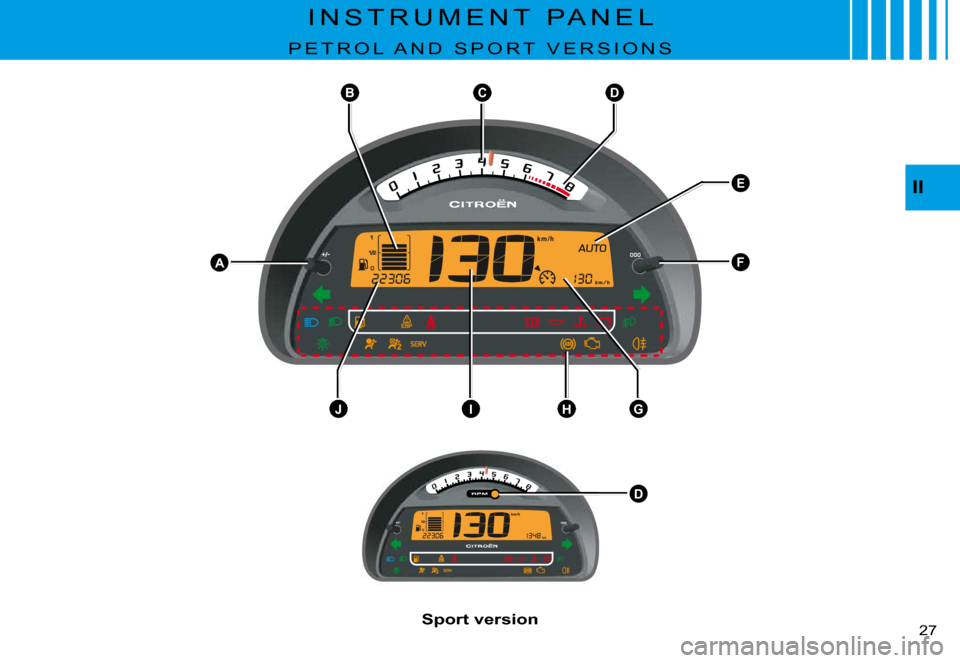

I N S T R U M E N T P A N E L
P E T R O L A N D S P O R T V E R S I O N S
Sport version

B
II
29
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
