1. Bonnet release

2. Headlamp adjustment

3. Passenger air bag disarming

4. Side adjustable and closing vent

5. Lights and direction indicators
stalk

6. Driver’s front air bag
Horn

7. Fascia fuse box (under the
instrument panel trim, on the
right and on the left)

8. Rev counter

9. Passenger exterior mirror control

10. Passenger electric window
control

11. Gear lever

12. Cup holder

13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS

11
Lights stalk
Front and rear lights
Ring A Lights off.
Side lights.
Dipped headlamps/
Main beam headlamps. Rear fog lamp
Ring B

 52 Wipers stalk
Windscreen wipers

MIST Single wipe.

OFF Off.

INT Intermittent wipe.

LO Normal wipe (moderate rain).

HI Rapid wipe (heavy rain).
Rear wiper and wash-wipe
Ring C
 53

1
17
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL

1. Total/trip distance recorder zero
reset button

2. Warning lights and indicators
display

3. Direction indicators

4. Speedometer

5. Fuel gauge
6. Total/trip distance recorder

7. Rear fog lamp indicator light

8. Main beam headlamps indicator
light

9. Dipped headlamps
indicator light
REV COUNTER
When approaching the maximum
engine speed, when the rev counter
needle crosses into the red zone, you
must engage the next gear up.

10. "SensoDrive" gearbox gear and
gear lever positions indicator

5
52
VISIBILITY
LIGHTS STALK

1. Lights off

2. Side lights

3. Dipped headlamps/
Main beam
headlamps Dipped headlamps/
main beam headlamps

Dipped headlamps: pull the stalk.

Main beam headlamps: push the
stalk.
Lights on buzzer
When the driver’s door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lights on. Rear fog lamp

With the dipped headlamps
on, selection is by rotation
of ring B forwards to switch
on and rearwards to switch
off. The status is displayed
by the indicator light on the instrument
panel.
In clear weather or in rain,
both day and night, the rear
fog lamps are dazzling and
are prohibited.
Do not forget to switch them
off when they are no longer
needed.
Direction indicators (flashers)
Left: stalk downwards.

Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lights
Selection is by rotation of ring
A .
Note: Switching to side lights does
not switch off the rear fog lamps if
they are on.

5
54
VISIBILITY
HEADLAMP ADJUSTMENT
To avoid causing a nuisance to
other road users, the height of the
headlamps should be adjusted in
relation to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

2. 4 people + maximum authorised
load.

3. Driver + maximum authorised
load.
The initial setting is position "0" . In this position, it comes
on on opening the driver’s
door.
The courtesy light is
deactivated and is
permanently off.
COURTESY LIGHT
Permanently on.

9
71
PRACTICAL INFORMATION
CHANGING A BULB
1. Side lights (W5 W)

 Turn the bulb holder A one quarter
of a turn and remove it.

 Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)

 Turn the bulb holder B one quarter
of a turn and remove it.

 Turn the bulb one quarter of a turn.

 Remove the bulb and change it.
If you encounter any diffi culties, contact
a CITROËN dealer.

Note: in certain climatic con-
ditions (low temperatures,
humidity), the presence of
condensation on the inter-
nal face of the headlamps is normal ;
it disappears a few minutes after the
lights are switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).

4. Fold the jack 2 and detach it.

5. Tighten the wheel bolts using the
wheelbrace 1 .

6. Refi t the trim.

7. Store the tools and the wheel in
the boot.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tightening of the bolts and the pressure of the spare wheel
checked as soon as possible,
- have the punctured wheel repaired and refi t it on the vehicle
as soon as possible.
Consult a CITROËN dealer. Front lights

1. Side lights

2. Direction indicators

3. Dipped headlamps/Main beam
headlamps

9
71
PRACTICAL INFORMATION
CHANGING A BULB
1. Side lights (W5 W)

 Turn the bulb holder A one quarter
of a turn and remove it.

 Remove the bulb and change it.
2. Direction indicators (PY 21 W amber)

 Turn the bulb holder B one quarter
of a turn and remove it.

 Turn the bulb one quarter of a turn.

 Remove the bulb and change it.
If you encounter any diffi culties, contact
a CITROËN dealer.

Note: in certain climatic con-
ditions (low temperatures,
humidity), the presence of
condensation on the inter-
nal face of the headlamps is normal ;
it disappears a few minutes after the
lights are switched on.
Never go underneath a vehi-
cle supported only by a jack
(use an axle stand).

4. Fold the jack 2 and detach it.

5. Tighten the wheel bolts using the
wheelbrace 1 .

6. Refi t the trim.

7. Store the tools and the wheel in
the boot.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.
After changing a wheel:
- have the tightening of the bolts and the pressure of the spare wheel
checked as soon as possible,
- have the punctured wheel repaired and refi t it on the vehicle
as soon as possible.
Consult a CITROËN dealer. Front lights

1. Side lights

2. Direction indicators

3. Dipped headlamps/Main beam
headlamps

9
72

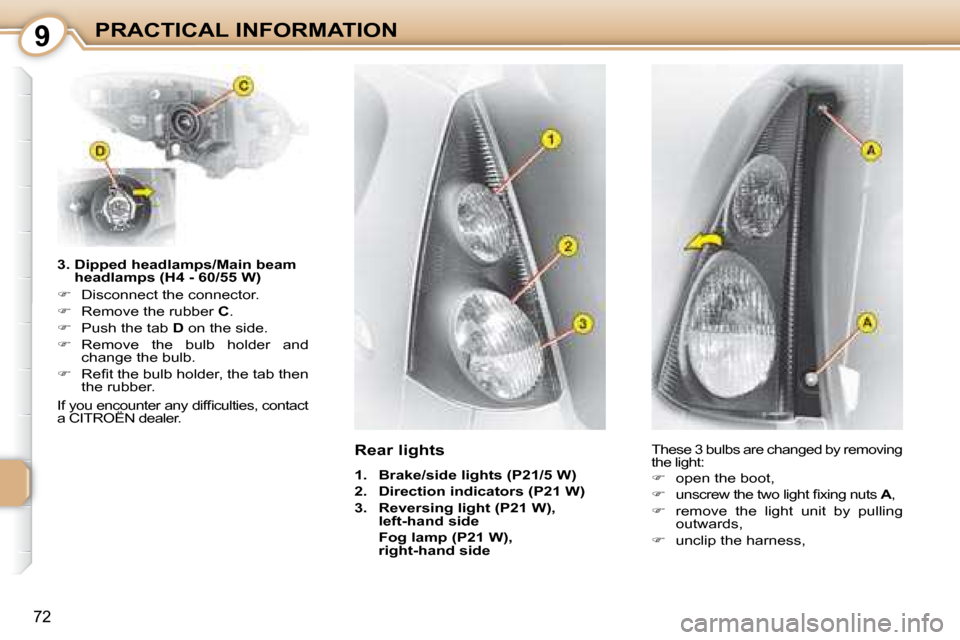

PRACTICAL INFORMATION
3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W)

 Disconnect the connector.

 Remove the rubber C .

 Push the tab D on the side.

 Remove the bulb holder and
change the bulb.

 Refi t the bulb holder, the tab then
the rubber.
If you encounter any diffi culties, contact
a CITROËN dealer.
Rear lights

1. Brake/side lights (P21/5 W)

2. Direction indicators (P21 W)

3. Reversing light (P21 W),
left-hand side
Fog lamp (P21 W),
right-hand side
These 3 bulbs are changed by removing
the light:

 open the boot,

 unscrew the two light fi xing nuts A ,

 remove the light unit by pulling
outwards,

 unclip the harness,
