Page 1 of 97
4
FAMILIARISATION
C. Locking/unlocking of the vehicle
from the inside (driver’s side).
1. Stop position.
2. Accessories position (1st notch).
3. Running position (2nd notch).
4. Starting position.
A. Locking of the vehicle.
B. Unlocking of the vehicle.
46
Remote control key Manual central control
STARTING
Page 2 of 97
5
W h e n t h i s b l o c k fl a s h e s ,
accompanied by an audible
s i g n a l , y o u h a v e e n o u g h
fuel left to drive approxi-
mately 30 miles (50 km).
1. Internal control.
2. External control.
3. Bonnet strut.
64
51
Low fuel level
Remove the key and unscrew the cap.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w t h e
cap back on fully to the right until it
c l i c k s a n d c l o s e t h e fl a p .
Fuel tank capacity: approximately
35 litres.
A f t e r o p e n i n g t h e fl a p , i n s e r t t h e k e y ,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked. OPEN
Fuel tank Bonnet
Page 3 of 97
6

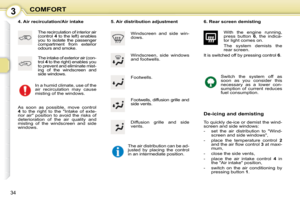

FAMILIARISATION Manual air conditioning
This air conditioning system opti-
mises the distribution of the air and
its temperature inside the passenger
compartment.
33
SensoDrive gearbox
T h i s fi v e - s p e e d r o b o t i s e d m a n u a l
gearbox offers a choice between
the comfort of fully automatic
operation and the pleasure of
manual gear changing.
62
Auxiliary socket for portable
equipment
C o m p a t i b l e w i t h m a n y M P 3 p l a y e r s ,
this socket allows you to listen to
your favourite tracks while travelling.
Refer to the conditions of use in the
"Audio" section.
23 INTERIOR
Page 4 of 97
7
1. Bonnet release

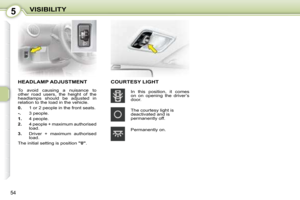

2. Headlamp adjustment
3. Passenger air bag disarming
4. Side adjustable and closing vent
5. Lights and direction indicators
stalk
6. Driver’s front air bag
Horn
7. Fascia fuse box (under the
i n s t r u m e n t p a n e l t r i m , o n t h e
right and on the left)
8. Rev counter
9. Passenger exterior mirror control
10. Passenger electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height adjustment
INSTRUMENTS AND CONTROLS
Page 5 of 97
8
FAMILIARISATION
1. Driver’s exterior mirror control
2. Instrument panel
3. Wipers stalk
4. Steering lock and ignition
5. Hazard warning lights
6. Storage compartments
7. Diffusion grille
8. Windscreen deicing and
demisting vent
9. Passenger front air bag
10. Side adjustable and closing vent
11. Storage box
12. Audio equipment
13. V e n t i l a t i o n , h e a t i n g o r a i r
conditioning controls
14. Storage compartments
15. 12 V socket (120 W max)
16. Handbrake
17. Driver’s electric window control
INSTRUMENTS AND CONTROLS
Page 6 of 97
9
1. Forwards-backwards adjustment. 2. Seat back angle adjustment. 3. Access to rear seats.
36
Front seats
Page 7 of 97
10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .
48
B. Exterior mirrors adjustment
control.
W h e n t h e v e h i c l e i s p a r k e d , t h e
mirrors can be folded and unfolded
manually.
35
C. Steering wheel height adjustment
locking and unlocking control.
1. Control unlocked.
2. Control locked.
35
SIT COMFORTABLY
Front electric windows Mirrors Steering wheel adjus tment
(with power steering)
Page 8 of 97
11
Lights stalk
Front and rear lights
Ring A Lights off.
Side lights.
Dipped headlamps/
Main beam headlamps. Rear fog lamp
Ring B
52 Wipers stalk
Windscreen wipers
MIST Single wipe.
OFF Off.
INT Intermittent wipe.
LO Normal wipe (moderate rain).
HI Rapid wipe (heavy rain).
Rear wiper and wash-wipe
Ring C
53
