FAMILIARISATION
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
Tailgate Lower tailgate
Opening
Push the handle C to the right and
tilt the tailgate D gently.
T h e m a x i m u m a u t h o r i s e d
weight on the lower tailgate
when open is 200 kg . Spare wheel and tools
Access to the spare wheel
Remove the plastic cover E to gain
a c c e s s t o t h e s p a r e w h e e l fi x i n g
system.
80
OPENING
80 124
Closing
Pull the handle B downwards. Closing
Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Access to the tools
The tools are stored in the storage com-
partment
F in the boot right-hand trim.
Page 50 of 216
C O M F O R T
II
53

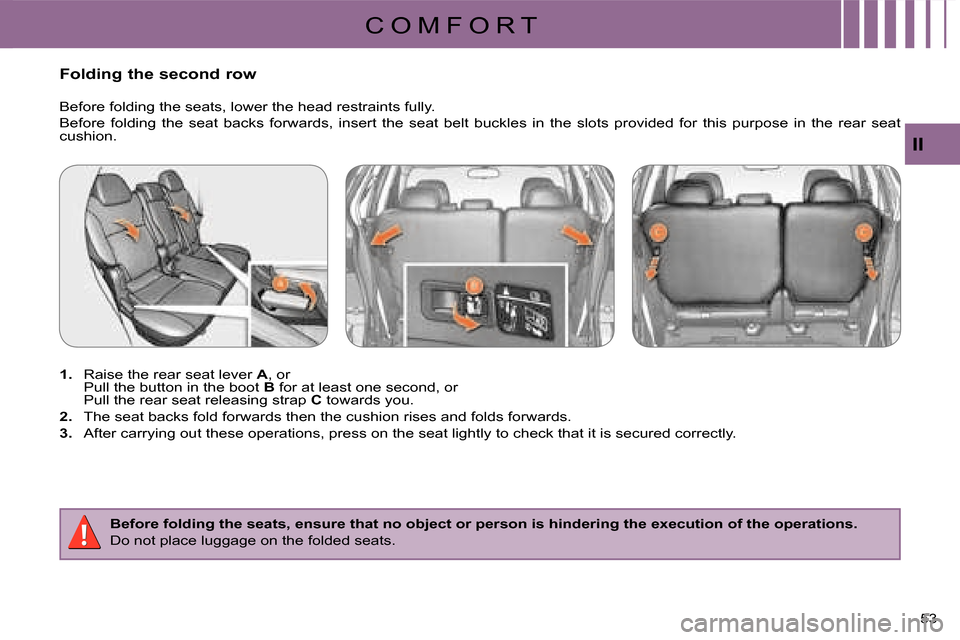

Folding the second row
