Page 127 of 216
P R A C T I C A L I N F O R M A T I O N
IX
125
Fixing the “space-saving” spare
wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice that the
washers do not come into contact
with the “space-saving” spare wheel
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g .
The wheel is retained by the conical
contact of each bolt.

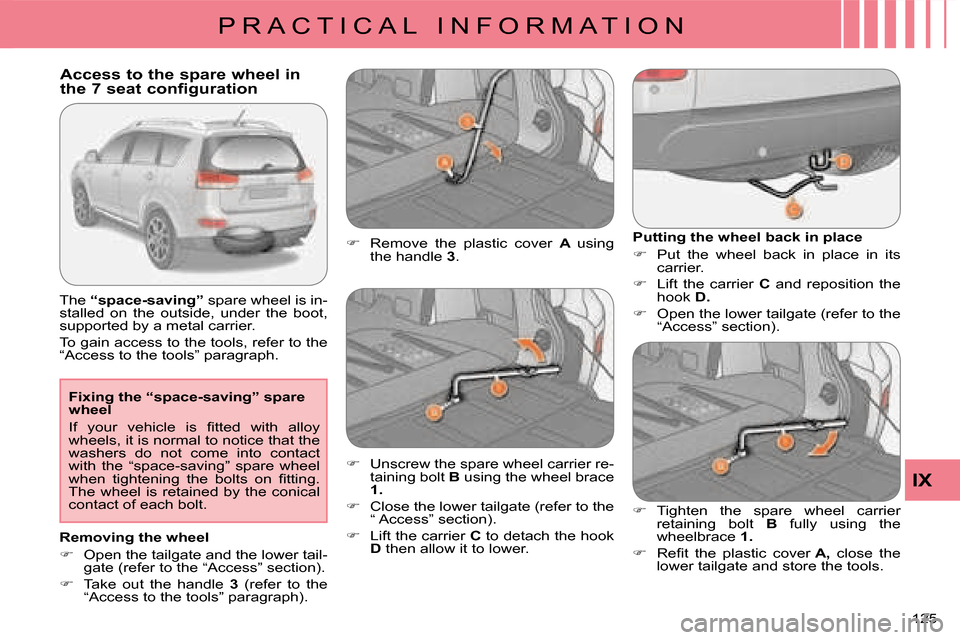

Access to the spare wheel in
the 7 seat configuration
The “space-saving” spare wheel is in-
stalled on the outside, under the boot,
supported by a metal carrier.
To gain access to the tools, refer to the
“Access to the tools” paragraph. Putting the wheel back in place
Put the wheel back in place in its
carrier.
Lift the carrier C and reposition the
hook
D .
Open the lower tailgate (refer to the
“Access” section).
Remove the plastic cover A using
the handle 3 .
Unscrew the spare wheel carrier re-
taining bolt B using the wheel brace
1 .
Close the lower tailgate (refer to the
“ Access” section).
Lift the carrier C to detach the hook
D then allow it to lower.
Tighten the spare wheel carrier
retaining bolt B fully using the
wheelbrace
1 .
R e fi t t h e p l a s t i c c o v e r A , close the
lower tailgate and store the tools.
Removing the wheel
Open the tailgate and the lower tail-
gate (refer to the “Access” section).
Take out the handle 3 (refer to the
“Access to the tools” paragraph).
Page 128 of 216
P R A C T I C A L I N F O R M A T I O N
IX
126
Access to the spare wheel in
the 5 seat configuration
The “steel” spare wheel is installed on
the outside, under the boot, supported
by a winch and a plastic carrier.
To gain access to the tools, refer to the
“Access to the tools” paragraph.
Fixing the “steel” spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice that the
washers do not come into contact
with the “space-saving” spare wheel
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g .
The wheel is retained by the conical
contact of each bolt.
Removing the wheel
Open the tailgate and the lower tail-
gate (refer to the “Access” section).
Take out the handle 3 (refer to the
“Access to the tools” paragraph).
Remove the plastic cover A using
the handle
3 . Putting the wheel back in place
Put the wheel back in place in its
carrier.
Pass the hook C into the chain.
Open the lower tailgate (refer to the
“Access” section).
Unscrew the retaining bolt B fully
using the wheelbrace
1 , to unwind
the winch cable.
Close the lower tailgate (refer to the
“ Access” section).
Detach the hook C from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
Tighten the winch retaining bolt B
fully using the wheelbrace
1 .
R e fi t t h e p l a s t i c c o v e r A , close the
lower tailgate and store the tools.
Page 148 of 216
P R A C T I C A L I N F O R M A T I O N
IX
146
TOWING
Access to the tools Having your vehicle towed on a
flatbed
Below the front bumper, install the
towing system on the towing eye 1 .
On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .
Towing another vehicle
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To access them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag
D containing the
tools,
take the towing eye and the tools
required out of the tool bag.
When being towed with the
engine off, there is no longer any
braking or steering assistance.
Place the gear lever in neutral.
Always have the vehicle
t o w e d o n a fl a t b e d .
Never have the vehicle towed
with the four wheels on the ground,
this could damage the transmission.
The vehicle must not be towed with
the front or rear wheels on the ground
even if it is in front “2WD” (2 wheel
drive) mode.
Screw in the towing eye fully using
the wheelbrace 3 .
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Operating procedure for having your
v e h i c l e t o w e d o n a fl a t b e d o r f o r t o w i n g
another vehicle using a removable
mechanical device.
Page 180 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
177
Selecting points of interest (POI)
icons displayed on the map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then
[Navigation/Settings].
Press [Screen] then [Select] on the POI
line.
Press [ ] which is displayed.
Press each POI required.
At each contact with a POI, the display-
ing of [ ] changes ( = the POI will be
displayed on the screen). General
Town centre
Locality
S h o p s , fi n a n c e a n d b u s i n e s s e s (Green)
Major companies
Shopping centre
Vehicles and travel (Dark blue)
CITROËN
Airport
Bus stop
Vehicle hire
Suburban station / station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station Restaurant (Orange)
Night life / night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
C o n v e n t i o n / e x h i b i t i o n c e n t r e
Hospital
University / college
Entertainment and attractions (Blue) Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre / opera
Tourist attraction
Vineyard / wine and spirit store
