2008 Citroen C CROSSER Owner's Manual

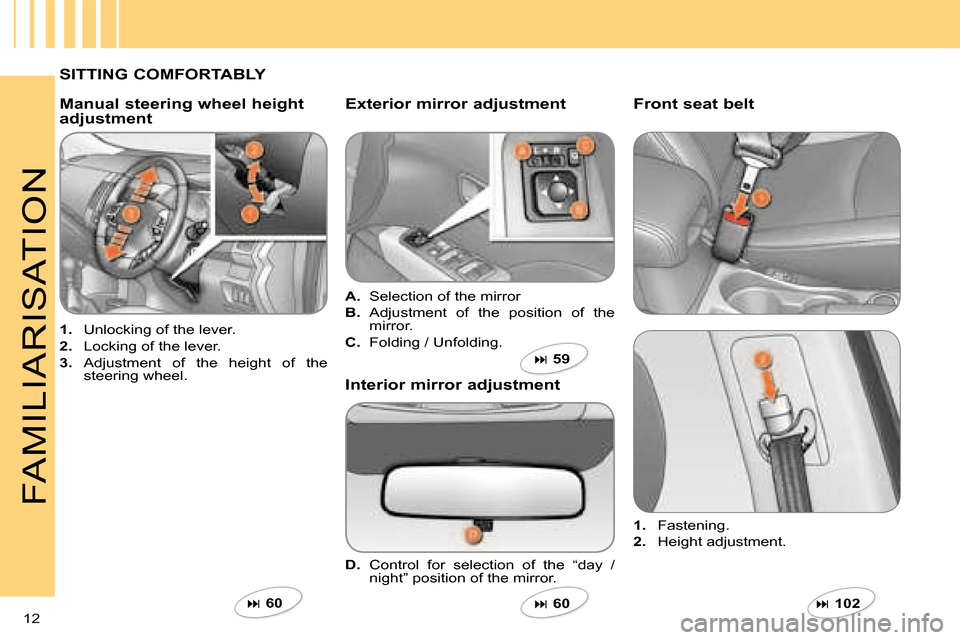

12
FAMILIARISATION
SITTING COMFORTABLY

1. Unlocking of the lever.

2. Locking of the lever.

3. Adjustment of the height of the
steering wheel.
Manual steering wheel height
adjustment
Exterior mirror adjustment

A. Selection of the mirror

B. Adjustment of the position of the
mirror.

C. Folding / Unfolding.

 60 Interior mirror adjustment

D. Control for selection of the “day /
night” position of the mirror.
 59

 60 Front seat belt

1. Fastening.

2. Height adjustment.

 102

13
FAMILIARISATION
SITTING COMFORTABLY
Ignition switch

1. LOCK position.

2. ACC position.

3. ON position.

4. START position.

 74 Electric window controls

1. Driver’s electric window control.

2. Passenger’s electric window control.

3. Rear left electric window control.

4. Rear right electric window control.
Also...

5. Deactivation of the front passenger
and rear electric window controls.

 76 Sunroof controls

1. Opening control.

2. Closing control.

3. Partial opening control.
Also...

3. Also permits temporary stopping of
sunroof opening / closing.

 81

14
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog
lamps.
 88

 89
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped or main beam head-
lamps.
Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Slow.
Fast. Park.
Intermittent wipe.
Wiping with screen wash.

 84

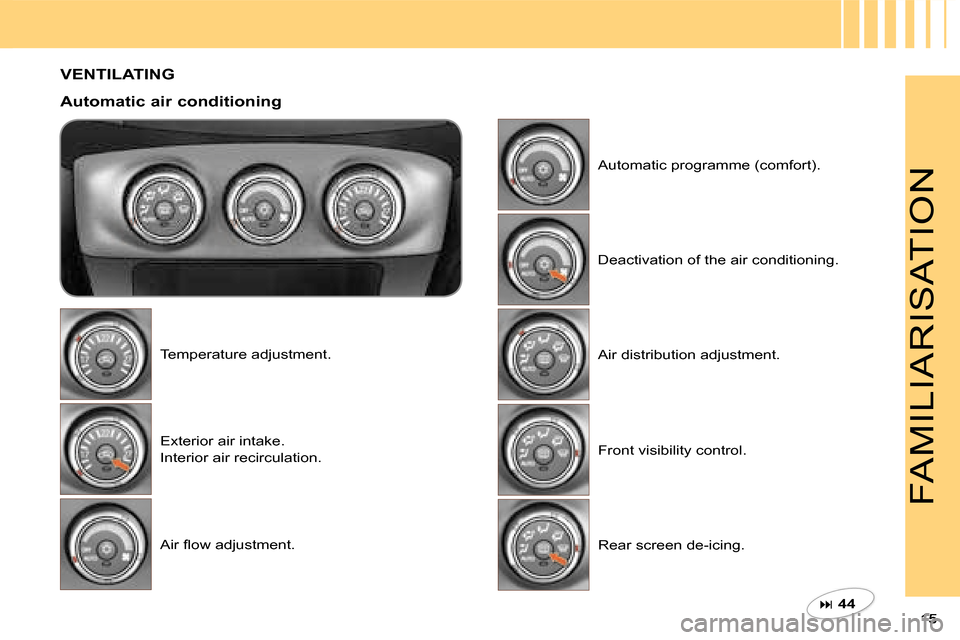

FAMILIARISATION
VENTILATING
Automatic air conditioning Temperature adjustment. Exterior air intake.
Interior air recirculation.
Air fl ow adjustment. Automatic programme (comfort).
Deactivation of the air conditioning.
Air distribution adjustment.
Front visibility control.
Rear screen de-icing.

 44

16
FAMILIARISATION
MONITORING
Instrument panel Controls bar

A. Speedometer.

B. Instrument panel display.

C. Rev counter.

D. Fascia lighting rheostat. When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to the
page concerned.
Warning lights

 19
A. Passenger air bag disarmed
warning light.
 106

B. Hazard warning lights switch.

 99

C. Front passenger’s seat belt not
fastened or unfastened warning
light.

 103

 20
Detection of fastening of the
driver’s seat belt When the ignition is switched
on, the seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.

 22

17
FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag Child lock

1. Insertion of the key.

2. Selection of the “OFF” position.

3. Removal of the key. This prevents opening of the door con-
cerned from the inside.
Lower or raise the control
A to lock or
unlock.

 106

 98 Isofix mounting
Two rings
A , located between the seat
back and seat cushion of the vehicle’s
seat, permit the securing of a child
seat.
A ring B permits securing of the upper
strap referred to as the TOP TETHER .

 95

18
FAMILIARISATION
Cruise control
This maintains a constant vehicle speed
programmed by the driver.

1. “ON/OFF” button: activation /
deactivation of the cruise control
mode.

2. “COAST SET” button: storing of a
driving speed then decreasing of
the cruising speed.

3. “ACC RES” button: increasing of
the cruising speed and recalling of
the stored speed.

4. “CANCEL” button: switching off of
the cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects any obstacle (person, ve-
hicle, tree, gate, etc.) located behind
the vehicle.
The vehicle is fi tted with four sensors:

D. two side sensors.

E. two central sensors.
Audible rear parking assistance

 114  116
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements:

A. Two wheel drive (2WD),

B. Four wheel drive (4WD AUTO),

C. Four wheel drive (4WD LOCK).

 112
Also...
You can change transmission mode
when stationary or when driving at a
speed below 60 mph (100 km/h).

I N S T R U M E N T S a n d C O N T R O L S
I
19

1. Speedometer.

2. Left-hand direction indicator and
hazard warning lights indicator
light.

3. Main beam headlamps indicator
light.

4. Diesel pre-heating indicator light.

5. Side lights indicator light.

6. Front fog lamps indicator light.

7. Seat belt not fastened / unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT PANEL

18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

8. Rear fog lamps indicator light.

9. Anti-lock braking system (ABS)
warning light.

10. Battery charge fault warning light.

11. Handbrake applied and brake fl uid
level warning light.

12. Cruise control mode indicator light.

13. Air bags warning light.

14. Engine management warning light.

15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator
light.

16. Rev counter.

17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
