Some automatic downshifts can occur to maintain
minimum engine speed. This only happens if the vehicle
is left in too high of a gear for the vehicle’s speed.
For example, if you have been driving in sixth gear
range and come to a stop without manually
downshifting, the transmission automatically downshifts
to rst gear and displays rst gear on the HUD. As
you begin to drive and accelerate, the transmission
remains in rst gear until the driver selects an upshift.
DSC can be used while using cruise control, but
transmission shifting is different while the cruise control
is on. This is not a malfunction and is necessary to
let proper operation of the cruise control.
To return to fully automatic operation, move the shift
lever to the right and back into DRIVE (D).
When accelerating your vehicle from a stop in snowy
and icy conditions, you may want to shift into second
gear. A higher gear lets you gain more traction on
slippery surfaces.
In higher gears, on the XLR only, an automatic downshift
occurs if you press the accelerator pedal to the oor.
This feature provides adequate acceleration capabilities
if you forget to downshift manually. Tap the shifter
forward and the vehicle upshifts.Parking Brake
The parking brake pedal is
located to the left of the
regular brake pedal,
near the driver’s door.
To set the parking brake, hold the regular brake pedal
down with your right foot and push the parking brake
pedal down with your left foot.
If the ignition is on, the parking brake indicator light
on the instrument panel cluster should come on.
If it does not, you need to have your vehicle serviced.
2-30

{CAUTION:
The Ultrasonic Rear Parking Assist (URPA)
system does not replace driver vision.
It cannot detect:
objects that are below the bumper,
underneath the vehicle, or if they are
too close or far from the vehicle
children, pedestrians, bicyclists, or pets.
If you do not use proper care before and while
backing; vehicle damage, injury, or death
could occur. Even with URPA, always check
behind your vehicle before backing up.
While backing, be sure to look for objects
and check your vehicle’s mirrors.The display is located
between the driver and
passenger seatbacks.
URPA uses three color-coded lights to provide distance
and system information.
How the System Works
URPA comes on automatically when the shift lever is
moved into REVERSE (R). The rear display will then
briey illuminate to let you know the system is working.
URPA operates only at speeds less than 3 mph (5 km/h).
If you are above this speed, the red light on the rear
display will ash.
2-39

To be detected, objects must be at least 10 inches
(25.4 cm) off the ground and below trunk level.
Objects must also be within 5 feet (1.5 m) from your
rear bumper. This distance may be less during warmer
or humid weather.
A single beep will sound the rst time an object is
detected between 20 inches (0.5 m) and 5 feet (1.5 m)
away. Repeated beeping will occur when you are
closer than 20 inches (0.5 m) from the object.
The following describes what will occur with the URPA
display as you get closer to a detected object:
Description English Metric
amber light 5 ft 1.5 m
amber/amber lights 40 in 1.0 m
amber/amber/red
lights/continuous beep20 in 0.5 m
amber/amber/red
lights ashing and
continuous beep1 ft 0.3 m
When the System Does Not Seem to
Work Properly
The ultrasonic sensors are not clean, a red URPA
display light may illuminate when the vehicle is in
REVERSE (R). Keep your rear bumper free of mud,
dirt, snow, ice and slush. For cleaning instructions,
seeWashing Your Vehicle on page 6-83.
A trailer was attached to your vehicle, or a bicycle
or an object was hanging out of your trunk during
your last drive cycle, the red light may illuminate.
Once the attached object is removed, URPA
will return to normal operation.
The vehicle’s bumper is damaged. Take the vehicle
to your dealer/retailer to repair the system.
Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled, after driving forward at
least 15 mph (25 km/h), take your vehicle to your
dealer/retailer.
2-40

5. Push and hold
the bottom of the
retractable hardtop
button located on
the console behind
the shifter lever.
The windows will automatically lower and the top will
automatically lower into the storage area. A chime
will sound when the top has lowered completely.
If the radio is on, the sound may be muted briey while
the retractable top is lowered. This occurs because
a new audio system equalization is being loaded.
Under certain conditions, the Driver Information Center
(DIC) may display messages regarding the retractable
hardtop. SeeDIC Warnings and Messages on
page 3-63for more information.
If the retractable hardtop does not operate, and there
are no messages displayed on the Driver Information
Center (DIC), then perform the “Power Window Initialize”
steps underPower Windows on page 2-17.Raising the Retractable Hardtop
1. Park on a level surface. Shift the transmission
into PARK (P).
2. The vehicle’s engine must be on or in Acc.
3. Lower both sun visors.
Notice:Raising or lowering the top while the vehicle
is in motion can cause damage to the top or top
mechanism. Make sure the vehicle is in PARK (P)
to lower or raise the top.
4. Make sure nothing or no one is on or around the
top. Make sure the trunk cargo cover is in place
with no cargo on top of or in front of the cargo
cover. SeeRear Storage Area on page 2-53for
more information. Also, be sure the valet lockout
switch is off.
5. Push and hold the
top of the retractable
hardtop button located
behind the shift lever.
The windows will
automatically lower
and the top will raise.
A chime will sound
when the top has
raised completely.
2-55

After the top is fully raised, release the retractable
hardtop button. If you press the button again within
ve seconds, the windows will automatically close.
If your radio is on, you may notice a brief mute in
sound. This is normal and due to a new audio system
equalization being loaded for the vehicle with the
top raised.
Under certain conditions, the Driver Information
Center (DIC) may display messages regarding the
retractable hardtop. SeeDIC Warnings and Messages
on page 3-63for more information.
If the retractable hardtop does not operate, and there
are no messages displayed on the Driver Information
Center (DIC), then perform the “Power Window Initialize”
steps underPower Windows on page 2-17.Manually Raising the Retractable Hardtop
If your vehicle has a power loss, such as a dead battery,
you can still raise the top manually by doing the following:
1. Lower both sun visors and open both doors.
2. Use the key to open the trunk. SeeKeys on
page 2-3andTrunk on page 2-13for more
information.
3. Raise the trunk by hand.
4. Find the hydraulic
pump under the
carpet on the rear
driver’s side of
the trunk. Open the
valve by turning
it counterclockwise
with your hand
until it stops.
Notice:Pressing the retractable hardtop button
when the hydraulic pump valve is open could
damage the pump. Always close the hydraulic pump
valve after the retractable hardtop has been closed
manually.
2-56

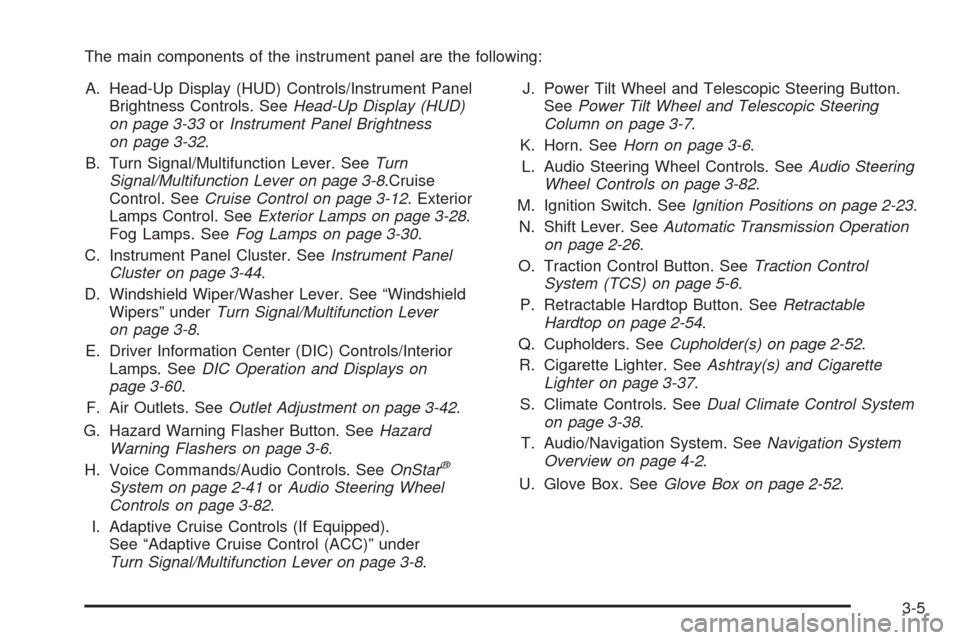

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Power Tilt Wheel and Telescopic
Steering Column.........................................3-7
Heated Steering Wheel...................................3-7
Turn Signal/Multifunction Lever.........................3-8
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-9
Flash-to-Pass.................................................3-9
Windshield Wipers........................................3-10
Rainsense™ Wipers......................................3-11
Windshield Washer.......................................3-12
Headlamp Washer........................................3-12
Cruise Control..............................................3-12
Adaptive Cruise Control.................................3-15
Exterior Lamps.............................................3-28
Wiper Activated Headlamps............................3-29
Headlamps on Reminder................................3-29
Daytime Running Lamps (DRL).......................3-29
Adaptive Forward Lighting System...................3-30
Fog Lamps..................................................3-30Twilight Sentinel®..........................................3-31
Exterior Lighting Battery Saver........................3-32
Instrument Panel Brightness...........................3-32
Courtesy Lamps...........................................3-32
Entry/Exit Lighting.........................................3-32
Reading Lamps............................................3-32
Battery Run-Down Protection..........................3-33
Head-Up Display (HUD).................................3-33
Accessory Power Outlet(s).............................3-36
Ashtray(s) and Cigarette Lighter......................3-37
Climate Controls............................................3-38
Dual Climate Control System..........................3-38
Outlet Adjustment.........................................3-42
Passenger Compartment Air Filter...................3-42
Warning Lights, Gages, and Indicators............3-43
Instrument Panel Cluster................................3-44
Speedometer and Odometer...........................3-45
Trip Odometer..............................................3-45
Tachometer.................................................3-45
Safety Belt Reminders...................................3-46
Airbag Readiness Light..................................3-46
Passenger Airbag Status Indicator...................3-47
Charging System Light..................................3-49
Section 3 Instrument Panel
3-1

Voltmeter Gage............................................3-50
Brake System Warning Light..........................3-50
Antilock Brake System
Warning Light...........................................3-51
Traction Control System (TCS)
Warning Light...........................................3-52
Engine Coolant Temperature Gage..................3-53
Tire Pressure Light.......................................3-53
Malfunction Indicator Lamp.............................3-54
Engine Oil Pressure Gage.............................3-57
Security Light...............................................3-58
Fog Lamp Light............................................3-58
Lights On Reminder......................................3-58
Highbeam On Light.......................................3-58
Fuel Gage...................................................3-59Driver Information Center (DIC).......................3-60
DIC Operation and Displays...........................3-60
DIC Warnings and Messages.........................3-63
Other Messages...........................................3-74
DIC Vehicle Personalization............................3-76
Trip Computer................................................3-80
Oil Life Indicator...........................................3-80
Audio System(s).............................................3-81
Theft-Deterrent Feature..................................3-82
Audio Steering Wheel Controls.......................3-82
Radio Reception...........................................3-84
Care of Your CDs.........................................3-85
Care of the CD Player...................................3-85
Diversity Antenna System..............................3-85
XM™ Satellite Radio Antenna System.............3-85
Section 3 Instrument Panel
3-2

The main components of the instrument panel are the following:
A. Head-Up Display (HUD) Controls/Instrument Panel
Brightness Controls. SeeHead-Up Display (HUD)
on page 3-33orInstrument Panel Brightness
on page 3-32.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-8.Cruise
Control. SeeCruise Control on page 3-12. Exterior
Lamps Control. SeeExterior Lamps on page 3-28.
Fog Lamps. SeeFog Lamps on page 3-30.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-44.
D. Windshield Wiper/Washer Lever. See “Windshield
Wipers” underTurn Signal/Multifunction Lever
on page 3-8.
E. Driver Information Center (DIC) Controls/Interior
Lamps. SeeDIC Operation and Displays on
page 3-60.
F. Air Outlets. SeeOutlet Adjustment on page 3-42.
G. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
H. Voice Commands/Audio Controls. SeeOnStar
®
System on page 2-41orAudio Steering Wheel
Controls on page 3-82.
I. Adaptive Cruise Controls (If Equipped).
See “Adaptive Cruise Control (ACC)” under
Turn Signal/Multifunction Lever on page 3-8.J. Power Tilt Wheel and Telescopic Steering Button.
SeePower Tilt Wheel and Telescopic Steering
Column on page 3-7.
K. Horn. SeeHorn on page 3-6.
L. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-82.
M. Ignition Switch. SeeIgnition Positions on page 2-23.
N. Shift Lever. SeeAutomatic Transmission Operation
on page 2-26.
O. Traction Control Button. SeeTraction Control
System (TCS) on page 5-6.
P. Retractable Hardtop Button. SeeRetractable
Hardtop on page 2-54.
Q. Cupholders. SeeCupholder(s) on page 2-52.
R. Cigarette Lighter. SeeAshtray(s) and Cigarette
Lighter on page 3-37.
S. Climate Controls. SeeDual Climate Control System
on page 3-38.
T. Audio/Navigation System. SeeNavigation System
Overview on page 4-2.
U. Glove Box. SeeGlove Box on page 2-52.
3-5
