2008 CADILLAC XLR display

Treadwear Indicators:Narrow bands, sometimes
called wear bars, that show across the tread of
a tire when only 1/16 inch (1.6 mm) of tread
remains. SeeWhen It Is Time for New Tires on
page 6-66.
UTQGS (Uniform Tire Quality Grading
Standards)
:A tire information system that
provides consumers with ratings for a tire’s
traction, temperature, and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The ratings are
molded into the sidewall of the tire. SeeUniform
Tire Quality Grading on page 6-69.
Vehicle Capacity Weight
:The number of
designated seating positions multiplied by
150 lbs (68 kg) plus the rated cargo load.
SeeLoading Your Vehicle on page 5-22.
Vehicle Maximum Load on the Tire
:Load on
an individual tire due to curb weight, accessory
weight, occupant weight, and cargo weight.
Vehicle Placard
:A label permanently attached to
a vehicle showing the vehicle’s capacity weight
and the original equipment tire size and
recommended ination pressure. See “Tire and
Loading Information Label” underLoading
Your Vehicle on page 5-22.
Run-Flat Tires
Your vehicle, when new, had run-at tires. There is no
spare tire, no tire changing equipment, and no place
to store a tire in the vehicle. Run-at tires perform
so well without any air that a Tire Pressure Monitor
System (TPMS) is used to alert you if a tire has
lost pressure.
{CAUTION:
When the low tire warning light is displayed on
the instrument panel cluster, your vehicle’s
handling capabilities will be reduced during
severe maneuvers. If you drive too fast, you
could lose control of your vehicle. You or others
could be injured. Do not drive over 55 mph
(90 km/h) when the low tire warning light is
displayed. Drive cautiously and check your tire
pressures as soon as you can.
If a tire goes at, you will not need to stop on the side
of the road to change the tire. You can just keep on
driving. The shorter the distance you drive and the
slower the speed, the greater the chance that the tire
6-58

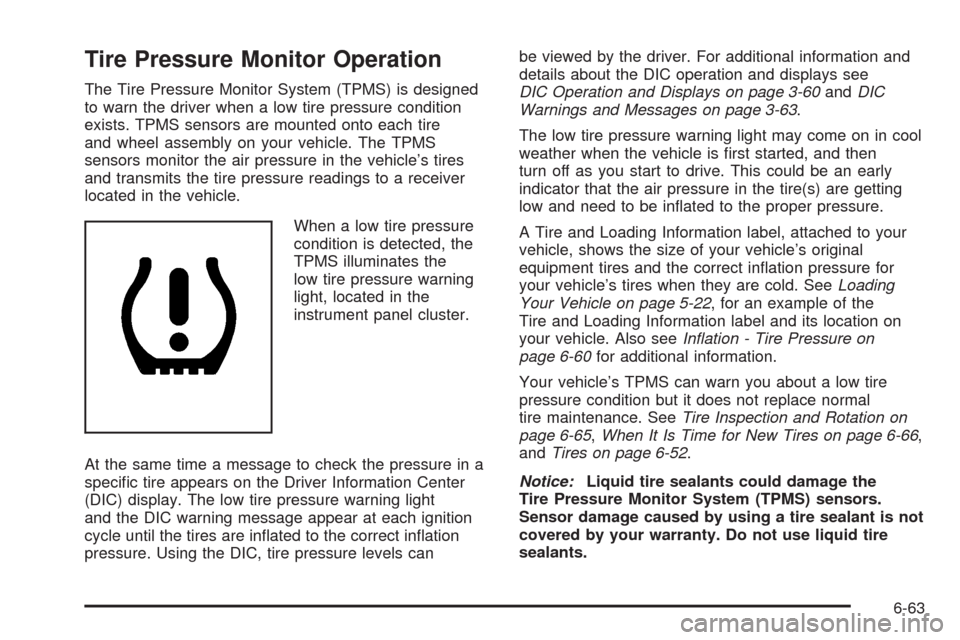

Tire Pressure Monitor Operation
The Tire Pressure Monitor System (TPMS) is designed
to warn the driver when a low tire pressure condition
exists. TPMS sensors are mounted onto each tire
and wheel assembly on your vehicle. The TPMS
sensors monitor the air pressure in the vehicle’s tires
and transmits the tire pressure readings to a receiver
located in the vehicle.
When a low tire pressure
condition is detected, the
TPMS illuminates the
low tire pressure warning
light, located in the
instrument panel cluster.
At the same time a message to check the pressure in a
specic tire appears on the Driver Information Center
(DIC) display. The low tire pressure warning light
and the DIC warning message appear at each ignition
cycle until the tires are inated to the correct ination
pressure. Using the DIC, tire pressure levels canbe viewed by the driver. For additional information and
details about the DIC operation and displays see
DIC Operation and Displays on page 3-60andDIC
Warnings and Messages on page 3-63.
The low tire pressure warning light may come on in cool
weather when the vehicle is rst started, and then
turn off as you start to drive. This could be an early
indicator that the air pressure in the tire(s) are getting
low and need to be inated to the proper pressure.
A Tire and Loading Information label, attached to your
vehicle, shows the size of your vehicle’s original
equipment tires and the correct ination pressure for
your vehicle’s tires when they are cold. SeeLoading
Your Vehicle on page 5-22, for an example of the
Tire and Loading Information label and its location on
your vehicle. Also seeInflation - Tire Pressure on
page 6-60for additional information.
Your vehicle’s TPMS can warn you about a low tire
pressure condition but it does not replace normal
tire maintenance. SeeTire Inspection and Rotation on
page 6-65,When It Is Time for New Tires on page 6-66,
andTires on page 6-52.
Notice:Liquid tire sealants could damage the
Tire Pressure Monitor System (TPMS) sensors.
Sensor damage caused by using a tire sealant is not
covered by your warranty. Do not use liquid tire
sealants.
6-63

TPMS Malfunction Light and Message
The TPMS will not function properly if one or more of the
TPMS sensors are missing or inoperable. When the
system detects a malfunction, the low tire warning light
ashes for about one minute and then stays on for
the remainder of the ignition cycle. A DIC warning
message is also displayed. The low tire warning light
and DIC warning message come on at each ignition
cycle until the problem is corrected. Some of the
conditions that can cause the malfunction light and
DIC message to come on are:
The TPMS sensor matching process was not done
or not completed successfully. The DIC message
should go off after successfully completing the
sensor matching process.
One or more TPMS sensors are missing or
damaged. Under these conditions the TPMS
malfunction light (low tire warning light) comes on,
and at the same time the DIC message is
displayed. The DIC message and TPMS malfunction
light should go off once the TPMS sensors are
installed and the sensor matching process is
performed successfully.
Replacement tires or wheels do not match your
vehicle’s original equipment tires or wheels.
Tires and wheels other than those recommended
for your vehicle could prevent the TPMS from
functioning properly. SeeBuying New Tires on
page 6-67.
Operating electronic devices or being near facilities
using radio wave frequencies similar to the TPMS
could cause the TPMS sensors to malfunction.
If the TPMS is not functioning it cannot detect or
signal a low tire condition. See your dealer/retailer for
service if the TPMS malfunction light and DIC message
comes on and stays on.
TPMS Sensor Matching Process
Each TPMS sensor has a unique identication code.
Any time you replace one or more of the TPMS sensors
or rotate your vehicle’s tires, the identication codes
will need to be matched to the new tire/wheel position.
The sensors are matched to the tire/wheel positions
in the following order: driver side front tire, passenger
side front tire, passenger side rear tire, and driver
side rear tire using a TPMS diagnostic tool. See your
dealer/retailer for service.
6-64

{CAUTION:
When the TIRE FLAT MAX SPD 55, REDUCED
HNDLG message is displayed on the Driver
Information Center, your vehicle’s handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could
lose control of your vehicle. You or others
could be injured. Don’t drive over 55 mph
(90 km/h) when the TIRE FLAT MAX SPD 55,
REDUCED HNDLG message is displayed.
Drive cautiously and check your tire pressures
as soon as you can.
If the TPM system detects a tire pressure below
5 psi (34 kPa), the TIRE FLAT MAX SPD 55, REDUCED
HNDLG warning message is displayed on the Driver
Information Center (DIC). SeeDIC Operation and
Displays on page 3-60andDIC Warnings and Messages
on page 3-63for information and details about the
DIC operation and displays.
{CAUTION:
Special tools and procedures are required to
service a run-at tire. If these special tools and
procedures are not used you or others could
be injured and your vehicle could be damaged.
Always be sure the proper tools and
procedures, as described in the service
manual, are used.
Notice:Using liquid sealants can damage the tire
valves and tire pressure monitor sensors in your
vehicle’s run-at tires. This damage would not
be covered by warranty. Do not use liquid sealants
in your vehicle’s run-at tires.
To order a service manual, seeService Publications
Ordering Information on page 8-16.
If a tire goes at, the stability control system will turn
on automatically even if it was disabled by the driver.
When a at tire condition exists the StabiliTrak
®system
cannot be turned off. SeeStabiliTrak®System on
page 5-8.
6-79

Fuses Usage
FUSE PULLER Fuse Puller
REVERSE
LAMPReverse Lamp
RUN/CRANK Starter/Crank
PRK/BRK
SOL AParking Brake Solenoid A
REVERSE
LAMPSReverse Lamps
BTSI SOL/
COL LOCKBTSI Solenoid, Column Lock
EMPTY Not Used
EMPTY Not Used
GMLAN
DEVICESGMLAN Devices
RPA/H/C
SEAT/WPR
RELAYSRear Park Aid, Heated/Cooled
Seats, Windshield Wiper Relays
DR LOCKS Door Locks
ECM Engine Control Module
INTERIOR
LIGHTSInterior LightsFuses Usage
SDM/PSIR SW Airbags
EMPTY Not Used
ONSTAR OnStar
®
ACCA/DRIV
DR SWAdaptive Cruise Control (ACC),
Driver Door Switch
TILT/TELE
SW/MEM SEAT
MOD/TOP SWPower Tilt Wheel, Telescopic
Steering Column, Memory Seat,
Driver Seat Switch, Retractable
Hardtop Switch
IGN SW/INTR
SNSRIgnition Switch, Intrusion Sensor
STOP LAMP Stop Lamp
ISRVM/HVACInside Rearview Mirror, Climate
Control System, Column Lock,
Power Sounder
CLSTR/HUDInstrument Panel Cluster, Head-Up
Display (HUD)
RADIO/
S-BAND/VICSRadio, S-Band, CD Changer
TUTD SW/
STRG COL SWTap-Up/Tap-Down Switch
HVAC/PWR
SNDClimate Control System, Power
Sounder
6-92

Customer Assistance Information (cont.)
GM Mobility Reimbursement Program............... 8-7
Reporting Safety Defects to General Motors....8-16
Reporting Safety Defects to the
Canadian Government..............................8-15
Reporting Safety Defects to the
United States Government.........................8-15
Roadside Service.......................................... 8-7
Service Publications Ordering Information........8-16
D
Database Coverage Explanations......................4-53
Daytime Running Lamps..................................3-29
Defensive Driving............................................. 5-2
Diversity Antenna System.................................3-85
Doing Your Own Service Work........................... 6-4
Door
Automatic Door Lock....................................2-12
Locks........................................................2-10
Power Door Locks.......................................2-12
Programmable Automatic Door Unlock............2-12
Driver Information Center (DIC).........................3-60
DIC Operation and Displays..........................3-60
DIC Vehicle Personalization..........................3-76
DIC Warnings and Messages........................3-63
Other Messages..........................................3-74Driving
At Night.....................................................5-14
Before a Long Trip......................................5-15
Defensive..................................................... 5-2
Drunken....................................................... 5-2
Highway Hypnosis.......................................5-16
Hill and Mountain Roads..............................5-16
In Rain and on Wet Roads...........................5-14
Rocking Your Vehicle to Get it Out.................5-22
Winter........................................................5-17
Dual Climate Control System............................3-38
DVD, CD Player.............................................4-70
E
Edit
Avoid Point/Area..........................................4-26
Memory Point.............................................4-20
Waypoint....................................................4-24
EDR .............................................................8-17
Electrical System
Add-On Equipment......................................6-89
Fuses and Circuit Breakers...........................6-90
Instrument Panel Fuse Block.........................6-90
Power Windows and Other Power Options......6-90
Underhood Fuse Block.................................6-94
Windshield Wiper Fuses...............................6-90
4

G
Gage
Engine Coolant Temperature.........................3-53
Engine Oil Pressure.....................................3-57
Fuel..........................................................3-59
Speedometer..............................................3-45
Tachometer.................................................3-45
Voltmeter Gage...........................................3-50
Garage Door Opener.......................................2-44
Gasoline
Octane........................................................ 6-5
Specications............................................... 6-5
Getting Started
Getting Started, Navigation............................. 4-4
Global Positioning System (GPS)......................4-50
Glove Box.....................................................2-52
GM Mobility Reimbursement Program.................. 8-7
H
Hazard Warning Flashers................................... 3-6
Headlamp
Aiming.......................................................6-47
Vertical Aiming............................................6-48Headlamps
Adaptive Forward Lighting System.................3-30
Bulb Replacement.......................................6-50
Daytime Running Lamps...............................3-29
Exterior Lamps............................................3-28
Flash-to-Pass............................................... 3-9
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-29
Washer......................................................3-12
Wiper Activated...........................................3-29
Head-Up Display (HUD)...................................3-33
Heated Seats................................................... 1-3
Heated Steering Wheel..................................... 3-7
Heater...........................................................3-38
Highbeam On Light.........................................3-58
Highway Hypnosis...........................................5-16
Hill and Mountain Roads..................................5-16
Hood
Checking Things Under................................6-10
Release.....................................................6-11
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-11
6
