The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing the
tire’s air pressure. If increasing the tire’s air pressure,
do not exceed the maximum ination pressure indicated
on the tire’s sidewall.
To decrease air-pressure out of a tire you can use the
pointed end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match the rst tire/wheel
position, and ve minutes overall to match all four
tire/wheel positions. If it takes longer than two minutes,
to match the rst tire and wheel, or more than
ve minutes to match all four tire and wheel positions
the matching process stops and you need to start over.
The TPMS sensor matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press the Remote Keyless Entry (RKE) transmitter’s
LOCK and UNLOCK buttons at the same time for
approximately ve seconds. The horn sounds twice
to signal the receiver is in relearn mode and
TIRE LEARNING ACTIVE message displays on
the DIC screen.
4. Start with the driver side front tire.5. Remove the valve cap from the valve cap stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for ve seconds,
or until a horn chirp sounds. The horn chirp,
which may take up to 30 seconds to sound,
conrms that the sensor identication code has
been matched to this tire and wheel position.
6. Proceed to the passenger side front tire, and repeat
the procedure in Step 5.
7. Proceed to the passenger side rear tire, and repeat
the procedure in Step 5.
8. Proceed to the driver side rear tire, and repeat the
procedure in Step 5. The horn sounds two times to
indicate the sensor identication code has been
matched to the driver side rear tire, and the TPMS
sensor matching process is no longer active.
The TIRE LEARNING ACTIVE message on the DIC
display screen goes off.
9. Turn the ignition switch to LOCK/OFF.
10. Set all four tires to the recommended air pressure
level as indicated on the Tire and Loading
Information label.
11. Put the valve caps back on the valve stems.
5-65

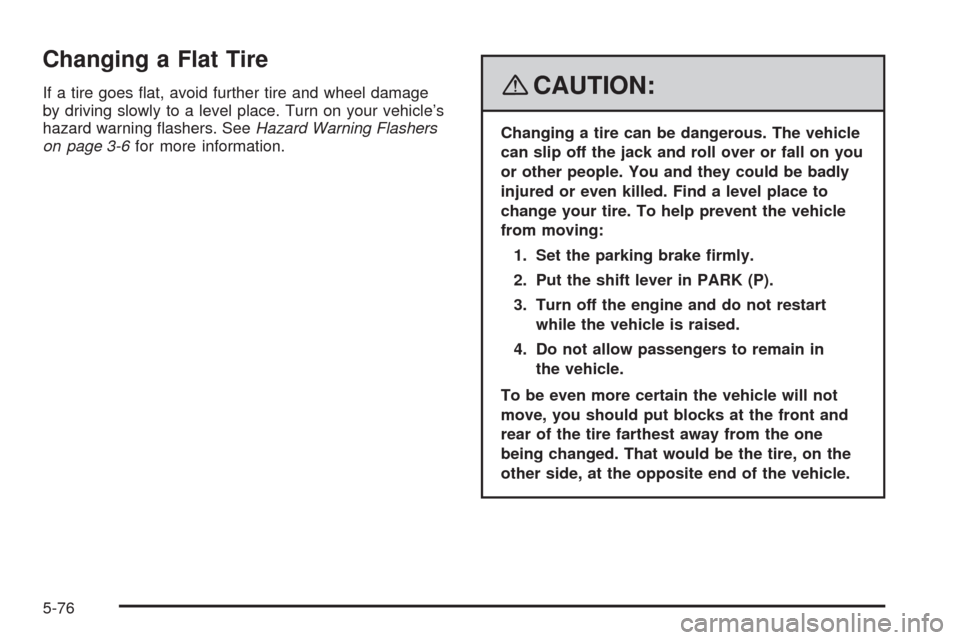

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your vehicle’s
hazard warning ashers. SeeHazard Warning Flashers
on page 3-6for more information.{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle will not
move, you should put blocks at the front and
rear of the tire farthest away from the one
being changed. That would be the tire, on the
other side, at the opposite end of the vehicle.
5-76

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle
that you can get along without — like the radio or
cigarette lighter — and use its fuse, if it is the correct
amperage. Replace it as soon as you can.
Underhood Fuse Block
The underhood fuse block is located in the engine
compartment on the right side of the vehicle. See
Engine Compartment Overview on page 5-12for more
information on location.
To access the fuses, push in the two tabs located on
each side of the fuse block cover. Then lift the cover off.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
5-101

Relays Usage
IGN Ignition Switch (ON)
STRTR Starter Solenoid
PWR/TRN Powertrain/Engine Control Module
HI BEAM High-Beam Headlamps
SPARE Spare
WPR Windshield Wiper System - On/Off
WPR HIWindshield Wiper
System - Low/High
HDLP WASH Headlamp Washer Pump (Option)
LO BEAM -
W/O HID/HIDLow-Beam Headlamps
REAR WASH Rear Washer Pump
HORN Horn
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
ACCYAccessory Power (Rear Wipers,
Inside Rearview Mirror)
J Case Fuses Usage
FAN 2 Right Cooling Fan Motor
SPARE Spare
FAN 1 Left Cooling Fan Motor
J Case Fuses Usage
BLWR Front Blower Motor Assembly
STRTR Starter Solenoid
LPDB 2LRPDB (Left Side Rear Power
Distribution Box)
ABS MOTOR Antilock Brake System Module
LPDB 1LRPDB (Left Side Rear Power
Distribution Box)
RPDB 1RRPDB (Right Side Rear Power
Distribution Box)
SPARE Spare
SPARE Spare
RPDB 2RRPDB (Right Side Rear Power
Distribution Box)
Mini Fuses Usage
FRT WASH Front Washer Pump
SPARE Spare
SPARE Spare
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
ABS IGNAntilock Braking System Ignition,
Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
5-103

Mini Fuses Usage
ECM/TCM IGNEngine Control Module/Transmission
Control Module Ignition Power,
Mass Airow Sensor (V6)
MISC IGN Air Quality Sensor
EMIS 1Pre 02 Sensors, Cam Phasor (V6),
Canister Purge (V6), Intake Manifold
Tuning Valve (V6)
SPARE Spare
DISPLYInstrument Panel Cluster, Climate
Control Module, Diagnostic Link
Connector
BCM 2LED Instrument Panel Dimming,
Overhead Lamps, Vanity Lamps
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
BCM 6Right Side Rear Stoplamp, Turn
Lamps, Key Capture Solenoid
RDO Radio
ODD COILSOdd Ignition Coils, Odd Fuel
Injectors
BCM 1 Body Control Module (BCM) Power
LT HI BEAM Left Side High-Beam HeadlampMini Fuses Usage
BCM 7/CLOCK Switch Dimming, Analog Clock
SPARE Spare
EMIS 2Cooling Fan Relays, Air Conditioning
Clutch Relay, Post O2 Sensors,
Mass Airow Sensor (V8),
Canister Purge (V8)
ECM BATT Engine Control Module (ECM)
RT HI BEAM Right Side High-Beam Headlamp
RVC SNSRBattery Regulated Voltage
Control Sense
FOG LAMP Front Fog Lamps
ECM 1 Engine Control Module (ECM)
BCM 5Left Side Front Turn Lamps,
Rear Stoplamps, Turn Lamps
WPR Windshield Wiper Motor
SPARE Spare
BCM 4Center High-Mounted Stoplamp
(CHMSL), Back-up Lamps
CIGInstrument Panel Accessory Power
Outlet (Cigarette Lighter)
RT LO BEAM Right Side Low-Beam Headlamp
5-104

(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades,
if contaminated. Replace wiper blades that are worn
or damaged. See Windshield Wiper Blade Replacement
on page 5-49 and Windshield and Wiper Blades on
page 5-95 for more information.
(e)Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any
other loose or damaged safety belt system parts.
If you see anything that might keep a safety belt system
from doing its job, have it repaired. Have any torn
or frayed safety belts replaced. Also see Checking
the Restraint Systems on page 1-72.
(f)Lubricate all key lock cylinders, hood latch
assemblies, secondary latch, pivots, spring anchor,
release pawl, hood hinges, body door hinges, rear
compartment hinges, sunroof tracks, and any folding
seat hardware. More frequent lubrication could be
required when exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a clean
cloth will make them last longer, seal better, and
not stick or squeak. See Weatherstrips on page 5-94.
(g)A fluid loss in any vehicle system could indicate
a problem. Have the system inspected and repaired
and the fluid level checked. Add fluid if needed.(h)Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, flush, and refill cooling system. This service can
be complex; you should have your dealer/retailer perform
this service. See Engine Coolant on page 5-23 for what to
use. Inspect hoses. Clean radiator, condenser, pressure
cap, and filler neck. Pressure test the cooling system and
pressure cap.
(j)If you drive regularly under dusty conditions, the filter
could require replacement more often.
(k)If you drive regularly under dusty conditions, inspect
the filter at each engine oil change.
(l)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
(m)If using DOT-4 brake fluid only: Drain, flush, and
refill brake hydraulic system at a regular maintenance
service every two years. This service can be complex;
you should have your dealer/retailer perform this service.
See Brakes on page 5-35.
6-8

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-34.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N).
If the vehicle starts in any other position, contact
your dealer/retailer for service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-34.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out of PARK (P), contact your dealer/retailer
for service.
6-10

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
The ignition should turn to LOCK/OFF only
when the shift lever is in PARK (P).
The ignition key should come out only in
LOCK/OFF.
Contact your dealer/retailer if service is required.
Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability: With
the engine running and the transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care
to clean thoroughly any areas where mud and other
debris can collect.
6-11
