2008.5 Peugeot Partner engine

Fuel
120
FILLING WITH FUEL
Low fuel level The fuel tank must be fi lled
with the
engine off .
- Open the fuel fi ller fl ap.
- Insert the key, then turn it a quarter turn.
- Remove the cap and hook it onto the clip located on the inside of the
fl ap.
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used.
When fi lling the fuel tank, do not
continue after the 3 rd cut-off of the
nozzle. This could cause malfunctions.
The capacity of the fuel tank is
approximately 60 litres.
- After fi lling the fuel tank, lock the cap and close the fl ap.
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
The fl ashing of this warning
light is accompanied by a
message on the display.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
-
switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi ll the fuel tank with at least fi ve litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover,
- operate the starter until the engine starts.
Refer to the "Under the bonnet"
section of chapter 7.
When fi lling with fuel, with the fuel
fi ller fl ap open, ensure that no one
attempts to open the sliding side
door.
When the minimum fuel tank
level is reached, this warning
light comes on.
You then have

approximately 8 litres of
fuel remaining. Fill up without delay to
avoid running out of fuel.

121
Battery
TROUBLESHOOTING
8
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
diffi culties are experienced after this,
please contact a PEUGEOT dealer.
After changing bulbs, wait
approximately 3 minutes before
reconnecting the battery. I
t is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
ECONOMY MODE
To charge the battery using a
battery charger
- Disconnect the battery,
- Follow the instructions for use given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
To start the vehicle from
another battery
- Connect the red cable to the positive (+) terminals of the two
batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables. After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging of the battery.
Once the thirty minutes are over, the
active functions are put on standby
and the battery warning light fl ashes
accompanied by a message on the
display.
To resume the use of these functions
immediately, start the engine and let it
run for a few minutes.
The time available will then be double
the time for which the engine was left
running. However, this time will always
be between fi ve and thirty minutes.
A fl at battery will prevent the engine
from starting.

135
TROUBLESHOOTING
8
Changing a fuse
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped headlamp
18 15 Left-hand dipped headlamp

137
TROUBLESHOOTING
8
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
BEING TOWED From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the fl at part of the towing eye,
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in neutral, failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance when
the engine is started again.
Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.
The towing eye is stored in the tool kit,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.

143
TECHNICAL DATA
9
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight

GVW: gross vehicle weight

MOM: kerb weight

CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90 %.
For further information, consult your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle’s towing capacities
and its gross train weight, consult a
PEUGEOT dealer.

144
Weights

Weights
Model codes

Number
of seats
Engine GTW GVW MOM CVA Body type
Engine
code
Gearbox

Van L1 -
625 kg 2

1.6 Petrol 90 2 935 1 960 1 413 40

7A NFR
C
1.6 HDi 75 2 935 1 960 1 411 40 9H T
1.6 HDi 90 3 135 1 960 1 411 50 9H X
3
1.6 Petrol 90 2 955 1 980 1 430 40

7B NFR
C
1.6 HDi 75 2 955 1 980 1 429 40 9H T
1.6 HDi 90 3 105 1 980 1 429 50 9H X
L1 -
850 kg 2

1.6 Petrol 90 2 935 2 185 1 413 30

7C NFR
C
1.6 HDi 75 2 935 2 185 1 411 30 9H T
1.6 HDi 90 3 135 2 185 1 411 40 9H X
3
1.6 Petrol 90 2 955 2 205 1 430 30

7D NFR
C
1.6 HDi 75 2 955 2 205 1 429 30 9H T
1.6 HDi 90 3 105 2 205 1 429 40 9H X
L2 -
750 kg 2 1.6 HDi 90 3 130 2 130 1 459 40
7E 9HX C
3 1.6 HDi 90 3 100 2 150 1 476 40 7F 9HX C

Platform
cab L1 -
1 000 kg 2 1.6 HDi 90 3 127 2 227 1 302 40
7G 9HX C

145
TECHNICAL DATA
9
Diesel - Petrol engines
ENGINES AND GEARBOXES
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 PETROL 1.6 HDi 1.6 HDi
Power (bhp) 90 75 90
EU standard maximum power (kW/DIN) 66 55.2 66.2
Engine speed (rpm) 5 800 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max power engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
Catalytic converter Yes Yes Yes

146

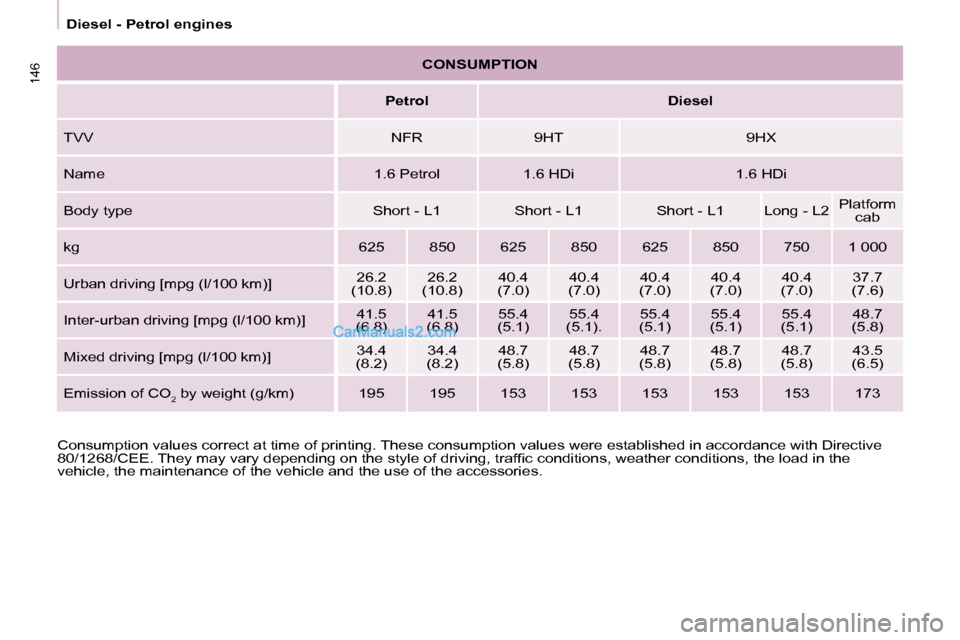

Diesel - Petrol engines
Consumption values correct at time of printing. These consumptio n values were established in accordance with Directive
80/1268/CEE. They may vary depending on the style of driving, t raffi c conditions, weather conditions, the load in the
vehicle, the maintenance of the vehicle and the use of the accessories.

CONSUMPTION

Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 Petrol 1.6 HDi 1.6 HDi
Body type Short - L1 Short - L1 Short - L1 Long - L2 Platform
cab
kg 625 850 625 850 625 850 750 1 000
Urban driving [mpg (l/100 km)] 26.2
(10.8) 26.2
(10.8) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 37.7
(7.6)
Inter-urban driving [mpg (l/100 km)] 41.5
(6.8) 41.5
(6.8) 55.4
(5.1) 55.4
(5.1). 55.4
(5.1) 55.4
(5.1) 55.4
(5.1) 48.7
(5.8)
Mixed driving [mpg (l/100 km)] 34.4
(8.2) 34.4
(8.2) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 43.5
(6.5)
Emission of CO 2 by weight (g/km) 195 195 153 153 153 1
53 153 173
