2008.5 Peugeot Partner Owner's Manual

131
TROUBLESHOOTING
8
Changing a bulb
NUMBER PLATE LIGHTS
- Unscrew the two nuts.
- Push the pins.
- If necessary, disconnect the connector to remove the light.
- Change the bulb.
With tailgate
- Move aside the plastic lens using a
screwdriver.
- Change the bulb.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT

Type A, W 16 W - 16 W
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.
- Put the bulb holder back in place and reconnect the connector.
- Put the trim back in place.

Type A, W 5 W - 5 W

132
Changing a fuse
CHANGING A FUSE
The fuse boxes are placed:
- in the lower part of the fascia on the left-hand side (behind the cover),
- under the bonnet (near the battery).
If fi tted on your vehicle, an additional
fuse box is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
modifi cations. It is located on the right
behind the load retaining partition.
The indications communicated are only
those fuses which can be changed
by the user using the pliers and the
spare fuses, located behind the fascia
storage compartment on the right-
hand side. For any other work, visit a
PEUGEOT dealer.
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
For professionals: for complete
information concerning the fuses
and relays, consult the "Methods"
diagram via the Network.
Before replacing a fuse, the cause
of the incident must be found and
rectifi ed.
- Use the pliers.

133
TROUBLESHOOTING
8
Changing a fuse
FASCIA FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Spare
3 5 Air bag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy light, front map reading light, roof
console
8 20 Audio equipment, CD changer, display, tyre under-
infl ation detection, alarm and siren
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and brightness sensor, air bag
13 5 Instrument panel
14 15 Parking assistance, automatic air conditioning
controls, hands-free kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors de-icing

134
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the modifi er-coachbuilder
for which the handbook cannot be
used as a technical support. Fuses F Amperes
A Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12 V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lights

135
TROUBLESHOOTING
8
Changing a fuse
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped headlamp
18 15 Left-hand dipped headlamp

136
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the ignition, press the wipers
stalk downwards to position the
wiper blades along the windscreen
uprights (special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE

137
TROUBLESHOOTING
8
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
BEING TOWED From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the fl at part of the towing eye,
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in neutral, failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance when
the engine is started again.
Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.
The towing eye is stored in the tool kit,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.

138

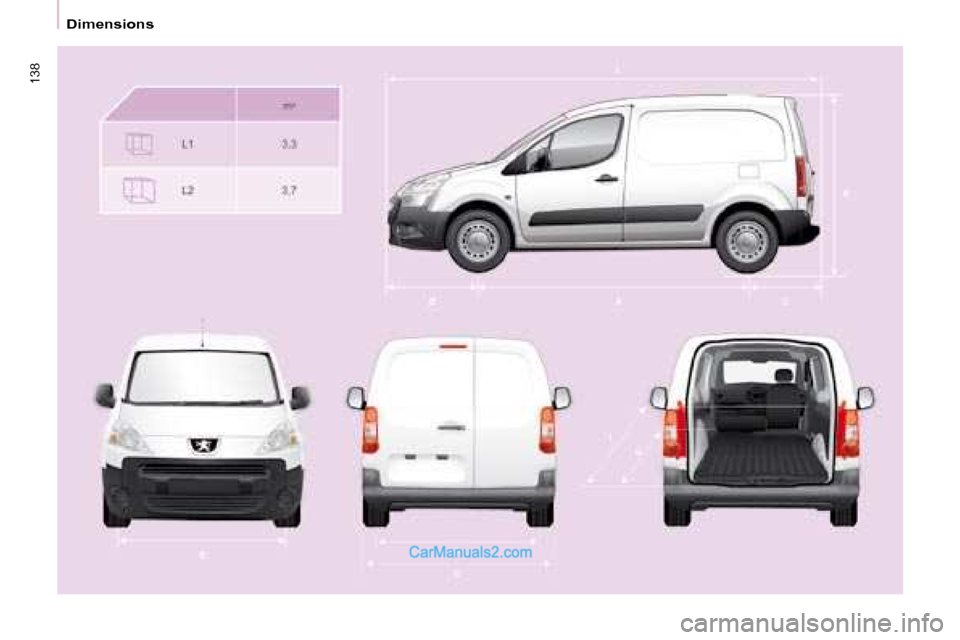

Dimensions
