96
Child safety
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (LIGHT VAN)
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the vehicle.

Weight of the child and indicative age

Seat
Under 13 kg
(groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U

a
:
Group 0: from birth to 10 kg.

b
: consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child sea t secured using a seat belt and universally approve d, "rear facing" and/or "forward facing".

97
5
SAFETY
Child safety

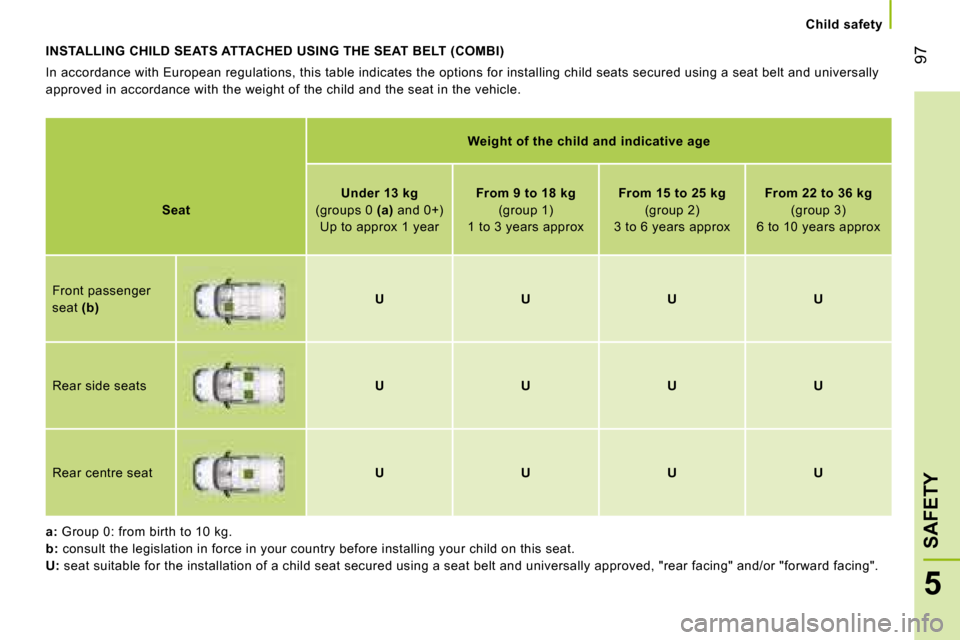

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (COMBI)
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the vehicle.

a
: Group 0: from birth to 10 kg.

b
: consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child sea t secured using a seat belt and universally approve d, "rear facing" and/or "forward facing".

Weight of the child and indicative age

Seat
Under 13 kg
(groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Rear side seats
U U U U
Rear centre seat
U U U U

98
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child’s protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child’s body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle’s seat and that the head restraint
does not cause any discomfort. Installing a booster seat
The chest part of the seat belt must be
positioned on the child’s shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
To protect young children from the sun, fit
side blinds on the rear windows.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Disarm the passenger air bag when a "rear
facing" child seat is installed on the front
seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.

99
5
SAFETY
Child safety
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX regulation.
The mountings comprise three rings for each
rear bench side seat:
- two front rings, located between the vehicle seat back and cushion,
- a rear ring, for securing the upper strap referred to as the TOP TETHER.
This ISOFIX mounting system guarantees
you fast, reliable and safe fitting of the child
seat in your vehicle.
The ISOFIX child seats are fitted with two
locks which are secured easily on the two
front rings. Some also have an upper strap which is
attached to the rear ring.
To attach this strap, raise the vehicle seat’s
head restraint then pass the hook between
its rods. Then fix the hook on the rear ring
and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
ISOFIX RÖMER Duo Plus
(size category B1 )

Group 1: from 9 to 18 kg


Installed in the forward facing position.
Fitted with an upper strap to be secured
on the ISOFIX upper ring,
referred to as the TOP TETHER.
Three seat body angles:
sitting, reclining, lying.
This child seat can also be used on
seats which are not fitted with ISOFIX
mountings.
In this case, it must be attached to the
vehicle seat using the three point seat belt.

Follow the instructions for fitting
the child seat given in the seat
manufacturer ’s installation guide.

100
Child safety
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (COMBI)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats on the vehicle
seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal IS OFIX child seats, the child seat’s ISOFIX size cate gory, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX l ogo.

IUF: seat suitable for the installation of an I sofix U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.

IL-SU: seat suitable for the installation an I sofix S emi- U niversal seat which is:
- "rear facing" fitted with a "Top Tether" uppe r strap or a stay,
- "forward facing" fitted with a stay,
For the securing of the "Top Tether" upper strap, refer to the "Isofix Mountings" section.

X: seat which is not suitable for the installation o f an ISOFIX seat of the size category indicated.


Weight of the child/ indicative age

Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1

Universal and semi-universal ISOFIX
child seats which can be installed on the rear side seats
X IL-SU IL-SU IUF

101
6
ACCESSORIES
Towing a trailer
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Driving advice
A towed vehicle must free wheel: gearbox in
neutral.

Cooling: towing a trailer on a slope
increases the coolant temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed. In all cases, pay attention to the coolant
temperature.

102
Towing a trailer
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature
warning light comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.

Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 7) and of
the trailer, observing the recommended
pressure.

Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

ABS: the system only controls the vehicle,
not the trailer.

Rear parking assistance: the
assistance will be deactivated
automatically when an original PEUGEOT
towbar is used (see the "Rear parking
assistance" section of chapter 4).
Towbar
We recommend the use of original
PEUGEOT towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
PEUGEOT dealer .
If this equipment is not fitted by a PEUGEOT
dealer , it is essential that it is fitted using
the electrical pre-equipment located at the
rear of the vehicle in accordance with the
manufacturer ’s instructions.
The operation of the sensors is deactivated
automatically when the pin of the trailer
cable is inserted in the towbar socket.
When the trailer cable pin is removed, the
sensors are re-activated.

Distribution of loads
Dis t r ibut e t he load in t he t r ailer s o t hat t he
heav ies t objec t s ar e as c los e as pos s ible
t o t he ax le and t he nos e weight is c los e
t o t he max imum aut hor is ed wit hout ,
howev er, ex c eeding it . T he air dens it y
dec r eas es wit h alt it ude, s o r educ ing t he
per f or manc e of t he engine. T he max imum
t owed load mus t be r educ ed by 10 % f or
eac h 1 000 met r es of alt it ude. Ref er t o
t he " Tec hnic al dat a" c hapt er f or det ails of
t he weight s and t owed loads applic able t o
y our v ehic le and als o t o t he adminis t r at iv e
doc ument s ( V5 r egis t r at ion doc ument , . . . ) .

6
ACCESSORIES
Equipment

"Touring": seat covers
compatible with the side air
bags, boot tray, rubber mats,
carpet mats, 3D mats, net on rear
door, set of transverse bars on
longitudinal bars...
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
ROOF RACK AND ROOF BARS
To install the transverse roof bars or a
roof rack, use the fixings provided for this
purpose.
Maximum loads:
- on the roof rack: 80 kg,
- on the 3 transverse roof bars: 90 kg,
- on the 2 transverse roof bars fitted on the longitudinal bars: 90 kg.
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of accessories and original parts,
recommended by PEUGEOT, is offered by
"Accessories", in a catalogue and on line
from a PEUGEOT dealer.
Range of professional equipment
The parts department publishes an
accessories catalogue offering various
equipment and fittings, such as:
Towbars, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by a PEUGEOT dealer.
Roof bars, set of transverse roof bars,
loading roller.
Protective wood floor, non-slip wood floor,
wood side protection, window protection
grille.
"Accessories"
Another range is also available from
PEUGEOT Accessories; this is structured
around 5 groups:

"Protection": anti-theft alarm,
window engraving, first aid kit,
high visibility safety jacket, rear
parking assistance, warning
triangle, snow chains...
Never exceed the gross vehicle weight
(GVW).
