2008.5 PEUGEOT 807 Owners Manual

203
TROUBLESHOOTING
8

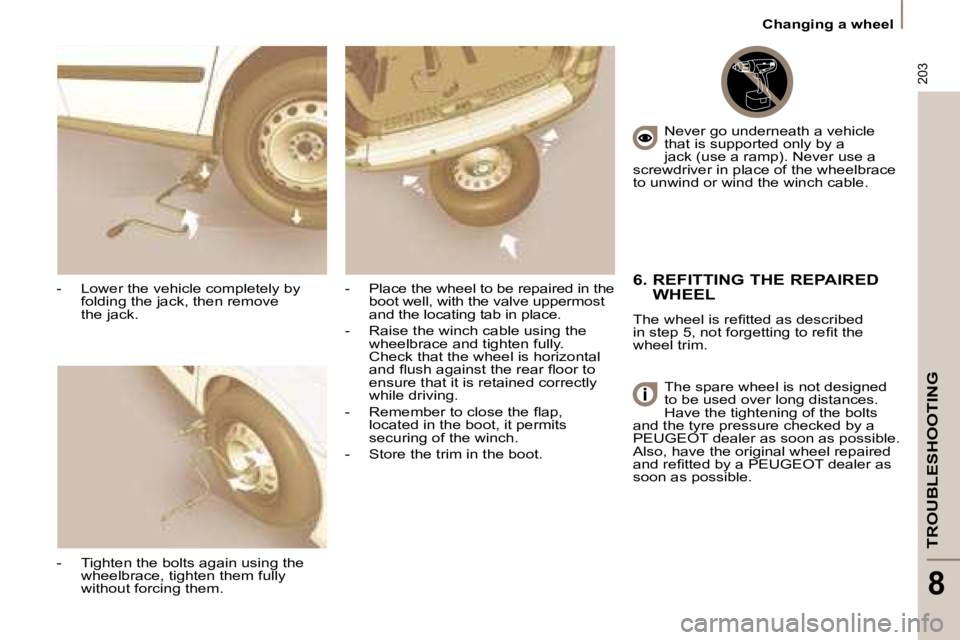

Changing a wheel
- Lower the vehicle completely by folding the jack, then remove
the jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them. - Place the wheel to be repaired in the
boot well, with the valve uppermost
and the locating tab in place.
- Raise the winch cable using the wheelbrace and tighten fully.
Check that the wheel is horizontal
and fl ush against the rear fl oor to
ensure that it is retained correctly
while driving.
- Remember to close the fl ap, located in the boot, it permits
securing of the winch.
- Store the trim in the boot. Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use a
screwdriver in place of the wheelbrace
to unwind or wind the winch cable.
6. REFITTING THE REPAIRED
WHEEL
The wheel is refi tted as described
in step 5, not forgetting to refi t the
wheel trim.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
and refi tted by a PEUGEOT dealer as
soon as possible.

204
Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry
cloth.
Make access easier on the right-hand
side by removing the wash-wipe pipe
and the fuse box cover.
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H7 - 55 W or xenon bulb.
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
When fi tting the new bulb, ensure that
the direction notches are positioned
correctly and the securing clip is fi xed
properly.
- Reconnect the connector.
- Refi t the protective cover, then turn it a quarter of a turn to the right.
3 - Fog lamps
H1 - 55 W 3 W.
FRONT LIGHTS

1. Dipped headlamps

2. Main beam headlamps

3. Fog lamps

4. Side lights

5. Direction indicators 1 - Dipped beam headlamps
H7 - 55 W or xenon bulb.
4 - Side lights
W 5 W.
- Push the light from the inside
towards the outside of the bumper.
- Pull the light forwards.
- Turn the bulb holder a quarter of a turn to the left and remove it.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
When refi tting, engage the light
towards the outside and move it
towards the inside of the bumper.

WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer .

205
TROUBLESHOOTING
8
Changing a bulb
Rear lights

1. Direction indicators
PY 21 W (amber).

2. Brake/side lights
P21/5 W.

3. Reversing lights
P21 W.

4. Fog lamps
P21 W.
5 -Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
The headlamps are fi tted with
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth,
nor with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions
(low temperature, humidity),
condensation inside the headlamp
glass is normal; it disappears a
few minutes after the lights are
switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn
to the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
When refi tting, engage the repeater
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs
(direction indicators and side
repeaters) must be changed for
bulbs of identical specifi cation and
colour. These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- remove the air extraction grille on
the side concerned,
- unclip the light harness,

205
TROUBLESHOOTING
8
Changing a bulb
Rear lights

1. Direction indicators
PY 21 W (amber).

2. Brake/side lights
P21/5 W.

3. Reversing lights
P21 W.

4. Fog lamps
P21 W.
5 -Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
The headlamps are fi tted with
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth,
nor with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions
(low temperature, humidity),
condensation inside the headlamp
glass is normal; it disappears a
few minutes after the lights are
switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn
to the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
When refi tting, engage the repeater
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs
(direction indicators and side
repeaters) must be changed for
bulbs of identical specifi cation and
colour. These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- remove the air extraction grille on
the side concerned,
- unclip the light harness,

206
Changing a bulb
THIRD BRAKE LIGHT
5 W 5 W bulbs.

- Remove the tailgate upper trim by unclipping it on each side.

- Squeeze the two tabs 1 to release
the bulb holder.

- Change the faulty bulb.

- When refi tting, ensure that the tailgate upper trim has been put
back in place correctly.
- unscrew the two interior nuts and
remove the light,
- unscrew the bulb holder concerned an eighth of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
When refi tting:
- take care to position the bulb
correctly and press on it to
engage it,
- take care to position the bulb holder correctly and screw it in an eighth
of a turn to the right,
- take care to position and secure the light correctly. NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.

207
TROUBLESHOOTING
8
Changing a fuse
CHANGING A FUSE
The fuse boxes are located in:
- the instrument panel lower glove box (right-hand side),
- the battery compartment (right-hand side fl oor),
- the engine compartment.
The spare fuses and special pliers A
are fi xed to the inside of the lid of the
instrument panel fuse box. Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
- Use the special pliers
A .

Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

207
TROUBLESHOOTING
8
Changing a fuse
CHANGING A FUSE
The fuse boxes are located in:
- the instrument panel lower glove box (right-hand side),
- the battery compartment (right-hand side fl oor),
- the engine compartment.
The spare fuses and special pliers A
are fi xed to the inside of the lid of the
instrument panel fuse box. Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
- Use the special pliers
A .

Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

208
Changing a fuse
INSTRUMENT PANEL FUSES
- Open the lower glove box on the right-hand side.
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions

1 15 Rear wiper.

2 - Not used.

3 5 Air bag control unit.

4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
switch, Headlamp beam height, Particle emission fi lter pump, Ele ctrochromatic interior mirror.

5 30 Electric mirrors, Electric window motor.

6 30 Front electric windows supply, Sunroof row 1.

7 5 Courtesy lights, Glove box light, Courtesy mirror lights.

8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer,
Audio/telephone, Trailer fuse box, Diesel additive control u nit, Tyre under-infl ation detection
control unit, Sliding doors module control unit.

9 30 Lighter.

10 15 Steering wheel switching, Trailer fuse box.

11 15 Diagnostic socket, Ignition switch, Automatic gearbox.

12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.

13 5 Engine fuse box, Trailer fuse box.

14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.

15 30 Locking/unlocking/deadlocking of the accesses.

16 - Not used.

17 40 Heated rear screen.
