2008.5 PEUGEOT 807 Owners Manual

161
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

162

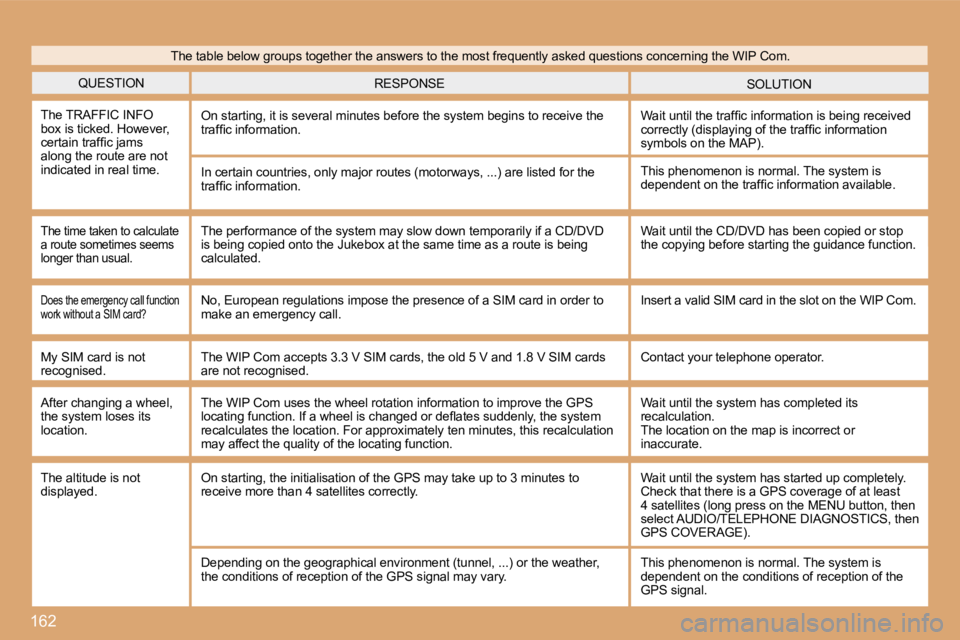

QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the MAP).
In certain countries, only major routes (motorways , ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD/DVD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD/DVD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card? No, European regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on the WIP Com.
My SIM card is not recognised. The WIP Com accepts 3.3 V SIM cards, the old 5 V a nd 1.8 V SIM cards are not recognised. Contact your telephone operator.
After changing a wheel, the system loses its location.
The WIP Com uses the wheel rotation information to improve the GPS locating function. If a wheel is changed or defl ates suddenly, the system recalculates the location. For approximately ten mi nutes, this recalculation may affect the quality of the locating function.
Wait until the system has completed its recalculation. The location on the map is incorrect or inaccurate.
The table below groups together the answers to the most frequently asked questions concerning the WIP Com.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.

163
QUESTION SOLUTION RESPONSE
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone’s Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone’s Bluetooth function is activated. - Check that your telephone is visible.
The table below groups together the answers to th e most frequently asked questions concerning the WI P Nav.
The route calculation is not successful. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a toll motorway). Check the exclusion criteria.
QUESTION SOLUTION RESPONSE

124
The WIP Nav is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for confi gurati on of the system.
This WIP Nav equipment will become available durin g the course of the year.
WIP Nav
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE BY SD CARD
CONTENTS

1
5
1001
2
346
13
11
9
1415
7812
1. On/Off. CD/SD card pause, mute for the radio. Long press: reinitialisation of the system.
2. Volume adjustment.
3. Selection of the RADIO source. Displaying of the l
ist of stations. Access to the RADIO menu.
4. Selection of the MUSIC source. Displaying of the t racks (CD) or of the folders (SD card). Access to the MUSIC menu.
3 - 4 Long press: access to the sound option settings (front/rear and left/right balance, bass/treble, equalizer, loudness, automatic volume adjustment, initialise the setting s).
5. Opening of the SETUP menu. Long press: access to the GPS coverage and the demonstration mode.
6. Opening of the PHONE menu and displaying of the ca ll list.
7. Selection of the successive displaying of: RADIO, Map, NAV (if navigation is in progress), Telephone (if a conversation is in progress), Trip Computer. Long press: displaying of a black screen (DARK).
8. Opening of the NAVIGATION menu and displaying of t he last destinations.
9. Opening of the TRAFFIC menu and displaying of the current traffi c alerts.
10. Abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: storing of the current radio station.
15. SD card reader.
FIRST STEPS
WIP Nav CONTROL PANEL

126
01
Opening of the RADIO or MUSIC menu depending on the source currently in use.
Opening of the Trip Computer menu.
When not in communication: displaying of the Telephone menu, make a call from the telephone number selected. Pick up (incoming call). Hang up (call in progress).
Selection and confi rmation.
On the menus and lists, a long press on certain functions permits access to additional menus. For example: a long press on a navigation destination permits saving of this destination to the address book.
There is no long press on the buttons of the additional control (with the exception of the NAV button and the central dial).
This symbol present on the pages of this handbook specifi es that the control panel button is also available via the additional control.
ADDITIONAL CONTROL

02
127
GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Display fl ow charts" section of this handbook.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO / MUSIC MEDIA PLAYERS
PHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters
TRAFFIC: TMC information and messages

128
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
Press the OK dial permits access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
alert log
status of functions
MUSIC MEDIA PLAYERS:
TA
play options
normal
random track
repeat folder
track intro
select music
NAV:
abort guidance
repeat advice
block road
route info
show dest.
trip info
route type
avoidance criteria
satellites
zoom/scroll
voice advice
route options
RADIO:
in FM mode
TA
RDS
radiotext
regional prog. (REG)
AM
in AM mode
TA
refresh AM list
FM
MAP:
abort/resume guidance
set destination
POIs nearby
position info
map settings
zoom/scroll
PHONE/TEL:
end call
hold call
dial
dtmf tones
private mode
micro off
SHORT-CUT MENUS
