Instruments and controls
READY TO SET OFF
2
ADJUSTING THE TIME
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
After approximately 30 seconds without any
action, the display returns to the normal
display. Centre console with display
The display - time sequence
is linked according to model
(version). The access to the Date
is only active when the model
version offers a date in words.
Centre console without display
To adjust the time of the clock
on the instrument panel, use
the left-hand button on the
instrument panel then carry out
the operations in the following order:
- turn to the left: the minutes flash,
- turn to the right to increase the minutes (hold the button to the right for rapid
scrolling),
- turn to the left: the hours flash,
- turn to the right to increase the hours (hold the button to the right for rapid
scrolling), To adjust the time indicated on the
display, refer to the "Adjusting the date
and time" section of chapter 4.

Instrument panel without display

Instruments and controls
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a check auto-test. They are switched off almost
immediately. When the engine is running: the warnin g light becomes a warning if it remains on continuously or flashes. This initial
warning may be accompanied by an audible signal and a message on the display.
Do not ignore these warnings

Warning light is indicates Solution - action

STOP lit, associated
with another
warning
light and
accompanied by
a message on
the display. major faults linked with the
"Brake fluid level", "Engine oil
pressure and temperature",
"Coolant temperature",
"Electronic brake force
distribution" and "Power
steering" warning lights.

You must stop, park, switch off the ignition and ca ll
a CITROËN dealer.

Handbrake/
Brake fluid
level/EBFD lit.
handbrake applied or not
released correctly. Releasing the handbrake switches off the warning l
ight.
lit. low brake fluid level. Top up using a fluid recommended by CITROËN .
remaining on,
even though the
level is correct
and associated
with the ABS
warning light. failure of the electronic brake
force distribution.

You must stop, park, switch off the ignition and ca ll a
CITROËN dealer.

Engine oil
pressure and
temperature lit while driving.
insufficient pressure or
temperature too high. Park, switch off the ignition and allow to cool. V
isually
check the level. Chapter 7, "Levels" section.
remaining on,
even though the
level is correct. major fault. Call a CITROËN dealer.

27
Instruments and controls
READY TO SET OFF
2

Warning light is indicates Solution-action

Coolant
temperature
and level lit with needle in
the red zone.
abnormal increase in
temperature. Park and switch off the ignition then allow to coo
l.
Visually check the level.
flashing. drop in coolant level. Chapter 7, "Lev els" section. Contact a CITROËN dealer.

Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on the
screen. See chapter 4, "Audio equipment - Trip
computer" section, depending on the seriousness of
the
fault, contact a CITROËN dealer.
remaining on. major faults.

Row 1 seat belt
not fastened lit then flashing.
the driver or a front passenger
has not fastened his seat belt. Pull the strap then insert the tongue in the buckl
e.
accompanied
by an audible
signal then
remains on. the vehicle is moving with the
driver or front passenger seat
belt not fastened. Check that the seat belt is fastened by pulling th
e strap.
Chapter 5, "Seat belts" section.
The driver must ensure that all passengers have
fastened their seat belt and use it correctly.

Driver’s seat
belt not fastened lit. the driver has not fastened his
seat belt. Pull the strap then insert the tongue in the buckl
e.

Passenger’s
seat belt not
fastened lit.
the front passenger has not
fastened his seat belt. Pull the strap then insert the tongue in the buckl
e.

28
Instruments and controls

Warning light is indicates Solution-action

Front/side/
curtain air bag flashing or
remaining on.
failure of an air bag. Have the system checked by a CITROËN dealer with
out
delay. Chapter 5, "Air bags" section.

Front
passenger air
bag disarmed lit. intentional disarming of this air
bag in the presence of a rear
facing child seat. Chapter 5, "Air bags-children on board" section.
Low fuel level lit with gauge
needle in the red
zone.
fuel reserve being used. Fill up with fuel without delay. The evaluation of
the fuel
reserve is a parameter which is sensitive to the st yle of
driving, the profi le of the road, the time elapsed and the
distance travelled from the time the warning light comes on.
flashing. cutting off of the supply
following a serious impact. Restore the supply. Chapter 7, "Fuel" section.

EOBD emission
control system flashing or
remaining on.
failure of the system. Have the system checked by a CITROËN dealer as
soon as possible.
Battery charge lit. fault in the charging circuit.
Check the battery terminals, … Chapter 8, "Battery
"
section.
flashing. placing of the active functions
on standby (economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. faulty circuit, injection or
ignition malfunction.
Call a CITROËN dealer.

ABS
ESP
29
Instruments and controls
READY TO SET OFF
2

Warning light is indicates Solution-action

Power steering lit. system malfunction. The vehicle retains conventional steering without
assistance. Have the system checked by a CITROËN
dealer.

Opening
detection lit and
accompanied by
a message on
the display.
access not closed correctly.
Check that the cab doors, the rear and side doors
and
the bonnet are closed (if your vehicle is fitted wi th an
alarm).

Rear
suspension
with pneumatic
compensation flashing.
abnormal difference between
the detected sill height and the
optimum sill height. In automatic correction mode: drive slowly (approx
imately
6 mph (10 km/h)) until the warning light is switche d off.
In manual correction mode: return the sill which is
still at the upper or lower limit to an optimum hei ght.
Chapter 4, "Rear suspension" section.
lit on starting or
while driving. failure of the pneumatic
compensation.
You must stop. Call a CITROËN dealer.

ABS remaining on. failure of the anti-lock braking
system. The vehicle retains conventional braking without
assistance but you are advised to stop. Call a CIT
ROËN
dealer.

ESP flashing.
triggering of regulation by the
ESP. The system optimises drive and permits improvement

of the directional stability of the vehicle. Chapte r 5,
"Driving safety" section.
remaining on. system malfunction. E.g.:
under-inflation of the tyres. E.g. Check the pressure of the tyres. Have them
checked by a CITROËN dealer.
remaining on
with the diode on
the button (on
the fascia) lit. deactivation of the system at
the request of the driver.
Operation of the system is deactivated.
Reactivation is automatic above 30 mph (50 km/h) o
r
after pressing the button (on the fascia).

30
Instruments and controls

Warning light is indicates Solution-action

Brake pads lit. brake pad wear. Have the pads replaced by a CITROËN dealer.

Dipped
headlamps/
Daytime lights
lit. manual selection or automatic
lighting.
Rotate the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is
switched on - daytime lights. Depending on the country in which the vehicle is s
old.
Chapter 3, "Steering wheel controls" section.

Main beam
headlamps pulling of the stalk towards you. Pull the stalk
to return to dipped headlamps.

Direction
indicators flashing with
buzzer. change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.

Front fog
lamps lit. manual selection. The fog lamps only operate if the side lights or d
ipped
headlamps are on.

Rear fog lamps lit. manual selection. The fog lamps only operate if the side lights or d
ipped
headlamps are on. In conditions of normal visibilit y,
take care to switch them off on penalty of being bo oked.
"This light is a dazzling red."

Particle
emission filter lit a malfunction of the particle
emission filter (diesel additive
level, risk of clogging, ...). Have the filter checked by a CITROËN dealer.
Chapter 7, "Checks" section.

31
Instruments and controls
READY TO SET OFF
2

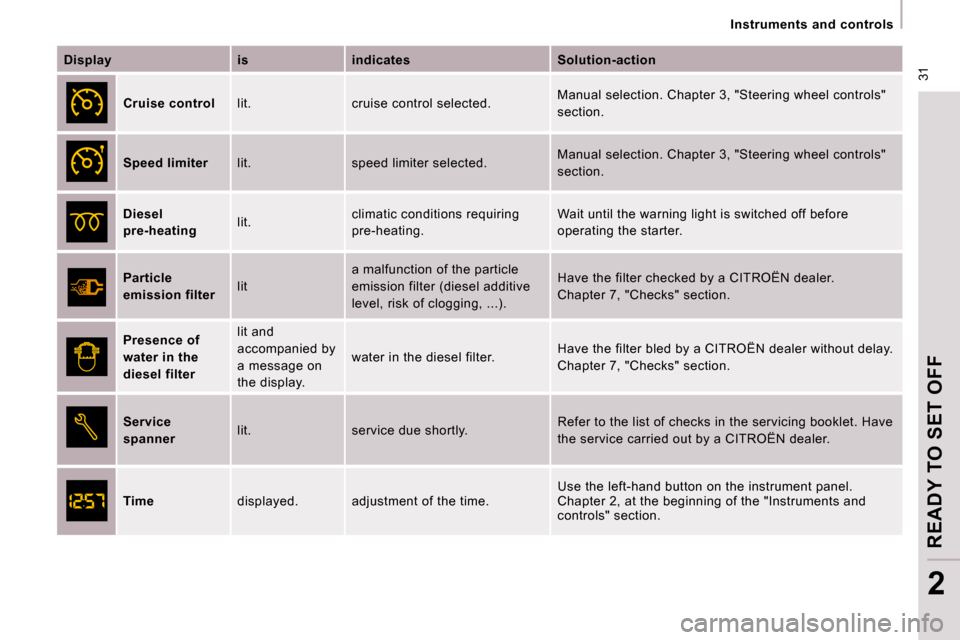

Display is indicates Solution-action

Cruise control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel contr
ols"
section.

Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel contr
ols"
section.

Diesel
pre-heating lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off befor
e
operating the starter.

Particle
emission filter lit a malfunction of the particle
emission filter (diesel additive
level, risk of clogging, ...). Have the filter checked by a CITROËN dealer.
Chapter 7, "Checks" section.

Presence of
water in the
diesel filter lit and
accompanied by
a message on
the display.
water in the diesel filter.
Have the filter bled by a CITROËN dealer without
delay.
Chapter 7, "Checks" section.

Service
spanner lit. service due shortly. Refer to the list of checks in the servicing bookl
et. Have
the service carried out by a CITROËN dealer.

Time displayed. adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments and

controls" section.

32
Instruments and controls
FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- 1: the fuel tank is full, approximately
80 litres.
- 0: the reserve is now being used, the
warning light comes on continuously.
COOLANT TEMPERATURE

The needle is positioned between the
blue zone and the red zone: normal
operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the warning light
comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for a
certain time up to approximately
10 minutes.
- wait for the engine to cool down in order to check the coolant level and top it up if
necessary.
Refer to the "Fuel" section of chapter 7.
What you should do if the needle enters
the red zone:
Reduce your speed or let the engine run at
idle. Refer to the "Levels" section of
chapter 7.
The reserve when the warning first
comes on is approximately 8 litres. As the cooling system is pressurised, follow
this advice in order to avoid any risk of
scalding:
- wait at least one hour after switching off
the engine before carrying out any work,
- unscrew the cap by 1/4 turn to allow the pressure to drop,
- when the pressure has dropped, check the level on the expansion bottle,
- if necessary, remove the cap to top up.
If the needle remains in the red zone, have
the system checked by a CITROËN dealer.
