2008.5 Citroen C5 DAG Owner's Manual

176
11
P R A C T I C A L I N F O R M A T I O N
Changing number plate lights
(W 5 W)

 Insert a thin screwdriver into one
of the external holes of the lens.

 Push it outwards to unclip it. Changing the third brake light
(diodes)

For the replacement of this type of
diode light, contact a CITROËN
dealer.

 Remove the lens.

 Change the faulty bulb.

177
11
P R A C T I C A L I N F O R M A T I O N

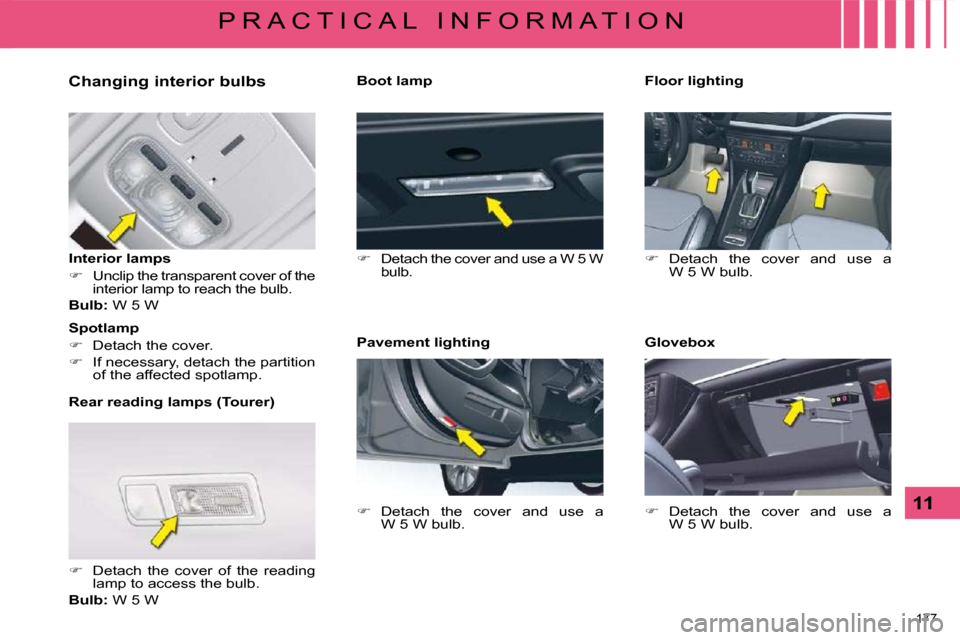

Changing interior bulbs
Interior lamps

 Unclip the transparent cover of the
interior lamp to reach the bulb.

Bulb: W 5 W
Rear reading lamps (Tourer)

 Detach the cover of the reading
lamp to access the bulb.

Bulb: W 5 W
Spotlamp

 Detach the cover.

 If necessary, detach the partition
of the affected spotlamp. Boot lamp


Detach the cover and use a W 5 W
bulb.
Pavement lighting

 Detach the cover and use a
W 5 W bulb. Floor lighting

 Detach the cover and use a
W 5 W bulb.
Glovebox

 Detach the cover and use a
W 5 W bulb.

177
11
P R A C T I C A L I N F O R M A T I O N
Changing interior bulbs
Interior lamps

 Unclip the transparent cover of the
interior lamp to reach the bulb.

Bulb: W 5 W
Rear reading lamps (Tourer)

 Detach the cover of the reading
lamp to access the bulb.

Bulb: W 5 W
Spotlamp

 Detach the cover.

 If necessary, detach the partition
of the affected spotlamp. Boot lamp


Detach the cover and use a W 5 W
bulb.
Pavement lighting

 Detach the cover and use a
W 5 W bulb. Floor lighting

 Detach the cover and use a
W 5 W bulb.
Glovebox

 Detach the cover and use a
W 5 W bulb.

178
11
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The 2 fuseboxes are located below
the dashboard and under the bonnet.
Replacing a fuse
Before replacing a fuse, you should
ascertain the cause of the fault and
have it remedied. The numbers of
the fuses are indicated on the fuse-
box.
Replace the fuse that has blown
with one of the same rating (same
colour).
Use the special pliers 1 placed on
the fl ap close to the fuseboxes. The
fl ap also has spare fuses available.

Good Bad

Pliers 1 Fuses under the dashboard
Access to the fuses

 open the storage box to its stop-
ping point then pull fi rmly on it
horizontally,

 remove the trim by pulling sharp-
ly on the bottom.
Fusebox C
Fusebox
A
Replacement fuses andpliers 1
When refi tting the storage box, ob-
serve the following advice:
- With the storage box horizontal,
refi t the bottom ensuring that the
lower cut-outs are in line with the
pins.
- Give a sharp push to the front.
- Close the storage box, ensuring that the springs located behind
pass over the top.
Fusebox B

178
11
P R A C T I C A L I N F O R M A T I O N
CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The 2 fuseboxes are located below
the dashboard and under the bonnet.
Replacing a fuse
Before replacing a fuse, you should
ascertain the cause of the fault and
have it remedied. The numbers of
the fuses are indicated on the fuse-
box.
Replace the fuse that has blown
with one of the same rating (same
colour).
Use the special pliers 1 placed on
the fl ap close to the fuseboxes. The
fl ap also has spare fuses available.

Good Bad

Pliers 1 Fuses under the dashboard
Access to the fuses

 open the storage box to its stop-
ping point then pull fi rmly on it
horizontally,

 remove the trim by pulling sharp-
ly on the bottom.
Fusebox C
Fusebox
A
Replacement fuses andpliers 1
When refi tting the storage box, ob-
serve the following advice:
- With the storage box horizontal,
refi t the bottom ensuring that the
lower cut-outs are in line with the
pins.
- Give a sharp push to the front.
- Close the storage box, ensuring that the springs located behind
pass over the top.
Fusebox B

179
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX A Table of fuses

Fuse N° Rating
Function

G29 - -

G30 5 A Heated rear view mirrors

G31 5 A Rain and brightness sensor

G32 5 A Seat belt not fastened warning lamps

G33 5 A Electrochrome rear view mirrors

G34 20 A Sunroof (saloon)

G35 5 A Passenger door lighting - passenger rear view mirror adjustment

G36 30 A Electric tailgate (Tourer)

G37 20 A Heated front seats

G38 30 A Driver’s electric seat

G39 30 A Passenger’s electric seat - HIFI amplifi er

G40 3 A Trailer relay unit supply
FUSEBOX B

Fuse N° Rating
Function

G36
15 A 6 speed automatic gearbox

5 A 4 speed automatic gearbox

G37 10 A Daytime-running lamps - Diagnostic socket

G38 3 A ESP

G39 10 A Hydraulic suspension

G40 3 A STOP switch

180
11
P R A C T I C A L I N F O R M A T I O N
FUSEBOX C

Fuse N° Rating
Function

F1 15 A Rear screen wipe (Tourer)

F2 30 A Locking and deadlocking relay

F3 5 A Airbags

F4 10 A Automatic gearbox - additional heater unit (Diesel) - electrochro me rear view mirrors

F5 30 A Front window - sun roof - passenger door lighting - passenger re ar view mirror adjustment

F6 30 A Rear window

F7 5 A Vanity mirror lighting - Glove box lighting - interior lamps - t orch (Tourer)

F8 20 A Radio - CD changer - Controls at the steering wheel - Displa
y - Defl ation detection - Electric
boot ECU

F9 30 A Cigar-lighter - front 12 V socket

F10 15 A Alarm - Controls on the steering wheel, signalling and screen wipe controls

F11 15 A Low current anti-theft switch

F12 15 A Driver’s electric seat - instrument panel - seat b
elt not fastened warning lamps -air conditioning
controls

F13 5 A Engine relay unit - Hydraulic suspension pump cut-off relay - airba g ECU supply

F14 15 A
Rain and brightness sensor - parking assistance - passenger’s electric seat - trailer relay
unit - HIFI amplifi er ECU - Hands-free kit - Lane Departure Warn ing System

F15 30 A Locking and deadlocking relay

F17 40 A Heated rear screen - exterior heated rear view mirrors

FSH SHUNT PARK SHUNT

181
11
P R A C T I C A L I N F O R M A T I O N
Fuses under the bonnet

After a repair, take care to re-
close the cover.

Any repairs on the MAXI fuses
(that give additional protection),
located in the fuseboxes, must
be left to a CITROËN dealer.
Access to the fuses

 Undo each screw by a 1/4 turn. Table of fuses

Fuse N° Rating Function

F1 20 A Engine control unit

F2 15 A Horn

F3 10 A Screen wash pump

F4 10 A Headlamp wash pump

F5 15 A Starter

F6 10 A Air fl ow meter - Directional headlamps -
Diagnostic socket

F7 10 A Automatic gearbox lever lock - Power steering

F8 25 A Starter

F9 10 A Clutch switch - Stop switch

F10 30 A Starter

F11 40 A Air conditioning blower

F12 30 A Wipers

F13 40 A BSI supply (ignition on)

F14 30 A -

F15 10 A Right-hand main beam

F16 10 A Left-hand main beam

F17 15 A Right-hand dipped beam

F18 15 A Left-hand dipped beam

F19 15 A Starter

F20 10 A Starter

F21 5 A Starter
