ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the
central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is run-
ning, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
Page 74 of 204
i
i
69
VISIBILITY
Different lighting times are available:
- when the ignition is off, approxi- mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed. Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
BOOT LIGHTING Use
Extract the torch from its location by
pulling it from the front.
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the rear.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Operation
This torch operates with NiMH type
power packs.
It has an operating autonomy of approxi-
mately 45 minutes and charges while
you are driving.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the power packs.
Never replace the power packs
with batteries.
Page 83 of 204

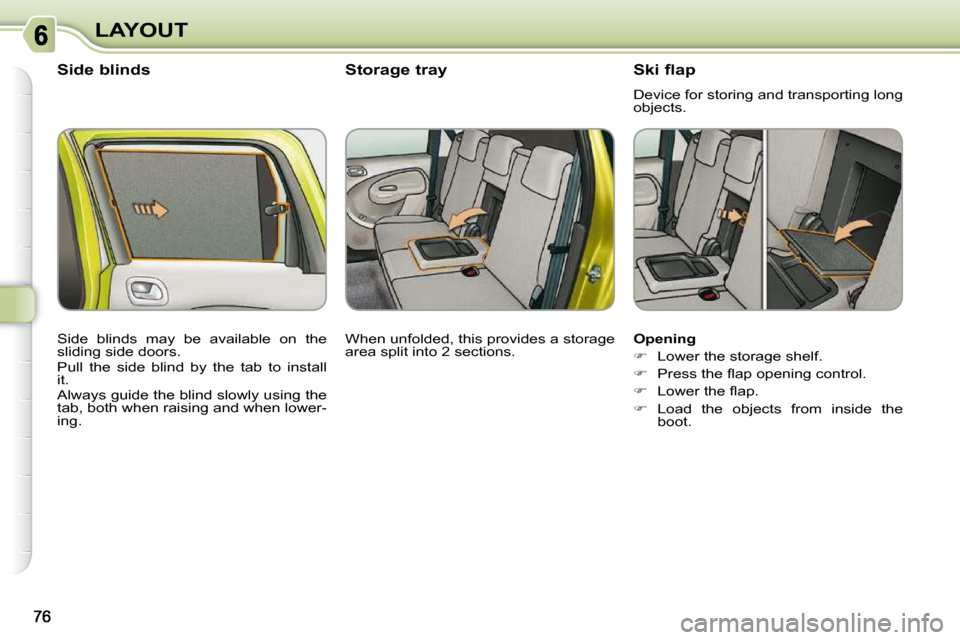

LAYOUT Storage tray
Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to install
it.
Always guide the blind slowly using the
tab, both when raising and when lower-
ing.
Side blinds
When unfolded, this provides a storage
area split into 2 sections.
Page 85 of 204
LAYOUT Storage tray
Opening
Lower the storage shelf.
P r e s s t h e fl a p o p e n i n g c o n t r o l .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Ski flap
Device for storing and transporting long
objects.
Side blinds may be available on the
sliding side doors.
Pull the side blind by the tab to install
it.
Always guide the blind slowly using the
tab, both when raising and when lower-
ing.
Side blinds
When unfolded, this provides a storage
area split into 2 sections.
Page 86 of 204
77
LAYOUT
BOOT LAYOUT
1. Storage net on left-hand boot trim.
2. Open storage compartments.
3. Torch.
4. M o v a b l e b o o t fl o o r .
5. Carrier bag hook
6. Securing rings.
7. Storage area under boot carpet
8. Luggage cover.
Page 87 of 204
i
78
LAYOUT
Movable boot floor
T h i s m o v a b l e b o o t fl o o r w i t h t w o p o s i -
tions allows you to:
- maximise the volume of the boot,
- partition the boot (storing of the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t opening to the front seats, when the
rear bench seat is in the retracted
position. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the low position
Press to release the handle located
at the boot opening.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
M a n o e u v r e t h e m o v a b l e b o o t fl o o r
rearwards, then downwards, using
the handle, following the slides on
the sides.
Lock it by folding down the handle. P l a c i n g t h e m o v a b l e b o o t fl o o r i n
the high position
Press to release the handle.
U n l o c k t h e m o v a b l e b o o t fl o o r b y
lifting the handle.
Use the handle to manoeuvre the
m o v a b l e b o o t fl o o r r e a r w a r d s , t h e n
upwards to its high position.
Lock it by folding down the handle.
In the high position, the movable boot
fl o o r p e r m i t s s t o r i n g o f t h e r e a r s h e l f
and fragile objects.
T h e m o v a b l e b o o t fl o o r i s fi t t e d w i t h f o u r
stowing rings to secure your loads using
the net available as an accessory.
Ensure that your boot is empty
before handling the movable boot
fl o o r .
Page 88 of 204
79
LAYOUT
Hooks
The hooks permit the securing of shop-
ping bags. Load space cover
This consists of three sections.
T h e f r o n t s e c t i o n i s fl e x i b l e , a n d t h e
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:
unhook the two cords,
gently lift up the cover to remove it
f r o m i t s fi x i n g s ,
remove the cover.
It can be stored under the movable boot
fl o o r , i f t h i s i s i n i t s h i g h p o s i t i o n .
