2008.5 Citroen C3 PICASSO DAG engine

i
62
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
FUEL TANK
Reservoir which should be refi lled with
fuel, when the minimum level has been
detected.

Fuel tank capacity: approximately
50 litres.
Low fuel level Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel.

The distance which can be travelled
with the fuel remaining is approxi-
mately 30 miles (50 km).
If you run out of fuel, refer also to the
"Practical information" section. To fi ll the tank in complete safety:

 it is imperative that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,

 remove the cap and hook it onto
the clip located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
When you have fi lled the tank:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

i
70
VISIBILITY
COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light Front and rear courtesy lights
Map reading lights

 With the ignition on, press the cor-
responding switch. In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, appro- ximately thirty seconds,
- with the engine running, unlimited.
In this position, the courtesy
light comes on gradually:
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Footwell lighting
They come on at the same time as the
courtesy lights.

i
i

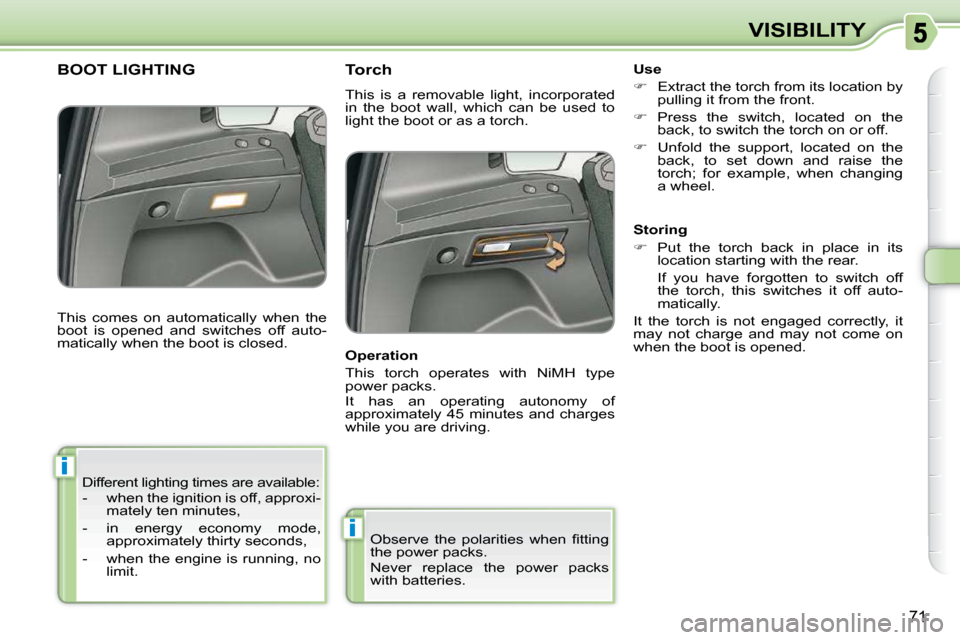

71
VISIBILITY
Different lighting times are available:
- when the ignition is off, approxi- mately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed. Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
BOOT LIGHTING Use

 Extract the torch from its location by
pulling it from the front.

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its
location starting with the rear.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Operation
This torch operates with NiMH type
power packs.
It has an operating autonomy of
approximately 45 minutes and charges
while you are driving.

Observe the polarities when fi tting
the power packs.
Never replace the power packs
with batteries.

!
92
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
 Press the "ESP OFF" button, locat-
ed in the centre of the fascia.
If this warning light comes on on
the instrument panel and the in-
dicator light on the button comes
on, this indicates that the ASR
and ESP systems are disarmed.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).

 Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, this indicates a
malfunction of these systems.
Have the systems checked by a
CITROËN dealer.
TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
This is indicated by fl ashing of
this warning light on the instru-
ment panel.

94

1. Front and/or rear seat belts not
fastened/unfastened warning light.

2. Front left seat belt warning light.

3. Front right seat belt warning light.

4. Rear right seat belt warning light.

5. Rear centre seat belt warning light.

6. Rear left seat belt warning light.
Seat belt not fastened/unfastened
warning lights display
Rear seat belts
The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).
Locking
When the rear side side belts are not being
used, you can lock them in place. To do so:

 Raise the bracket A to its maximum
height.
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap.
Seat belt unfastened warning lights
display
When the ignition is switched on, the cor-
responding warning lights 4 , 5 and 6 come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the engine is running or the vehicle
is moving, the corresponding warning light

4 , 5 or 6 comes on in red, accompanied by
an audible signal and a message on the
multifunction display, if a rear passenger
has unfastened his seat belt.
Unfastening

 Press the red button on the buckle.

 Guide the seat belt as it rolls up.
The corresponding warning light 2 or 3
comes on in red on the seat belt and
passenger’s front air bag warning lights
display if the seat belt is not fastened or
is unfastened. Seat belt unfastened warning light
This warning light comes on, either
on the instrument panel or on the
seat belt and passenger’s front air
bag warning lights display, when one
or more rear passengers unfasten
their seat belt.
From approximately 12 mph (20 km/h), this
warning light fl ashes for two minutes accom-
panied by an audible signal of increasing
volume. Once these two minutes have elapsed,
this warning light remains on until the one or
more rear passengers fasten their seat belt.

i
i
107
DRIVING
Deactivation
The system will be deactivated au-
tomatically when towing a trailer
or when a bicycle carrier is fi tted
(vehicle fi tted with a towbar or bi-
cycle carrier recommended by
CITROËN). Reactivation
Press button
A again to reactivate the
system. The indicator light on the button
is switched off.
If there is an operating fault, when re-
verse gear is engaged, the service
warning light comes on, accompanied
by an audible signal (short bleep) and
a message on the multifunction display.
With the engine running, press button A
to deactivate the system permanently.
The indicator light on the button comes
on. In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.

10
i
i
109
CHECKS
BONNET

 Push the exterior control B to the left
and raise the bonnet.
 Unclip the strut C from its housing.

 Fix the strut in the notch to hold the
bonnet open.
Closing

 Take the strut out of the support
notch.

 Clip the strut in its housing.

 Lower the bonnet and release it at
the end of its travel.

 Pull on the bonnet to check that it is
secured correctly.
Opening

 Open the front left door.

 Pull the interior control A , located at
the bottom of the door frame. The location of the interior control
prevents opening of the bonnet
while the front left door is closed.
Protects the components of the engine
and provides access for checking levels.
RUNNING OUT OF FUEL (DIESEL)
If your vehicle is fi tted with an HDI en-
gine, the fuel circuit must be reprimed if
you run out of fuel.
This system consists of a repriming
pump, a transparent pipe and a degas
screw under the bonnet.
HDi 90 and HDi 110 FAP engines

 Fill the fuel tank with at least fi ve li-
tres of diesel.

 Open the bonnet.

 Unclip the cover to gain access to
the repriming pump.

 Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connector.

 Operate the starter until the engine
starts.

 Put the cover back in position and
clip it in place.

 Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the repriming pump again,
then the starter.

110
CHECKS
PETROL ENGINES

1. Screenwash and headlamp wash
reservoir.

2. Coolant reservoir.

3. Air fi lter * .
4. Brake fl uid reservoir.

5. Battery.

6. Fuse box.
7. Dipstick.

8. Engine oil fi ller cap.
* According to engine.
