EBU25323Replacing a fuse
The main fuse and the fuse box are located under
the seat. (See page 4-11.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.CAUTION:ECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Signaling system fuse
4. Spare fuse
U3D561E0.book Page 34 Thursday, June 29, 2006 11:03 AM
8-35
82. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.

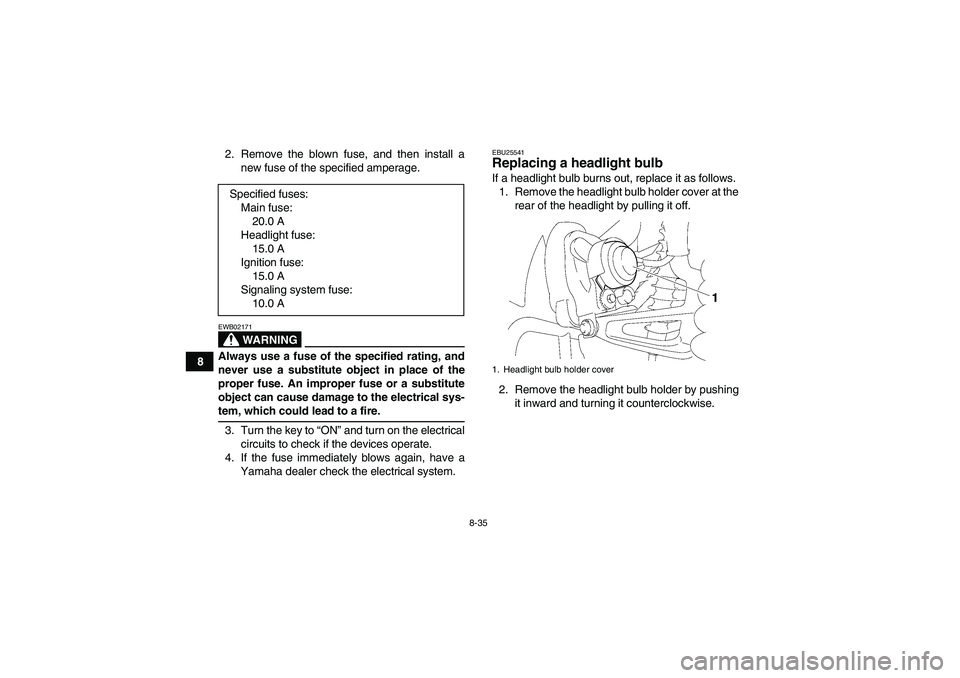

EBU25541Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
2. Remove the headlight bulb holder by pushing
it inward and turning it counterclockwise. Specified fuses:
Main fuse:
20.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A1. Headlight bulb holder cover
