2007 YAMAHA PW80 Owners Manual

MOTORCYCLE CARE AND STORAGE
7-3
2
3
4
5
6
78
9

EAU40651
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
CAUTION:

ECA10810

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to“OFF”.
3. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and theninstall the spark plug and the
spark plug cap.
WARNING

EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
NOTE:

Make any necessary repairs before
storing the motorcycle.

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU2633G
Dimensions:
Overall length:
1540 mm (60.6 in)
Overall width:
640 mm (25.2 in)
Overall height:
880 mm (34.6 in)
Seat height:
635 mm (25.0 in)
Wheelbase:
1055 mm (41.5 in)
Ground clearance:
185 mm (7.28 in)
Minimum turning radius:
1700 mm (66.9 in)
Weight:
With oil and fuel:
61.0 kg (134 lb)
Engine:
Engine type:
Air cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
79.0 cm
3


Bore
×
stroke:
47.0
×
45.6 mm (1.85
×
1.80 in)
Compression ratio:
6.60 :1
Starting system:
KickstarterLubrication system:
Separate lubrication (Yamaha autolube)
Type:
YAMALUBE 2 or 2-stroke engine oil (JASO
FC grade) or (ISO EG-C or EG-D grade)

Engine oil quantity:
Quantity:
0.9 L (1.00 US qt) (0.84 Imp.qt)
Transmission oil:
Type:
YAMALUBE 4 (10W30) or SAE10W30 type
SE motor oil
Oil change quantity:
0.65 L (0.69 US qt) (0.57 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)
(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)
(SWE)(ZAF)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
4.9 L (1.29 US gal) (1.08 Imp.gal)
Fuel reserve amount:
1.0 L (0.26 US gal) (0.22 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type
×
quantity:
VM15SC x 1
Spark plug (s):
Manufacturer/model:
NGK/BP6HS (AUS)(NZL)
NGK/BPR6HS
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)
(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)
(SWE)(ZAF)
Manufacturer/model:
DENSO/W20FP (AUS)(NZL)
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Helical gear
Primary reduction ratio:
66/21 (3.143)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
32/15 (2.133)
Transmission type:
Constant mesh 3-speed
Operation:
Left foot operation
Gear ratio:
1st:
39/12 (3.250)
2nd:
29/16 (1.812)

SPECIFICATIONS
8-2
2
3
4
5
6
7
89

3rd:
22/17 (1.294)
Chassis:
Frame type:
Steel tube backbone
Caster angle:
26.00 °
Trail:
62.0 mm (2.44 in)
Front tire:
Type:
With tube
Size:
2.50-14 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Rear tire:
Type:
With tube
Size:
3.00-12 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Maximum load:
40 kg (88 lb)
* (Total weight of rider, cargo and
accessories)

Tire air pressure (measured on cold
tires):
Front:
100 kPa (15 psi) (1.00 kgf/cm
2

)
Rear:
100 kPa (15 psi) (1.00 kgf/cm
2

)
Front wheel:
Wheel type:
Spoke wheel
Rim size:
14x1.40
Rear wheel:
Wheel type:
Spoke wheel
Rim size:
12x1.60
Front brake:
Type:
Drum brake
Operation:
Right hand operation
Rear brake:
Type:
Drum brake
Operation:
Right foot operation
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
110.0 mm (4.33 in)
Rear suspension:
Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damperWheel travel:
95.0 mm (3.74 in)
Electrical system:
Ignition system:
CDI

9-1
1
2
3
4
5
6
7
8
9

CONSUMER INFORMATION
EAU40790
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
NOTE:

The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-6.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
1. Vehicle identification number
1

1. Model label
1

INDEX
A
Accessories and replacement parts ........6-14
Air filter element, cleaning .........................6-8
Autolube pump, adjusting ........................6-19
B
Brake and shift pedals, checking and
lubricating ..............................................6-20
Brake lever ................................................3-2
Brake lever, checking and lubricating ......6-20
Brake lever free play, adjusting ...............6-14
Brake pedal ...............................................3-2
Brake pedal free play, adjusting ..............6-15
Brake shoes, checking ............................6-16
C
Cables, checking and lubricating .............6-19
Carburetor, adjusting ...............................6-10
Care ...........................................................7-1
D
Drive chain, cleaning and lubricating .......6-18
Drive chain slack .....................................6-16
E
Engine break-in .........................................5-3
Engine idling speed .................................6-11
Engine oil ...................................................3-4
Engine, starting a warm .............................5-2
Engine stop switch.....................................3-1
F
Front fork, checking .................................6-21
Fuel ............................................................3-3
Fuel cock ...................................................3-5
Fuel tank breather hose.............................3-4
Fuel tank cap .............................................3-2
H
Handlebar switch .......................................3-1
I
Identification numbers ............................... 9-1
K
Kickstarter ................................................. 3-6
L
Labels, location of ..................................... 1-4
M
Model label ................................................ 9-1
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Periodic maintenance and lubrication
chart ........................................................ 6-2
Power reduction plate................................ 3-1
Power reduction plate, removing ............... 6-6
Pre-operation check list ............................. 4-2
S
Safety information ..................................... 1-1
Seat ........................................................... 3-6
Shifting ...................................................... 5-2
Shift pedal ................................................. 3-1
Shock absorber ......................................... 3-7
Sidestand, checking and lubricating ........ 6-21
Spark arrester, cleaning ............................ 6-9
Spark plug, checking ................................. 6-5
Specifications ............................................ 8-1
Starter (choke) lever .................................. 3-6
Starting and warming up a cold engine ..... 5-1
Steering, checking ................................... 6-22
Storage ...................................................... 7-3
Supporting the motorcycle....................... 6-23
T
Throttle cable free play, adjusting ........... 6-11Throttle grip and cable, checking and
lubricating ............................................. 6-19
Tires ........................................................ 6-12
Tool kit....................................................... 6-1
Transmission oil ........................................ 6-7
Troubleshooting ...................................... 6-27
Troubleshooting chart ............................. 6-28
V
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-22
Wheel (front) ........................................... 6-23
Wheel (rear) ............................................ 6-26
Wheels .................................................... 6-13

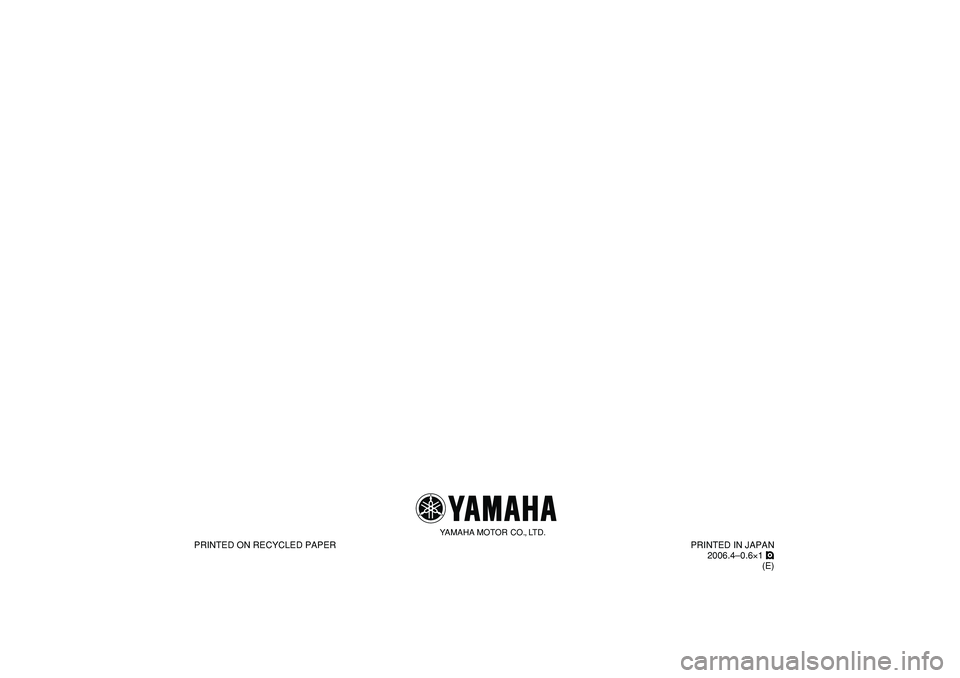

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2006.4–0.6×1 !
(E)
