Page 41 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:The air filter element should be wet butnot dripping.
4. Insert the element into the air filter
case.CAUTION:
ECA10480
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
5. Install the air filter case cover by in-
stalling the screws.
EAU21300
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, all carbu-
retor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience.
Recommended oil:
Foam air filter oil1
4 32ZAUM0156
Page 42 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 1.5–3.0 mm (0.06–0.12 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21870
Tires To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.WARNING
EWA10450
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your vehicle, you should keep
the following precautions in mind.
1. Throttle cable free play1ZAUM0051
ZAUM0053
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
150 kPa (22 psi) (1.50 kgf/cm²)
Rear:
150 kPa (22 psi) (1.50 kgf/cm²)
90–180 kg (198–397 lb):
Front:
160 kPa (23 psi) (1.60 kgf/cm²)
Rear:
170 kPa (25 psi) (1.70 kgf/cm²)
Maximum load*:
180 kg (397 lb)
* Total weight of rider, passenger, car-
go and accessories
Page 43 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
NEVER OVERLOAD THE VEHI-
CLE! Operation of an overload-
ed vehicle may result in tire
damage, loss of control, or se-
vere injury. Make sure that the
total weight of rider, cargo, and
accessories does not exceed
the specified maximum load for
the vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
vehicle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and airpressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.Tire information
This model is equipped with tubeless
tires.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
1. Tire tread depth
2. Tire sidewall
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
Front tire:
Size:
130/60-13 53L
Manufacturer/model:
MICHELIN / PILOT SPORT
PIRELLI / EVO21
Rear tire:
Size:
140/60-13 57L
Manufacturer/model:
MICHELIN / PILOT SPORT
PIRELLI / EVO22
Page 44 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAUM2060

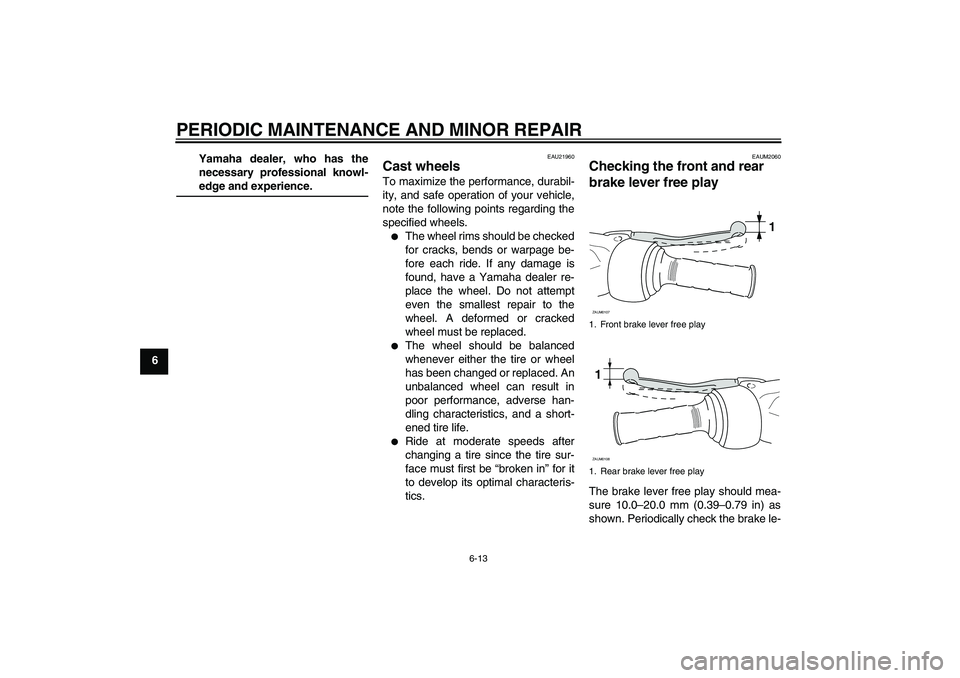

Checking the front and rear
brake lever free play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-1. Front brake lever free play
1. Rear brake lever free play
1
ZAUM01071ZAUM0108
Page 45 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6 ver free play and, if necessary, have a
Yamaha dealer check the brake sys-
tem.
WARNING
EWA10640
An incorrect brake lever free play in-
dicates a hazardous condition in the
brake system. Do not operate the ve-
hicle until the brake system has
been checked or repaired by aYamaha dealer.
EAU22340

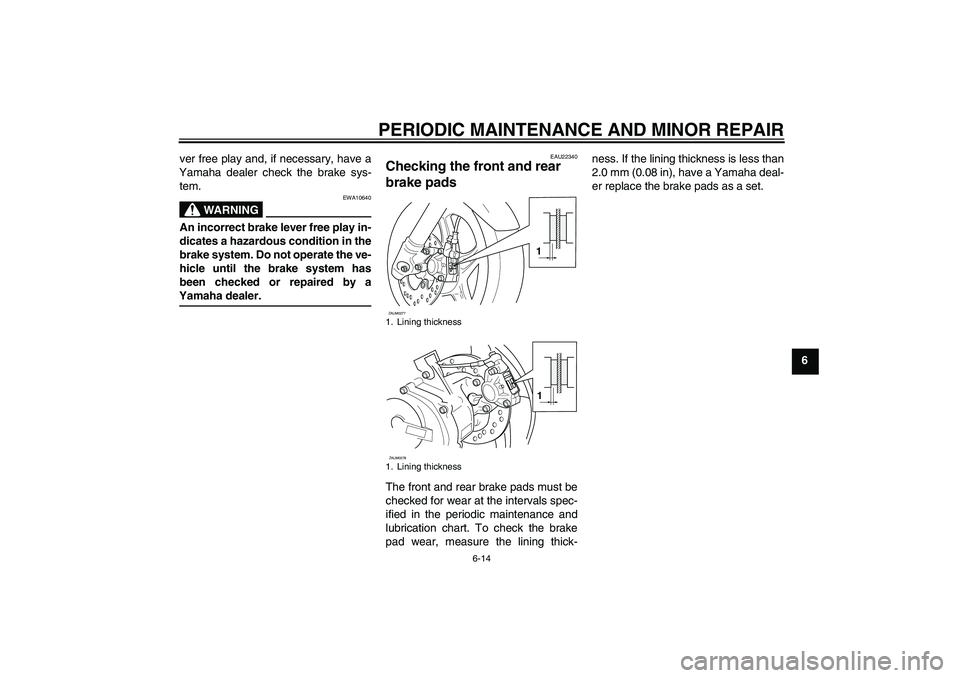

Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. To check the brake
pad wear, measure the lining thick-ness. If the lining thickness is less than
2.0 mm (0.08 in), have a Yamaha deal-
er replace the brake pads as a set.1. Lining thickness
1. Lining thickness
1
ZAUM0277
1
ZAUM0278
Page 46 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU22580
Checking the brake fluid level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAUM1360
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the brake
hoses replaced every four years or
whenever it is damaged or leaking.
1. Minimum level mark
11
ZAUM0280
Recommended brake fluid:
DOT 4
Page 47 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU23110
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated or
replaced at the intervals specified in the
periodic maintenance chart.
EAU23170
Lubricating the front and rear
brake levers The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
EAU23190
Checking and lubricating the
centerstand The operation of the centerstand
should be checked before each ride,
and the pivots and metal-to-metal con-
tact surfaces should be lubricated if
necessary.
WARNING
EWA11300
If the centerstand does not move up
and down smoothly, have a Yamahadealer check or repair it.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)ZAUM0061
1. Centerstand
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
1
ZAUM0455
Page 48 of 68
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
ZAUM0296
