Page 17 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12140
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
“E”, refuel as soon as possible.NOTE:Do not allow the fuel tank to empty itselfcompletely.
EAU12343
Handlebar switches Left
Right
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAUM1131
Start switch “”
Push this switch while applying the
front or rear brake to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
1. Fuel gauge
E1/2
F
1
ZAUM0257
1. Horn switch “”
2. Turn signal switch “/”
3. Dimmer switch “/”
1. Start switch “”
1
2 3
ZAUM0259
1
ZAUM0261

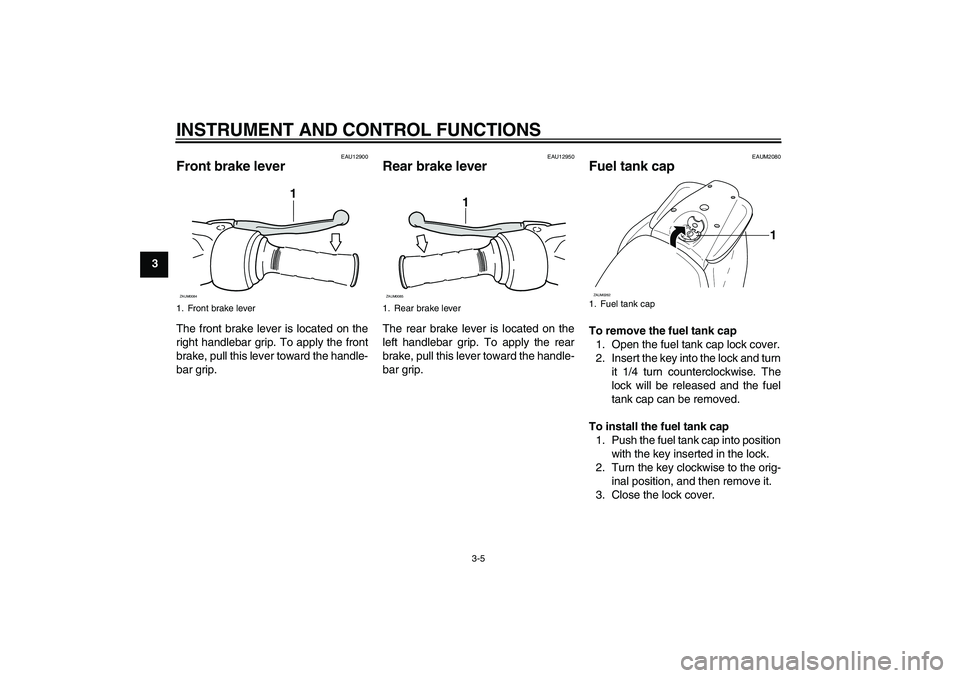

Page 18 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12900
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAUM2080
Fuel tank cap To remove the fuel tank cap
1. Open the fuel tank cap lock cover.
2. Insert the key into the lock and turn
it 1/4 turn counterclockwise. The
lock will be released and the fuel
tank cap can be removed.
To install the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key clockwise to the orig-
inal position, and then remove it.
3. Close the lock cover.
1. Front brake lever
1
ZAUM0084
1. Rear brake lever
1
ZAUM0085
1. Fuel tank cap
1
ZAUM0262
Page 19 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
NOTE:The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA11140
Make sure that the fuel tank cap isproperly installed before riding.
EAU13210
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13270
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
1
2
ZAUM0020
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
7.0 L (1.85 US gal) (1.54 Imp.gal)
Page 20 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU13440
Catalytic converter This vehicle is equipped with a catalytic
converter in the muffler.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idletoo long.
EAUM1140
2-stroke engine oil tank To access the 2-stroke engine oil tank,
open the storage compartment. (See
page 3-10.)
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2. Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
NOTE:Make sure that the 2-stroke engine oil
tank cap is properly installed beforeriding the vehicle.
1. Storage compartment B
2. Oil tank cap
1
2
ZAUM0263
ZAUM0204
Page 21 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU13460
2-stroke engine oil Make sure that there is sufficient oil in
the 2-stroke engine oil tank. Add the
recommended 2-stroke engine oil if
necessary.NOTE:Make sure that the 2-stroke engine oiltank cap is properly installed.
EAUS1050
Kickstarter To start the engine, push the kickstarter
down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
EAU14160
Rider seat To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.NOTE:Do not push inward when turning thekey.
3. Fold the rider seat up.
To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or ISO
grades ”EG-C” or “EG-D”)
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
1. KickstarterZAUM0289
1. Seat
1
ZAUM0264
Page 22 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-9
32. Remove the key from the main
switch if the scooter will be left un-
attended.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU14510
Storage compartment AThere is a storage compartment under
the seat. (See page 3-8.)
WARNING
EWA10960
Do not exceed the load limit of
3.0 kg (6.6 lb) for the storage
compartment.
Do not exceed the maximum
load of 180 kg (397 lb) for the ve-hicle.
CAUTION:
ECA10080
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compartment
accumulates heat when ex-
posed to the sun, do not store
anything susceptible to heat in-
side it.
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.
Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
Do not keep anything valuable
or breakable in the storage com-partment.
To store a helmet in the storage com-
partment, place the helmet upside-
down with the front facing forward.
NOTE:
Some helmets cannot be stored in
the storage compartment because
of their size or shape.
Do not leave your scooter unat-tended with the seat open.
1. Storage compartment A
1
ZAUM0265
Page 23 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAUM1170
Storage compartment BThe storage compartment is located in
front of the seat.
To open the storage compartment
1. Insert the key into the lock, and
then turn it clockwise.
2. Fold the storage compartment
cover up.
To close the storage compartment
1. Fold the storage compartment
cover down.
2. Turn the key counterclockwise,
and then remove it.
EAU14830
Adjusting the shock absorber
assembly (Depends on
models)This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To de-crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction (b).
NOTE:Align the appropriate notch in the ad-
justing ring with the position indicatoron the shock absorber.
WARNING
EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
1. Storage compartment lock
2. Open.
1 2ZAUM0266
1. Spring preload adjusting ring
2. Position indicator
(b) (a)1
2ZAUM0294
Spring preload setting:
Minimum (soft):
(b)
Standard:
middle
Maximum (hard):
(a)
Page 24 of 68
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealerservice the shock absorber.
