2007 TOYOTA SOLARA Accessories, Audio & Navigation (in English)

150
1Function menu display screen
To control the radio or CD changer,
touch the touch−screen buttons. For de-
tails, see page 152.
2“TUNE·FILE” knob
Turn this knob to move the station band
and files up or down. For details, see
pages 155 and 170.
3“AM·SAT” button
Push this button to choose an AM or SAT
station. For details, see pages 152 and
155.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 152 and
155.
5“DISC·AUX” button
Push this button to turn the CD changer
and AUX on. For details, see pages 152,
154, 165 and 166.
6“SCAN” button
Push this button to scan radio stations.
For details, see pages 156 and 160.
7“LOAD·” button
Push this button to display the
“LOAD·EJECT” screen or close the dis-
play. For details, see page 164.
Quick reference

151
8“AUDIO” button
Push this button to display the audio
control screen. For details, see page
152.
9“SEEK/TRACK” button
Push either side of this button to seek up
or down for a station, or to access a de-
sired track or file. For details, see pages
156, 160, 166 and 169.
10“PWR·VOL” knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 152.
Using your audio system —
— Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio system
on longer than necessary when the en-
gine is not running.
Speech command system
By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the list of commands, see pages
141 and 143.

152
Turning the system on and off
“PWR·VOL”: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
“AUDIO”: Push this button to display touch−
screen buttons for audio system (audio con-
trol mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See “(a) Automatic transition”
on page 145 for details.
Switching between functions
Push “AM·SAT”, “FM” or “DISC·AUX” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the CD changer does not
turn on.
You can turn off the CD changer by ejecting
the all disc. If the audio system was previous-
ly off, then the entire audio system will be
turned off when you eject the disc. If another
function was previously playing, it will come
on again.

153 The function buttons for radio and CD chang-
er operation are displayed on the screen
when the audio control mode is selected.
Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed touch
screen buttons.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different levels of treble, mi-
drange, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.
1. Touching “SOUND” displays the
sound adjustment screen.
2. Touch the desired button.
“TREB” “+” or “–”: Adjusts high−pitched
tones.
“MID” “+” or “–”: Adjusts mid−pitched
tones.
“BASS” “+” or “–”: Adjusts low−pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance between
the left and right speakers.
3. Touch “OK”.
The tone of each mode (for such as AM, FM1
and CD changer) can be adjusted.

154
Automatic sound levelizer (ASL)
When the audio sound becomes difficult to be
heard due to road noise, wind noise or other
noises while driving, the system adjusts to the
optimum volume according to the noise level.
To turn this function on, touch “ASL” on the
audio control screen.
Your CD changer
When you insert a disc, touch “LOAD·
”
and gently push the disc in with the label side
up. This CD changer can store up to four
discs. The changer will play from track 1
through to the end of the disc. Then it will play
from track 1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the s-
lot.
Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to
AUX mode. For details, refer to the “Owner’s
Manual”.

155
— Radio operation
Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
If your vehicle is equipped with a satellite ra-
dio broadcast system, when you push the
“AM·SAT” button, “AM”, “SAT1”, “SAT2”,
“SAT3” station appears on the display. For
details about satellite radio broadcast, see
“— Radio operation (XM satellite radio broad-
cast)” on page 158.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.
Presetting a station
1. Tune in the desired station.
2. Touch one of the channel selector but-
tons (1 — 6) you want and hold it until a
beep is heard.
This sets the station to the touch−screen but-
ton and the frequency appears on the touch−
screen button.
Each radio mode can store up to 6 stations.
To change the preset station to a different
one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.

156
Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the channel selector
button (1 — 6) for the station you want. The
touch−screen button is highlighted and the
station frequency appears on the screen.
Seek tuning: Push the “
” or “” button of
“SEEK/TRACK”. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch “SCAN”
on the screen or push the “SCAN” button
briefly. “SCAN” appears on the screen. The
radio will find the next station and stay there
for a few seconds, and then scan again. To
select a station, touch “SCAN” or push the
“SCAN” button again.
To scan the preset stations: Touch
“SCAN” on the screen or push the “SCAN”
button for longer than approximately a sec-
ond. “P·SCAN” appears on the screen. The
radio will tune in the next preset station, stay
there for a few seconds, and then move to the
next preset station. To select a station, touch
“SCAN” or push the “SCAN” button again.
RDS (Radio Data System)
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode allows you
to receive text messages from radio stations
that utilize RDS transmitters.
When RDS is on, the radio can
— select only stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for use only on FM
stations which broadcast RDS information.
If the system receives no RDS stations,
“NOTHING” appears on the display.
“TYPE  ”
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch “TYPE ” or “TYPE
”, the program type changes as follows:
ROCK
MISC (Miscellaneous)
INFORM (Information)
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R & B (Rhythm and Blues)
RELIGION
ALARM (Emergency message)

157

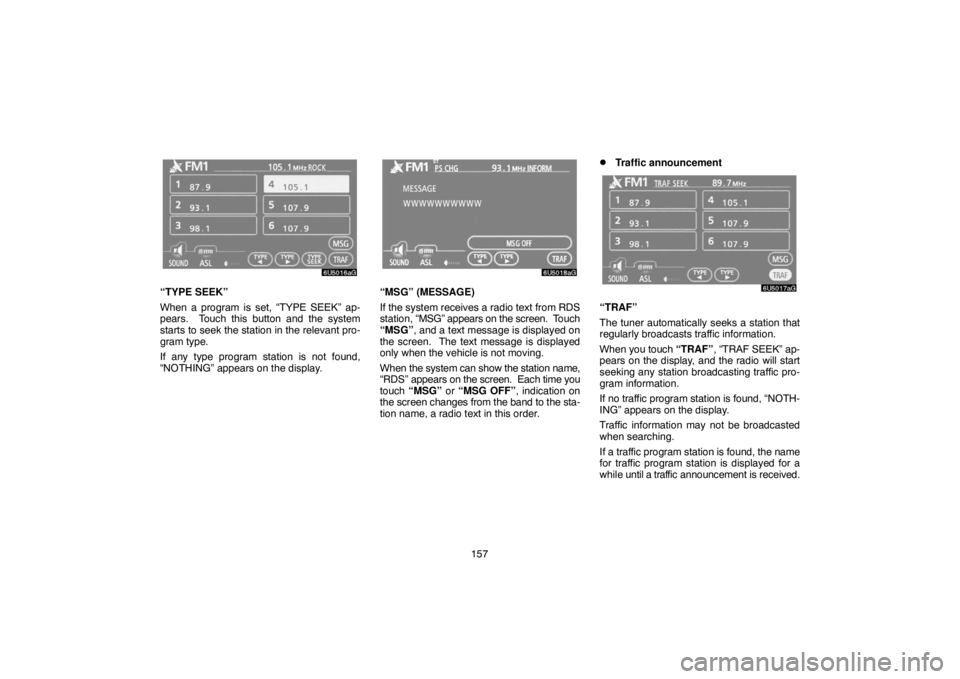

“TYPE SEEK”
When a program is set, “TYPE SEEK” ap-
pears. Touch this button and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.“MSG” (MESSAGE)
If the system receives a radio text from RDS
station, “MSG” appears on the screen. Touch
“MSG”, and a text message is displayed on
the screen. The text message is displayed
only when the vehicle is not moving.
When the system can show the station name,
“RDS” appears on the screen. Each time you
touch “MSG” or “MSG OFF”, indication on
the screen changes from the band to the sta-
tion name, a radio text in this order.
Traffic announcement
“TRAF”
The tuner automatically seeks a station that
regularly broadcasts traffic information.
When you touch “TRAF”, “TRAF SEEK” ap-
pears on the display, and the radio will start
seeking any station broadcasting traffic pro-
gram information.
If no traffic program station is found, “NOTH-
ING” appears on the display.
Traffic information may not be broadcasted
when searching.
If a traffic program station is found, the name
for traffic program station is displayed for a
while until a traffic announcement is received.
