2007 TOYOTA PRIUS Owners Manual

177
27p184

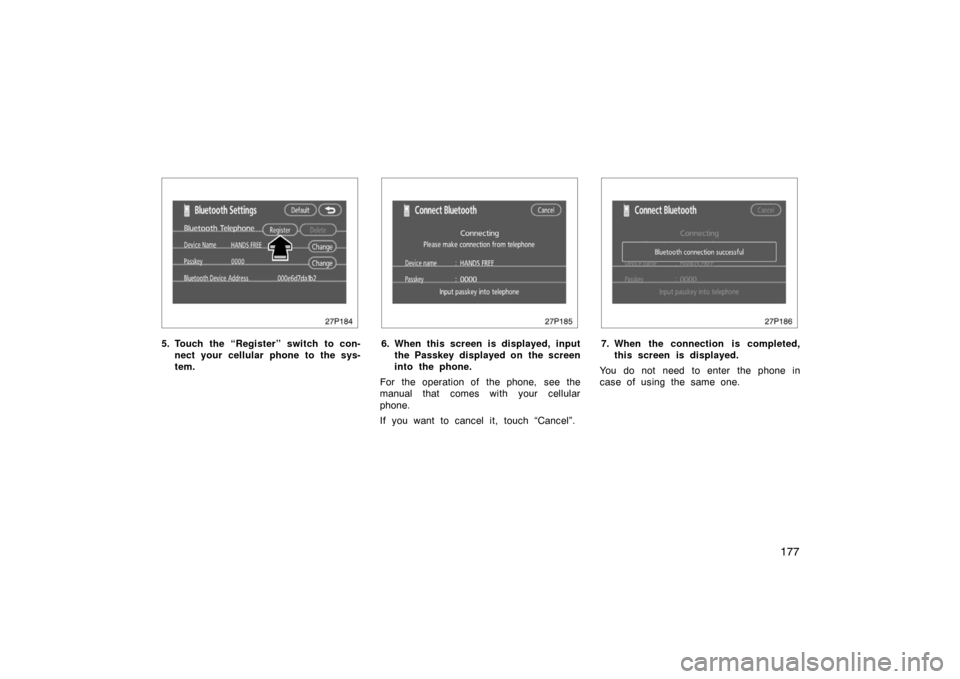

5. Touch the “Register” switch to con-nect your cellular phone to the sys-
tem.
27p185
6. When this screen is displayed, inputthe Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
27p186
7. When the connection is completed, this screen is displayed.
You do not need to enter the phone in
case of using the same one.

178
27p187
When this screen is displayed, follow the
guidance on the screen to try again.
27p188
Connecting a Bluetooth phone
(a) automatically
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.
Each time you touch the “Auto Connect”
switch, auto connection will be switched
on or off.
27p189
When the “ACC” or “IGON” mode is
enabled, the selected Bluetooth  phone
will be automatically connected and the
connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the “ACC”
or “IG −ON” mode is enabled.

179
27p190
(b) manually
When the auto connection failed or
turned off, you have to connect
Bluetooth manually.
Touch the “Connect” switch after hav-
ing enabled the Bluetooth  connection
on the phone.
27p191
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth  phone.
Reconnecting the Bluetooth  phone
If the Bluetooth  phone is disconnected
with a poor reception from the
Bluetooth  network when the “ACC” or
“IGON” mode is enabled, the system
automatically reconnects the Bluetooth
phone. In this case, the connection
result is not displayed.
If the Bluetooth  is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.

180
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
27p192

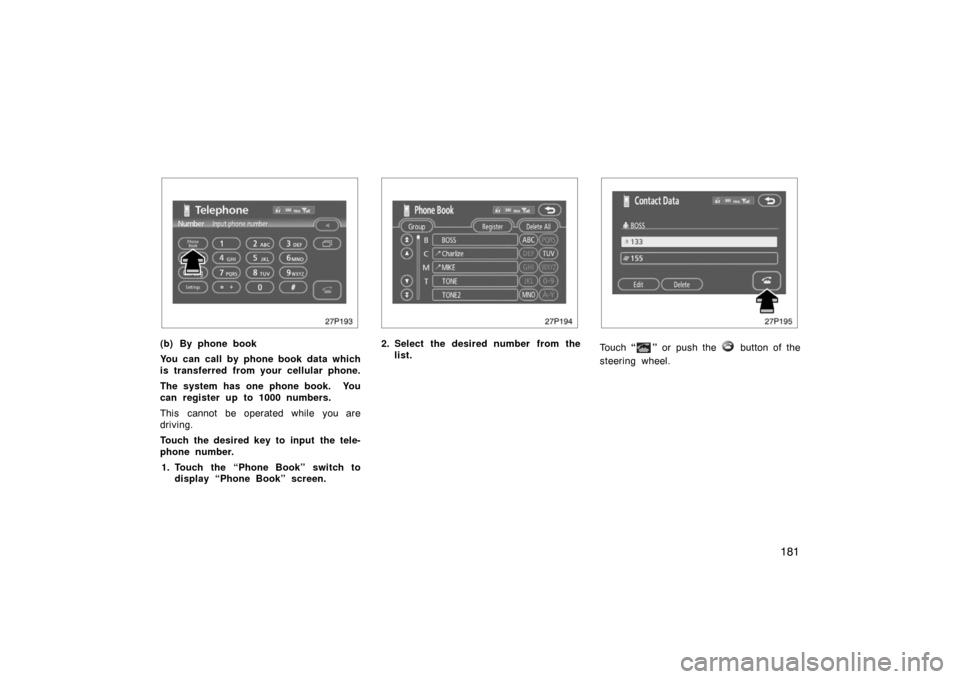

(a) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are
driving.
Touch the desired key to input the tele-
phone number. Each time you touch
“ ”, an inputted
digit is deleted.
When you touch “
”, the number you
called last is inputted.
Touch “
” or push the button of the
steering wheel.
—Calling on the Bluetooth
phone

181
27p193
(b) By phone book
You can call by phone book data which
is transferred from your cellular phone.
The system has one phone book. You
can register up to 1000 numbers.
This cannot be operated while you are
driving.
Touch the desired key to input the tele-
phone number.1. Touch the “Phone Book” switch to display “Phone Book” screen.
27p194
2. Select the desired number from the
list.
27p195
Touch “” or push the button of the
steering wheel.

182
27p196

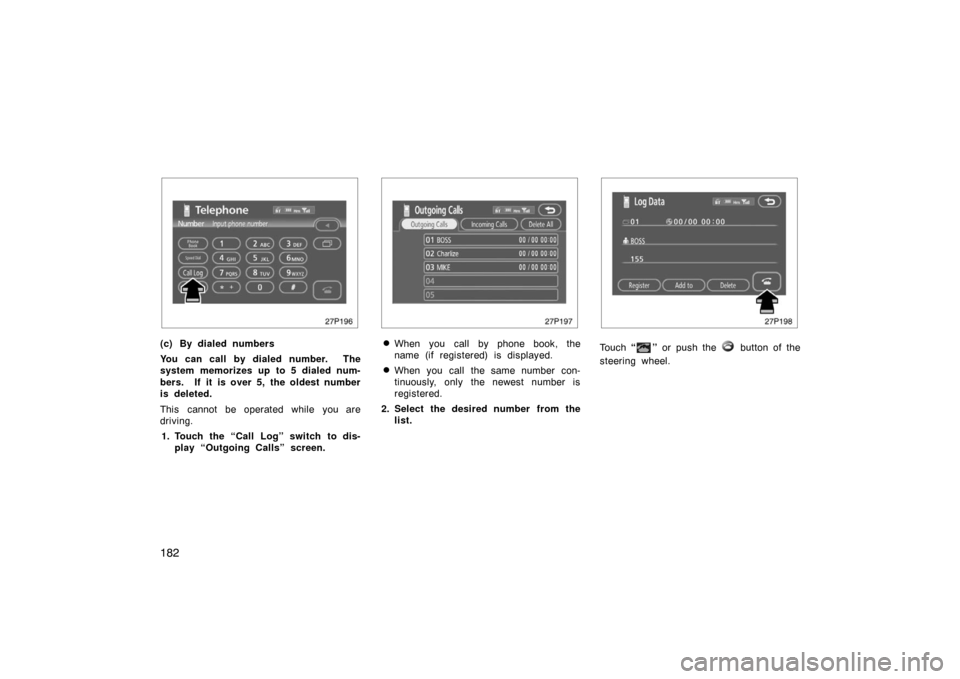

(c) By dialed numbers
You can call by dialed number. The
system memorizes up to 5 dialed num-
bers. If it is over 5, the oldest number
is deleted.
This cannot be operated while you are
driving.1. Touch the “Call Log” switch to dis- play “Outgoing Calls” screen.
27p197
When you call by phone book, the
name (if registered) is displayed.
When you call the same number con-
tinuously, only the newest number is
registered.
2. Select the desired number from the list.
27p198
Touch “” or push the button of the
steering wheel.

183
27p196

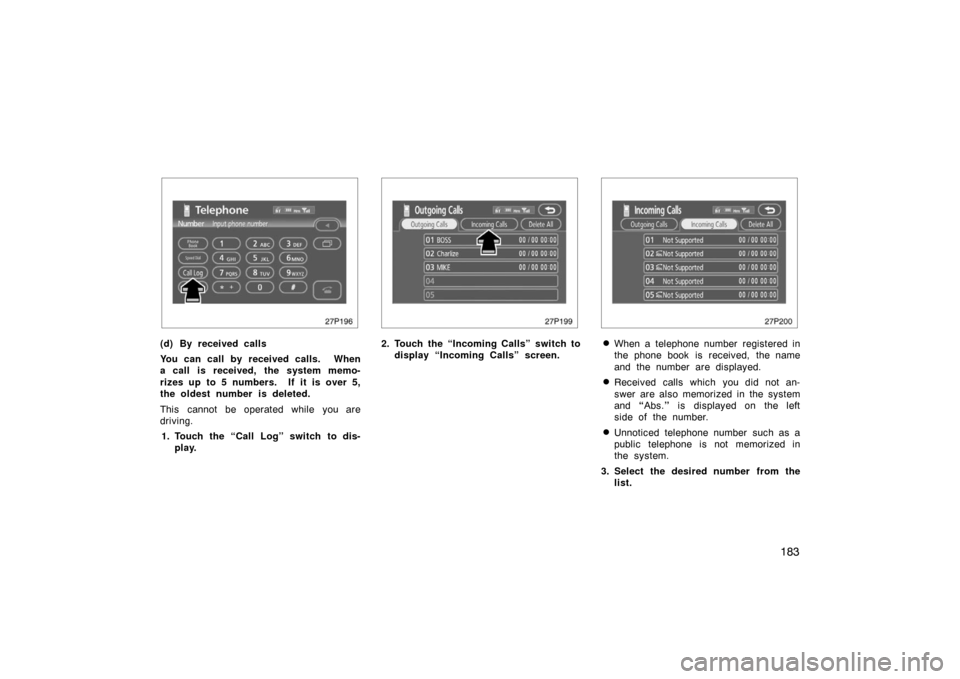

(d) By received calls
You can call by received calls. When
a call is received, the system memo-
rizes up to 5 numbers. If it is over 5,
the oldest number is deleted.
This cannot be operated while you are
driving.1. Touch the “Call Log” switch to dis- play.
27p199
2. Touch the “Incoming Calls” switch todisplay “Incoming Calls” screen.
27p200
When a telephone number registered in
the phone book is received, the name
and the number are displayed.
Received calls which you did not an-
swer are also memorized in the system
and “Abs. ” is displayed on the left
side of the number.
Unnoticed telephone number such as a
public telephone is not memorized in
the system.
3. Select the desired number from the list.

184

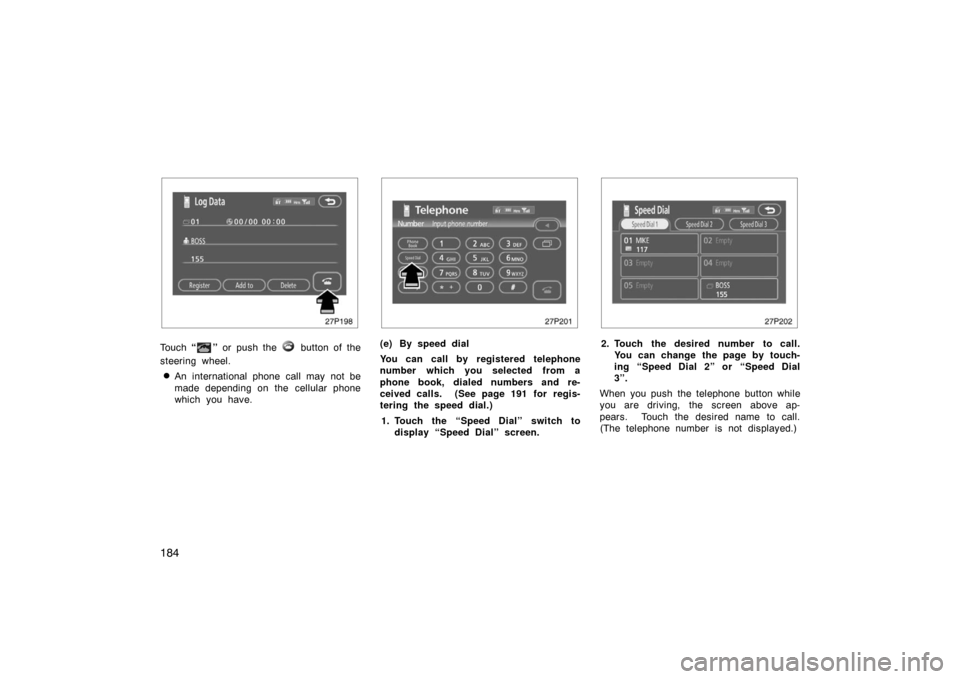

27p198
Touch “” or push the button of the
steering wheel.
An international phone call may not be
made depending on the cellular phone
which you have.
27p201
(e) By speed dial
You can call by registered telephone
number which you selected from a
phone book, dialed numbers and re-
ceived calls. (See page 191 for regis-
tering the speed dial.)
1. Touch the “Speed Dial” switch to display “Speed Dial” screen.
27p202
2. Touch the desired number to call.You can change the page by touch-
ing “Speed Dial 2” or “Speed Dial
3”.
When you push the telephone button while
you are driving, the screen above ap-
pears. Touch the desired name to call.
(The telephone number is not displayed.)
