2007 TOYOTA PRIUS charging

417
DOITYOURSELF MAINTENANCE
Electrical components
Checking 12 volt battery condition418
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 volt battery recharging precautions 420
. . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 420
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 422
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 422
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 8– 3

420
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Make sure the power switch on the recharger is off when connecting the
charger cables to the battery and when
disconnecting them.

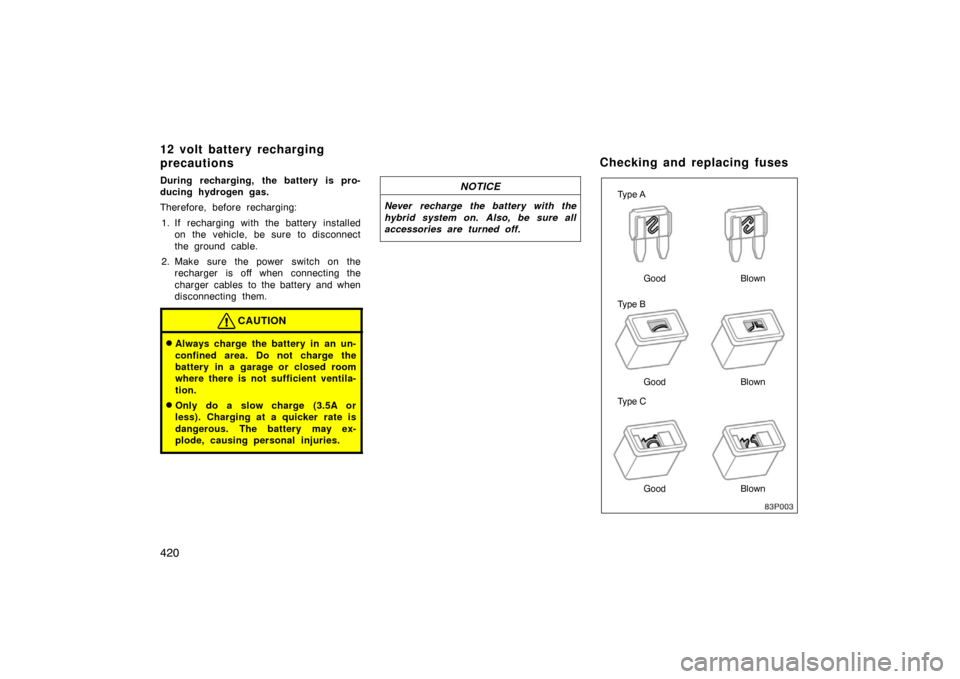

CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (3.5A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery with the
hybrid system on. Also, be sure all
accessories are turned off.
83p003
Type A
Type B
Type C Good Blown
Good Blown
Good Blown
12 volt battery recharging
precautions
Checking and replacing fuses

433
12 VOLT BATTERY
Open voltage at 20\bC (68 \bF):
12.6 − 12.8 V Fully charged
12.2 − 12.4 V Half charged
11 . 5 − 11.9 V Discharged
[Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off]
Charging rates: 3.5 A max.
HYBRID TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp.qt.): 3.6 (3.8, 3.2)
Fluid type: “Toyota Genuine ATF WS” or
equivalent
Please contact your Toyota dealer for further
details. BRAKES
Minimum pedal clearance when depressed
with the force of 196 N (20 kgf, 44 lbf)
with the traction motor running, mm (in.):
101.0 (3.98)
Pedal free play, mm (in.): 1 − 4 (0.04 − 0.16)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 6 − 9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
