’07 HIGHLANDER HV_U (L/O 0608)
272
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
2. Touch the “Trip Info” switch on thescreen.
Trip information appears on the screen.
When the instrument panel lights are
turned on, the brightness of the screen
will be reduced.
You can adjust the brightness of the
screen. To adjust the brightness, see the
“Navigation System Owner ’s Manual” for
the procedure.
CAUTION
Do not operate the screen while the
vehicle is moving. Be sure to operate
the screen only when the vehicle is
stopped.
Consumption screen
1. Regenerated energy in the past 30 minutes
2. Fuel consumption in the past 30 min- utes
3. Average fuel consumption
4. Outside temperature
5. Current fuel consumption
6. Trip distance
The information listed above is dis-
played when you touch the “Consump-
tion” switch on the “Energy monitor”
screen.

’07 HIGHLANDER HV_U (L/O 0608)
281
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This power outlet (115 VAC) is designed
for use as a power supply for electric
appliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the 12 volt battery from
being discharged, do not use the
power outlet longer than necessary
when the hybrid system is off.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet may cause
electrical failure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Power outlet (115 VAC)

’07 HIGHLANDER HV_U (L/O 0608)
282
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Appliances with high initial peak watt-
age: cathode−ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
To use the glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
With the instrument panel lights on, the
glove box light will come on when the
globe box is open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

’07 HIGHLANDER HV_U (L/O 0608)
287
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

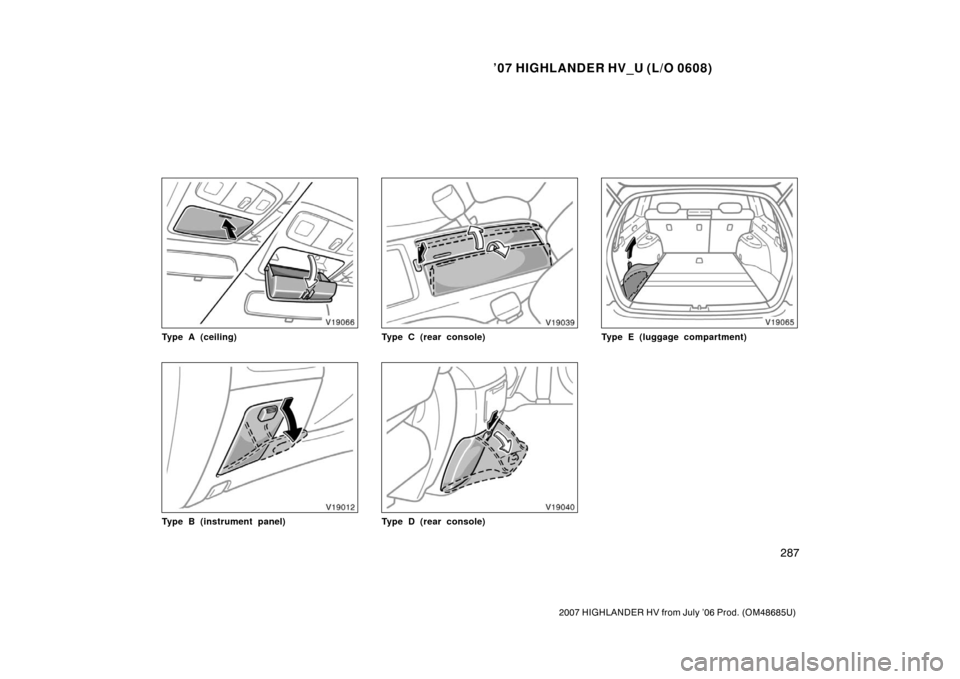

Type A (ceiling)
Type B (instrument panel)
Type C (rear console)
Type D (rear console)
Type E (luggage compartment)

’07 HIGHLANDER HV_U (L/O 0608)
307
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Label.1. Gasoline engine number
2. Traction motor number
The gasoline engine and traction motor
numbers are stamped as shown.
Your Toyota’s identification—
—Vehicle identification
number—Gasoline engine and
traction motor numbers

’07 HIGHLANDER HV_U (L/O 0608)
318
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
When stowing cargo and luggage in
the vehicle, observe the following: Put cargo and luggage in the lug-
gage compartment when at all
possible. Be sure all items are se-
cured in place.
 Be careful to keep the vehicle bal-
anced. Locating the weight as far
forward as possible helps maintain
balance.
 For better fuel economy, do not
carry unneeded weight.CAUTION
To prevent cargo and l uggage
from sliding forward during
braking, do not stack anything
in the luggage compartment
higher than the seatbacks.
Keep cargo and luggage low,
as close to the floor as pos-
sible.
 Never allow anyone to ride in
the luggage compartment. It is
not designed for passengers.
They should ride in their seats
with their seat belts properly
fastened. Otherwise, they are
much more likely suffer death
or serious bodily injury, in the
event of s udden braking or a
collision.
 Do not place anything on the
flattened seat, or it may slide
forward during braking.
Do not place anything on the
luggage cover. Such items may
be thrown about and possibly
injure people in the vehicle
during sudden braking or an
accident. Secure all items in a
safe place.
 Do not drive with objects left
on top of the instrument panel.
They may interfere with the
driver’s field of view. Or they
may move during sharp vehicle
acceleration or turning, and im-
pair the driver’s control of the
vehicle. In an accident they
may injure the vehicle occu-
pants.
 Do not put objects in the con-
tainer which can shift, roll out
or be thrown out in the event
of sudden stops or accidents.
Objects which come out of the
container can create a safety
hazard due to interference with
pedal operation or driver dis-
traction.
Cargo and luggage—
—Stowage precautions

’07 HIGHLANDER HV_U (L/O 0608)
366
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Carpets
Use a good foamtype shampoo to
clean the carpets.
Begin by vacuuming thoroughly to remove
as much dirt as possible. Several types of
foam cleaners are available; some are in
aerosol cans and others are powders or
liquids which you mix with water to pro-
duce a foam. To shampoo the carpets,
use a sponge or brush to apply the foam.
Rub in overlapping circles.
Do not apply water—the best results are
obtained by keeping the carpet as dry as
possible. Read the shampoo instructions
and follow them closely.
Seat belts
The seat belts may be cleaned with
mild soap and water or with lukewarm
water.
Use a cloth or sponge. As you are clean-
ing, check the belts for excessive wear,
fraying, or cuts.
NOTICE
Do not use dye or bleach on the
belts —it may weaken them.
 Do not use the belts until they be-
come dry.
Windows
The windows may be cleaned with any
household window cleaner.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Air conditioning control panel, audio
panel, instrument panel, console panel,
and switches
Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or luke-
warm water then lightly wipe off dirt.
NOTICE
Do not use organic substances (sol-
vents, kerosene, alcohol, gasoline,
etc.) or alkaline or acidic solutions.
These chemicals can cause discol-
oring, staining or peeling of the
surface.
 If you use cleaners or polishing
agents, make sure their ingredients
do not include the substances men-
tioned above.
If you use a liquid car freshener, do
not apply the liquid onto the ve-
hicle’s interior surfaces. It may con-
tain the ingredients mentioned
above. Immediately clean any spill
using the method mentioned above.
Leather interior
The leather upholstery may be cleaned
with neutral detergent for wool.
Remove dirt using a soft cloth dampened
with 5% solution of neutral detergent for
wool. Then thoroughly wipe off all traces
of detergent with a clean damp cloth.
After cleaning or whenever any part of the
leather gets wet, dry with a soft clean
cloth. Allow the leather to dry in a venti-
lated shaded area.

’07 HIGHLANDER HV_U (L/O 0608)
417
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Instrument panel
16. HAZ 15 A: Turn signal lights, emergen-
cy flashers
17. SECURITY 15 A: Theft deterrent sys-
tem
18. AM2 NO.1 30 A: “IGN”, “IG2” and “ST”
fuses
19. MPXB1 7.5 A: Electric power steering
system
20. HORN 10 A: Horns
21. RADIO NO.1 25 A: Audio system22. ECUB NO.1 7.5 A:
Theft deterrent
system, air conditioning system,
gauges and meters, electric moonroof,
engine immobilizer system, multiplex
communication system
23. DOME 10 A: Personal lights, interior
lights, vanity lights, ignition switch light,
wireless remote control system, gauges
and meters, navigation system
24. DOOR NO.1 25 A: Power door lock
system
25. A/F 25 A: Air/fuel control system
26. CRT 7.5 A: Rear seat entertainment
system, navigation system screen
27. HLP R LWR 15 A: Right−hand head-
light (low beam)
28. INV W/P 15 A: Hybrid system
29. IGCT NO.5 10 A: Hybrid system
30. WATER PUMP 10 A: Air conditioning
system
31. IGCT NO.4 10 A: Emission control
system, transmission control system,
air/fuel control system
32. IGCT NO.3 10 A: Hybrid system, fuel
pump
33. IGCT NO.2 10 A: Hybrid system34. IGN 10 A:
Meters and gauges, SRS
airbag system, hybrid system, electroni-
cally controlled brake system, engine
immobilizer system
35. RAD NO.2 7.5 A: Audio system, rear
seat entertainment system, navigation
system, air c onditioning system, multi-
plex communication system
36. CIG 15 A: Power outlet (12 VDC)
37. P RR DOOR 20 A: Power windows
38. PWR OUTLET1 15 A: Power outlets
(12 VDC)
39. FR FOG 20 A: Front fog lights
40. ECUIG 10 A: Electronically controlled
brake system, transmission control sys-
tem, electric power steering system,
theft deterrent system
41. WIPER 25 A: Windshield wipers
42. D RR DOOR 20 A: Power windows
43. D FR DOOR 25 A: Power windows,
power door lock system, door courtesy
light
44. S/ROOF 20 A: Electric moonroof
45. HEATER 10 A: Air conditioning system,
rear heater system, rear window defog-
ger, hybrid system
