2007 TOYOTA 4RUNNER Navigation Manual

ix
1“Distance”
The distance units “km” or “miles” can be
selected. 81. . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 81. . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 82. . . . . . . . . .
4“Time Zone”
The desired time zone can be selected.
83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch−
screen button and current street name on
the map screen can be set. 84. . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display the
building shape on the map screen is pos-
sible. 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Setup” screen

x
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 85. . . . . . . . . . . . . . . . . . . . . . . . . .
9“Voice Recognition Guidance”
Voice recognition guidance can be set.
86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set.
86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display the
pop−up message is possible. 87. . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis−calcula-
tion by changing tire will be adjusted.
87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch−screen button initializes all of the
settings. 80. . . . . . . . . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can be
viewed. 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering home
RS02002
1. Push the “MENU” button.
1U5020bG
2. Touch “My Places”.
1U5041aG
3. Touch “Register”.
4U5052bG
4. There are 13 different methods to
search your home.

xi
1U5046bG
5. Touch “Enter”.
Registration of home is complete and the
“Memory Point” screen is displayed.
4U5053G
Registered “Home” information will be
displayed.
The icon, quick access, name, location and
phone number can be changed. (See
“—Editing memory points” on page 71.)
— Setting the address as the
destination
RS02003
1. Push the “DEST” button.
RS02004
2. Touch “Address”.
2U5004aG
3. Touch numerals directly on the
screen to input a house number.
After inputting a house number, touch
“OK” to display the screen for inputting
a street name.
2U5005aG
4. Input the street name.
City name may be input.
For details, see page 29.

xii
RS02023
5. Touch “Enter”.
The navigation system performs a search
for the route.
1U5040aG
6. Touch “Guide”, and start driving.
— Setting home as the
destination
RS02003
1. Push the “DEST” button.
2U5088aG
2. Touch the home touchscreen button
on the “Destination” screen.The screen changes and displays the map
location for home and the route preference.
(See “Starting route guidance” on page 43.)
To use this function, it is necessary to set
“Home” for the memory point. (To register
home, see “—Registering home” on page
x, 75.)
RS02024
3. Touch “Enter”.
The navigation system performs a search
for the route.

xiii
1U5040aG
4. Touch “Guide”, and start driving.
Route other than the one recommended can
also be selected. (See “Starting route
guidance” on page 43.)
5. Guidance to your home is given via
voice and on the guidance screen.

1
BASIC FUNCTIONS
Basic information before operation
Display operation2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial screen2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Touch screen operation4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers/list screen operation4 . . . . . . . . . . . . . . . . . . . . . . . . .
Function help8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot print map16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Orientation of the map18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Example of navigation system operation18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guiding the route18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

2
Display operation
1U5048
Adjustment of the angle of the display can be
done by pushing the “TILT” button. Each
push of the “TILT” button will tilt the display to
positions
1, 2, 3 and then back to 0 in the
reverse order.
If the ignition switch is set at OFF, the display
will automatically move back to position
0.
The display will automatically resume the pre-
vious position when the ignition switch is set
at ACC or ON.
CAUTION
Injury may result from placing a hand or
any fingers on the display while it is
moving.
NOTICE
Do not place any foreign objects on the
display while it is moving. It could dam-
age your navigation system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Initial screen
1U5022aG
When the ignition switch is set at ACC or ON,
the initial screen will be displayed and the
system will begin operating.
CAUTION
When the vehicle is stopped with the en-
gine running, always apply the parking
brake for safety.

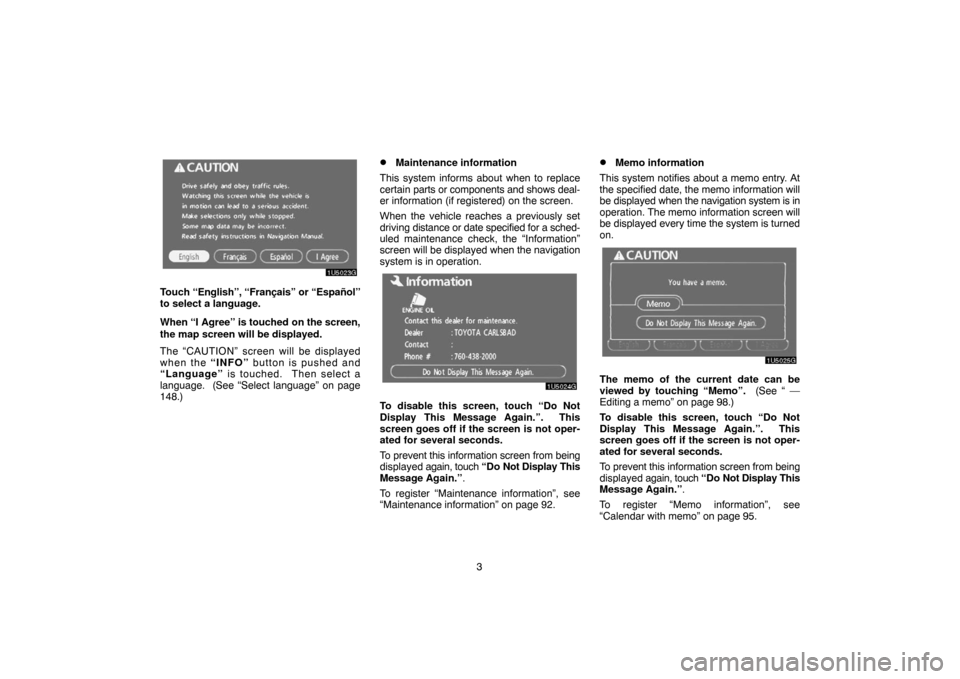

After a few seconds, the “CAUTION” screen
will be displayed.

3
1U5023G
Touch “English”, “Français” or “Español”
to select a language.
When “I Agree” is touched
on the screen,
the map screen will be displayed.
The “CAUTION” screen will be displayed
when the “INFO” button is pushed and
“Language” is touched. Then select a
language. (See “Select language” on page
148.)
Maintenance information
This system informs about when to replace
certain parts or components and shows deal-
er information (if registered) on the screen.
When the vehicle reaches a previously set
driving distance or date specified for a sched-
uled maintenance check, the “Information”
screen will be displayed when the navigation
system is in operation.
1U5024G
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.”.
To register “Maintenance information”, see
“Maintenance information” on page 92.
Memo information
This system notifies about a memo entry. At
the specified date, the memo information will
be displayed when the navigation system is in
operation. The memo information screen will
be displayed every time the system is turned
on.
1U5025G
The memo of the current date can be
viewed by touching “Memo”. (See “ —
Editing a memo” on page 98.)
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.”.
To register “Memo information”, see
“Calendar with memo” on page 95.
