2007 SUZUKI FORENZA Owners Manual

6-9 MAINTENANCE SCHEDULE
85Z03-03E
Chassis and Body (continued)Maintenance
IntervalKilometers (miles) or time in months, whichever comes first
Months 48 51 54 57 60 63 66 69 72 75 78 81 84 87 90
Maintenance
Itemx 1,000 miles 60 63.75 67.5 71.25 75 78.75 82.5 86.25 90 93.75 97.5
101.25
105
108.75
112.5
x 1,000 km 96 102 108 114 120 126 132 138 144 150 156 162 168 174 180
Air Filter (A/C) RRRRRRRRRRRRRRR
Exhaust Pipe & Mountings I* I* I* I*
Brake/Clutch Fluid R I R I R I R I
Front Brake Pads & Discs IIIIIIIIIIIIIII
Rear Brake Pads & Discs IIIIIIIIIIIIIII
Parking Brake I I I I
Brake Line & Connections
(Including Booster)IIII
Manual Transmission Fluid I I
Automatic Transmission Fluid I R I I R
Chassis and Underbody Bolts and
Nuts Tight/SecureIIII
Tire Condition & Inflation Pressure I I I I I I I I
Tire Rotation Rotate every 7,500 miles (12,000 km)
Steering Wheel & Linkage I I I I
Power steering Fluid & Lines I I I I
Drive Shaft Boots IIIIIIII
Safety Belts, Buckles & Anchorages I I I I
Lubricate Locks, Hinges & Hood Latch I I I I

6-10 MAINTENANCE SCHEDULE
85Z03-03E
Chart Symbols
I – Inspect these items and their related
parts. Correct, clean, refill, adjust, lubri-
cate, inflate or replace as required.
R – Replace or Change
NOTE:
Check the engine oil and engine coolant
levels weekly.
*: SUZUKI recommends that this mainte-
nance service be performed at the time/
mileage interval indicated to ensure the
peak performance and long-term reliability
of your vehicle. However, the U.S. Envi-
ronmental Protection Agency and the Cali-
fornia Air Resources Board have
determined that failure to perform this spe-
cific maintenance item will not void your
emission warranty or limit recall liability.
Recommended Fluids and Lubri-
cantsFluids and lubricants identified below by
name, part number or specification may be
obtained from your SUZUKI dealer.
Maintenance RecordAfter the scheduled services are per-
formed, record the date, odometer reading
and who performed the service and any
additional information from “Owner Checks
and Services” or “Periodic Maintenance”
on the following record pages. Also, you
should retain all maintenance receipts. Usage Fluid/Lubricant
Engine OilSAE 5W30 SL grade or
SAE 10W30 SL grade
Engine CoolantSilicate based Coolant
/Dex-cool coolant
Brake/Clutch
FluidDOT-3
Power Steer-
ing FluidDEXRON
® II D or
DEXRON® III
Automatic
Transaxle
FluidESSO LT 71141 or
TOTAL ATF H50235
Manual
Transaxle
FluidSAE 75W90

6-11 MAINTENANCE SCHEDULE
85Z03-03E
Maintenance Record
Date Odometer Reading Serviced By Maintenance Record

6-12 MAINTENANCE SCHEDULE
85Z03-03E
Maintenance Record
Date Odometer Reading Serviced By Maintenance Record

6-13 MAINTENANCE SCHEDULE
85Z03-03E
Maintenance Record
Date Odometer Reading Serviced By Maintenance Record

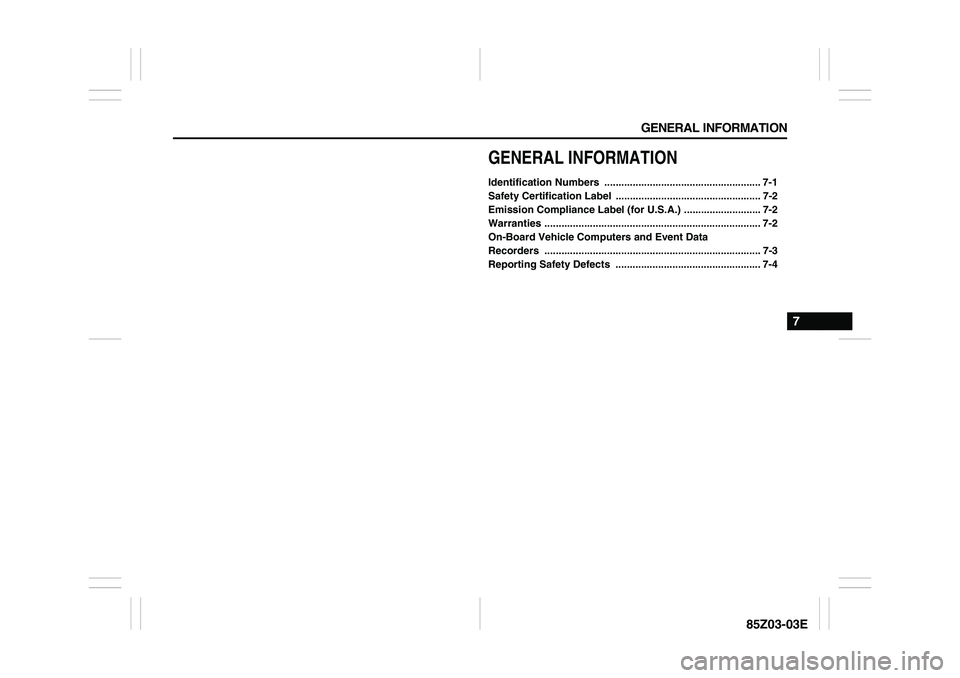

GENERAL INFORMATION
7
85Z03-03E
GENERAL INFORMATIONIdentification Numbers ....................................................... 7-1
Safety Certification Label ................................................... 7-2
Emission Compliance Label (for U.S.A.) ........................... 7-2
Warranties ............................................................................ 7-2
On-Board Vehicle Computers and Event Data
Recorders ............................................................................ 7-3
Reporting Safety Defects ................................................... 7-4

7-1 GENERAL INFORMATION
85Z03-03E
Identification NumbersVehicle Identification Number
60G152
54G081
The Vehicle Identification Number (VIN)
may be found in the location shown in the
above illustrations. This number is used to
register the vehicle. It is also used to assist
your SUZUKI dealer when ordering parts
or referring to special service information.
Engine Serial Number
60G128
The engine serial number is stamped on
the cylinder block as shown in the above
illustration.
EXAMPLE
(for some vehicles)

7-2 GENERAL INFORMATION
85Z03-03E
Safety Certification Label
52D059
This label contains important safety-
related information about your vehicle. The
label is located on the driver’s door lock pil-
lar.
Emission Compliance Label
(for U.S.A.)
60A412
The EPA emission compliance label is
located under the hood. It provides much
of the information needed to perform an
engine tune-up on your vehicle.
WarrantiesThe warranties covering your vehicle are
explained in a separate New Vehicle War-
ranty Information booklet given to you at
the time of sale. Please read this booklet
carefully so you can understand your rights
and responsibilities.For U.S.A.The following warranties are provided with
your vehicle:
 New Vehicle Limited Warranty
 Limited Warranty For SUZUKI Parts or
Accessories
 Emission Components Defect Warranty
 Emission Performance Warranty
