5
Audio
Antenna system .................................................. 5-2 Printed antenna ....................................................... 5-2
FM reception ........................................................... 5-2
Installation of accessories ................................ 5-2
Audio set ............................................................. 5-3 Type A audio set ..................................................... 5-3
Type B audio set ..................................................... 5-3
Type A audio set (if equipped) .......................... 5-4 Radio operation ...................................................... 5-4
Compact disc player operation ............................. 5-8
Type B audio set (if equipped) .......................... 5-13 Radio operation ...................................................... 5-13
Built-in CD changer operation ............................... 5-17
Audio control buttons ........................................ 5-22
Precautions to observe when handling a compact disc ................................................... 5-23
MP3 audio ........................................................... 5-25 What is MP3? .......................................................... 5-25
Creating MP3 files ................................................... 5-25
Saving MP3 files on a disc ..................................... 5-25
Supported file systems .......................................... 5-26
Compression format ............................................... 5-26
Numbers of folders and files ................................. 5-26
Copyright issues ..................................................... 5-26

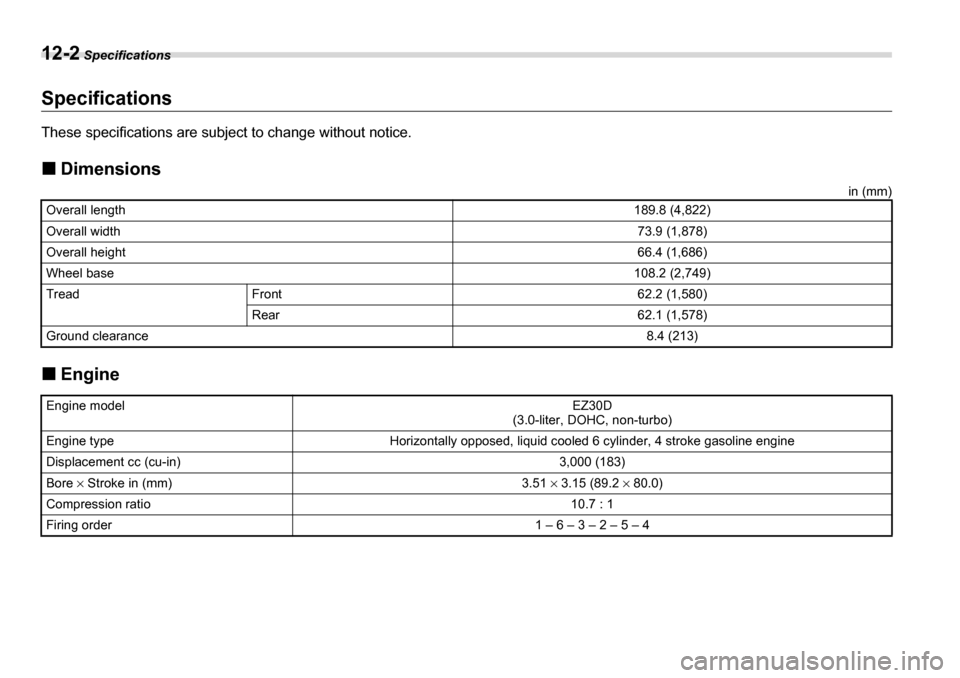

12-2 Specifications
SpecificationsSpecifications
These specifications are subject to change without notice. „Dimensions
in (mm)
„ Engine
Overall length189.8 (4,822)
Overall width73.9 (1,878)
Overall height66.4 (1,686)
Wheel base108.2 (2,749)
TreadFront62.2 (1,580)
Rear62.1 (1,578)
Ground clearance8.4 (213)
Engine modelEZ30D
(3.0-liter, DOHC, non-turbo)
Engine typeHorizontally opposed, liquid cooled 6 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)3,000 (183)
Bore × Stroke in (mm)3.51 × 3.15 (89.2 × 80.0)
Compression ratio10.7 : 1
Firing order1 – 6 – 3 – 2 – 5 – 4
