2007 SKODA SUPERB Display

Communicating and Navigating119
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Loading magazine with CDs
–Grasp CD with the playback side to the bottom at the middle hole
and at the outer edge.
– Hold magazine with arrow illustration upwards ⇒fig. 129 .
– Insert individually CDs with the playback side to the bottom into
the magazine, until they lock in pl ace with a locking noise. Pay atten-
tion to the CD-order on the right side of the magazine ⇒fig. 129 .
Caution
•The magazine can take up to six standard CDs (diameter 12 cm). Please do not
use 8 cm “single CDs”!
•In order to avoid malfunctions of the chan ger, please never use a CD protective
foil or stabilizer (obtainable on the market as CD-accessory).
Take CDs out of the magazine
– Turn the release lever in direction of arrow ⇒fig. 130 .
– Slightly press out CDs through the opening on the reverse side of the magazine. Please make sure that the CDs do not fall down!
– Take CDs out of the magazine
Replay CD
On the radio display the following information can be displayed:
•SHFL (Shuffleplay).
•CD1 ... CD6 - compartment of CD magazine.
•NO CD - no CD in the magazine.
•TR01, TR02 etc. - title of the selected CD.
Note
For more details see Radio Owners Manual.
Fig. 129 Loading
changer with CDFig. 130 Take out CDs
NKO B5 20.book Page 119 Friday, March 2, 2007 1:46 PM

Communicating and Navigating
120
Fa u lt d i sp la y s
On the radio display the following fault displays can be displayed:
•NO CD CHANGER - CD-changer is not co nnected to the magazine.
•NO CD MAGAZINE - no magazine in the CD-changer.
•NO CD - the selected compartment in the magazine of the CD-changer is
empty.
•SURFACE - in the selected compartment the CD with playback side is inserted
upwards.
Tips for operating the CD-changer
Please pay attention to the following notes for operating the CD-changer.
•Only clean CDs without scratches and damages should be used, in order to
guarantee a proper, high-quality CD-playback.
•Affix no labels to the CDs.
•Always store non-used CDs in the CD-s torage from the Škoda genuine accesso-
ries provided for this as well as in the original folding box.
•Never expose CDs to direct sun rays.
•Use a soft, non-fluffy cloth to clean the CDs. Wipe the CD straight-lined from
the middle to the outside. Strong dirt mu st be eliminated with usual CD-cleaner.
•Please never use liquids such as gasoline , paint thinner or disk cleaner, other-
wise the surface of the CD could get damaged.
Precaution measures for laser equipment
Laser equipment is classifi ed according to DIN IEC 76 (CO) 6/VDE 0837 in the
safety categories 1 - 4.
The Škoda CD-changer correspond s to the safety category 1. The laser used for equipment of category 1 is to such an extent energy-poor and/or
shielded that there is no risk of danger
when used in accordance with the regula-
tion.
WARNING
Please always pay full attention to the traffic situation around you!
Note
Do not remove the equipment cover. The equipment does not contain any parts,
which can be serviced by the user.
Warranty
The same guarantee conditions apply for our factory-fitted radio system as for new
vehicles.
Note
A damage in the sense of the warranty must not be the result from improper
handling of the system or from unprofes sional repair attempts. In addition, no
external damage must be present.
NKO B5 20.book Page 120 Friday, March 2, 2007 1:46 PM

Communicating and Navigating
124
Navigation system*
The controls for the navigation system, radio, CD player are located in the centre
console on both sides of th e monitor screen. Navigation data is also shown in the
information display.
Please refer to the relevant operating inst ructions for a detailed description of the
navigation system.
NKO B5 20.book Page 124 Friday, March 2, 2007 1:46 PM

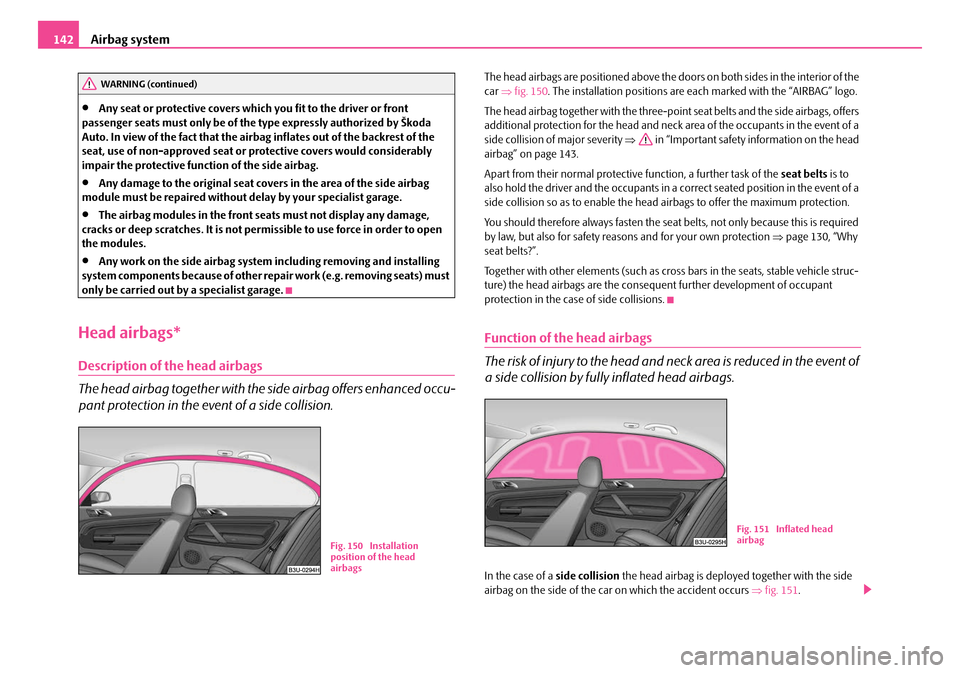

Airbag system
142
•Any seat or protective covers which you fit to the driver or front
passenger seats must only be of the type expressly authorized by Škoda
Auto. In view of the fact that the airbag inflates out of the backrest of the
seat, use of non-approved seat or protective covers would considerably
impair the protective function of the side airbag.
•Any damage to the original seat covers in the area of the side airbag
module must be repaired without delay by your specialist garage.
•The airbag modules in the front se ats must not display any damage,
cracks or deep scratches. It is not permissible to use force in order to open
the modules.
•Any work on the side airbag system including removing and installing
system components be cause of other repair work (e.g. removing seats) must
only be carried out by a specialist garage.
Head airbags*
Description of the head airbags
The head airbag together with the side airbag offers enhanced occu-
pant protection in the event of a side collision.
The head airbags are positioned above the d oors on both sides in the interior of the
car ⇒fig. 150 . The installation positions are each marked with the “AIRBAG” logo.
The head airbag together with the three-point seat belts and the side airbags, offers
additional protection for the head and neck area of the occupants in the event of a
side collision of major severity ⇒ in “Important safety information on the head
airbag” on page 143.
Apart from their normal protective function, a further task of the seat belts is to
also hold the driver and the occupants in a correct seated position in the event of a
side collision so as to enable the head airbags to offer the maximum protection.
You should therefore always fasten the seat belts, not only because this is required
by law, but also for safety reasons and for your own protection ⇒page 130, “Why
seat belts?”.
Together with other elements (such as cros s bars in the seats, stable vehicle struc-
ture) the head airbags are the conseque nt further development of occupant
protection in the case of side collisions.
Function of the head airbags
The risk of injury to the head and ne ck area is reduced in the event of
a side collision by fully inflated head airbags.
In the case of a side collision the head airbag is deployed together with the side
airbag on the side of the car on which the accident occurs ⇒fig. 151 .
WARNING (continued)
Fig. 150 Installation
position of the head
airbags
Fig. 151 Inflated head
airbag
NKO B5 20.book Page 142 Friday, March 2, 2007 1:46 PM

Fuses and light bulbs221
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Fuse assignment
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
No.Amperes
1Heatable windscreen washing nozzles5
2Tu r n s i g n a l s10
3Not assigned
4Licence plate light5
5
Instrument cluster - warning ligh ts, seat heaters, cruise con-
trol system, exterior mirror ad justment, lighting of controls
and switches, outside temperature display, air conditioning,
audible parking aid, navigation system, multifunction steer-
ing wheel
10
6Heating of the external mirror5
7ABS, EDS, ASR, ESP, cruise co ntrol system, engine electron-
ics10
Fig. 202 Schematic
representation of fuse
carrier
8Automatic headlight beam adjustment5
9Parking aid5
10CD changer, mobile phone, multifunction steering wheel5
11DVD player7,5
12Power supply for diagnostic socket10
13Brake lights10
14Central locking control unit, interior lighting10
15Instrument cluster, air cond itioning, automatic gearbox,
exterior mirror adjustment memory and navigation system10
16ESP5
17Two-way radio system, special vehicles (police etc.)10
18Right main beam10
19Left main beam10
20Low beam on the right15
21Low beam on the left15
22Parking light on the right5
23Parking light on the left5
24Windscreen washer system, windscreen wiper pump and
intermittent switch25
25Fan for fresh air, the air co nditioning unit, Climatronic30
26Rear window heating, recirculated air mode30
27Not assigned
28Fuel pump, diesel additional pump20
29Engine control20
30Electric sliding/tilting roof/DVD player20/7,5
No.Amperes
NKO B5 20.book Page 221 Friday, March 2, 2007 1:46 PM

Index
250
CargoFlex folding box . . . . . . . . . . . . . . . . . . . . . . . . . 75
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 33
lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Changing Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Changing oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 201
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 195 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 187
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 147
Safety information . . . . . . . . . . . . . . . . . . . . . . . 146
Use of child safety seats . . . . . . . . . . . . . . . . . . 149
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Child seat protection . . . . . . . . . . . . . . . . . . . . . 152
Classification into groups . . . . . . . . . . . . . . . . . 149
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 Climatronic
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . 94
economic use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Keeping windows demisted . . . . . . . . . . . . . . . . 95
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 94
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . 96
Setting temperature . . . . . . . . . . . . . . . . . . . . . . . . 96
Climatronic (automatic air co nditioning) . . . . . . . . 93
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 42
Converting/masking over headlights . . . . . . . . . . 168
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . 12
Coolant temperatur e/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Cooling
Air conditioning system . . . . . . . . . . . . . . . . . . . . 89
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 127
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 13
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 106
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
D
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . 144
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 52
Defrosting windows Air conditioning system . . . . . . . . . . . . . . . . . . . . 90
Defrosting windscreen . . . . . . . . . . . . . . . . . . . . . . . . 52
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 176
Detachable towing device . . . . . . . . . . . . . . . . . . . . 171
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 101
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disconnecting and reconnecting the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
NKO B5 20.book Page 250 Friday, March 2, 2007 1:46 PM

Index
252
Heater
Air conditioning system . . . . . . . . . . . . . . . . . . . . 89
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Heating Air conditioning system . . . . . . . . . . . . . . . . . . . . 89
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . 51
Interior lighting front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 215, 216
K
Keeping windows demisted Air conditioning system . . . . . . . . . . . . . . . . . . . . 90
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
L
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Light bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Lighting of the interior of the vehicle front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Lights Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 48
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 46
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . 35
lock Central locking system . . . . . . . . . . . . . . . . . . . . . 34
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Locking and unlocking from inside . . . . . . . . . . . . . 35
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Luggage compartment . . . . . . . . . . . . . . . . . . . . . 37, 67
CD-ROM player . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Folding double hooks . . . . . . . . . . . . . . . . . . . . . . 69
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 49 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 103
Memory for the on-board computer . . . . . . . . . . . 15
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Storing and retrieving settings . . . . . . . . . . . . . . 61
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 121, 123
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Multifunction steering wheel . . . . . . . . . . . . . . . . . . 115 Operating cruise control system . . . . . . . . . . . 115
Operating mobile phone . . . . . . . . . . . . . . . . . . 116
Operation of radio . . . . . . . . . . . . . . . . . . . . . . . . 116
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . 15
N
Navigation system . . . . . . . . . . . . . . . . . . . . . . . . 22, 124
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
NKO B5 20.book Page 252 Friday, March 2, 2007 1:46 PM

Index
254
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 110
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . 14
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Service key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting temperature
Air conditioning system . . . . . . . . . . . . . . . . . . . . 90
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stability programme . . . . . . . . . . . . . . . . . . . . . . . . . 155
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Steering booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Storage compartment Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Drawer compartment . . . . . . . . . . . . . . . . . . . . . 84
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Spectacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 82
Storage drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Stowage compartment Armrest with stowage compartment . . . . . . . . 87
Door panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Umbrella . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Stowage compartment below steering wheel . . . . 85
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 46
Switching the engine off . . . . . . . . . . . . . . . . . . . . . 102
T
Taking care of your vehicle . . . . . . . . . . . . . . . . . . . 173
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 162
The roof luggage rack system . . . . . . . . . . . . . . . . . . . 77
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Through-loading bag . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Towing eye front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Traction control system (TCS) . . . . . . . . . . . . . . . . 156 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
General Maintenance . . . . . . . . . . . . . . . . . . . . . 169
Transporting children safely . . . . . . . . . . . . . . . . . . 146
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Turn signal system for ve hicles towing a trailer
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Two-way radio sets . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . 123
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
U
Underbody protection . . . . . . . . . . . . . . . . . . . . . . . 177
Unidirectional tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
V
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
W
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
WashingWash systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
with a high-pressure cleaner . . . . . . . . . . . . . . 174
NKO B5 20.book Page 254 Friday, March 2, 2007 1:46 PM
