2007 SKODA SUPERB engine

Technical Data
240
1,9 l/85 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm85/4000
Maximum torqueNm per rpm250/1900
Number of cylinders4
Displacementcm31896
FuelDiesel
M5
Maximum speedkm/h198
Acceleration 0 - 100 km/hs11,7
M5
Urban consumption7,8
Non-urban consumption4,7
Consumption - combination5,8
CO2 emission - combination153
NKO B5 20.book Page 240 Friday, March 2, 2007 1:46 PM

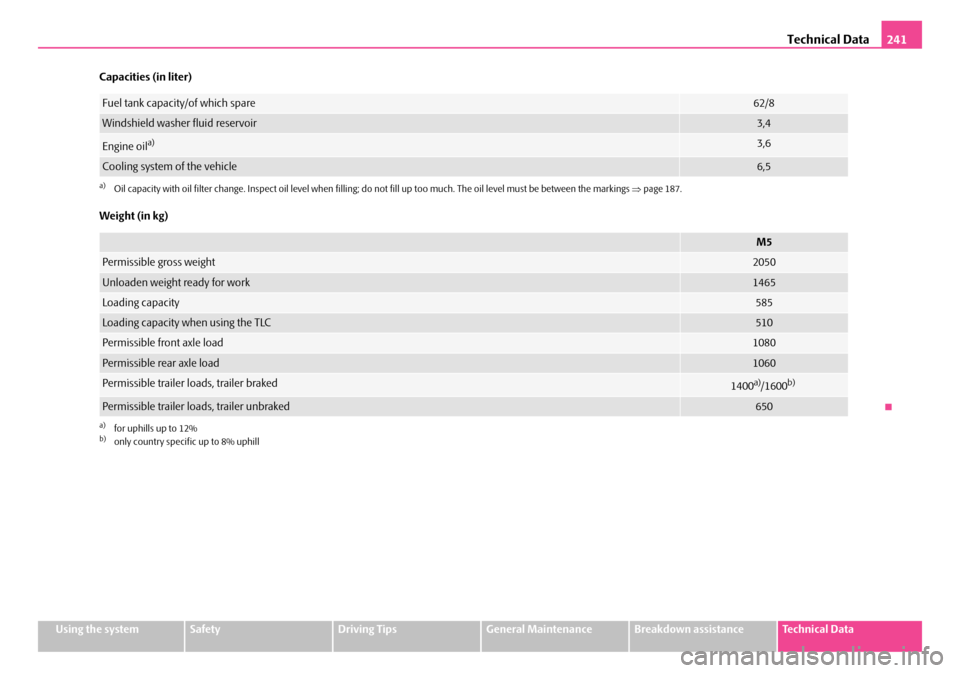

Technical Data241
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle6,5
M5
Permissible gross weight2050
Unloaden weight ready for work1465
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1080
Permissible rear axle load1060
Permissible trailer loads, trailer braked1400a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked650
NKO B5 20.book Page 241 Friday, March 2, 2007 1:46 PM

Technical Data
242
1,9 l/96 kW TDI PD - EU 3
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm96/4000
Maximum torqueNm per rpm285/1750
Number of cylinders4
Displacementcm31896
FuelDiesel
M5AG5
Maximum speedkm/h205202
Acceleration 0 - 100 km/hs10,411,7
M5AG5
Urban consumption7,910,0
Non-urban consumption4,65,5
Consumption - combination5,87,1
CO2 emission - combination153188
NKO B5 20.book Page 242 Friday, March 2, 2007 1:46 PM

Technical Data243
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle6,5
M5AG5
Permissible gross weight20502106
Unloaden weight ready for work14651521
Loading capacity585585
Loading capacity when using the TLC510510
Permissible front axle load10801160
Permissible rear axle load10601060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
1600a)/1600b)
Permissible trailer loads, trailer unbraked650650
NKO B5 20.book Page 243 Friday, March 2, 2007 1:46 PM

Technical Data
244
2.0 ltr./103 kW TDI DPF - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm103/4000
Maximum torqueNm per rpm320/1900
Number of cylinders4
Displacementcm31968
FuelDiesel
M6
Maximum speedkm/h215
Acceleration 0 - 100 km/hs9,9
M6
Urban consumption8,4
Non-urban consumption5,2
Consumption - combination6,4
CO2 emission - combination169
NKO B5 20.book Page 244 Friday, March 2, 2007 1:46 PM

Technical Data245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,5
Cooling system of the vehicle6,5
M6
Permissible gross weight2103
Unloaden weight ready for work1518
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1160
Permissible rear axle load1060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked650
NKO B5 20.book Page 245 Friday, March 2, 2007 1:46 PM

Technical Data
246
2.5 ltr./120 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm120/4000
Maximum torqueNm per rpm350/1250
Number of cylinders6
Displacementcm32496
FuelDiesel
M6AG5
Maximum speedkm/h223217
Acceleration 0 - 100 km/hs9,210,3
M6AG5
Urban consumption9,911,5
Non-urban consumption5,45,8
Consumption - combination7,07,8
CO2 emission - combination185206
NKO B5 20.book Page 246 Friday, March 2, 2007 1:46 PM

Technical Data247
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
5,4
Cooling system of the vehicle8,6
M6AG5
Permissible gross weight21552189
Unloaden weight ready for work15701604
Loading capacity585585
Loading capacity when using the TLC510510
Permissible front axle load12101210
Permissible rear axle load10601060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
1600a)/1600b)
Permissible trailer loads, trailer unbraked750750
NKO B5 20.book Page 247 Friday, March 2, 2007 1:46 PM
