Dual Automatic Climate Control
System
With this system, you can control the heating,
cooling, and ventilation in your vehicle. Your
vehicle also has a ow-through ventilation system
described later in this section.
You can select different temperature settings for
the driver and all passengers.
Display Function
Each time the temperature, mode, or fan control
buttons are pressed the display shows that
function along with the inside temperature setting.
The display automatically reverts back to the
outside temperature display after a short delay.
Driver’s Side Temperature Control
The driver side temperature buttons are used to
adjust the temperature of the air coming through
the system on the driver side. The temperature can
be adjusted even if the system is turned off.
This is possible since outside air will always ow
through the system as the vehicle is moving
forward unless it is set to recirculation mode. See
“Recirculation” later in this section.
Press the + or−buttons to increase or decrease
the temperature. The driver side temperature
display will show the temperature setting
decreasing or increasing.
198
ProCarManuals.com

Passenger’s Side Temperature Control
The passenger’s temperature buttons can be used
to change the temperature of the air coming
through the system on the passenger side of the
vehicle. The temperature can be adjusted
even if the system is turned off. This is possible
since outside air will always ow through the
system as the vehicle is moving forward unless it
is set to recirculation mode. See “Recirculation”
later in this section.
Press the + or−buttons to increase or decrease
the temperature. The passenger side display
will show the temperature setting decreasing or
increasing.
The passenger’s temperature setting can be set to
match the driver’s temperature setting by
pressing the PASS button and turning off the
PASS indicator. When the passenger’s
temperature setting is set different than the
driver’s setting, the indicator on the PASS button
comes on and both the driver side and
passenger side temperature displays are shown.
Automatic Operation
AUTO (Automatic):When automatic operation is
active the system controls the inside temperature,
the air delivery, and the fan speed.
Use the steps below to place the entire system in
automatic mode:
1. Press the AUTO button.
When AUTO is selected, the display shows
the current temperature(s) selected and AUTO
is on the display. The current delivery mode
and fan speed also display for approximately
5 seconds.
When AUTO is selected, the air conditioning
operation and air inlet are automatically
controlled. The air conditioning compressor
runs when the outside temperature is
over about 40°F (4°C). The air inlet is normally
set to outside air. If it is hot outside, the air
inlet can automatically switch to recirculate
inside air to help quickly cool down your
vehicle. The light comes on the recirculation
button while in recirculation.
199
ProCarManuals.com

2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 73°F
(22.5°C) temperature setting and allow
about 20 minutes for the system to regulate.
Use the driver’s or passenger’s temperature
buttons to adjust the temperature setting
as necessary. If you choose the temperature
setting of 60°F (15°C), the system remains
at the maximum cooling setting. If you choose
the temperature setting of 90°F (32°C), the
system remains at the maximum heat setting.
Choosing either maximum setting will not
cause the vehicle to heat or cool any faster.
Do not cover the solar sensor located on the top
of the instrument panel near the windshield.
This sensor regulates air temperature based on
sun load and also turns on your vehicle’s
headlamps. For more information on the solar
sensor, see “Sensors” later in this section.To avoid blowing cold air in cold weather, the
system delays turning on the fan until warm air is
available. The length of delay depends on the
engine coolant temperature. Press the fan switch
to override this delay and change the fan to a
selected speed.
O(On/Off):Press this button to turn off the
climate control system. Outside air still enters the
vehicle, and is directed to the oor. This
direction can be changed by pressing the mode
button. Recirculation can only be selected in
vent or bi-level mode. The temperature can also
be adjusted using either temperature button. If you
adjust the air delivery mode or temperature
settings with the system off, the display comes on
briey to show the settings and then turns off.
Press the on/off button or the up down arrows on
the fan switch, the defrost button, AUTO button,
or the air conditioning button to turn the system on
when it is off.
200
ProCarManuals.com

Manual Operation
The air delivery mode or fan speed can be
manually adjusted.
DC(Fan):The buttons with the fan symbols let
you manually adjust the fan speed. Press the up
arrow to increase fan speed and the down arrow to
decrease fan speed.
Pressing a fan button while the system is off will
turn the system on. Pressing a fan button while in
automatic control places the fan under manual
control. The fan setting remains displayed and the
AUTO button light turns off. The air delivery mode
remains in automatic control.
yNz(Mode):Press the mode up and down
buttons to manually change the direction of the
airow in the vehicle. Repeatedly press the button
until the desired mode appears on the display.
Pressing a mode button while the system is off will
change air delivery mode without turning the
system on. Pressing one of these buttons while in
automatic control to place the mode under manual
control.
The air delivery mode setting displays and the
AUTO button light turns off. The fan remains under
automatic control.
H(Vent):This setting delivers air to the
instrument panel outlets.
)(Bi-Level):This mode directs air to the
instrument panel outlets and to the oor outlets. A
little air is directed towards the windshield and
side window outlets. Cooler air is directed to the
upper outlets and warmer air to the oor outlets.
6(Floor):This mode directs most of the air
to the oor outlets, with some of the air directed to
the windshield, side window outlets, and second
row oor outlets. In this mode, the system
automatically selects outside air. Recirculation
cannot be selected in oor mode.
-(Defog):See “Defogging and Defrosting” later
in this section.
@(Recirculation):Press this button to turn the
recirculation mode on. When the button is
pressed, an indicator light comes on.
This mode keeps outside air from entering the
vehicle. It can be used to reduce outside air and
prevent odors from entering your vehicle.
Recirculation also helps to quickly cool the warmer
air inside your vehicle.
201
ProCarManuals.com

Mode Knob
The right knob on the control panel lets you
choose the direction of the air ow.
H(Vent):This setting directs the air through the
headliner outlets.
)(Bi-Level):This setting directs the air through
the rear oor outlets under the third row seat,
as well as the headliner outlets. The ow can be
divided between headliner and oor outlets
depending upon where the knob is placed between
the settings.
6(Floor):This setting directs the air through the
oor outlets. The rear system oor outlets are
located under the third row seats.
Rear Air Conditioning and Heating
System and Electronic Climate
Controls
If your vehicle has this rear climate control system
there are rear seat audio controls located in the
center console.
The rear system can be controlled through the
AUX button on the front climate control panel.
Press the AUX button to turn the rear climate
control system on or off. An indicator light in the
AUX button comes on when the rear climate
control system is on. The direction, temperature,
and speed of the airow for the rear of the vehicle
will be the same as those set for the front of the
vehicle.
Use the controls located in the rear of the front
console, to independently control the air ow
for the rear of the vehicle separately from that of
the front of the vehicle. To turn the system
on, press any of the rear air conditioning control
buttons, except the fan down button. To turn
the system off, press and hold the
Cbutton.
207
ProCarManuals.com

Manual Operation
DC(Fan):The fan buttons on the rear seat audio
control panel let you manually adjust the fan
speed. Press
Dto increase airow andC
to decrease airow.+/−(Increase/Decrease Temperature):These
buttons select the temperature of the air owing into
the rear passenger area. Press the + button for
warmer air and press the−button for cooler air.
The temperature settings will display in 0-12
increments, going from the coolest (0) to the
warmest (12) setting.
N(Mode):Press the mode button to manually
change the direction of the airow in the vehicle.
Repeatedly press the button until the desired mode
appears on the display. Multiple presses cycles
through the delivery selections.
H(Vent):This mode directs air through the
headliner outlets.
)(Bi-Level):This mode directs air through the
oor outlets as well as the headliner outlets.
The rear system oor outlets are located under
the third row seats.
6(Floor):This mode directs air through the
oor outlets. The rear system oor outlets
are located under the third row seats.
Rear Climate Control with Rear Seat Audio Controls
208
ProCarManuals.com

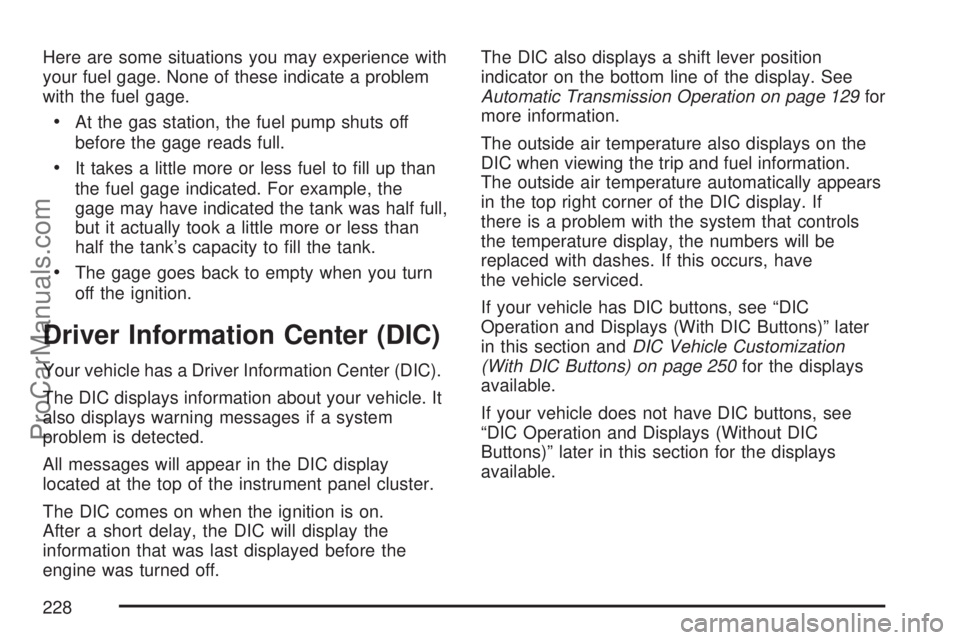

Here are some situations you may experience with
your fuel gage. None of these indicate a problem
with the fuel gage.
At the gas station, the fuel pump shuts off
before the gage reads full.
It takes a little more or less fuel to ll up than
the fuel gage indicated. For example, the
gage may have indicated the tank was half full,
but it actually took a little more or less than
half the tank’s capacity to ll the tank.
The gage goes back to empty when you turn
off the ignition.
Driver Information Center (DIC)
Your vehicle has a Driver Information Center (DIC).
The DIC displays information about your vehicle. It
also displays warning messages if a system
problem is detected.
All messages will appear in the DIC display
located at the top of the instrument panel cluster.
The DIC comes on when the ignition is on.
After a short delay, the DIC will display the
information that was last displayed before the
engine was turned off.The DIC also displays a shift lever position
indicator on the bottom line of the display. See
Automatic Transmission Operation on page 129for
more information.
The outside air temperature also displays on the
DIC when viewing the trip and fuel information.
The outside air temperature automatically appears
in the top right corner of the DIC display. If
there is a problem with the system that controls
the temperature display, the numbers will be
replaced with dashes. If this occurs, have
the vehicle serviced.
If your vehicle has DIC buttons, see “DIC
Operation and Displays (With DIC Buttons)” later
in this section andDIC Vehicle Customization
(With DIC Buttons) on page 250for the displays
available.
If your vehicle does not have DIC buttons, see
“DIC Operation and Displays (Without DIC
Buttons)” later in this section for the displays
available.
228
ProCarManuals.com

DIC Operation and Displays
(With DIC Buttons)
If your vehicle has DIC buttons, the information
below explains the operation of this system.
The DIC has different displays which can be
accessed by pressing the DIC buttons located on
the instrument panel. SeeInstrument Panel
Overview on page 170for more information.
The DIC displays trip, fuel, and vehicle system
information, and warning messages if a system
problem is detected.
The DIC also allows some features to be
customized. SeeDIC Vehicle Customization (With
DIC Buttons) on page 250for more information.
If your vehicle has DIC buttons, you can also use
the trip odometer reset stem to view the
odometer and trip odometers.
DIC Buttons
The buttons are the set/reset, customization,
vehicle information, and trip/fuel buttons. The
button functions are detailed in the following pages.
V(Set/Reset):Press this button to set or reset
certain functions and to turn off or acknowledge
messages on the DIC.
U(Customization):Press this button to
customize the feature settings on your vehicle.
SeeDIC Vehicle Customization (With DIC Buttons)
on page 250for more information.
229
ProCarManuals.com
