2007 SATURN OUTLOOK window

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave the keys in
a vehicle with children.
97
ProCarManuals.com

4. Snap the front and the back of the transmitter
together.
5. Test the operation of the transmitter with the
vehicle.
Remote Vehicle Start
Your vehicle may have a remote starting feature.
This feature allows you to start the engine
from outside of the vehicle. It may also start up
the vehicle’s heating or air conditioning systems
and rear window defogger. Normal operation of the
system will return after the key is turned to the
ON position.
If your vehicle has an automatic climate control
system, during remote start, the climate control
system will default to a heating mode during colder
outside temperatures and a cooling mode during
warmer outside temperatures. If your vehicle
does not have an automatic climate control
system, during remote start, the climate control
system will turn on at the setting the vehicle was
set to when the vehicle was last turned off.During a remote start, if your vehicle has an
automatic climate control system and heated
seats, the heated seats will turn on during colder
outside temperatures and will shut off when
the key is turned to RUN. If your vehicle does not
have an automatic climate control system,
during remote start, you will need to manually turn
the heated seats on and off. See Heated Seats
for additional information
Laws in some communities may restrict the use of
remote starters. For example, some laws may
require a person using the remote start to have the
vehicle in view when doing so. Check local
regulations for any requirements on remote starting
of vehicles.
The RKE transmitter with the remote start button,
provides an increased range of operation. However,
the range may be less while the vehicle is running.
As a result, you may need to be closer to your
vehicle to turn it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote
Keyless Entry (RKE) System on page 98for
additional information.
103
ProCarManuals.com

Lockout Protection
This feature protects you from locking the key in the
vehicle when the key is in the ignition and a front
door is open.
If the driver’s side power door lock switch is
pressed when the driver’s door is open and the key
is in the ignition, all of the doors will lock and then
the driver’s door will unlock.
If the passenger’s side power door lock switch is
pressed when the front passenger’s door is open
and the key is in the ignition, all of the doors will
lock and then the front passenger’s door will unlock.
Liftgate
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death.
CAUTION: (Continued)
CAUTION: (Continued)
If you must drive with the liftgate open, or
if electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
with the recirculation mode off. That
will force outside air into your vehicle.
SeeClimate Control System on
page 194.
If you have air outlets on or under
the instrument panel, open them all
the way.
If your vehicle has a power liftgate,
disable the power liftgate function.
SeePower Liftgate on page 110.
If your vehicle has a power liftgate, seePower
Liftgate on page 110.
109
ProCarManuals.com

To unlock the liftgate, use the power door lock
switch or press the door unlock button on
the Remote Keyless Entry (RKE) transmitter twice.
SeeRemote Keyless Entry (RKE) System
Operation on page 100.
To open the liftgate, press the touchpad on the
underside of the liftgate handle. The vehicle must
be in PARK (P) to open the liftgate. To close
the liftgate, use the pull cup or pull strap as an aid.
The liftgate has an electric latch. If the battery is
disconnected or has low voltage, the liftgate
will not open. The liftgate will resume operation
when the battery is reconnected and charged.
If the battery is properly connected and has
adequate voltage, and the liftgate still will not
function, your vehicle should be taken to a
dealership for service.Power Liftgate
Power Liftgate Operation
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the liftgate open, or if
electrical wiring or other cable connections
must pass through the seal between the
body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the
recirculation mode off. That will force
outside air into your vehicle. See
Climate Control System on page 194.
CAUTION: (Continued)
110
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
115
ProCarManuals.com

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
CAUTION: (Continued)
CAUTION: (Continued)
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave keys in a vehicle
with children.
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.
The power window
controls are located on
each of the side doors.
Driver’s Side shown
116
ProCarManuals.com

The driver’s door also has switches that control
the passenger and rear windows. The power
windows work when the ignition has been turned
to ACCESSORY or ON or when Retained
Accessory Power (RAP) is active. SeeRetained
Accessory Power (RAP) on page 125.
Press the switch to lower the window.
Pull up on the front edge of the switch to raise the
window.
Express-Down Windows
Windows that have the express-down feature
allow the windows to be lowered without holding
the switch. Press the window switch fully and
release it to activate the express-down feature.
The express mode can be cancelled at any time by
briey pressing, or pulling the switch.
Express-Up Window
Windows that have the express-up feature allow
the windows to be raised all the way without
holding the switch up. Pull the switch up fully and
release it to activate the express-up feature.
The express-up mode can be canceled at any time
by briey pressing, or pulling the switch.
Programming the Power Windows
If the battery one your vehicle has been recharged,
disconnected, or replaced, windows with the
express-up feature need to be reprogrammed for
this feature to work. To program the window:
1. With the ignition in the ACCESSORY or RUN
positions, or when Retained Accessory
Power (RAP) is active, close all doors. See
Retained Accessory Power (RAP) on
page 125.
2. Press and continue to hold the window switch
until the window is fully open.
3. Pull up and hold the window switch to close
the window. Continue to hold it briey after
the window is fully closed.
4. Repeat for each window that has the express
up feature.
117
ProCarManuals.com

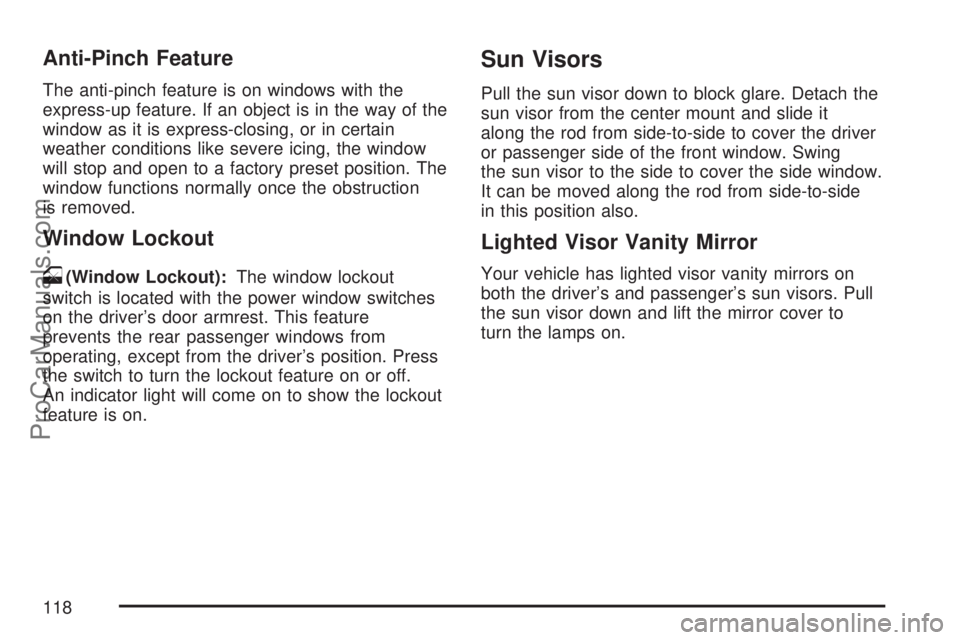

Anti-Pinch Feature
The anti-pinch feature is on windows with the
express-up feature. If an object is in the way of the
window as it is express-closing, or in certain
weather conditions like severe icing, the window
will stop and open to a factory preset position. The
window functions normally once the obstruction
is removed.
Window Lockout
o
(Window Lockout):The window lockout
switch is located with the power window switches
on the driver’s door armrest. This feature
prevents the rear passenger windows from
operating, except from the driver’s position. Press
the switch to turn the lockout feature on or off.
An indicator light will come on to show the lockout
feature is on.
Sun Visors
Pull the sun visor down to block glare. Detach the
sun visor from the center mount and slide it
along the rod from side-to-side to cover the driver
or passenger side of the front window. Swing
the sun visor to the side to cover the side window.
It can be moved along the rod from side-to-side
in this position also.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on
both the driver’s and passenger’s sun visors. Pull
the sun visor down and lift the mirror cover to
turn the lamps on.
118
