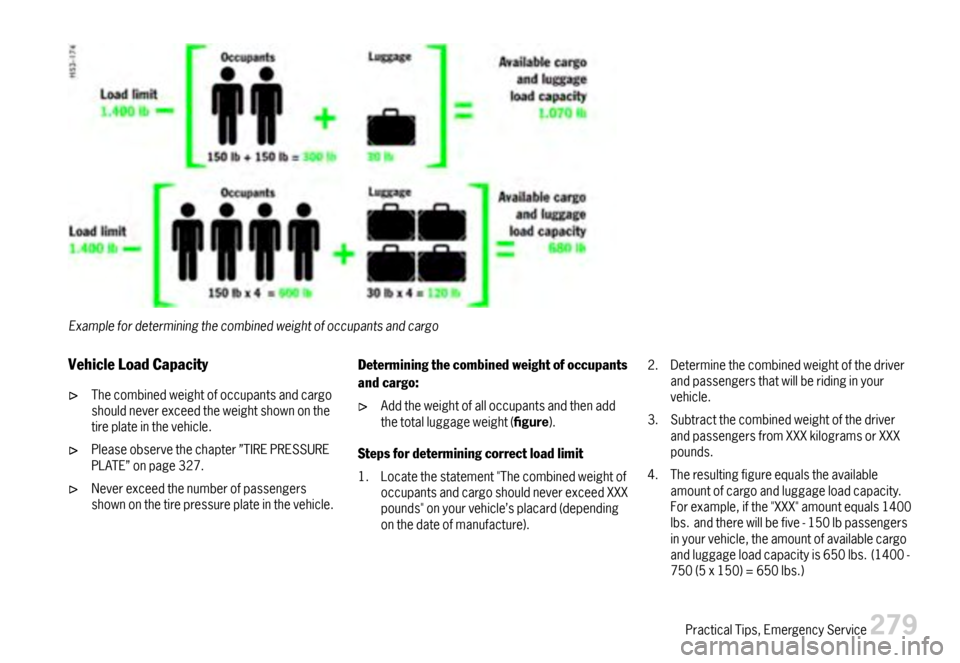

Examplefordeterminingthecombinedweightofoccupantsandcargo
VehicleLoadCapacity
Thecombinedweightofoccupantsandcargoshouldneverexceedtheweightshownonthetireplateinthevehicle.
Pleaseobservethechapter”TIREPRESSUREPLATE”onpage327.
Neverexceedthenumberofpassengersshownonthetirepressureplateinthevehicle.
Determiningthecombinedweightofoccupants
andcargo:
Addtheweightofalloccupantsandthenaddthetotalluggageweight(gure).
Stepsfordeterminingcorrectloadlimit
1.Locatethestatement"ThecombinedweightofoccupantsandcargoshouldneverexceedXXXpounds"onyourvehicle’splacard(dependingonthedateofmanufacture).
2.Determinethecombinedweightofthedriverandpassengersthatwillberidinginyourvehicle.
3.SubtractthecombinedweightofthedriverandpassengersfromXXXkilogramsorXXXpounds.
4.Theresultingfigureequalstheavailableamountofcargoandluggageloadcapacity.Forexample,ifthe"XXX"amountequals1400lbs.andtherewillbefive-150lbpassengersinyourvehicle,theamountofavailablecargoandluggageloadcapacityis650lbs.(1400-750(5x150)=650lbs.)
PracticalTips,EmergencyService279

5.Determinethecombinedweightofluggageandcargobeingloadedonthevehicle.ThatweightmaynotsafelyexceedtheavailablecargoandluggageloadcapacitycalculatedinStep4.
280PracticalTips,EmergencyService

FlatTire
Generalinformation
Warning!
Failuretofollowtheseinstructionsmayresultinseriouspersonalinjuryordeathtoyouortobystanders.
Ifyouhaveaflattire,moveasafedistanceofftheroad.Turntheemergencyflasheronanduseotherwarningdevicestoalertothermotorists.Settheparkingbrake.
Donotparkyourvehiclewhereitmaycontactdrygrass,brushorotherflammablematerials.Thehotpartsoftheexhaustsystemcouldsetsuchmaterialsonfire,therebycausingbothpropertydamageandseriouspersonalinjuryordeath.
Atiresealantandcompressorwithpressuretesterarelocatedintheluggagecompartment.
PleaseobservethesafetyandoperatinginstructionsonthespecialsealantbottlewithaspecialPorschepartnumberandonthecompressor-theseareessential.
Caution!
Sealingthetirewiththetirerepairkitisonlyanemergencyrepair.Evenwiththetireair-tight,itmaybeusedonlyforshorttripsinanemergency.Themaximumpermittedspeedis50mph(80km/h).
Donotusecommerciallyavailablesealantortireinflatingbottles.Useonlythetiresealantlocatedintheluggagecompartment.
Warning!
Riskofaccident,resultinginseriouspersonalinjuryordeath.
Havetiresreplacedbyaspecialistworkshopassoonaspossible.
Avoidhardaccelerationandhighcorneringspeeds.

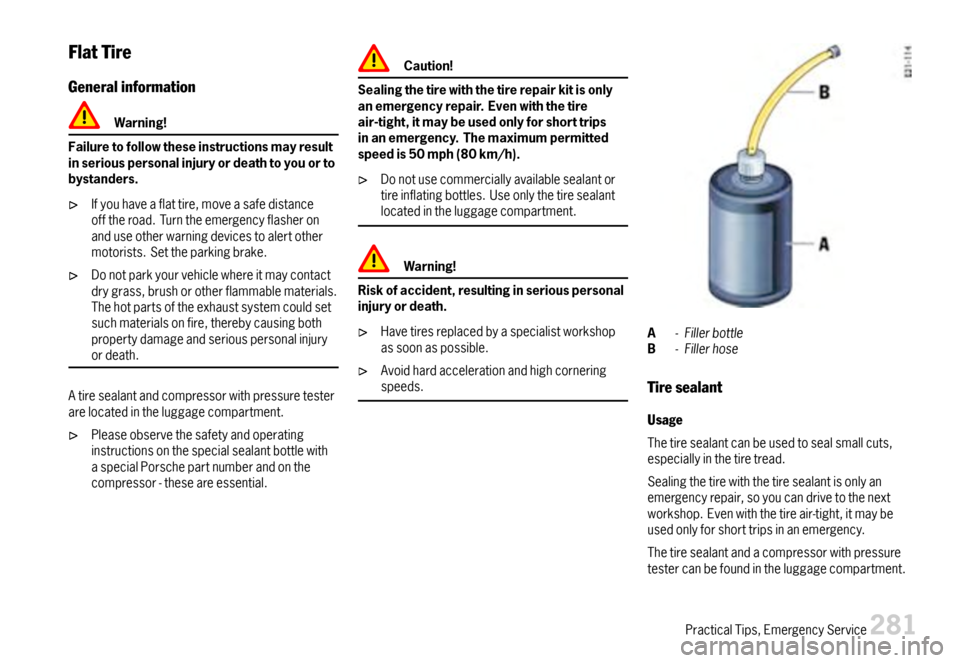

A-FillerbottleB-Fillerhose
Tiresealant
Usage
Thetiresealantcanbeusedtosealsmallcuts,especiallyinthetiretread.
Sealingthetirewiththetiresealantisonlyanemergencyrepair,soyoucandrivetothenextworkshop.Evenwiththetireair-tight,itmaybeusedonlyforshorttripsinanemergency.
Thetiresealantandacompressorwithpressuretestercanbefoundintheluggagecompartment.
PracticalTips,EmergencyService281

Thetiresealantcomprises:
–Afillerbottle
–Astickerdenotingthemaximumpermissiblespeedforthedriver’sfieldofvision
–Afillerhose
–Avalveturnerand
–Asparevalveinsert.
Danger!
Riskofaccident,resultinginseriouspersonalinjuryordeath.
Usethetiresealantonlyinthecaseofcutsorpuncturesnolargerthan0.15in.(4mm).
Neverusethetiresealantiftherimisdam-aged.
Warning!
Thesealantishighlyammableandharmfultohealth.
Fire,nakedflameandsmokingareprohibitedwhenhandlingtiresealant.
Avoidcontactwithskin,eyesandclothingduetocausticchemicalpropertiesofthetiresealant.
Keeptiresealantawayfromchildren.
Donotinhalevapors,duetoconsequentharmtopersonalhealthresultinginseriouspersonalinjuryordeath.
Incaseofcontactwiththesealant:
Ifsealantgetsontheskinorintheeyes,thoroughlyrinsetheaffectedpartofthebodyoffimmediately.
Changesoiledclothingimmediately.
Getmedicalattentionimmediatelyintheeventofanallergicreaction.

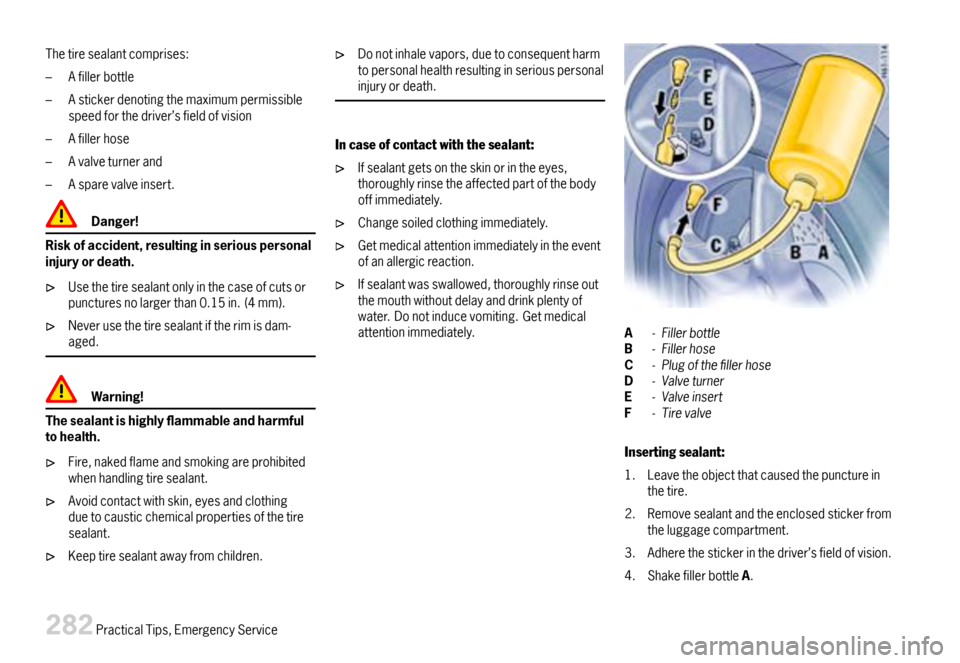

Ifsealantwasswallowed,thoroughlyrinseoutthemouthwithoutdelayanddrinkplentyofwater.Donotinducevomiting.Getmedicalattentionimmediately.A-FillerbottleB-FillerhoseC-PlugofthellerhoseD-ValveturnerE-ValveinsertF-Tirevalve
Insertingsealant:
1.Leavetheobjectthatcausedthepunctureinthetire.
2.Removesealantandtheenclosedstickerfromtheluggagecompartment.
3.Adherethestickerinthedriver’sfieldofvision.
4.ShakefillerbottleA.
282PracticalTips,EmergencyService

5.ScrewfillerhoseBontothefillerbottle.Thefillerbottleisnowopen.
6.UnscrewvalvecapfromtirevalveF.
7.RemovevalveinsertEfromthetirevalvewithvalveturnerD.Keepthevalveinsertinacleananddryplace.
8.RemoveplugCofthefillerhoseB.
9.Pushfillerhoseontothetirevalve.
10.Holdfillerbottlehigherthanthelevelofthetirevalveandpressittogetherforcefullyuntilthebottleiscompletelyemptiedintothetire.
11.Pullfillerhoseoffthetirevalve.
12.Twistthevalveinsertfirmlyintothetirevalveusingthevalveturner.
13.Connectthecompressortothecigarettelighterandinflatethetiretotheprescribedtirepressure.
Pleaseobservethechapter”TIREPRESSURESFORCOLDTIRES”onpage334.
14.Screwvalvecapontothetirevalve.
15.Checkthetirepressureafterdrivingforaround10minutes.Ifthetirepressureislessthan22psi(1.5bar),donotcontinuedriving.Ifavalueofmorethan22psi(1.5bar)isindicated,correctthepressuretotheprescribedvalue.
16.PleaseconsultyourauthorizedPorschedealer.
CareInstructions
Afterdrying,anysealantthatemergescanbepeeledofflikeafilm.
Warning!
Riskofaccident,resultinginseriouspersonalinjuryordeath.
HavethetirereplacedbyanauthorizedPorschedealerimmediately.
Avoidhardaccelerationandhighcorneringspeeds.
Donotexceedmaximumspeedof50mph(80km/h).
Pleasealwaysobservethesafetyandoper-atinginstructions,whichcanbefoundintheseparateoperatinginstructionsforthesealantandonthecompressor.
A-Frontjackingpoint
Liftingthevehicle
Liftingthevehiclewithaliftingplatformor
garagelift
Thecarmustberaisedonlyattheillustratedjackingpoints.
PracticalTips,EmergencyService283

B-Rearjackingpoint
Caution!
Seriouspersonalinjuryordeathand/orseriousdamagetotheengineorthevehiclemayoccur,ifyouliftthevehicleimproperly.
Neverliftthevehicleatanyotherplacethanthejackingpoints.
Neverliftthevehiclebytheengine,transmis-sionoraxles.
Donotdamageanysensitivecomponentsinthevicinityofthejackingpoints.
Platformlift
Beforethecarisdrivenontoaliftingplatform,itmustbeensuredthatthereisenoughspacebetweentheliftingplatformandthevehicle.
Garagelift
Agarageliftmaybeusedonlyattheillustratedjackingpoints.
284PracticalTips,EmergencyService

WheelBolts
Generalinformation
Danger!
Riskofwheelboltbreakageandwheelseparation,resultinginseriouspersonalinjuryordeath.
Followallinstructionsconcerningwheelbolts.
Alwayscleanthewheelboltsbeforefitting.

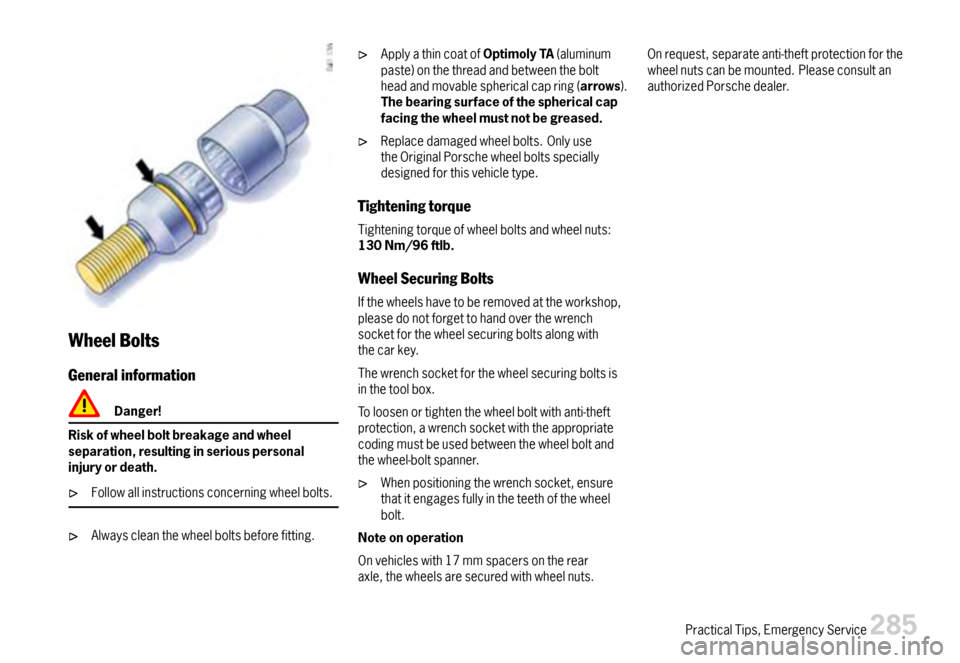

ApplyathincoatofOptimolyTA(aluminumpaste)onthethreadandbetweentheboltheadandmovablesphericalcapring(arrows).Thebearingsurfaceofthesphericalcapfacingthewheelmustnotbegreased.
Replacedamagedwheelbolts.OnlyusetheOriginalPorschewheelboltsspeciallydesignedforthisvehicletype.
Tighteningtorque
Tighteningtorqueofwheelboltsandwheelnuts:130Nm/96ftlb.
WheelSecuringBolts
Ifthewheelshavetoberemovedattheworkshop,pleasedonotforgettohandoverthewrenchsocketforthewheelsecuringboltsalongwiththecarkey.
Thewrenchsocketforthewheelsecuringboltsisinthetoolbox.
Toloosenortightenthewheelboltwithanti-theftprotection,awrenchsocketwiththeappropriatecodingmustbeusedbetweenthewheelboltandthewheel-boltspanner.
Whenpositioningthewrenchsocket,ensurethatitengagesfullyintheteethofthewheelbolt.
Noteonoperation
Onvehicleswith17mmspacersontherearaxle,thewheelsaresecuredwithwheelnuts.
Onrequest,separateanti-theftprotectionforthewheelnutscanbemounted.PleaseconsultanauthorizedPorschedealer.
PracticalTips,EmergencyService285

Spacers
911Carrera,911CarreraS
Generalinformation
UsethespacersonlytogetherwithwheelsandfasteningpartsapprovedbyPorsche.Beforehavingspacersfitted,findoutaboutthecurrentapprovalstatus.
Mountinganemergencysparewheel
If5mmspacersaremounted,thesemustnotberemovedtomountanemergencysparewheel.
Fittingsnowchains
Theuseofsnowchainsisnotpermittedwhen5mmspacersaremounted.
Caution!
Riskofdamagetothewheelhousingsifthe5mmspacersarenotremovedbeforettingsnowchains.
Topermitthefittingofsnowchains,havethe5mmspacersremovedonall4wheels.
Noteonoperation
Tofit/removethespacers:PleaseconsultanauthorizedPorschedealer.
Pleaseobservethechapter”5MMSPACERS”onpage288.
Pleaseobservethechapter”CHANGINGAWHEEL”onpage287.
911Carrera4,911Carrera4S,
911Targa4,911Targa4S
Generalinformation
UsethespacersonlytogetherwithwheelsandfasteningpartsapprovedbyPorsche.Beforehavingspacersfitted,findoutaboutthecurrentapprovalstatus.
Danger!
Riskofaccident.17mmspacersmustonlybemountedontherearaxletogetherwith11.5Jx19(67mmrimoffset)wheels.
Alwaysremove17mmspacersbeforemountingotherwheelsizesoranemergencysparewheelbecausethewheelcannotbemountedcorrectly.
Noteonoperation
Tofit/removethespacers:PleaseconsultanauthorizedPorschedealer.
Pleaseobservethechapter”17MMSPAC-ERS”onpage290.
Pleaseobservethechapter”CHANGINGAWHEEL”onpage287.
