2007 PONTIAC VIBE display

(C) ON:This is the position the switch returns to
after you start your engine and release the switch.
The switch stays in the ON position when the
engine is running. But even when the ignition is not
running, you can use ON to operate your electrical
accessories, including the ventilation fan and
115 volt power outlet, and to display some warning
and indicator lights.
The battery could be drained if you leave the key in
the ACC or On position with the engine off. You
may not be able to start your vehicle if the battery is
allowed to drain for an extended period of time.
(D) START:This position starts the engine. When
the engine starts, release the key. The ignition
switch will return to ON for normal driving.
When the engine is not running, ACC and ON
allow you to operate some of your electrical
accessories.
A warning tone will sound if you open the driver’s
door when the ignition is still in ACC or LOCK
and the key is in the ignition.Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if you leave the key
in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
Starting the Engine
Place the transaxle in the proper gear.
104

Speedometer and Odometer
The speedometer lets you see your vehicle’s
speed in both miles per hour (mph) and kilometers
per hour (km/h). The odometer shows how far
your vehicle has been driven.
If your vehicle needs a new odometer installed,
the new one must be set to the mileage total of the
old odometer. If it cannot, then it is set at zero
and a label must be put on the driver’s door
to show the old mileage reading when the new
odometer was installed. See your dealer for more
information.
Trip Odometers
The trip odometers can tell you how far your
vehicle has been driven since you last set the trip
odometer to zero.
The button located on
the right side of the
instrument panel cluster
allows you to switch
between the odometer
and the two trip
odometers.
Press the button once to switch to TRIP A and
again to switch to TRIP B. To return the display to
the odometer reading, press the trip odometer
button again.
To set the trip odometers to zero, press and hold
the button.
160

Tachometer
The tachometer shows
engine speed in
thousands of revolutions
per minute (rpm).
Notice:If you operate the engine with the
tachometer in the shaded warning area, your
vehicle could be damaged, and the damages
would not be covered by your warranty. Do not
operate the engine with the tachometer in
the shaded warning area.
Temperature Display
The outside air temperature is displayed on the
center of the instrument panel, within the
speedometer. The display will show the outside air
temperature in Fahrenheit with a range from
−22°F to 122°F (−30°C to 50°C).
Safety Belt Reminder Light
When the key is turned to ON or START, a chime
will come on for several seconds to remind
people to fasten their safety belts, unless the
driver’s safety belt is already buckled.
The safety belt light will
also ash until the
driver’s belt is buckled.
If the driver’s belt is
already buckled, neither
the chime nor the
light will come on.
161

Keeping your mind on the drive is important for
safe driving. Here are some ways in which you can
help avoid distraction while driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite radio stations, setting the tone, and
adjusting the speakers. Then, when driving
conditions permit, you can tune to your favorite
radio stations using the presets and steering
wheel controls if the vehicle has them.
Notice:Before adding any sound equipment to
your vehicle, such as an audio system, CD
player, CB radio, mobile telephone, or two-way
radio, make sure that it can be added by
checking with your dealer. Also, check federal
rules covering mobile radio and telephone
units. If sound equipment can be added, it is
very important to do it properly. Added sound
equipment can interfere with the operation of
your vehicle’s engine, radio, or other systems,
and even damage them. Your vehicle’s systems
can interfere with the operation of sound
equipment that has been added.
Setting the Time
The radio might have a button marked with an
H or HR to represent hours and an M or MIN to
represent minutes.
Press and hold the hour button until the correct
hour displays. AM appears for morning hours.
Press and hold the minute button until the correct
minute displays. The time can be set with the
ignition on or off.
To synchronize the time with an FM station
broadcasting Radio Data System (RDS)
information, press and hold the hour and minute
buttons at the same time until UPDATED displays.
If the time is not available from the station, NO
UPDATE displays.
RDS time is broadcast once a minute. After tuning
to an RDS broadcast station, it could take a
few minutes for the time to update.
178

Radio with CD (Base Level)
The radio has a theft-deterrent feature. A red light
blinks while the engine is off to indicate the
radio is protected. It will not operate if it is installed
in a different vehicle.
Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
Seek to stations with traffic announcements
This system relies upon receiving specic
information from these stations and only works
when the information is available. In rare cases, a
radio station can broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
While the radio is tuned to an RDS station, the
station name or call letters display instead of the
frequency. RDS stations can also provide the
time of day, a program type (PTY) for current
programming, and the name of the program being
broadcast.
179

XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
PWR (Power):Push this knob to turn the system
on and off.
VOL (Volume):Turn this knob clockwise or
counterclockwise to increase or to decrease the
volume.RCL (Recall):Push this button to display the time
with the ignition off.
For RDS, push the RCL button to change what
displays while using RDS. The display options are
station, RDS station frequency, PTY (program
type), and the name of the program (if available).
For XM™ (if equipped), push the RCL button
while in XM™ mode to retrieve four different
categories of information related to the current
song or channel: Artist, Song Title, Category
or PTY, Channel Number/Channel Name.
To change the default on the display, push the
RCL button until the desired option displays, then
hold the button until the display ashes. The
selected display becomes the default.Finding a Station
BAND:Press this button to switch between FM1,
FM2, AM, or XM1 or XM2 (if equipped). The
display shows the selection.
TUNE:Turn this knob to select radio stations.
180

wSEEKx:Press the up or the down arrow to
go to the next or to the previous station and
stay there.
The radio seeks stations only with a strong signal
that are in the selected band.
wSCANx:Press and hold either SCAN arrow
for two seconds until SCAN displays and a
beep sounds. The radio goes to a station, plays
for a few seconds, then goes to the next
station. Press either SCAN arrow again to stop
scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds until
PSCAN and the preset number displays. A double
beep sounds. The radio goes to the rst preset
station stored on your pushbuttons, plays for
a few seconds, then goes to the next preset
station. Press either SCAN arrow again to stop
scanning presets.
The radio scans stations only with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set returns and the
equalization that was selected is stored for
that pushbutton.
5. Repeat the steps for each pushbutton.
181

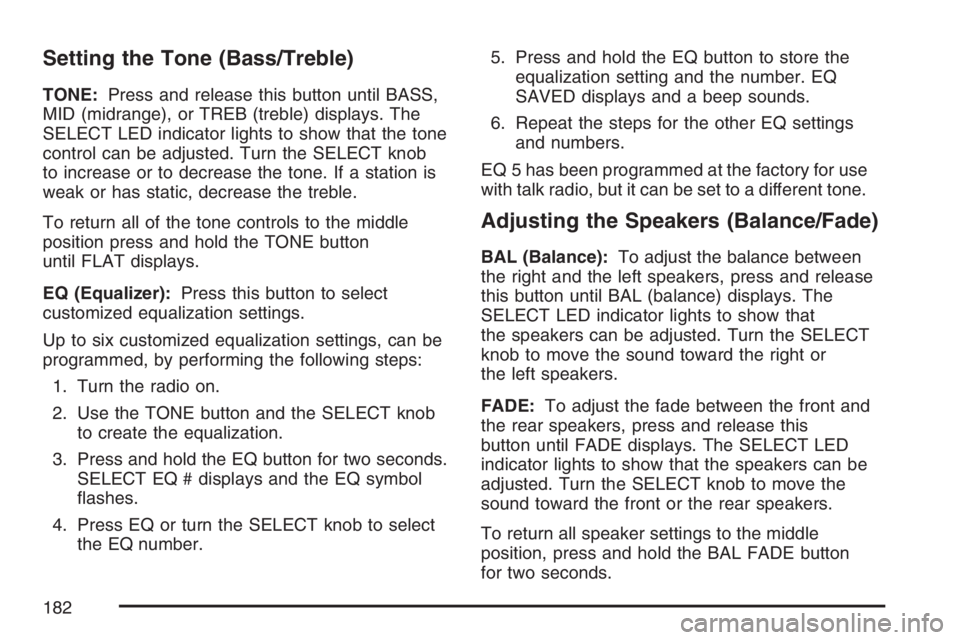

Setting the Tone (Bass/Treble)
TONE:Press and release this button until BASS,
MID (midrange), or TREB (treble) displays. The
SELECT LED indicator lights to show that the tone
control can be adjusted. Turn the SELECT knob
to increase or to decrease the tone. If a station is
weak or has static, decrease the treble.
To return all of the tone controls to the middle
position press and hold the TONE button
until FLAT displays.
EQ (Equalizer):Press this button to select
customized equalization settings.
Up to six customized equalization settings, can be
programmed, by performing the following steps:
1. Turn the radio on.
2. Use the TONE button and the SELECT knob
to create the equalization.
3. Press and hold the EQ button for two seconds.
SELECT EQ # displays and the EQ symbol
ashes.
4. Press EQ or turn the SELECT knob to select
the EQ number.5. Press and hold the EQ button to store the
equalization setting and the number. EQ
SAVED displays and a beep sounds.
6. Repeat the steps for the other EQ settings
and numbers.
EQ 5 has been programmed at the factory for use
with talk radio, but it can be set to a different tone.
Adjusting the Speakers (Balance/Fade)
BAL (Balance):To adjust the balance between
the right and the left speakers, press and release
this button until BAL (balance) displays. The
SELECT LED indicator lights to show that
the speakers can be adjusted. Turn the SELECT
knob to move the sound toward the right or
the left speakers.
FADE:To adjust the fade between the front and
the rear speakers, press and release this
button until FADE displays. The SELECT LED
indicator lights to show that the speakers can be
adjusted. Turn the SELECT knob to move the
sound toward the front or the rear speakers.
To return all speaker settings to the middle
position, press and hold the BAL FADE button
for two seconds.
182
