2007 PONTIAC VIBE display

Finding a Station
AM/FM:Press this button to switch between FM1,
FM2, or AM. The selection displays.
TUNE:Turn this knob to select radio stations.
sSEEKt:Press the right or the left arrow to go
to the next or to the previous station and stay there.
The radio only seeks stations with a strong signal
that are in the selected band.
sSCANt:Press and hold either SCAN arrow
for two seconds until SC displays and a beep
sounds. The radio goes to a station, plays for a
few seconds, then goes to the next station. Press
either SCAN arrow again to stop scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds. PRESET
SCAN displays and a double beep sounds. The
radio goes to a preset station stored on the
pushbuttons, plays for a few seconds, then goes
to the next preset station. Press either SCAN
arrow again to stop scanning presets.
The radio only scans stations with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 18 stations (six FM1, six FM2, and six AM),
can be programmed on the six numbered
pushbuttons, by performing the following steps:
1. Turn the radio on.
2. Press AM/FM to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set, returns and the
equalization that was selected, is stored for
that pushbutton.
5. Repeat the steps for each pushbutton.
199

Setting the Tone
(Bass/Midrange/Treble)
AUDIO:Push and release the AUDIO knob until
BASS, MID (midrange), or TREB (treble)
displays. Turn the knob to increase or to decrease
the tone. If a station is weak or has static,
decrease the treble.
To adjust bass, midrange, or treble to the middle
position, select BASS, MID, or TREB and push
and hold the AUDIO knob. The radio beeps once
and adjusts the display level to the middle
position.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker controls display.
CENTERED displays and a beep sounds.
AUTO EQ (Automatic Equalization):Press this
button to select customized equalization settings
designed for country, jazz, talk, pop, rock, and
classical.
To return to the manual mode, press the AUTO
EQ button until CUSTOM displays. Then manually
adjust the bass, midrange, and treble using the
AUDIO knob.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the
right and the left speakers, push and release the
AUDIO knob until BAL (balance) displays.
Turn the knob to move the sound toward the right
or the left speakers.
To adjust the fade between the front and rear
speakers, push and release the AUDIO knob until
FAD (fade) displays. Turn the knob to move
the sound toward the front or the rear speakers.
To adjust the balance and the fade to the
middle position, select balance or fade and push
and hold the AUDIO knob. The radio beeps
once and adjusts the display level to the middle
position.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker controls display.
CENTERED displays and a beep sounds.
200

Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
Seek to stations with traffic announcements
This system relies upon receiving specic
information from these stations and only works
when the information is available. In rare cases, a
radio station can broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
While the radio is tuned to an RDS station, the
station name or call letters display instead of the
frequency. RDS stations can also provide the
time of day, a program type (PTY) for current
programming, and the name of the program being
broadcast.
Finding a Program Type (PTY) Station
To select and nd a desired PTY perform the
following:
1. Press the P-TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY displays, press either
SEEK arrow to select and to go to the PTY’s
rst station.
4. To go to another station within that PTY and
the PTY displays, press either SEEK arrow
once. If the PTY does not display, press either
SEEK arrow twice to display the PTY and
then to go to another station.
5. Press the P-TYPE button to exit program type
select mode.
If PTY times out and is no longer on the
display, go back to Step 1.
If both PTY and TRAF are on, the radio searches
for stations with the selected PTY and traffic
announcements.
201

To use the PTY interrupt feature, press and hold
the P-TYPE button until a beep sounds on the
PTY you want to interrupt with. When selected, an
asterisk displays beside that PTY on the display.
Select multiple interrupts if desired. When listening
to a CD, the last selected RDS station interrupts
play if that selected program type format is
broadcast.
sSCANt:Scan the stations within a PTY by
performing the following:
1. Press the P-TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY is displayed, press and
hold either SCAN arrow, and the radio begins
scanning the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both PTY and TRAF are on, the radio scans
for stations with the selected PTY and traffic
announcements.Alternate Frequency:Alternate frequency
allows the radio to switch to a stronger FM station
with the same program type. To turn alternate
frequency on, press and hold AM/FM for
two seconds. AF ON displays. The radio can
switch to FM stations with a stronger frequency.
To turn alternate frequency off, press and hold
AM/FM again for two seconds. AF OFF displays.
The radio does not switch to stronger FM stations.
Setting Preset PTYs
These pushbuttons have factory PTY presets. Up
to 12 PTYs (six FM1 and six FM2), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Press AM/FM to select FM1 or FM2.
2. Press the P-TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
3. Turn the P-TYPE knob to select a PTY.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the PTY
that was set, returns.
5. Repeat the steps for each pushbutton.
202

RDS Messages
ALERT!:Alert warns of local or national
emergencies. When an alert announcement
comes on the current radio station, ALERT!
displays. You will hear the announcement, even if
the volume is low or a CD is playing. If a CD is
playing, play stops during the announcement. Alert
announcements cannot be turned off.
ALERT! is not affected by tests of the emergency
broadcast system. This feature is not supported
by all RDS stations.
INFO (Information):If the current station has a
message, INFO displays. Press this button to
see the message. The message can display the
artist, song title, call in phone numbers, etc.
If the entire message is not displayed, parts of the
message displays every three seconds. To
scroll through the message, press and release the
INFO button. A new group of words display
after every press of this button. Once the complete
message displays, INFO disappears from the
display until another new message is received.
The last message can be displayed by pressing
the INFO button. The last message is shown until
a new message is received or you tune to a
different station.TRAF (Traffic):If TRAF displays, the tuned
station broadcasts traffic announcements.
To receive the traffic announcement from the
tuned station, press this button. Brackets
are displayed around TRAF and when a traffic
announcement broadcasts on the tuned radio
station, you will hear it.
If the station does not broadcast traffic
announcements, press the TRAF button and the
radio seeks to a station that does. When a station
that broadcasts traffic announcements is found,
the radio stops seeking and brackets are displayed
around TRAF. If no station is found that broadcast
traffic announcements, NO TRAFFIC displays.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets
or use the TUNE knob or the SEEK arrows to go
to a station that supports traffic announcements.
If no station is found that broadcasts traffic
announcements, NO TRAFFIC displays.
The radio plays the traffic announcements if the
volume is low. The radio interrupts the play
of a CD if the last tuned station broadcasts traffic
announcements and the brackets display.
203

Playing a CD
If the ignition or radio is turned off, with a CD in the
player, it stays in the player. When the ignition or
radio is turned on, the CD starts playing where it
stopped, if it was the last selected audio source.
When a CD is inserted, the CD symbol displays on
the CD. As each new track starts to play, the
track number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R, the sound quality can be reduced
due to CD-R quality, the method of recording, the
quality of the music that has been recorded, and the
way the CD-R has been handled. There can be an
increase in skipping, difficulty in nding tracks,
and/or difficulty in loading and ejecting. If these
problems occur, check the bottom surface of the
CD. If the surface of the CD is damaged, such as
cracked, broken, or scratched, the CD will not play
properly. If the surface of the CD is soiled, seeCare
of Your CDs on page 219for more information.
If there is no apparent damage, try a known
good CD.Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later in
this section.
LOAD CD
Z:Press the LOAD side of this
button to load CDs into the CD player. This CD
player holds up to six CDs.
To insert one CD, do the following:
1. Turn the ignition on.
2. Press and release the LOAD button.
3. Wait for the indicator light, located to the right
of the slot, to turn green.
204

4. Load a CD. Insert the CD partway into
the slot, label side up. The player pulls
the CD in.
To insert multiple CDs, do the following:
1. Turn the ignition on.
2. Press and hold the LOAD button for
two seconds.
A beep sounds and the indicator light, located
to the right of the slot, begins to ash.
3. Once the light stops ashing and turns green,
load a CD. Insert the CD partway into the slot,
label side up. The player pulls the CD in.
Once the CD is loaded, the light begins
ashing again. Once the light stops ashing
and turns green you can load another CD. The
CD player takes up to six CDs. Do not try to
load more than six.
To load more than one CD but less than six,
complete Steps 1 through 3. When nished loading
CDs, the radio begins to play the last CD loaded.
If more than one CD has been loaded, a
number for each CD displays.Playing a Specic Loaded CD
For every CD loaded, a number appears on the
display. To play a specic CD, rst press the
CD AUX button, then press the numbered
pushbutton that corresponds to the CD. A small
bar appears under the CD number that is
playing and the track number displays.
If an error appears on the display, see “CD
Messages” later in this section.
LOAD CD
Z(Eject):Press the CD eject side of
this button to eject a CD(s). To eject the CD
that is currently playing, press and release this
button. To eject multiple CDs, press and hold this
button for two seconds. A beep sounds and
the indicator light ashes while a CD is being
ejected.
REMOVE CD displays. The CD can be removed.
If the CD is not removed, after 25 seconds,
the CD automatically pulls back into the player. If
the CD is pushed back into the player, before
the 25 second time period is complete, the player
senses an error and tries to eject the CD
several times before stopping.
205

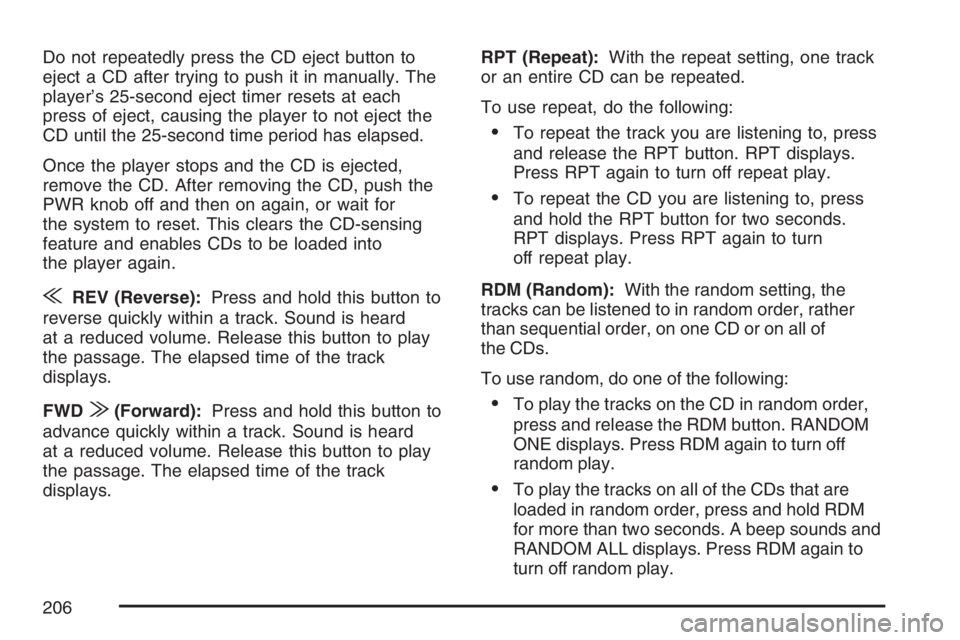

Do not repeatedly press the CD eject button to
eject a CD after trying to push it in manually. The
player’s 25-second eject timer resets at each
press of eject, causing the player to not eject the
CD until the 25-second time period has elapsed.
Once the player stops and the CD is ejected,
remove the CD. After removing the CD, push the
PWR knob off and then on again, or wait for
the system to reset. This clears the CD-sensing
feature and enables CDs to be loaded into
the player again.
{REV (Reverse):Press and hold this button to
reverse quickly within a track. Sound is heard
at a reduced volume. Release this button to play
the passage. The elapsed time of the track
displays.
FWD
|(Forward):Press and hold this button to
advance quickly within a track. Sound is heard
at a reduced volume. Release this button to play
the passage. The elapsed time of the track
displays.RPT (Repeat):With the repeat setting, one track
or an entire CD can be repeated.
To use repeat, do the following:
To repeat the track you are listening to, press
and release the RPT button. RPT displays.
Press RPT again to turn off repeat play.
To repeat the CD you are listening to, press
and hold the RPT button for two seconds.
RPT displays. Press RPT again to turn
off repeat play.
RDM (Random):With the random setting, the
tracks can be listened to in random order, rather
than sequential order, on one CD or on all of
the CDs.
To use random, do one of the following:
To play the tracks on the CD in random order,
press and release the RDM button. RANDOM
ONE displays. Press RDM again to turn off
random play.
To play the tracks on all of the CDs that are
loaded in random order, press and hold RDM
for more than two seconds. A beep sounds and
RANDOM ALL displays. Press RDM again to
turn off random play.
206
