2007 PONTIAC VIBE check engine

Check the uid level only when your engine is off,
the vehicle is parked on a level place and the
transaxle is cool enough for you to rest your
ngers on the transaxle case.
Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is up to the
bottom of the ller plug hole.
3. If the uid level is good, install the plug and be
sure it is fully seated. If the uid level is low,
add more uid as described in the next steps.
How to Add Fluid
Here is how to add uid. Refer to the Maintenance
Schedule to determine what kind of uid to use.
SeePart D: Recommended Fluids and Lubricants
on page 394.
1. Remove the ller plug.
2. Add uid at the ller plug hole. Add only
enough uid to bring the uid level up to
the bottom of the ller plug hole.
3. Install the ller plug. Be sure the plug is fully
seated.
Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The master cylinder reservoir
is lled with DOT-3 brake uid.
It is not necessary to regularly check the uid
unless you suspect there is a leak in the system.
Adding uid will not correct a leak.
The hydraulic clutch and brake master cylinder
use the same reservoir.
A uid loss in this system could indicate a
problem. Have the system inspected and repaired.
293

When to Check and What to Use
The reservoir is located
at the back of the
engine compartment, on
the driver’s side of
the vehicle. SeeEngine
Compartment Overview
on page 282for
more information on
location.
Refer to the Maintenance Schedule to determine
how often you should check the uid level in
your master cylinder reservoir and for the proper
uid. SeePart B: Owner Checks and Services
on page 386andPart D: Recommended Fluids
and Lubricants on page 394.
How to Check and Add Fluid
Check to make sure that the uid level is at or
above the MIN mark. If the level is below the MIN
mark, see the instructions on the reservoir cap.
Engine Coolant
Your vehicle was factory-lled with a coolant
developed to last for ve years or 150,000 miles
(240 000 km), whichever occurs rst. When
coolant is added or changed, use DEX-COOL
®
coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 297.
294

If you have to add coolant more than four times
a year, have your dealer check your cooling
system.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system, you
could damage your vehicle. Use only the
proper mixture of the engine coolant listed in
this manual for the cooling system. See
Part D: Recommended Fluids and Lubricants
on page 394for more information.
Checking Coolant
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at LOW,
or a little higher. When your engine is warm, the
level should be up to FULL, or a little higher.
SeeEngine Compartment Overview on page 282
for the location of the coolant recovery tank.
Adding Coolant
If you need more coolant, add the proper
DEX-COOL®coolant mixture at the coolant
recovery tank, but be careful not to spill it.
{CAUTION:
Turning the radiator pressure cap when
the engine and radiator are hot can allow
steam and scalding liquids to blow out
and burn you badly. With the coolant
recovery tank, you will almost never have
to add coolant at the radiator. Never turn
the radiator pressure cap — even a
little — when the engine and radiator
are hot.
{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol, and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
296

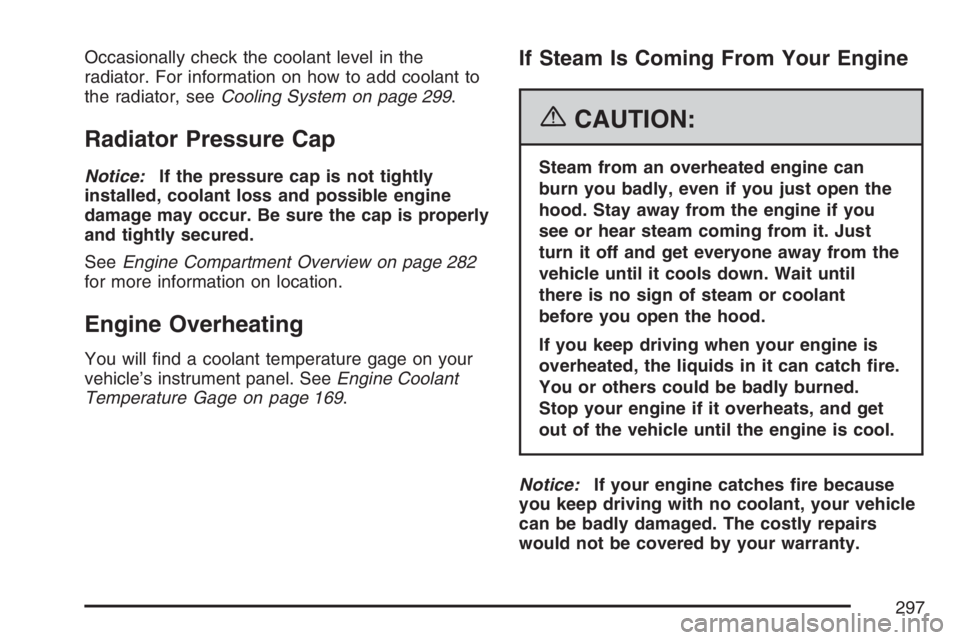

Occasionally check the coolant level in the
radiator. For information on how to add coolant to
the radiator, seeCooling System on page 299.
Radiator Pressure Cap
Notice:If the pressure cap is not tightly
installed, coolant loss and possible engine
damage may occur. Be sure the cap is properly
and tightly secured.
SeeEngine Compartment Overview on page 282
for more information on location.
Engine Overheating
You will nd a coolant temperature gage on your
vehicle’s instrument panel. SeeEngine Coolant
Temperature Gage on page 169.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open the
hood. Stay away from the engine if you
see or hear steam coming from it. Just
turn it off and get everyone away from the
vehicle until it cools down. Wait until
there is no sign of steam or coolant
before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch re.
You or others could be badly burned.
Stop your engine if it overheats, and get
out of the vehicle until the engine is cool.
Notice:If your engine catches re because
you keep driving with no coolant, your vehicle
can be badly damaged. The costly repairs
would not be covered by your warranty.
297

{CAUTION:
Heater and radiator hoses, and other
engine parts, can be very hot. Do not
touch them. If you do, you can be burned.
Do not run the engine if there is a leak. If
you run the engine, it could lose all
coolant. That could cause an engine re,
and you could be burned. Get any leak
xed before you drive the vehicle.
If there seems to be no leak, with the engine on,
check to see if the electric engine cooling fan
is running. If the engine is overheating, the
fan should be running. If it is not, your vehicle
needs service.
Notice:Engine damage from running your
engine without coolant is not covered by your
warranty.
How to Add Coolant to the Coolant
Recovery Tank
If you have not found a problem yet, but the
coolant level is not at or above the FULL mark,
add a 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant at the coolant recovery
tank. SeeEngine Coolant on page 294for more
information about the proper coolant mixture.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and a proper coolant.
300

Power Steering Fluid
The power steering uid
reservoir is located in
the engine compartment
on the passenger’s
side of the vehicle. See
Engine Compartment
Overview on page 282
for reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power
steering uid unless you suspect there is a leak in
the system or you hear an unusual noise. A
uid loss in this system could indicate a problem.
Have the system inspected and repaired.
How to Check Power Steering Fluid
You can check your uid without taking the cap off.
Just look at the reservoir.
When the engine compartment is hot, the
level should be between the HOT marks.
When the engine compartment is cool, the
level should be between the COLD marks.
What to Use
To determine what kind of uid to use, see
Part D: Recommended Fluids and Lubricants on
page 394.
Notice:When adding power steering uid or
making a complete uid change, always
use the proper uid. Failure to use the proper
uid can cause leaks and damage hoses
and seals.
304

{CAUTION:
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Check that the jumper cables do not have
loose or missing insulation. If they do, you
could get a shock. The vehicles could
be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+)
will go to positive (+) or to a remote
positive (+) terminal if the vehicle has one.
Negative (−) will go to a heavy, unpainted
metal engine part or to a remote negative (−)
terminal if the vehicle has one.
Do not connect positive (+) to negative (−)or
you will get a short that would damage
the battery and maybe other parts too. And do
not connect the negative (−) cable to the
negative (−) terminal on the dead battery
because this can cause sparks.6. Connect the red positive (+) cable to the
positive (+) terminal of the dead battery.
Use a remote positive (+) terminal if
the vehicle has one.
7. Do not let the other end touch metal. Connect
it to the positive (+) terminal of the good
battery. Use a remote positive (+) terminal if
the vehicle has one.
313

Maintenance Schedule................................ 374
Introduction............................................... 374
Maintenance Requirements........................ 374
Your Vehicle and the Environment............ 374
How This Section is Organized................. 374
Part A: Scheduled Maintenance
Services................................................. 376
Using the Maintenance Schedule............... 376
Scheduled Maintenance............................. 377
Part B: Owner Checks and Services......... 386
At Each Fuel Fill....................................... 386
At Least Once a Month............................. 386
At Least Twice a Year.............................. 387At Least Once a Year............................... 388
Part C: Periodic Maintenance
Inspections............................................. 392
Steering, Suspension and Front Drive
Axle Boot and Seal Inspection............... 392
Exhaust System Inspection........................ 392
Fuel System Inspection............................. 392
Engine Cooling System Inspection............. 393
Throttle System Inspection........................ 393
Brake System Inspection........................... 393
Part D: Recommended Fluids and
Lubricants.............................................. 394
Part E: Maintenance Record...................... 396
Section 6 Maintenance Schedule
373
