Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended uids and lubricants as prescribed
in this manual are necessary to keep your
vehicle in good working condition. Any damage
caused by failure to follow scheduled maintenance
may not be covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
How This Section is Organized
This maintenance schedule is divided into
ve parts:
“Part A: Scheduled Maintenance Services”
explains what to have done and how often. Some
of these services can be complex, so unless
you are technically qualied and have the
necessary equipment, you should let your
GM dealer’s service department do these jobs.
Your GM dealer has GM-trained and supported
service people that will perform the work using
genuine GM parts.
374

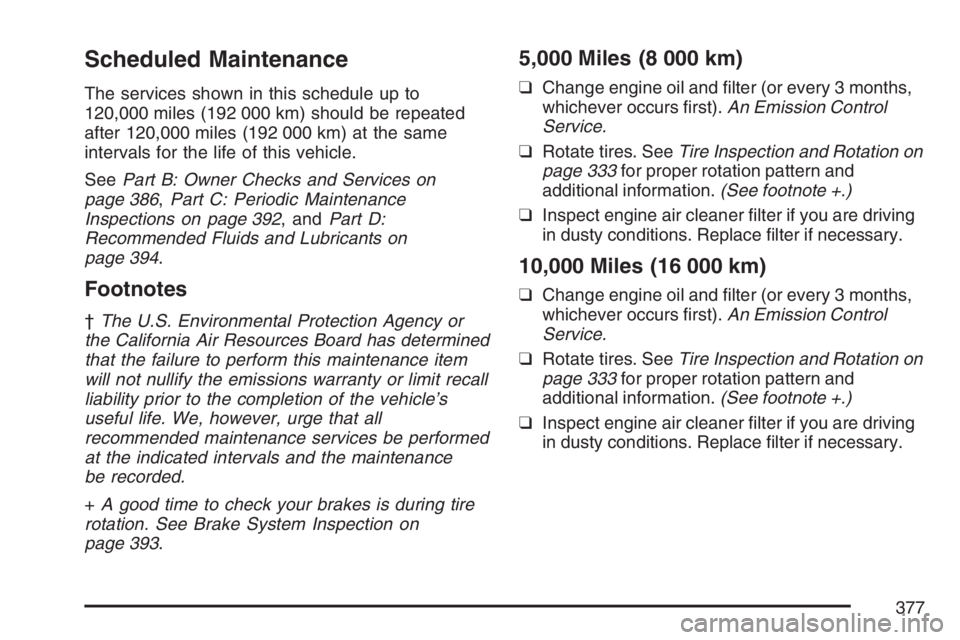

Scheduled Maintenance
The services shown in this schedule up to
120,000 miles (192 000 km) should be repeated
after 120,000 miles (192 000 km) at the same
intervals for the life of this vehicle.
SeePart B: Owner Checks and Services on
page 386,Part C: Periodic Maintenance
Inspections on page 392, andPart D:
Recommended Fluids and Lubricants on
page 394.
Footnotes
†The U.S. Environmental Protection Agency or
the California Air Resources Board has determined
that the failure to perform this maintenance item
will not nullify the emissions warranty or limit recall
liability prior to the completion of the vehicle’s
useful life. We, however, urge that all
recommended maintenance services be performed
at the indicated intervals and the maintenance
be recorded.
+A good time to check your brakes is during tire
rotation. See Brake System Inspection on
page 393.
5,000 Miles (8 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control
Service.
❑Rotate tires. SeeTire Inspection and Rotation on
page 333for proper rotation pattern and
additional information.(See footnote +.)
❑Inspect engine air cleaner lter if you are driving
in dusty conditions. Replace lter if necessary.
10,000 Miles (16 000 km)
❑Change engine oil and lter (or every 3 months,
whichever occurs rst).An Emission Control
Service.
❑Rotate tires. SeeTire Inspection and Rotation on
page 333for proper rotation pattern and
additional information.(See footnote +.)
❑Inspect engine air cleaner lter if you are driving
in dusty conditions. Replace lter if necessary.
377

Part B: Owner Checks and Services
Listed in this part are owner checks and services
which should be performed at the intervals
specied to help ensure the safety, dependability
and emission control performance of your
vehicle.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown in Part D.
At Each Fuel Fill
It is important for you or a service station attendant
to perform these underhood checks at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. SeeEngine Oil on page 284for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. SeeEngine Coolant
on page 294for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the
windshield washer uid reservoir and add
the proper uid if necessary. SeeWindshield
Washer Fluid on page 305for further details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside
the vehicle. The secondary latch should keep
the hood from opening all the way when the
primary latch is released. Make sure the hood
closes rmly. SeeHood Release on page 280for
further details.
At Least Once a Month
Tire Ination Check
Visually inspect the tires and make sure the tires
are inated to the correct pressures. Do not
forget to check the spare tire. SeeInation - Tire
Pressure on page 329.
386

At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specied in Part D.
Seat Operation Check
Make sure the head restraints stay in position and
all seat latches lock. Check that the recliner
holds by pushing and pulling the seatback while it
is reclined.
Body Lubrication Service
Lubricate all hood latch assembly, secondary
latch, pivots, spring anchor, release pawl, hood
and body door hinges, rear compartment, and any
folding seat hardware. Part D tells you what to
use. More frequent lubrication may be required
when exposed to a corrosive environment.
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 114.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
388

3. On automatic transaxle vehicles, try to start
the engine in each gear. The vehicle should
start only in PARK (P) or NEUTRAL (N). If the
vehicle starts in any other position, contact
your GM Goodwrench
®dealer for service.
On manual transaxle vehicles, put the
shift lever in NEUTRAL (N), push the clutch
pedal down halfway, and try to start the
engine. The vehicle should start only when
the clutch pedal is pushed down all the way to
the oor. If the vehicle starts when the
clutch pedal is not pushed all the way down,
contact your GM Goodwrench
®dealer for
service.
Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 114.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to ON,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), contact
your GM Goodwrench
®dealer for service.
389

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
391

Engine Cooling System Inspection
Inspect the hoses and have them replaced if
they are cracked, swollen or deteriorated. Inspect
all pipes, ttings and clamps; replace as needed.
Clean the outside of the radiator and air
conditioning condenser. To help ensure proper
operation, a pressure test of the cooling system
and pressure cap is recommended at least
once a year.
Throttle System Inspection
Inspect the throttle system for interference or
binding, and for damaged or missing parts.
Replace parts as needed. Replace any
components that have high effort or excessive
wear. Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines
and hoses for proper hook-up, binding, leaks,
cracks, chang, etc. Inspect disc brake pads for
wear and rotors for surface condition. Also inspect
drum brake linings for wear and cracks. Inspect
other brake parts, including drums, wheel
cylinders, calipers, parking brake, etc. Check
parking brake adjustment. You may need to have
your brakes inspected more often if your driving
habits or conditions result in frequent braking.
393

Center Console Storage Area...................... 127
Center High-Mounted Stoplamp (CHMSL).... 317
Chains, Tire................................................. 341
Charging System Light................................ 165
Check
Engine Light............................................ 170
Checking Things Under the Hood................ 280
Chemical Paint Spotting.............................. 361
Child Restraints
Child Restraint Systems............................. 43
Infants and Young Children........................ 40
Lower Anchors and Tethers for Children..... 49
Older Children........................................... 37
Securing a Child Restraint in a Rear Seat
Position.................................................. 56
Securing a Child Restraint in the Right
Front Seat Position................................. 58
Where to Put the Restraint........................ 47
Cigarette Lighter.......................................... 151
Cleaning
Aluminum Wheels.................................... 359
Exterior Lamps/Lenses............................. 358
Fabric/Carpet........................................... 356
Finish Care.............................................. 358
Inside of Your Vehicle.............................. 354
Instrument Panel, Vinyl, and Other Plastic
Surfaces............................................... 357Cleaning (cont.)
Leather.................................................... 356
Tires........................................................ 360
Underbody Maintenance........................... 361
Washing Your Vehicle.............................. 358
Weatherstrips........................................... 358
Windshield, Backglass, and
Wiper Blades........................................ 359
Climate Control System............................... 152
Air Filter, Passenger Compartment ........... 156
Outlet Adjustment..................................... 155
Clock.......................................................... 178
Clutch, Hydraulic......................................... 293
Coinholder(s)............................................... 127
Collision Damage Repair............................. 412
Compact Spare Tire.................................... 354
Content Theft-Deterrent............................... 100
Control of a Vehicle..................................... 226
Coolant
Engine Temperature Gage........................ 169
Heater, Engine......................................... 106
Cooling System........................................... 299
Cruise Control............................................. 143
Cruise Control Light.................................... 174
Cupholder(s)................................................ 127
421
