2007 PEUGEOT 308 Owners Manual

i

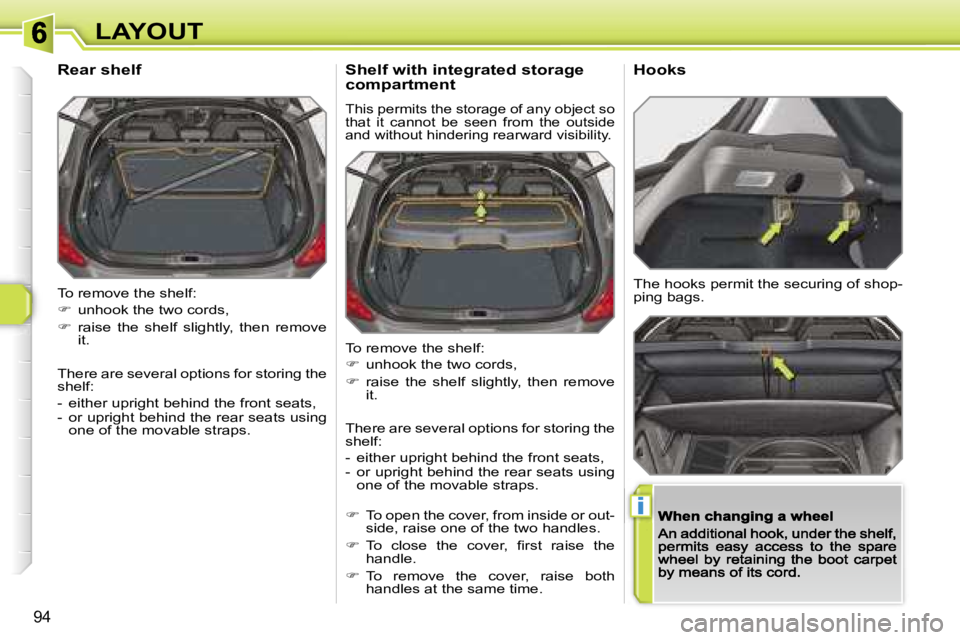

94
LAYOUT
To remove the shelf:
 unhook the two cords,
 raise the shelf slightly, then remove it.
There are several options for storing the shelf:
- either upright behind the front seats,- or upright behind the rear seats using one of the movable straps.
Rear shelf
To remove the shelf:
 unhook the two cords,
 raise the shelf slightly, then remove it.
There are several options for storing the shelf:
- either upright behind the front seats,- or upright behind the rear seats using one of the movable straps.
 To open the cover, from inside or out-side, raise one of the two handles.
 To close the cover, first raise the handle.
 To remove the cover, raise both handles at the same time.
Shelf with integrated storage compartment
The hooks permit the securing of shop-ping bags.
Hooks
This permits the storage of any object so that it cannot be seen from the outside and without hindering rearward visibility.

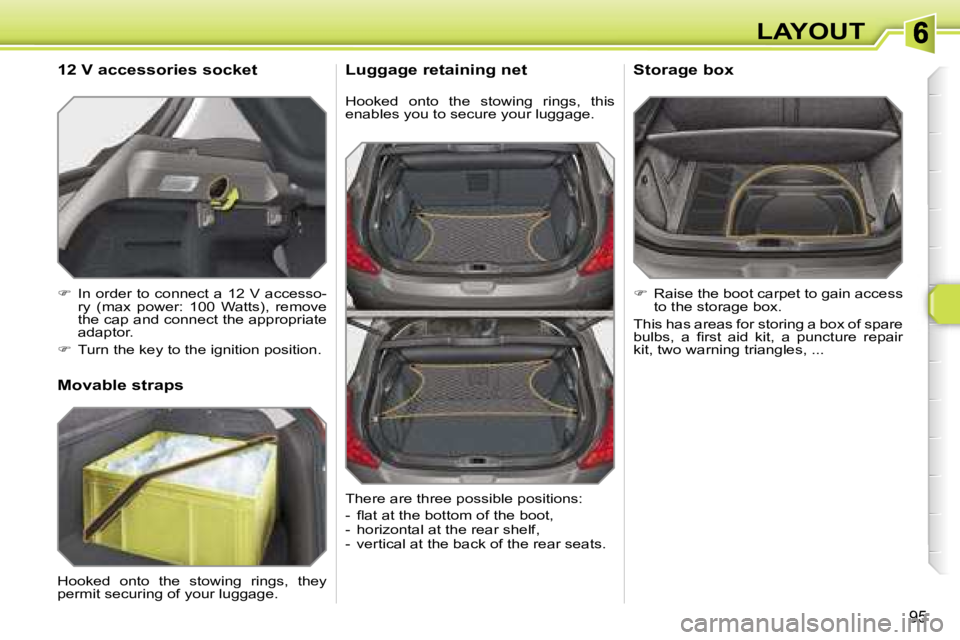

95
LAYOUT
Hooked onto the stowing rings, this enables you to secure your luggage.
Luggage retaining net
 Raise the boot carpet to gain access to the storage box.
This has areas for storing a box of spare bulbs, a first aid kit, a puncture repair kit, two warning triangles, ...
Storage box
 In order to connect a 12 V accesso-ry (max power: 100 Watts), remove the cap and connect the appropriate adaptor.
 Turn the key to the ignition position.
12 V accessories socket
There are three possible positions:
- flat at the bottom of the boot,- horizontal at the rear shelf,- vertical at the back of the rear seats.
Movable straps
Hooked onto the stowing rings, they permit securing of your luggage.

i

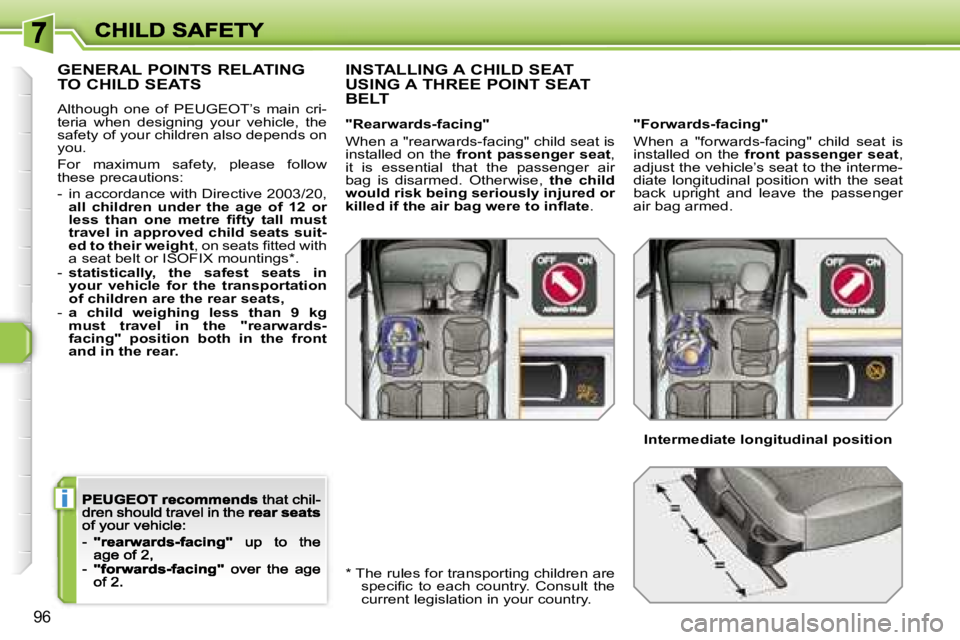

96
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT’s main cri-teria when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
- in accordance with Directive 2003/20, all children under the age of 12 or less than one metre fifty tall must travel in approved child seats suit-ed to their weight, on seats fitted with a seat belt or ISOFIX mountings*.- statistically, the safest seats in your vehicle for the transportation of children are the rear seats,- a child weighing less than 9 kg must travel in the "rearwards-facing" position both in the front and in the rear.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is installed on the front passenger seat, adjust the vehicle’s seat to the interme-diate longitudinal position with the seat back upright and leave the passenger air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is installed on the front passenger seat, it is essential that the passenger air bag is disarmed. Otherwise, the child would risk being seriously injured or killed if the air bag were to inflate.
Intermediate longitudinal position
* The rules for transporting children are specific to each country. Consult the current legislation in your country.

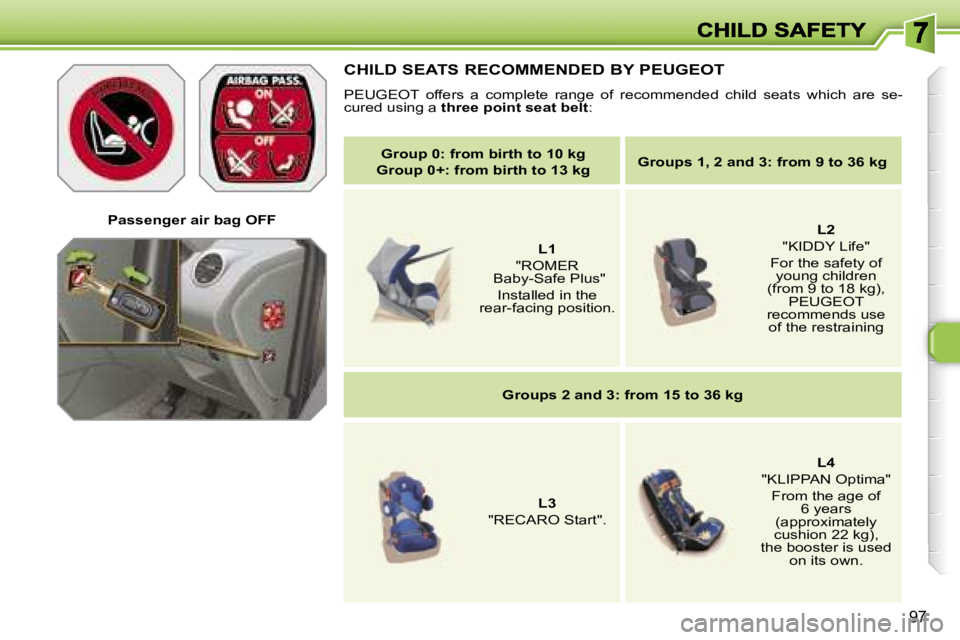

97
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-cured using a three point seat belt:
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start".
L4
"KLIPPAN Optima"
From the age of 6 years (approximately cushion 22 kg), the booster is used on its own.

97
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-cured using a three point seat belt:
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start".
L4
"KLIPPAN Optima"
From the age of 6 years (approximately cushion 22 kg), the booster is used on its own.

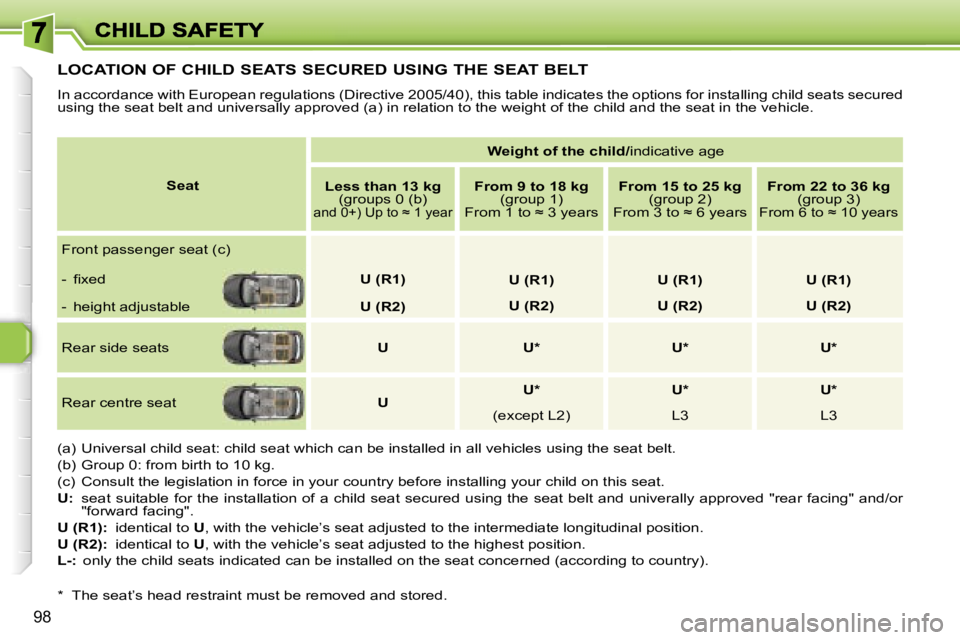

98
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child seats secured using the seat belt and universally approved (a) in relation t o the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and univerally approved "rear facing" and/ or "forward facing".
U (R1): identical to U, with the vehicle’s seat adjusted to the intermediate longitudinal position.
U (R2): identical to U, with the vehicle’s seat adjusted to the highest position.
L-: only the child seats indicated can be installed on the sea t concerned (according to country).
* The seat’s head restraint must be removed and stored.
Seat
Weight of the child/indicative age
Less than 13 kg (groups 0 (b) and 0+) Up to ≈ 1 year
From 9 to 18 kg (group 1) From 1 to ≈ 3 years
From 15 to 25 kg (group 2)From 3 to ≈ 6 years
From 22 to 36 kg (group 3)From 6 to ≈ 10 years
Front passenger seat (c)
- fixed
- height adjustable
U (R1)
U (R2)
U (R1)
U (R2)
U (R1)
U (R2)
U (R1)
U (R2)
Rear side seatsUU*U*U*
Rear centre seatUU*
(except L2)
U*
L3
U*
L3

!

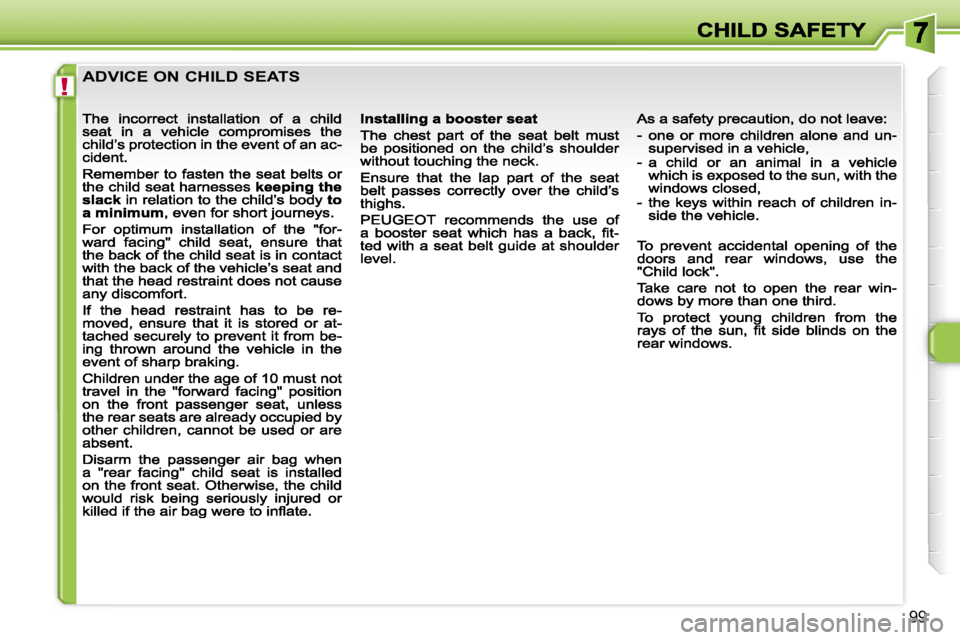

99
ADVICE ON CHILD SEATS

!
i

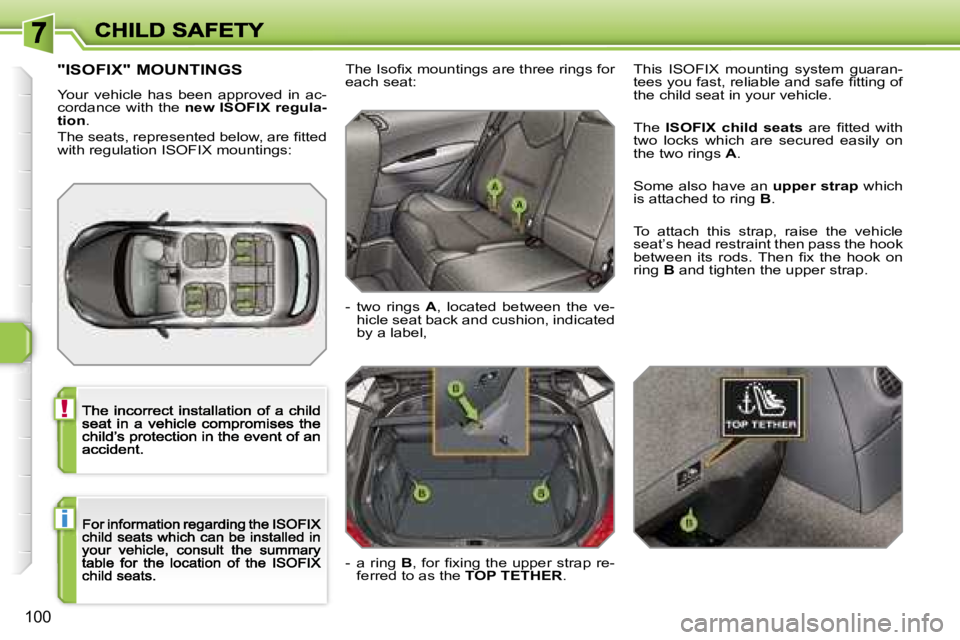

100
"ISOFIX" MOUNTINGS
Your vehicle has been approved in ac-cordance with the new ISOFIX regula-tion.
The seats, represented below, are fitted with regulation ISOFIX mountings:
The Isofix mountings are three rings for each seat:
- two rings A, located between the ve-hicle seat back and cushion, indicated by a label,
- a ring B, for fixing the upper strap re-ferred to as the TOP TETHER.
This ISOFIX mounting system guaran-tees you fast, reliable and safe fitting of the child seat in your vehicle.
The ISOFIX child seats are fitted with two locks which are secured easily on the two rings A.
Some also have an upper strap which is attached to ring B.
To attach this strap, raise the vehicle seat’s head restraint then pass the hook between its rods. Then fix the hook on ring B and tighten the upper strap.
