2007 PEUGEOT 308 Owners Manual

12
166
The consumption figures shown here correspond to the values communicated at the time of printing.
These consumption values were established in accordance with Directive 80/1268/CEE. They may vary depending on the style of driving, traffic conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the accessories.

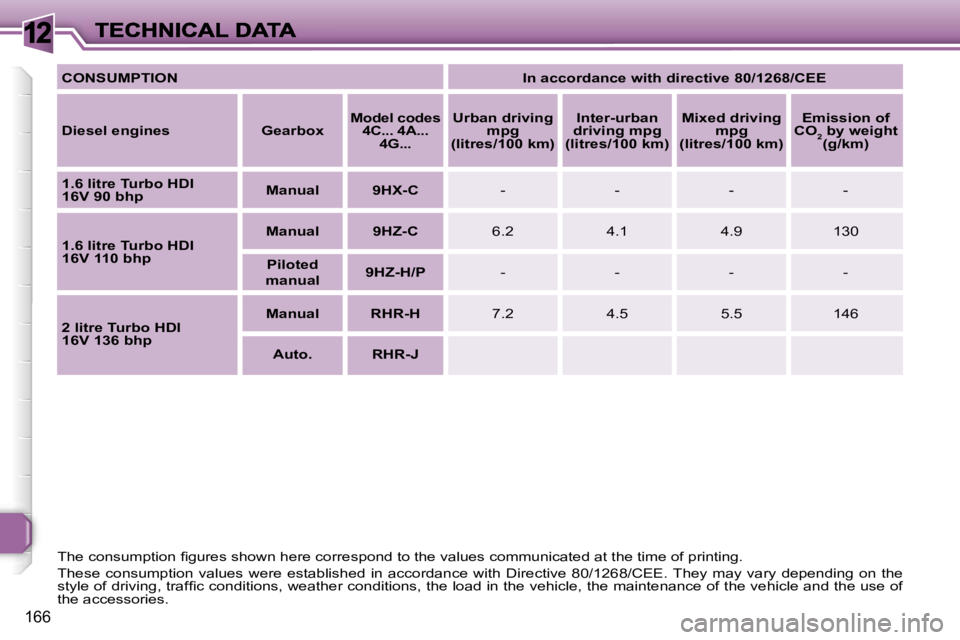

CONSUMPTIONIn accordance with directive 80/1268/CEE
Diesel enginesGearboxModel codes 4C... 4A... 4G...
Urban driving mpg(litres/100 km)
Inter-urban driving mpg (litres/100 km)
Mixed driving mpg(litres/100 km)
Emission of CO2 by weight (g/km)
1.6 litre Turbo HDI16V 90 bhpManual9HX-C----
1.6 litre Turbo HDI16V 110 bhp
Manual9HZ-C6.24.14.9130
Piloted manual9HZ-H/P----
2 litre Turbo HDI16V 136 bhp
ManualRHR-H7.24.55.5146
Auto.RHR-J

12
163

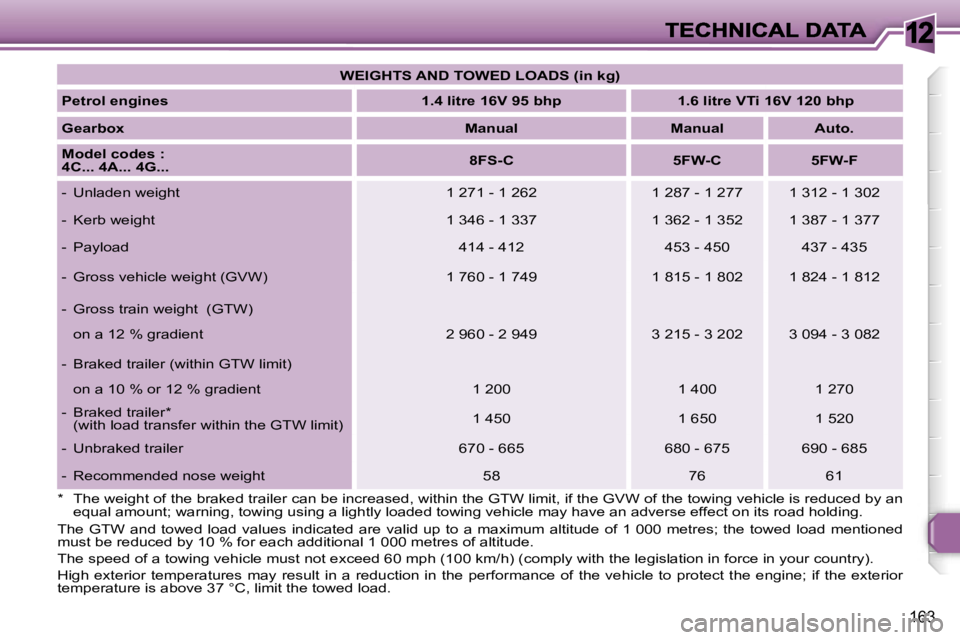

WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.4 litre 16V 95 bhp1.6 litre VTi 16V 120 bhp
GearboxManualManualAuto.
Model codes :4C... 4A... 4G...8FS-C5FW-C5FW-F
- Unladen weight1 271 - 1 2621 287 - 1 2771 312 - 1 302
- Kerb weight1 346 - 1 3371 362 - 1 3521 387 - 1 377
- Payload414 - 412453 - 450437 - 435
- Gross vehicle weight (GVW)1 760 - 1 7491 815 - 1 8021 824 - 1 812
- Gross train weight (GTW)
on a 12 % gradient2 960 - 2 9493 215 - 3 2023 094 - 3 082
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient1 2001 4001 270
- Braked trailer* (with load transfer within the GTW limit)1 4501 6501 520
- Unbraked trailer670 - 665680 - 675690 - 685
- Recommended nose weight587661
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentione d must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle to protect the engine; if the exterior temperature is above 37 °C, limit the towed load.

12
164
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentione d must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle to protect the engine; if the exterior temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.6 litre THP 16V 150 bhp
GearboxManualAuto.
Model codes :4C... 4A...5FX-C5FX-F
- Unladen weight1 327 - 1 3141 355 - 1 343
- Kerb weight1 402 - 1 3891 430 - 1 418
- Payload424 - 426425 - 425
- Gross vehicle weight (GVW)1 826 - 1 8151 855 - 1 843
- Gross train weight (MTRA)
on a 12 % gradient3 226 - 3 2153 255 - 3 243
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient1 4001 400
- Braked trailer* (with load transfer within the GTW limit)1 6501 650
- Unbraked trailer700 - 690715 - 705
- Recommended nose weight6666

12
167
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentione d must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle to protect the engine; if the exterior temperature is above 37 °C, limit the towed load.

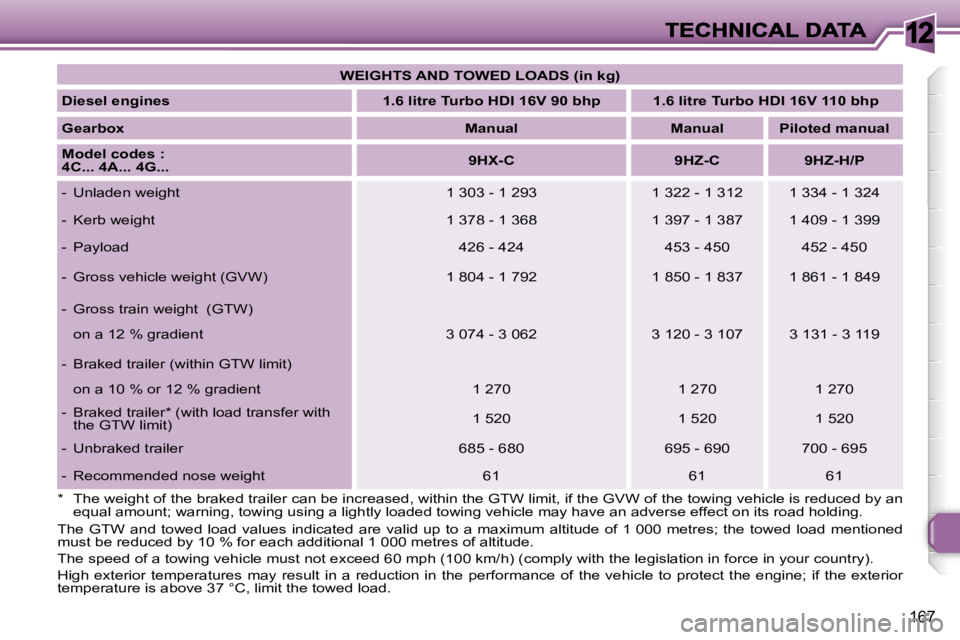

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines1.6 litre Turbo HDI 16V 90 bhp1.6 litre Turbo HDI 16V 110 bhp
GearboxManualManualPiloted manual
Model codes :4C... 4A... 4G...9HX-C9HZ-C9HZ-H/P
- Unladen weight1 303 - 1 2931 322 - 1 3121 334 - 1 324
- Kerb weight1 378 - 1 3681 397 - 1 3871 409 - 1 399
- Payload426 - 424453 - 450452 - 450
- Gross vehicle weight (GVW)1 804 - 1 7921 850 - 1 8371 861 - 1 849
- Gross train weight (GTW)
on a 12 % gradient3 074 - 3 0623 120 - 3 1073 131 - 3 119
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient1 2701 2701 270
- Braked trailer* (with load transfer with the GTW limit)1 5201 5201 520
- Unbraked trailer685 - 680695 - 690700 - 695
- Recommended nose weight616161

12
168
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentione d must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle to protect the engine; if the exterior temperature is above 37 °C, limit the towed load.

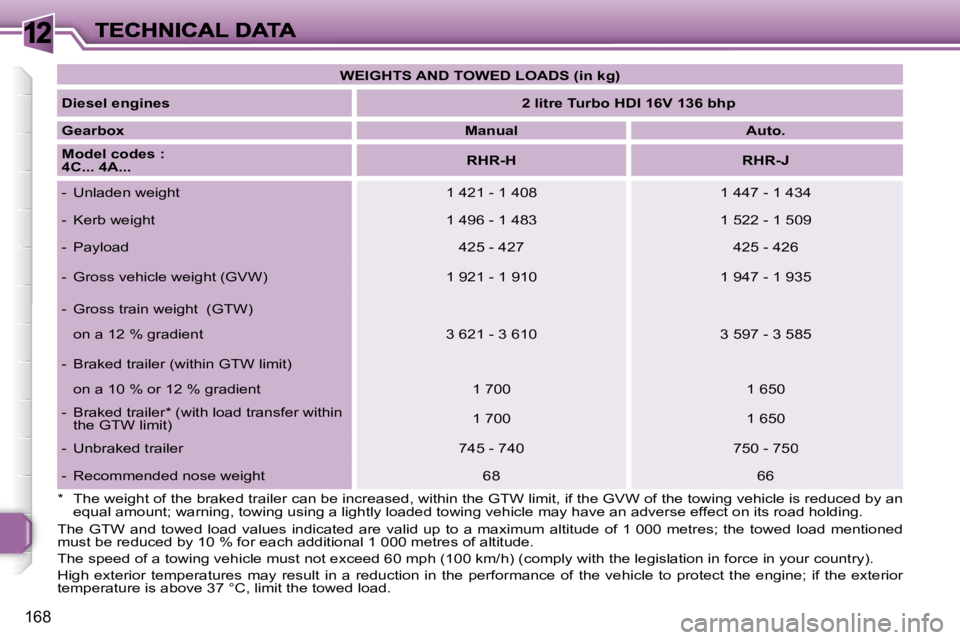

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines2 litre Turbo HDI 16V 136 bhp
GearboxManualAuto.
Model codes :4C... 4A...RHR-HRHR-J
- Unladen weight1 421 - 1 4081 447 - 1 434
- Kerb weight1 496 - 1 4831 522 - 1 509
- Payload425 - 427425 - 426
- Gross vehicle weight (GVW)1 921 - 1 9101 947 - 1 935
- Gross train weight (GTW)
on a 12 % gradient3 621 - 3 6103 597 - 3 585
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient1 7001 650
- Braked trailer* (with load transfer within the GTW limit)1 7001 650
- Unbraked trailer745 - 740750 - 750
- Recommended nose weight6866

12
169

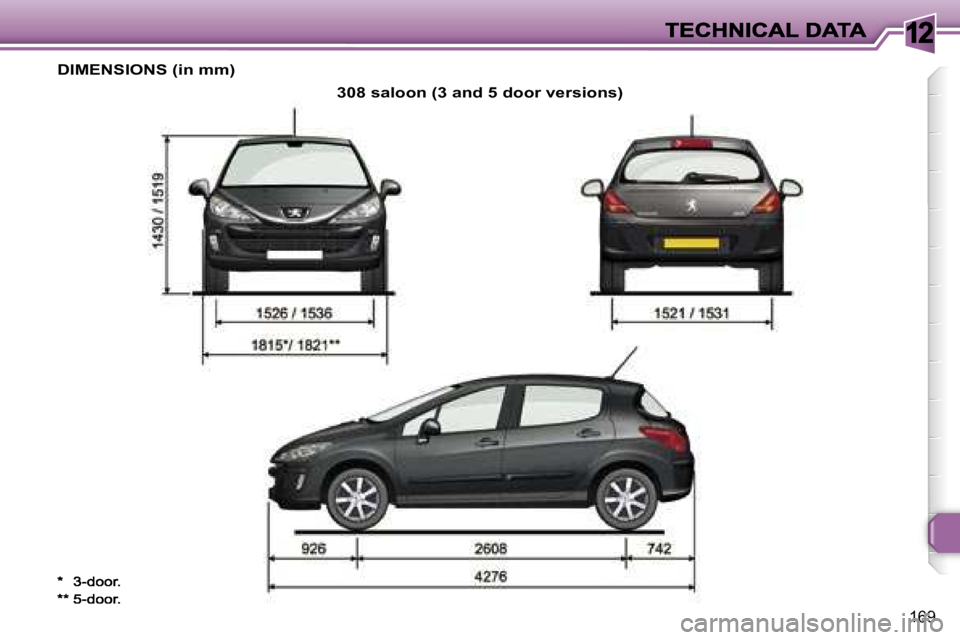

DIMENSIONS (in mm)
308 saloon (3 and 5 door versions)
** 5-door.

12
!
i
170
TECHNICAL DATA

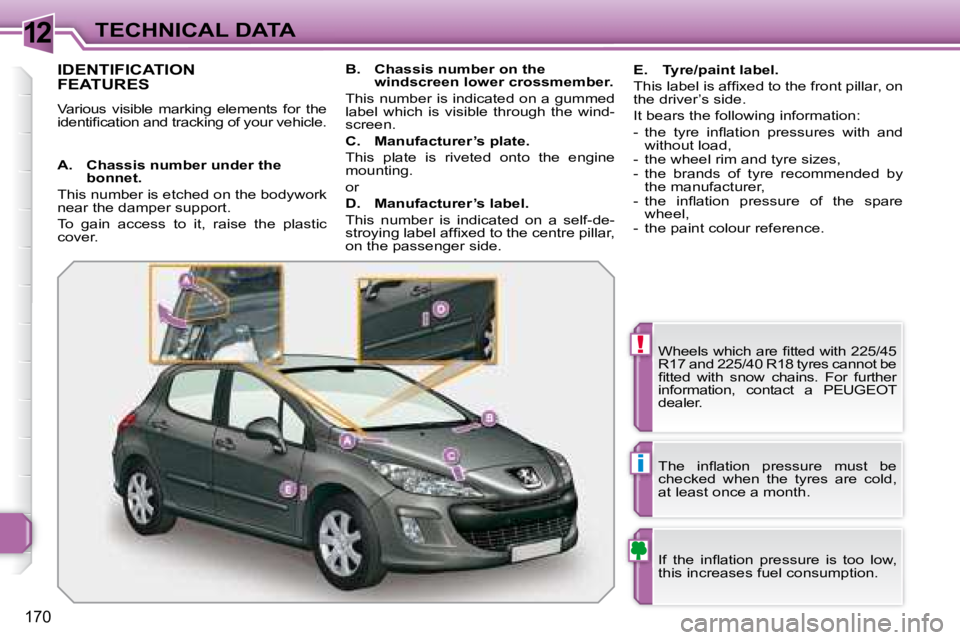

IDENTIFICATION
FEATURES
Various visible marking elements for the
identifi cation and tracking of your vehicle.Wheels which are fi tted with 225/45
R17 and 225/40 R18 tyres cannot be
fi tted with snow chains. For further
information, contact a PEUGEOT
dealer.
If the infl ation pressure is too low,
this increases fuel consumption.
The infl ation pressure must be
checked when the tyres are cold,
at least once a month.
A. Chassis number under the
bonnet.
This number is etched on the bodywork
near the damper support.
To gain access to it, raise the plastic
cover. B. Chassis number on the
windscreen lower crossmember.
This number is indicated on a gummed
label which is visible through the wind-
screen.
C. Manufacturer’s plate.
This plate is riveted onto the engine
mounting.
or
D. Manufacturer’s label.
This number is indicated on a self-de-
stroying label affi xed to the centre pillar,
on the passenger side. E. Tyre/paint label.
This label is affi xed to the front pillar, on
the driver’s side.
It bears the following information:
- the tyre infl ation pressures with and
without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the infl ation pressure of the spare wheel,
- the paint colour reference.

171

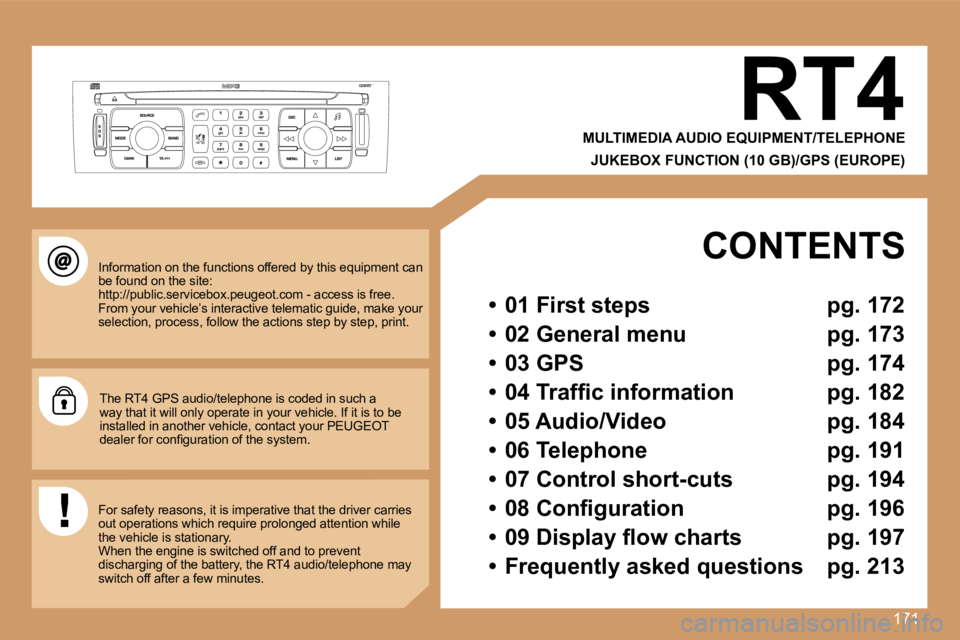

RT4
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
Information on the functions offered by this equipment can be found on the site: http://public.servicebox.peugeot.com - access is free. From your vehicle’s interactive telematic guide, ma ke your selection, process, follow the actions step by step, print.
The RT4 GPS audio/telephone is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact your PEUGEOT dealer for configuration of the system.
For safety reasons, it is imperative that the drive r carries out operations which require prolonged attention wh ile the vehicle is stationary.When the engine is switched off and to prevent discharging of the battery, the RT4 audio/telephone may switch off after a few minutes.
CONTENTS
• 01 First steps pg. 172
• 02 General menu pg. 173
• 03 GPS pg. 174
• 04 Traffic information pg. 182
• 05 Audio/Video pg. 184
• 06 Telephone pg. 191
• 07 Control short-cuts pg. 194
• 08 Configuration pg. 196
• 09 Display flow charts pg. 197
• Frequently asked questions pg. 213
