2007 PEUGEOT 1007 Owners Manual

3
69

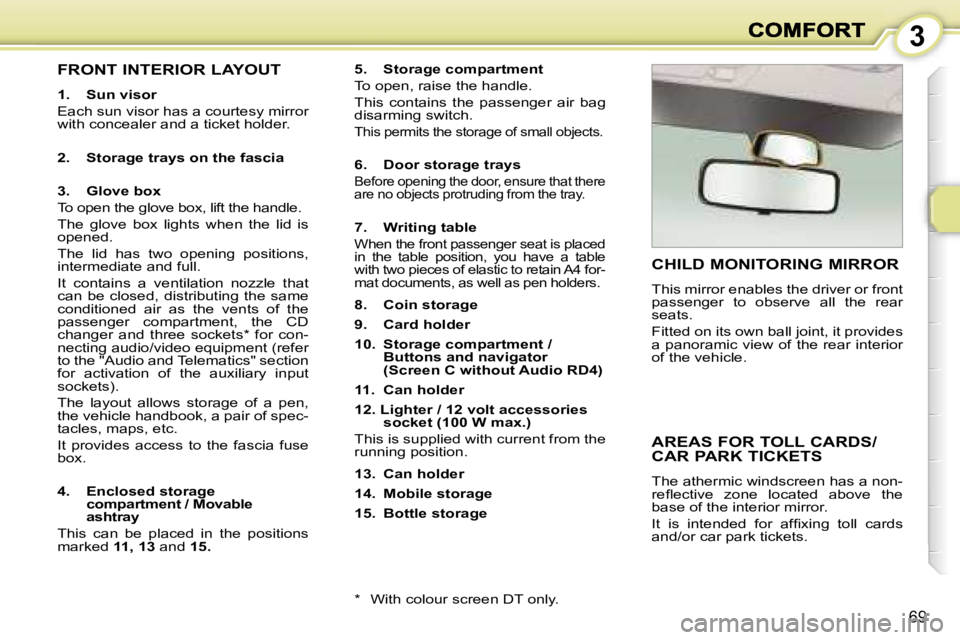

FRONT INTERIOR LAYOUT
1. Sun visor
Each sun visor has a courtesy mirror with concealer and a ticket holder.
2. Storage trays on the fascia
3. Glove box
To open the glove box, lift the handle.
The glove box lights when the lid is opened.
The lid has two opening positions, intermediate and full.
It contains a ventilation nozzle that can be closed, distributing the same conditioned air as the vents of the passenger compartment, the CD changer and three sockets* for con-necting audio/video equipment (refer to the "Audio and Telematics" section for activation of the auxiliary input sockets).
The layout allows storage of a pen, the vehicle handbook, a pair of spec-tacles, maps, etc.
It provides access to the fascia fuse box.
4. Enclosed storage compartment / Movable ashtray
This can be placed in the positions marked 11, 13 and 15.
5. Storage compartment
To open, raise the handle.
This contains the passenger air bag disarming switch.
This permits the storage of small objects.
6. Door storage trays
Before opening the door, ensure that there are no objects protruding from the tray.
7. Writing table
When the front passenger seat is placed in the table position, you have a table with two pieces of elastic to retain A4 for-mat documents, as well as pen holders.
8. Coin storage
9. Card holder
10. Storage compartment / Buttons and navigator (Screen C without Audio RD4)
11. Can holder
12. Lighter / 12 volt accessories socket (100 W max.)
This is supplied with current from the running position.
13. Can holder
14. Mobile storage
15. Bottle storage
CHILD MONITORING MIRROR
This mirror enables the driver or front passenger to observe all the rear seats.
Fitted on its own ball joint, it provides a panoramic view of the rear interior of the vehicle.
AREAS FOR TOLL CARDS/
CAR PARK TICKETS
The athermic windscreen has a non-reflective zone located above the base of the interior mirror.
It is intended for affixing toll cards and/or car park tickets.
* With colour screen DT only.

3
70

3
71
REAR INTERIOR LAYOUT
1. Rear parcel shelf
To remove the shelf:
- tilt and slightly raise the shelf, - pull upwards on each side to detach it from its fasteners.
There are several options for storing the shelf:
- either behind the rear seats,- or flat in the boot.
2. Retaining hooks
3. Stowing rings
4. Luggage retaining net
Hooked onto the stowing rings, this enables your luggage to be secured.
5. Retaining straps
These secure the warning triangle, the tool kit, oil cans...
6. Storage trays in the floor
The right storage tray houses the subwoofer of the JBL audio system.
7. Armrests/Side storage trays
These have recesses for storing a can and a bottle.
8. Grab handles with coat hook

4
72
THE REMOTE CONTROL KEY
The remote control permits locking, deadlocking, unlocking and locating of the vehicle, as well as folding and unfolding of the exterior mirrors.
It does not work when the ignition is on.
The key permits mechanical and independent operation of the fuel filler cap and passenger air bag dis-arming switch as well as switching on of the ignition.
From the driver's door, the key per-mits electrical control of the locking, deadlocking and unlocking of the vehicle, as well as folding and unfold-ing of the exterior mirrors.
If one of the doors or the tailgate is open, the central locking does not work.
Using the key
Turn the key in the lock on the driv-er's door to lock the vehicle.
Normal locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
The exterior mirrors fold at the same time.
Using the key
Turn the key in the lock on the driv-er's door to unlock the vehicle.
Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.
The exterior mirrors unfold at the same time.
Folding / Unfolding the key
To fold the key, press button A then fold the key into the casing of the remote control.
To unfold the key, press button A.
Unlocking
Using the remote control
Press button C to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators.
The exterior mirrors unfold at the same time.
Normal locking
Using the remote control
Press button B to lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds.
The exterior mirrors fold at the same time.
When the vehicle is locked, if unlocking is activated inad-vertently, without the doors being opened within 30 sec-onds, the vehicle will lock automati-cally.
The folding and unfolding of the exte-rior mirrors can be deactivated by a PEUGEOT dealer.
The remote control does not work when the ignition is on.

4
73

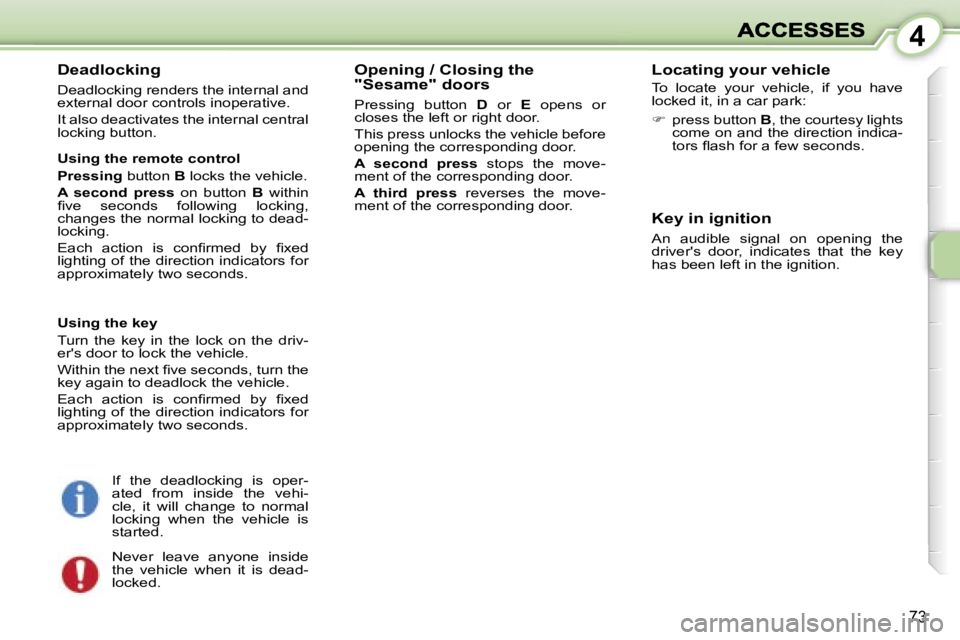

Deadlocking
Deadlocking renders the internal and external door controls inoperative.
It also deactivates the internal central locking button.
Using the remote control
Pressing button B locks the vehicle.
A second press on button B within five seconds following locking, changes the normal locking to dead-locking.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Opening / Closing the "Sesame" doors
Pressing button D or E opens or closes the left or right door.
This press unlocks the vehicle before opening the corresponding door.
A second press stops the move-ment of the corresponding door.
A third press reverses the move-ment of the corresponding door.
Using the key
Turn the key in the lock on the driv-er's door to lock the vehicle.
Within the next five seconds, turn the key again to deadlock the vehicle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Key in ignition
An audible signal on opening the driver's door, indicates that the key has been left in the ignition.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press button B, the courtesy lights come on and the direction indica-tors flash for a few seconds.
If the deadlocking is oper-ated from inside the vehi-cle, it will change to normal locking when the vehicle is started.
Never leave anyone inside the vehicle when it is dead-locked.

4
74

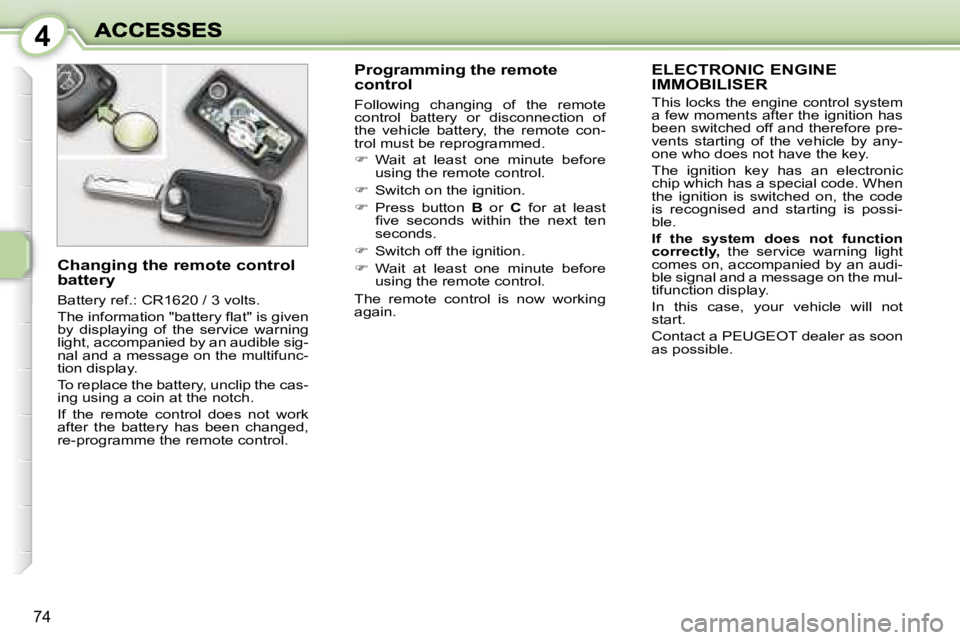

ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a few moments after the ignition has been switched off and therefore pre-vents starting of the vehicle by any-one who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is recognised and starting is possi-ble.
If the system does not function correctly, the service warning light comes on, accompanied by an audi-ble signal and a message on the mul-tifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Programming the remote control
Following changing of the remote control battery or disconnection of the vehicle battery, the remote con-trol must be reprogrammed.
 Wait at least one minute before using the remote control.
 Switch on the ignition.
 Press button B or C for at least five seconds within the next ten seconds.
 Switch off the ignition.
 Wait at least one minute before using the remote control.
The remote control is now working again.
Changing the remote control battery
Battery ref.: CR1620 / 3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible sig-nal and a message on the multifunc-tion display.
To replace the battery, unclip the cas-ing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.

4
74
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a few moments after the ignition has been switched off and therefore pre-vents starting of the vehicle by any-one who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is recognised and starting is possi-ble.
If the system does not function correctly, the service warning light comes on, accompanied by an audi-ble signal and a message on the mul-tifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Programming the remote control
Following changing of the remote control battery or disconnection of the vehicle battery, the remote con-trol must be reprogrammed.
 Wait at least one minute before using the remote control.
 Switch on the ignition.
 Press button B or C for at least five seconds within the next ten seconds.
 Switch off the ignition.
 Wait at least one minute before using the remote control.
The remote control is now working again.
Changing the remote control battery
Battery ref.: CR1620 / 3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible sig-nal and a message on the multifunc-tion display.
To replace the battery, unclip the cas-ing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.

4
75
CONFIDENTIAL CARD
The confidential card contains the identification code necessary for any work carried out by a PEUGEOT dealer on the electronic immobiliser system. This code is hidden by a film, which should be removed only if nec-essary.
Keep your card in a safe place, never inside the vehicle.
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not oper-ate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger com-partment by the emergency serv-ices more difficult in an emergency.
As a safety precaution (with chil-dren on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range of your vehicle. You run the risk of stopping it from work-ing and the remote control would have to be reprogrammed.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Do not throw the remote con-trol batteries away, they con-tain metals which are harm-ful to the environment.
Take them to an approved collection point.
