2007 PEUGEOT 1007 Owners Manual

3
60

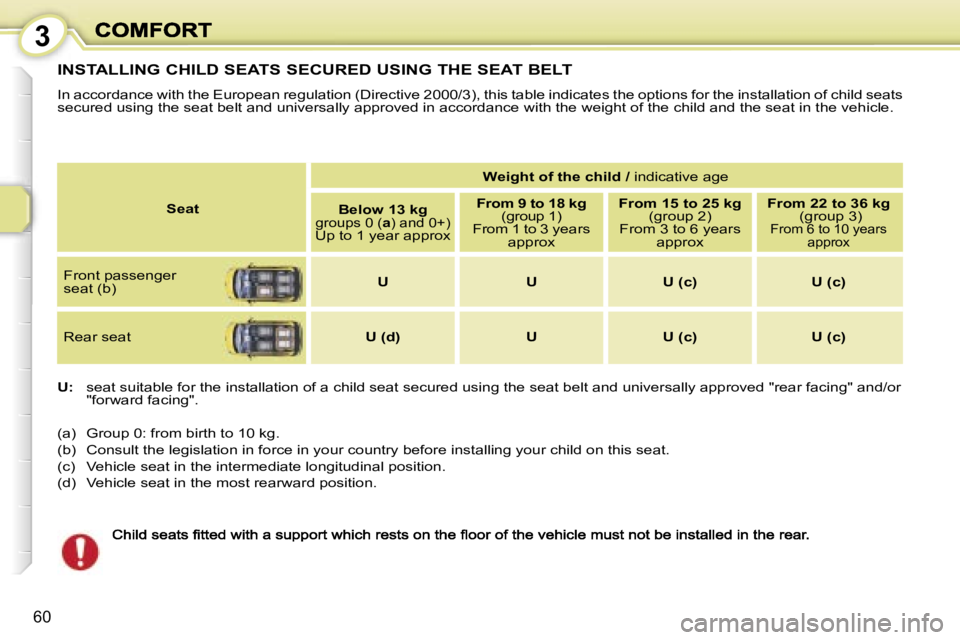

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats secured using the seat belt and universally approved in accordance with the weight of the child and the seat in the vehicle.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/o r "forward facing".
(a) Group 0: from birth to 10 kg.
(b) Consult the legislation in force in your country before installing your child on this seat.
(c) Vehicle seat in the intermediate longitudinal position.
(d) Vehicle seat in the most rearward position.
SeatWeight of the child /
indicative ageBelow 13 kggroups 0 (a) and 0+) Up to 1 year approx From 9 to 18 kg

(group 1)
From 1 to 3 years approx
From 15 to 25 kg(group 2)From 3 to 6 years approx From 22 to 36 kg
(group 3)From 6 to 10 years approx
Front passenger
seat (b) U U U (c) U (c)
Rear seat U (d) U U (c) U (c)

3
62

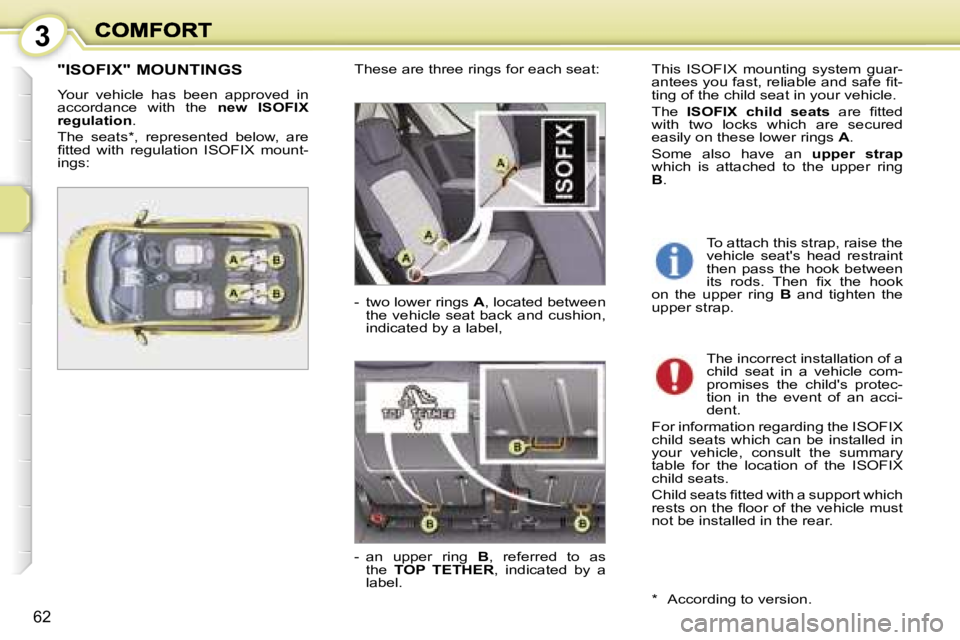

"ISOFIX" MOUNTINGS
Your vehicle has been approved in accordance with the new ISOFIX regulation.
The seats*, represented below, are fitted with regulation ISOFIX mount-ings:
These are three rings for each seat:This ISOFIX mounting system guar-antees you fast, reliable and safe fit-ting of the child seat in your vehicle.
The ISOFIX child seats are fitted with two locks which are secured easily on these lower rings A.
Some also have an upper strapwhich is attached to the upper ring B.
- two lower rings A, located between the vehicle seat back and cushion, indicated by a label,
* According to version.
- an upper ring B, referred to as the TOP TETHER, indicated by a label.
To attach this strap, raise the vehicle seat's head restraint then pass the hook between its rods. Then fix the hook on the upper ring B and tighten the upper strap.
The incorrect installation of a child seat in a vehicle com-promises the child's protec-tion in the event of an acci-dent.
For information regarding the ISOFIX child seats which can be installed in your vehicle, consult the summary table for the location of the ISOFIX child seats.
Child seats fitted with a support which rests on the floor of the vehicle must not be installed in the rear.

3
63
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT
RÖMER Duo (size category B1)
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap.
Three seat body angles: sitting, reclining, lying.

3
64
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an Isofix Universal seat, "Forward facing" and secured using the "Top Tether" upper strap.
* The ISOFIX infant car seat is fixed to the lower rings of an ISOFIX seat and occupies the two rear seats.
IL-SU: seat suitable for the instal-lation an Isofix Semi-Universal seat which is:
- "rear facing" fitted with a "Top Tether" upper strap,- an infant car seat which is secured using the "Top Tether" upper strap. For the securing of the "Top Tether" upper strap, refer to the "Isofix Mountings" section.
Weight of the child/indicative age
Less than 10 kg (group 0)
Up to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg
(group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat*"rear facing""rear facing""forward facing"
ISOFIX size categoryF G C D E C D A B B1
Universal and semi-universal ISOFIX child seats which can be
installed on the rear seatsIL-SU IL-SU IL-SU IUF
IL-SU

3
65

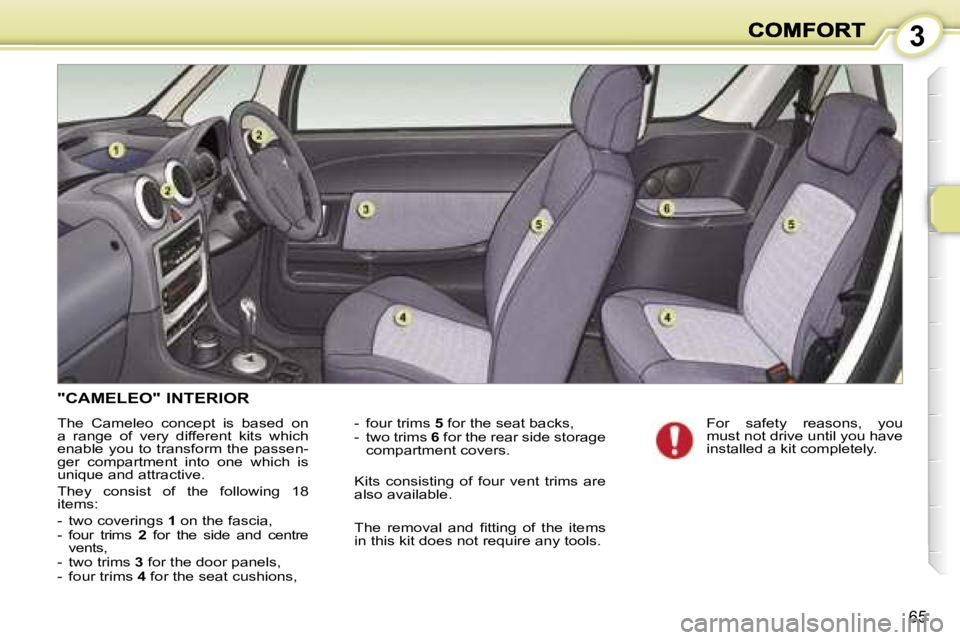

"CAMELEO" INTERIOR
The Cameleo concept is based on a range of very different kits which enable you to transform the passen-ger compartment into one which is unique and attractive.
They consist of the following 18 items:
- two coverings 1 on the fascia,- four trims 2 for the side and centre vents,- two trims 3 for the door panels,- four trims 4 for the seat cushions,
- four trims 5 for the seat backs,- two trims 6 for the rear side storage compartment covers.
Kits consisting of four vent trims are also available.
The removal and fitting of the items in this kit does not require any tools.
For safety reasons, you must not drive until you have installed a kit completely.

3
66

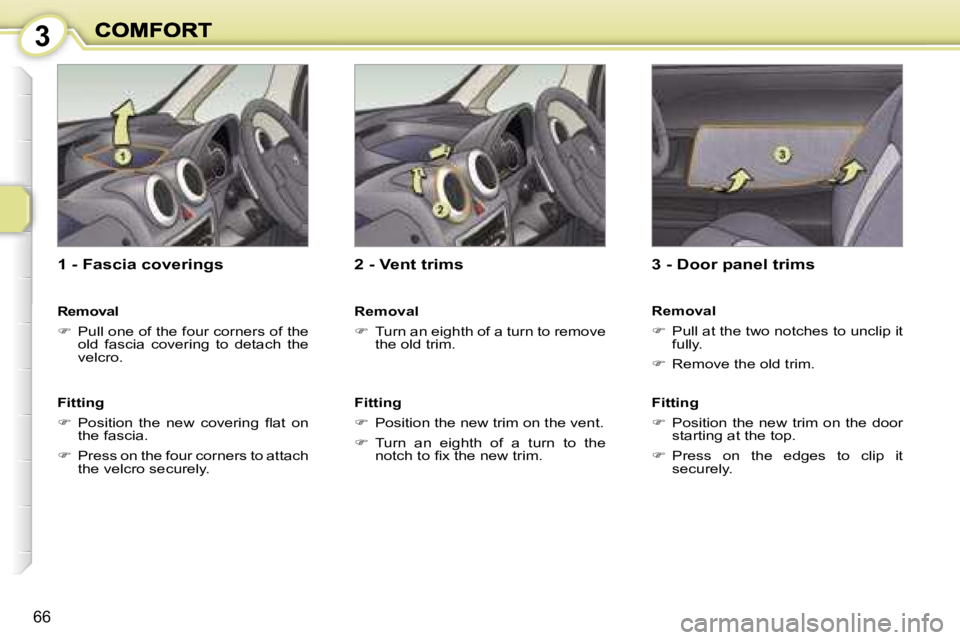

1 - Fascia coverings
Removal
Pull one of the four corners of the old fascia covering to detach the velcro.
Fitting
Position the new covering flat on the fascia.
Press on the four corners to attach the velcro securely.
2 - Vent trims
Removal
Turn an eighth of a turn to remove the old trim.
Fitting
Position the new trim on the vent.
Turn an eighth of a turn to the notch to fix the new trim.
3 - Door panel trims
Removal
Pull at the two notches to unclip it fully.
Remove the old trim.
Fitting
Position the new trim on the door starting at the top.
Press on the edges to clip it securely.

3
67

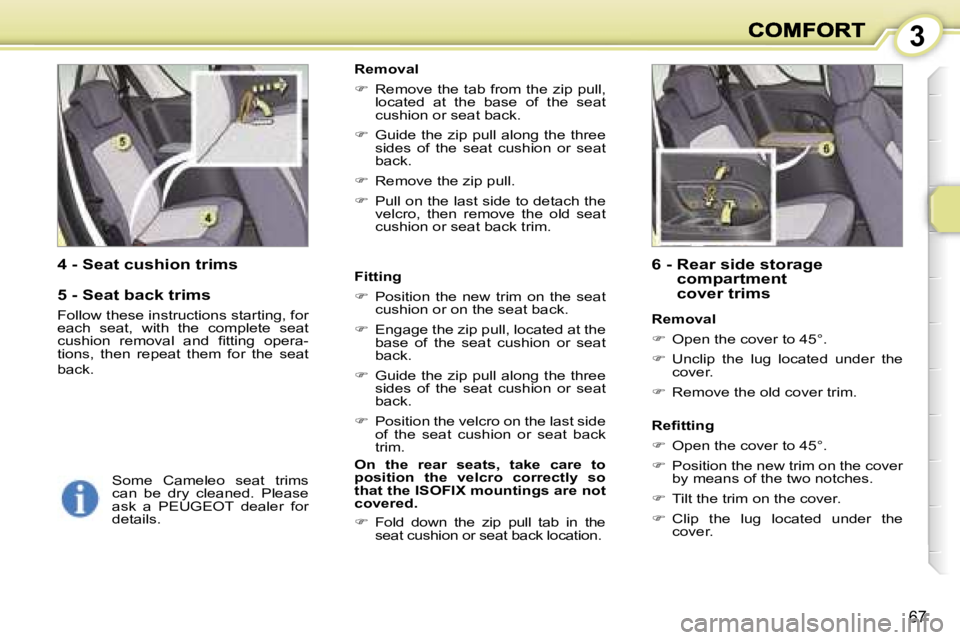

4 - Seat cushion trims
5 - Seat back trims
Follow these instructions starting, for each seat, with the complete seat cushion removal and fitting opera-tions, then repeat them for the seat back.
Fitting
Position the new trim on the seat cushion or on the seat back.
Engage the zip pull, located at the base of the seat cushion or seat back.
Guide the zip pull along the three sides of the seat cushion or seat back.
Position the velcro on the last side of the seat cushion or seat back trim.
On the rear seats, take care to position the velcro correctly so that the ISOFIX mountings are not covered.
Fold down the zip pull tab in the seat cushion or seat back location.
6 - Rear side storage compartment cover trims
Removal
Remove the tab from the zip pull, located at the base of the seat cushion or seat back.
 Guide the zip pull along the three sides of the seat cushion or seat back.
Remove the zip pull.
Pull on the last side to detach the velcro, then remove the old seat cushion or seat back trim.
Removal
Open the cover to 45°.
Unclip the lug located under the cover.
Remove the old cover trim.
Refitting
Open the cover to 45°.
Position the new trim on the cover by means of the two notches.
Tilt the trim on the cover.
Clip the lug located under the cover.
Some Cameleo seat trims can be dry cleaned. Please ask a PEUGEOT dealer for details.

3
68
