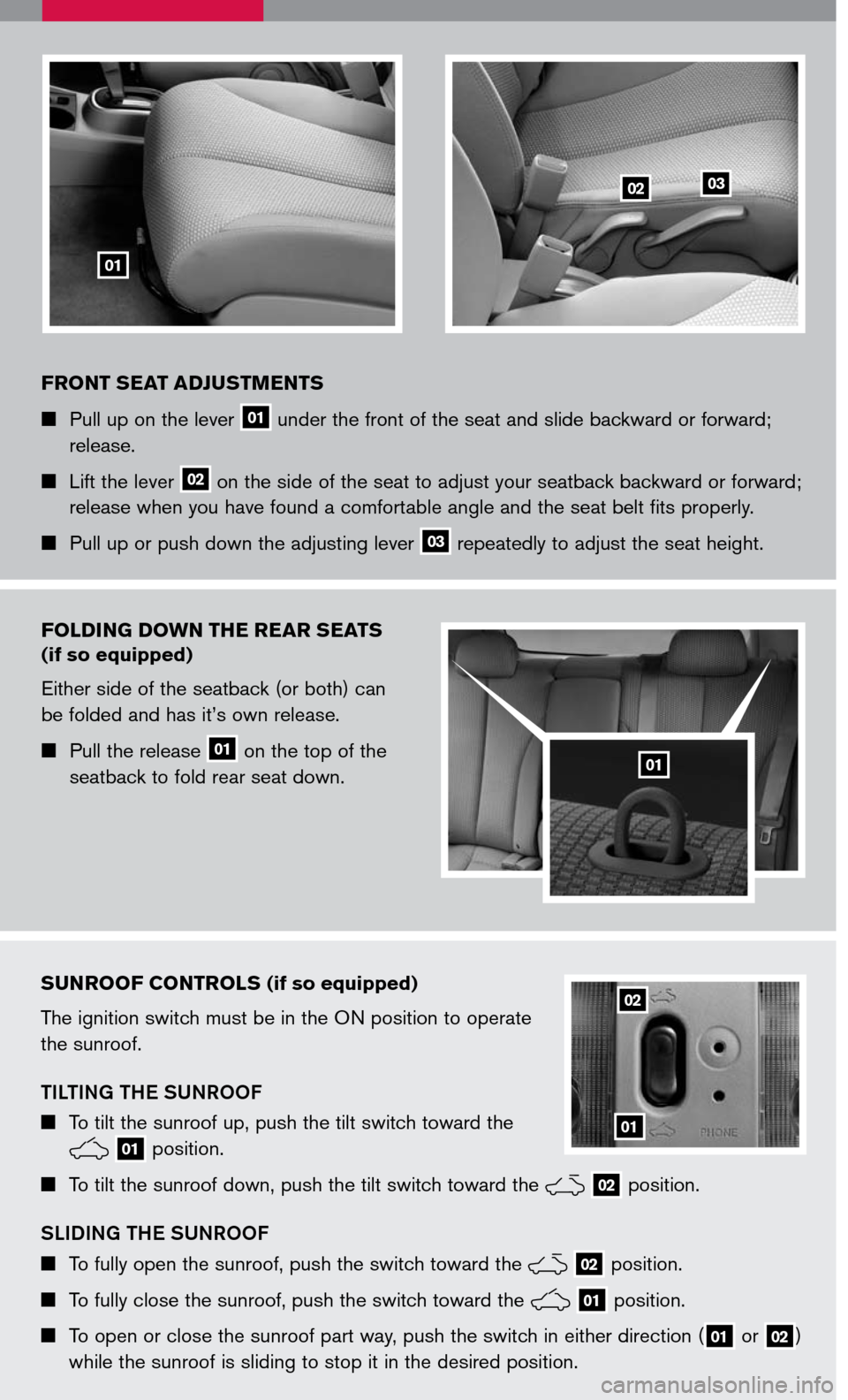

FRONT SEAT ADJUSTMENTS
Pull up on the lever 01 under the front of the seat and slide backward or forward;
release.
Lift the lever 02 on the side of the seat to adjust your seatback backward or forward;
release when you have found a comfortable angle and the seat belt fits properly.
Pull up or push down the adjusting lever 03 repeatedly to adjust the seat height.
01
0302
FOLDING DOWN THE REAR SEATS
(if so equipped)
Either side of the seatback (or both) can
be folded and has it’s own release.
Pull the release 01 on the top of the
seatback to fold rear seat down.01
SUNROOF CONTROLS (if so equipped)
The ignition switch must be in the ON position to operate
the sunroof.
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch toward the
LIC0977
1A
1
2 01 position.
To tilt the sunroof down, push the tilt switch toward the
LIC0977
1A
1
2
02 position.
SLIDING THE SUNROOF
To fully open the sunroof, push the switch toward the
LIC0977
1A
1
2
02 position.
To fully close the sunroof, push the switch toward the LIC0977
1A
1
2 01 position.
To open or close the sunroof part way, push the switch in either direction (01 or 02)
while the sunroof is sliding to stop it in the desired position.
01
02
