< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
SYSTEM SYMPTOM
OD OFF Indicator Lamp Does Not Come On
INFOID:0000000001714346
SYMPTOM:
OD OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.
1.CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to XX-XX, "*****"
or TM-350, "Diagnosis Procedure without CONSULT-III".
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to XX-XX, "*****" (type 1) or XX-XX, "*****" (type 2).
NO >> GO TO 2.
2.CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OthersTransaxle overheats.ON vehicle1. A/T fluid levelXX-XX, "*****"
2. Engine idling speedEC-389
3. Accelerator pedal position sensorEC-583
4. Line pressure testTM-178
5. Line pressure solenoid valveXX-XX, "*****"
6. Control valve assemblyXX-XX, "*****"
OFF vehicle7. Oil pumpXX-XX, "*****"
8. Reverse clutchXX-XX, "*****"
9. High clutchXX-XX, "*****"
10. Brake bandXX-XX, "*****"
11. Forward clutchXX-XX, "*****"
12. Overrun clutchXX-XX, "*****"
13. Low & reverse brakeXX-XX, "*****"
14. Torque converterXX-XX, "*****"
ATF shoots out during
operation.
White smoke emitted
from exhaust pipe
during operation.ON vehicle 1. A/T fluid levelXX-XX, "*****"
OFF vehicle2. Reverse clutchXX-XX, "*****"
3. High clutchXX-XX, "*****"
4. Brake bandXX-XX, "*****"
5. Forward clutchXX-XX, "*****"
6. Overrun clutchXX-XX, "*****"
7. Low & reverse brakeXX-XX, "*****"
Unusual smell at A/T
fluid charging pipe.ON vehicle 1. A/T fluid levelXX-XX, "*****"
OFF vehicle2. Torque converterXX-XX, "*****"
3. Oil pumpXX-XX, "*****"
4. Reverse clutchXX-XX, "*****"
5. High clutchXX-XX, "*****"
6. Brake bandXX-XX, "*****"
7. Forward clutchXX-XX, "*****"
8. Overrun clutchXX-XX, "*****"
9. Low & reverse brakeXX-XX, "*****"
Items Symptom Condition Diagnostic item Reference page

TM-442
< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
SYSTEM SYMPTOM
Check again. Refer to TM-180, "Check Before Engine Is Started".
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output. Refer to XX-XX, "*****"
(Type 1) or TM-422, "Reference Value" (Type 2).
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started in "P" and "N" PositionINFOID:0000000001714347
SYMPTOM:
Engine cannot be started with selector lever in “P” or “N” position.
Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1.CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to XX-XX, "*****"
or XX-XX, "*****".
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to XX-XX, "*****" or XX-XX, "*****".
NO >> GO TO 2.
2.CHECK PNP SWITCH
Check continuity between PNP switch harness connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.CHECK CONTROL CABLE ADJUSTMENT
Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 2.
OK or NG
OK >> Adjust control cable. Refer to TM-204, "Adjustment of A/T Position".
NG >> 1. Check PNP switch (Refer to test group 2.) again after adjusting PNP switch (Refer to TM-46
).
- If OK, INSPECTION END
- If NG, repair or replace PNP switch. Refer to TM-195, "
Park/Neutral Position (PNP) Switch".
4.CHECK STARTING SYSTEM
Check starting system. Refer to STR-6, "
System Description".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In "P" Position, Vehicle Moves Forward or Backward When PushedINFOID:0000000001714348
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
1.CHECK A/T POSITION
Check A/T position. Refer to TM-204, "
Checking of A/T Position".
Selector lever position Connector terminal Continuity
“P”, “N”
F25 1 - 2Ye s
Other positions No
SCIA5606E

SYSTEM SYMPTOM
TM-455
< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Speed Does Not Return to Idle (Light Braking D4→ D3)INFOID:0000000001714360
SYMPTOM:
Engine speed does not smoothly return to idle when A/T shifts from D
4 to D3 on “Cruise Test — Part
1”.
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to XX-XX, "*****"
or TM-38, "Diagnosis Procedure without CONSULT-III".
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to XX-XX, "*****" or XX-XX, "*****".
NO >> GO TO 2.
2.CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to XX-XX, "*****"
(type 1) or XX-XX, "*****" (type 2).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position sensor.
3.CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to TM-213, "
Component".
2. Check A/T fluid condition. Refer to TM-171, "
Checking A/T Fluid".
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
2. Check the following items:
- Overrun clutch control valve
- Overrun clutch reducing valve
- Overrun clutch solenoid valve
3. Disassemble A/T. Refer to TM-222, "
Disassembly".
4. Check the following items:
- Overrun clutch assembly. Refer to TM-267, "
Forward and Overrun Clutches".
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
5.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
2. Check the following items:
- Overrun clutch control valve
- Overrun clutch reducing valve
- Overrun clutch solenoid valve
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6.CHECK SYMPTOM
Check again. Refer to TM-183, "
Cruise Test - Part 1".
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.

TM-456
< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
SYSTEM SYMPTOM
7.CHECK TCM
1. Check TCM input/output signals. Refer to TM-22, "
Input/Output Signal of TCM".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D4→ D3, When OD OFFINFOID:0000000001714361
SYMPTOM:
A/T does not shift from D
4 to D3 when OD OFF (OD OFF indicator lamp is on) on “Cruise Test — Part
3”.
1.CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to XX-XX, "*****"
or TM-38, "Diagnosis Procedure without CONSULT-III".
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to XX-XX, "*****" (type 1) or XX-XX, "*****" (type 2).
NO >> GO TO 2.
2.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW”.
Check the signal of the overdrive control switch is indicated properly.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between A/T device harness connector terminal
and ground.
OK or NG
OK >> GO TO TM-450, "A/T Does Not Shift: D2→ D3".
NG >> Check overdrive control switch circuit. Refer to XX-XX, "*****"
(type 1) or XX-XX, "*****" (type 2).
A/T Does Not Shift: D3→ 22, When Selector Lever "D" → "2" PositionINFOID:0000000001714362
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position on “Cruise Test
— Part 3”.
1.CHECK SYMPTOM
Check symptom. Refer to TM-183, "
Cruise Test - Part 1" or TM-185, "Cruise Test - Part 2".
Item nameOverdrive control switch
ConditionDisplay value
OVERDRIVE SWDepressed ON
Released OFF
Item Connector TerminalOverdrive
control switch
ConditionJudge-
ment
standard
(Approx.)
A/T device harness
connector (Overdrive
control switch)M38 1 - GroundReleasedBattery
voltage
Depressed 0V
SCIA5336E

TM-460

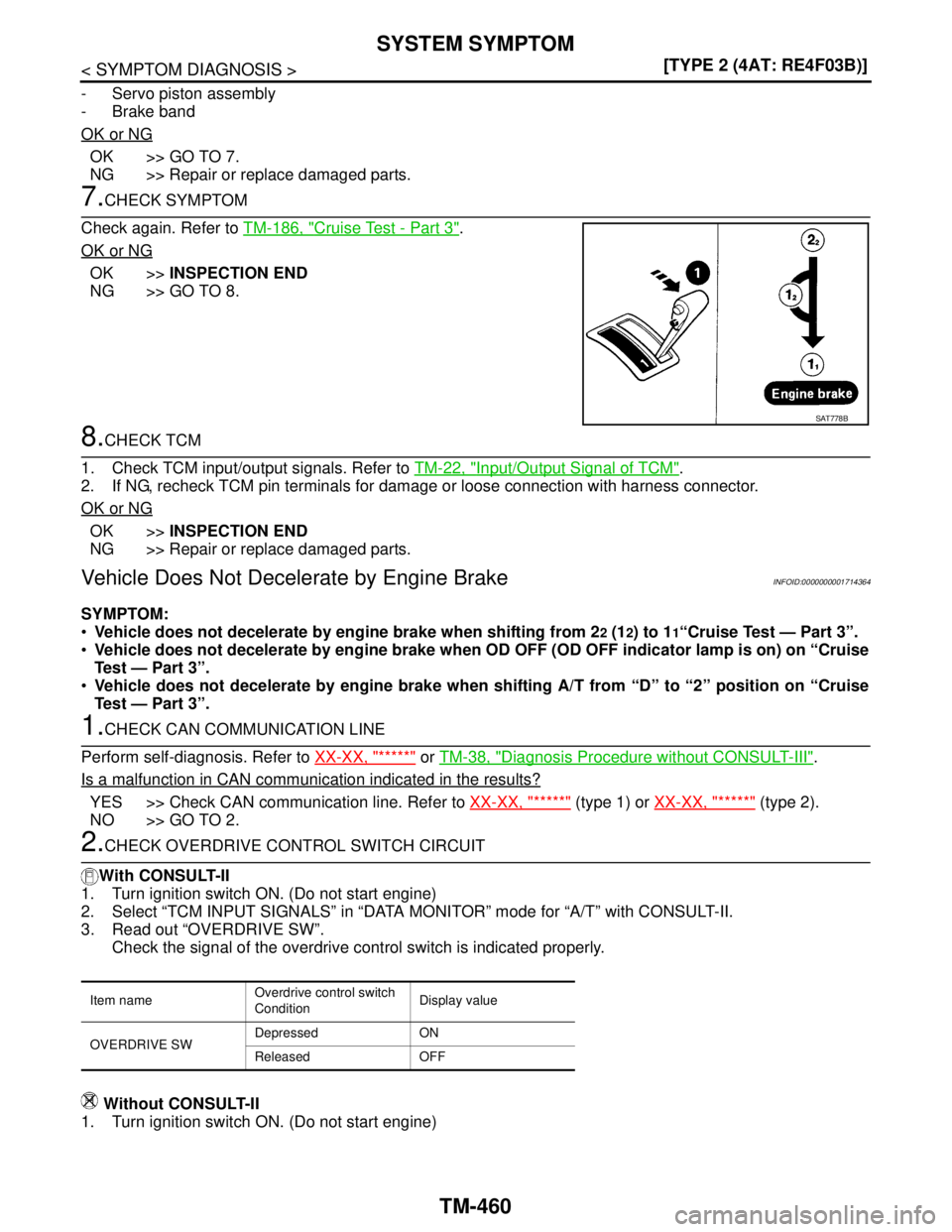

< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
SYSTEM SYMPTOM
- Servo piston assembly
- Brake band
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7.CHECK SYMPTOM
Check again. Refer to TM-186, "
Cruise Test - Part 3".
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8.CHECK TCM
1. Check TCM input/output signals. Refer to TM-22, "
Input/Output Signal of TCM".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Vehicle Does Not Decelerate by Engine BrakeINFOID:0000000001714364
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12) to 11“Cruise Test — Part 3”.
Vehicle does not decelerate by engine brake when OD OFF (OD OFF indicator lamp is on) on “Cruise
Test — Part 3”.
Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position on “Cruise
Test — Part 3”.
1.CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to XX-XX, "*****"
or TM-38, "Diagnosis Procedure without CONSULT-III".
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to XX-XX, "*****" (type 1) or XX-XX, "*****" (type 2).
NO >> GO TO 2.
2.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW”.
Check the signal of the overdrive control switch is indicated properly.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
SAT778B
Item nameOverdrive control switch
ConditionDisplay value
OVERDRIVE SWDepressed ON
Released OFF

SYSTEM SYMPTOM
TM-461
< SYMPTOM DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. Check voltage between A/T device harness connector terminal
and ground.
OK or NG
OK (With CONSULT-II)>>GO TO 3.
OK (Without CONSULT-II)>>GO TO 4.
NG >> Check overdrive control switch circuit. Refer to XX-XX, "*****"
(type 1) or XX-XX, "*****" (type 2).
3.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >> GO TO 5
NG >> Check PNP switch circuit. Refer to TM-46, "
Component Inspection".
4.CHECK PNP SWITCH CIRCUIT
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
Item Connector TerminalOverdrive
control switch
ConditionJudge-
ment
standard
(Approx.)
A/T device harness
connector (Overdrive
control switch)M38 1 - GroundReleasedBattery
voltage
Depressed 0V
SCIA5336E
Monitor item Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT701J

PRECAUTIONS
TM-465
< PRECAUTION >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001723044
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000001723045
NOTE:
 This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
 Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
 Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precaution for On Board Diagnosis (OBD) System of A/T and Engine (For Type1 Only)
INFOID:0000000001723046
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:

SHIFT CONTROL SYSTEM
TM-497
< ON-VEHICLE REPAIR >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
1. Place the selector lever knob (1) in “N” position.
2. Slide knob cover (2) downward.
3. Pull out lock pin (3) from selector lever knob (1).
4. Remove selector lever knob (1) and knob cover (2) as a set from
selector lever.
CAUTION:
Do not push selector button.
INSTALLATION
1. Insert lock pin (1) to selector lever knob (2).
2. Install knob cover (3) to selector lever knob (2).
3. Place the selector lever in “N” position.
4. Install selector lever knob over selector lever until a click is felt.
CAUTION:
 Do not tilt selector lever knob when installing. Install it
straight, and do not tap or apply any shock to install it.
 Do not push selector button.
Adjustment of A/T PositionINFOID:0000000001731424
Move selector lever from “P” position to “1” position. You should be able to feel the detents in each position. If
the detents cannot be felt or if the position indicator is improperly aligned, the control cable needs adjustment.
CAUTION:
Make sure that parking brake is applied before adjustment.
1. Remove the air duct assembly. Refer to EM-27, "
Removal and Installation".
2. Remove the control cable nut (A) and control cable (1) and
place the manual lever (2) in the "P' position.
3. Place selector lever in “P” position.
4. Hold control cable (1) at the end and pull it with a force of 9.8 N
(approximately 1 kg, 2.2 lb). Release the control cable and tem-
porarily tighten control cable nut (A).
5. Tighten control cable nut (A) to the specified torque.
CAUTION:
Secure manual lever when tightening nut.
6. Move selector lever from “P” to “1” position again. Make sure that selector lever moves smoothly.
7. Check A/T position. Refer to TM-497, "
Checking of A/T Position".
8. Install air duct assembly. Refer to EM-27, "
Removal and Installation".
Checking of A/T PositionINFOID:0000000001731425
1. Place selector lever in “P” position, and turn ignition switch ON (Do not start engine).
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm selector lever stops at each position with the feel of engagement when it is moved through all the
positions. Check whether or not the actual position selector lever is in matches the position shown by the
shift position indicator and the transaxle.
SCIA6971E
SCIA6972E
Control cable nut : Refer to TM-493, "Control De-
vice Removal and Installation".WCIA0635E
