2007 NISSAN MURANO Quick Reference Guide

Sh ift_style

2007
M U RANO

Q U I C K R E F E R E N C E G U I D E

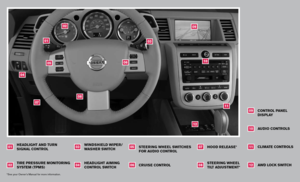

WINDSHIELD WIPER/WASHER SWITCH
TIRE PRESSURE MONITORING SYSTEM (TPMS)
HEADLIGHT
AND TURN
SIGNAL CONTROL
0102
03
*See your Owner’s Manual for more information.
CRUISE CONTROLSTEERING WHEEL SWITCHES FOR AUDIO CONTROL
HEADLIGHT AIMING CONTROL SWITCH
04
0506
CONTROL PANEL DISPLAY
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*
0708
09

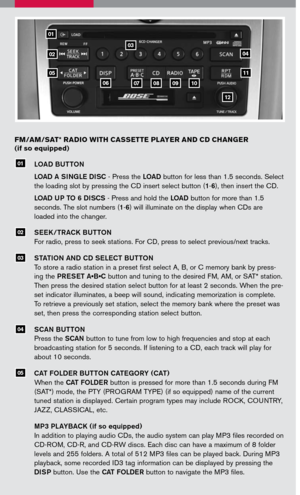

AUDIO CONTROLS
10
04
05
07
06
01
11
03
12
10
09
02
08
CLIMATE CONTROLS
11
AWD LOCK SWITCH
12

HEADLIGHT AIMING CONTROL SWITCH
(with Xenon headlamps, if so equipped)
Depending on the number of occupants in the vehicle and
the load it is carrying, the headlight axis may be higher
than desired. If the vehicle is traveling on a hilly road, the
headlights may directly hit the rearview mirror of the
vehicle ahead or the windshield of the oncoming vehicle.
The light axis can be lowered with the operation of the
switch.
 The larger the number designated on the switch, the lower the axis.
 When traveling without a heavy load or on a flat road, select position 0.

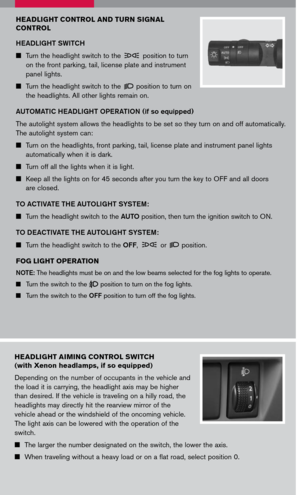

HEADLIGHT CONTROL AND TURN SIGNAL
CONTROL
HEADLIGHT SWITCH
 Turn the headlight switch to the position to turn
on the front parking, tail, license plate and instrument
panel lights.
 Turn the headlight switch to the position to turn on
the headlights. All other lights remain on.
AUTOMATIC HEADLIGHT OPERATION (if so equipped)
The autolight system allows the headlights to be set so they turn on and off automatically.
The autolight system can:

Turn on the headlights, front parking, tail, license plate and instrument panel lights
automatically when it is dark.
 Turn off all the lights when it is light.
 Keep all the lights on for 45 seconds after you turn the key to OFF and all doors
are closed.
TO ACTIVATE THE AUTOLIGHT SYSTEM :
 Turn the headlight switch to the AUTO position, then turn the ignition switch to ON.
TO DEACTIVATE THE AUTOLIGHT SYSTEM :
 Turn the headlight switch to the OFF, or position.
FOG LIGHT OPERATION
NOTE: The headlights must be on and the low beams selected for the fog lights to operate.

Turn the switch to the position to turn on the fog lights.
 Turn the switch to the OFF position to turn off the fog lights.

AWD LOCK SWITCH (if so equipped)
 Each time you push the lower part of the switch, the
AWD mode will switch as follows: AUTO LOCK
AUTO.
 Push the lower part of the AWD LOCK switch to
select AUTO or LOCK mode, depending on the
driving conditions.
 LOCK MODE
• For driving on rough roads.
• Push the lower part of the switch when the vehicle is stopped or driving less
than 6 MPH (10 km/h). The AWD LOCK indicator light will come on.
• LOCK mode will change to AUTO mode automatically when the vehicle is
accelerated or the vehicle speed is over approximately 6 MPH (10 km/h).
 AUTO MODE
• For driving on paved or slippery roads.
• Push the lower part of the switch. The AWD LOCK indicator light will go off.

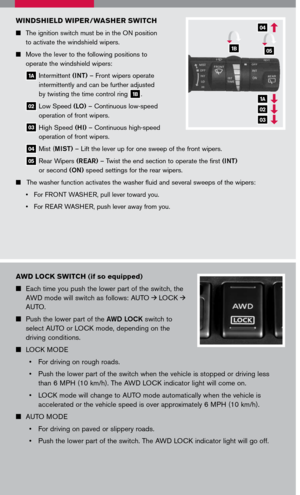

WINDSHIELD WIPER/WASHER SWITCH
 The ignition switch must be in the ON position
to activate the windshield wipers.
 Move the lever to the following positions to
operate the windshield wipers:
1A Intermittent (INT) – Front wipers operate
intermittently and can be further adjusted
by twisting the time control ring 1B.
02 Low Speed (LO) – Continuous low-speed
operation of front wipers.
03 High Speed (HI) – Continuous high-speed
operation of front wipers.
04 Mist (MIST) – Lift the lever up for one sweep of the front wipers.
05 Rear Wipers (REAR) – Twist the end section to operate the first (INT)
or second (ON) speed settings for the rear wipers.
 The washer function activates the washer fluid and several sweeps of the wipers:
• For F
RONT WASHER, pull lever toward you.
• For REAR WASHER, push lever away from you.

1A
02
03
04
1B05

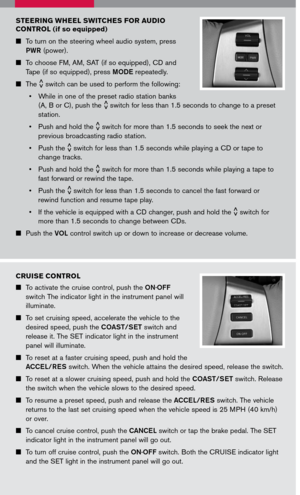

STEERING WHEEL SWITCHES FOR AUDIO
CONTROL (if so equipped)
 To turn on the steering wheel audio system, press
PWR (power).
 To choose FM, AM, SAT (if so equipped), CD and
Tape (if so equipped), press MODE repeatedly.
 The
< >
switch can be used to perform the following:
• While in one of the preset radio station banks
(A, B or C), push the

< >
switch for less than 1.5 seconds to change to a preset

station.
• Push and hold the

< >
switch for more than 1.5 seconds to seek the next or
previous broadcasting radio station.
• Push the

< >
switch for less than 1.5 seconds while playing a CD or tape to

change tracks.
• Push and hold the
< >
switch for more than 1.5 seconds while playing a tape to

fast forward or rewind the tape.
• Push the

< >
switch for less than 1.5 seconds to cancel the fast forward or

rewind function and resume tape play.
• If the vehicle is equipped with a CD changer, push
and hold the
< >
switch for

more than 1.5 seconds to change between CDs.
 Push the VOL control switch up or down to increase or decrease volume.
CRUISE CONTROL
 To activate the cruise control, push the ON.OFF
switch The indicator light in the instrument panel will
illuminate.
 To set cruising speed, accelerate the vehicle to the
desired speed, push the COAST/SET switch and
release it. The SET indicator light in the instrument
panel will illuminate.
 To reset at a faster cruising speed, push and hold the
ACCEL/RES switch. When the vehicle attains the desired speed, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch. Release
the switch when the vehicle slows to the desired speed.
 To resume a preset speed, push and release the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when the vehicle speed is 25 MPH (40 km/h)
or over.
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET
indicator light in the instrument panel will go out.
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET light in the instrument panel will go out.

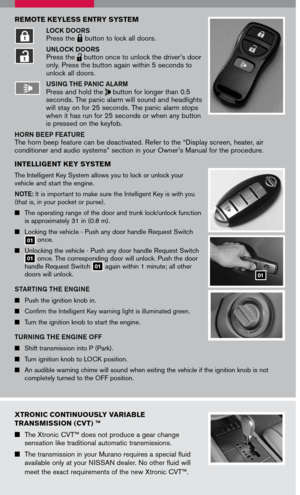

REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS Press the LPD0150 button to lock all doors.
UNLOCK DOORS Press the
lpd0151
button once to unlock the driver’s door only. Press the button again within 5 seconds to unlock all doors.
USING THE PANIC ALARM Press and hold the button for longer than 0.5 seconds. The panic alarm will sound and headlights will stay on for 25 seconds. The panic alarm stops when it has run for 25 seconds or when any button is pressed on the keyfob.
HORN BEEP FEATURE The horn beep feature can be deactivated. Refer to the “Display screen, heater, air conditioner and audio systems” section in your Owner’s Manual for the procedure.
INTELLIGENT K EY SYSTEM
The Intelligent Key System allows you to lock or unlock your vehicle and start the engine.
NOTE: It is important to make sure the Intelligent Key is with you (that is, in your pocket or purse).
 The operating range of the door and trunk lock/unlock function is approximately 31 in (0.8 m).
 Locking the vehicle - Push any door handle Request Switch 01 once.
 Unlocking the vehicle - Push any door handle Request Switch 01 once. The corresponding door will unlock. Push the door handle Request Switch 01 again within 1 minute; all other doors will unlock.
STARTING THE ENGINE
 Push the ignition knob in.
 Confirm the Intelligent Key warning light is illuminated green.
 Turn the ignition knob to start the engine.
TURNING THE ENGINE OFF
 Shift transmission into P (Park).
 Turn ignition knob to LOCK position.
 An audible warning chime will sound when exiting the vehicle if the ignition knob is not completely turned to the OFF position.
01
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
 The Xtronic CVT™ does not produce a gear change
sensation like traditional automatic transmissions.
 The transmission in your Murano requires a special fluid available only at your NISSAN dealer. No other fluid will
meet the exact requirements of the new Xtronic CVT™.

CONTROL PANEL DISPLAY WITH
N AVIGATION S YSTEM (if so equipped)
TRIP BUTTON
When the TRIP button is pressed, the following
modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1 (Elapsed Time, Driving Distance,
Average Speed)
 TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation)
 OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE O IL or TIRE R OTATION key using the joystick
and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the maintenance
interval, select the RESET key using the joystick and press the ENTER button.
CLOCK/SE T ADJUSTMENT

The clock on the display screen can be adjusted using the joystick and the following
procedure.

 Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
 Next select CLOCK to enter the CLOCK SETTINGS mode.
 Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.

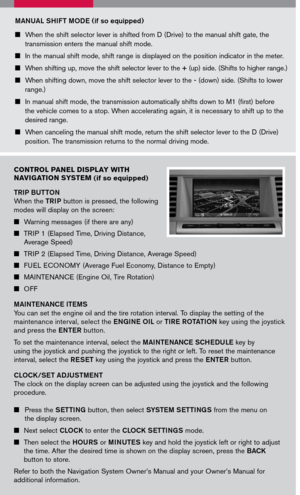

MANUAL SHIFT MODE (if so equipped)
 When the shift selector lever is shifted from D (Drive) to the manual shift gate, the
transmission enters the manual shift mode.
 In the manual shift mode, shift range is displayed on the position indicator in the meter.
 When shifting up, move the shift selector lever to the + (up) side. (Shifts to higher range.)
 When shifting down, move the shift selector lever to the - (down) side. (Shifts to lower
range.)
 In manual shift mode, the transmission automatically shifts down to M1 (first) before
the vehicle comes to a stop. When accelerating again, it is necessary to shift up to the
desired range.
 When canceling the manual shift mode, return the shift selector lever to the D (Drive)
position. The transmission returns to the normal driving mode.

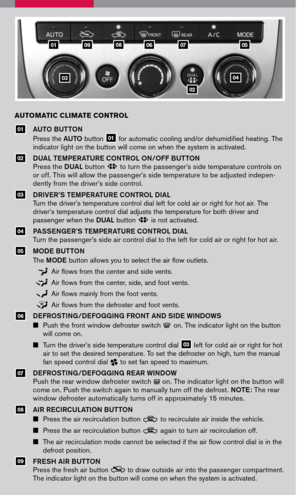

AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on
or off. This will allow the passenger’s side temperature to be adjusted indepen-
dently from the driver’s side control.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The
driver’s temperature control dial adjusts the temperature for both driver and
passenger when the DUAL button is not activated.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Push the front window defroster switch on. The indicator light on the button
will come on.
 Turn the driver’s side temperature control dial 03 left for cold air or right for hot
air to set the desired temperature. To set the defroster on high, turn the manual
fan speed control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will
come on. Push the switch again to manually turn off the defrost. NOTE : The rear
window defroster automatically turns off in approximately 15 minutes.
AIR RECIRCULATION BUTTON
 Press the air recirculation buttonto recirculate air inside the vehicle.
 Press the air recirculation buttonagain to turn air recirculation off.
 The air recirculation mode cannot be selected if the air flow control dial is in the
defrost position.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment.
The indicator light on the button will come on when the system is activated.
05
04
03
02
01
06
07
08
09
010908060705
03
02
04
A UTOMATIC C LIMATE CONTROL
