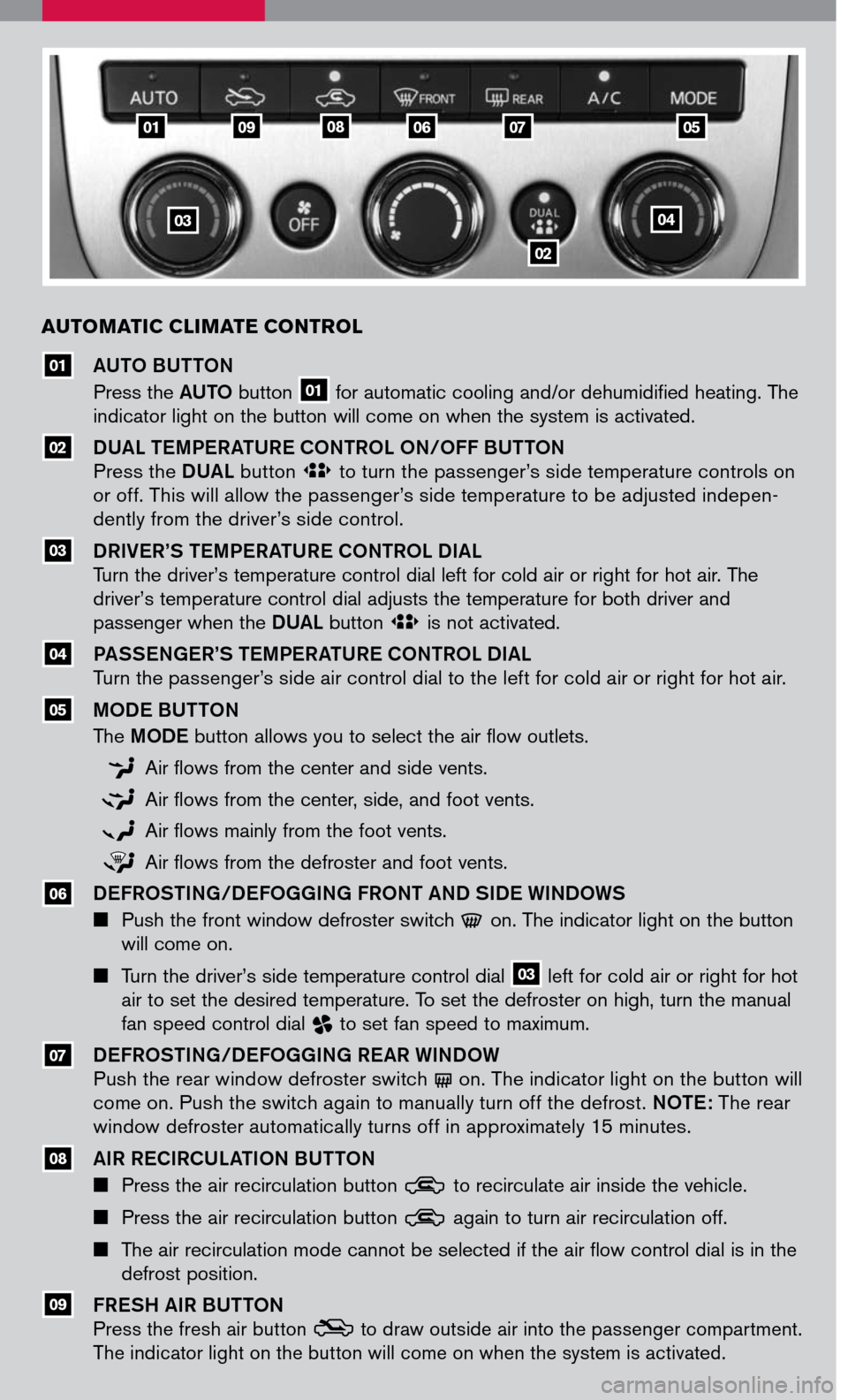

AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on
or off. This will allow the passenger’s side temperature to be adjusted indepen-
dently from the driver’s side control.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The
driver’s temperature control dial adjusts the temperature for both driver and
passenger when the DUAL button is not activated.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button
will come on.
Turn the driver’s side temperature control dial 03 left for cold air or right for hot
air to set the desired temperature. To set the defroster on high, turn the manual
fan speed control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will
come on. Push the switch again to manually turn off the defrost. NOTE : The rear
window defroster automatically turns off in approximately 15 minutes.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the
defrost position.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment.
The indicator light on the button will come on when the system is activated.
05
04
03
02
01
06
07
08
09
010908060705
03
02
04
A UTOMATIC C LIMATE CONTROL
