2007 NISSAN MURANO Screen

1. CD LOAD button
2. SEEK/TRACK button
3. CD slot
4. Station and preset (FM/AM/SAT)/CD
insert/eject or CD play select button
5. SCAN button
6. CD EJECT button
7. CAT/FOLDER button
8. POWER button/VOLUME control knob
9. DISP (display) button
10. PRESET A⋅B⋅C button11. CD button
12. RADIO button
13. TAPE EJECT button
14. TAPE button
15. TUNE up/down, TRACK up/down and AU-
DIO button
16. RPT (repeat)/RDM (random) button
FM-AM-SAT RADIO WITH
CASSETTE PLAYER AND CD
CHANGERFor all operation precautions, see “Audio opera-
tion precautions” earlier in this section.
No satellite radio reception is available when the
SAT band option is selected unless optional
satellite receiver and antenna are installed, and
an XM
®
or SIRIUS
TM
satellite radio service
subscription is active.
It may take some time to receive the activation
signal after subscribing to the XM
or SIRIUS
TM
satellite radio provider. After receiving the acti-
vation signal, an available channel list will be
automatically updated in the radio. For XM
, turn
the ignition switch from the LOCK to ACC
position to update the channel list.
Satellite radio is not available in Alaska, Hawaii
and Guam.
Audio main operationThe tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the combined use of the Dolby NR (Noise
Reduction) system. The auto loudness circuit
enhances the low frequency range automatically
SAA1315
4-38
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


in both radio reception and tape and CD play-
back.
POWER/Volume control:
Turn the ignition switch to ACC or ON, and then
push the POWER button while the system is off
to call up the mode (radio, tape or CD) which
was playing immediately before the system was
turned off. When no CD or tape is loaded, the
radio will come on. While the system is on,
pushing the POWER button turns the system
off.
To turn the radio off, push the POWER button.
Turn the Volume control knobto adjust the
volume.
This vehicle hasSpeed Sensitive control Vol-
ume (SSV) for audio. The audio volume
changes as the driving speed changes.
AUDIO button/knob:
Push the AUDIO button to change the selecting
mode as follows.
BASS→TREBLE→FADE→BALANCE→
SSV→NR (when cassette playing)
To adjust Bass, Treble, Fader and Balance, push
the AUDIO button until the desired mode BASS,
TREBLE, FADE or BALANCE appears in the
display. Turn the AUDIO knobto adjust Bassand Treble to the desired level. Use the Tuning
knobalso to adjust Fader or Balance modes.
Fader adjusts the sound level between the front
and rear speakers and Balance adjusts the
sound between the right and left speakers.
To change the SSV mode to OFF, LOW, MID or
HIGH, turn the Tuning knobto right or left.
To change the NR (Dolby) mode to OFF or ON,
turn the Tuning knobto right or left while cas-
sette tape is playing. When Dolby is ON, the
display indicates the
mark.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing Cor-
poration. Dolby NR and the double-D symbol
“
” are trademarks of Dolby Laboratories
Licensing Corporation.
After 10 seconds, the radio, cassette tape or CD
display reappears. Once the sound quality is set
to the desired level, push the AUDIO button
repeatedly until the radio, cassette tape or CD
display appears.
Display text:
To indicate the text, push the AUDIO knob
during CD or satellite radio playing.
BASS→TREBLE→FADE→BALANCE→
SSV→Display mode
To change the indicated text in display mode,turn the tuning knobwithin 2 seconds.
Display select:
Display CD text
To indicate the CD text, push the
button
while the CD is playing.
The text will change as follows:
Display MP3/WMA text
To indicate the MP3/WMA text, push the
button while the CD is playing.
The text will change as follows:
Display FM text
To indicate the FM PS name, push the
button while the FM radio is playing.
The name will change as follows:
ON→OFF→ON
When no data is available, “NO TEXT” will
appear.
Display screen, heater, air conditioner and audio systems
4-39


06.7.5/Z50-D/V5.0


Display satellite radio text
To indicate the satellite radio text, push the
button while the satellite radio is playing.
The text will change as follows:
When no data is available, “——” will appear.FM-AM-SAT radio operation
FM/AM/SAT radio select:
The satellite radio mode will be skipped unless
the optional satellite receiver and antenna are
installed, and an XM
or SIRIUS
TM
satellite radio
service subscription is active.
Pushing the RADIO button will change the band
as follows:
AM→FM→SAT (Satellite)
When the RADIO button is pushed while the
ignition switch is in the ACC or ON, the radio will
come on at the station last played.
The last station played will also come on when
the power knobis turned to ON.
If a compact disc or tape is playing when the
RADIO button is pushed, the compact disc ortape will automatically be turned off and the last
radio station played will come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.
TUNE (Tuning):
To tune the radio, turn the TUNE knobto the
right or left.
Use these buttons for manual tuning.
SEEK tuning:
Push the SEEK button
or
for less
than 0.5 second to tune from high to low or low
to high frequencies and stop at the next broad-
casting station (channel).
Push the SEEK button
or
for more
than 0.5 second, to fast tune from high to low or
low to high frequencies.
SCANtuning:
Push the SCAN tuning button to tune from low
to high frequencies and stop at each broadcast-
ing station (channel) for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station (channel).
If the SCAN tuning button is not pushed within 5seconds, SCAN tuning moves to the next station
(channel).
Station memory operations:
Eighteen (18) stations can be set for the FM, AM
and SAT band to the A, B and C preset button.
1. Choose preset channel A, B or C using the
preset select button.
2. Tune to the desired station using the SEEK,
SCAN or TUNE button and keep pushing any
of the desired station memory buttons (1 to
6) until a beep sound is heard. (The radio
mutes when the select button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
blows, the radio memory will be erased. In that
case, reset the desired stations.
Radio data system (RDS):
RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
and/or SATELLITE band encoded within a regu-
lar radio broadcast. Currently, most RDS sta-
tions are in large cities, but many stations are
4-40
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


now considering broadcasting RDS data.
RDS can display:

Station call sign, such as “WHFR 98.3”.

Station name, such as “The Groove”.

Music or programming type such as “Classi-
cal”, “Country”, or “Rock”.

Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
Category (CAT):
When the CAT button is pushed for less than
0.5 second, the AM/FM (Satellite) radio frequen-
cies (Category) will move to the next/previous
step (Category). Push and hold the button for
more than 0.5 second to move quickly through
the steps (Categories).
Cassette tape player operationTurn the ignition switch to ACC or ON, and then
lightly insert the cassette tape into the tape door.
The cassette tape will be automatically pulled
into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
If the system is turned off by pushing the
POWER button with the cassette tape still in theplayer, the tape will resume playing when the
system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed with the
TAPE playing, the tape will play the program
recorded on the reverse side.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the display window. To
stop the FF or REW function, push the(fast forward) or
(rewind) again, or
the TAPE button.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the tape is being played, the next programwill start to play from the beginning. Push the
(APS FF) button several times to skip
through programs. The tape will advance the
number of times the button is pushed (up to nine
programs).
When the
(APS REW) button is pushed
once, the program being played starts over from
the beginning. Push the
(APS REW) but-
ton several times to skip back several selections.
The tape will go back the number of times the
button is pushed. Either the FF or REW symbol
flashes on the display window while searching
for the selection.
REPEAT (RPT):
When the RPT play button is pushed while the
tape is played, the tape program play is re-
peated. To stop the repeat play, push the RPT
play button again.
Metal or chrome tape usage:
The cassette player will be automatically set to
high performance play when playing a metal or
chrome cassette tape.TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Display screen, heater, air conditioner and audio systems
4-41


06.7.5/Z50-D/V5.0


Compact disc (CD) changer
operationTurn the ignition switch to the ACC or ON
position and insert the compact disc into the slot
with the label side facing up. The compact disc
will be guided automatically into the slot and
start playing. To insert the disc, first push the
LOAD button.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
If the system has been turned off while the
compact disc was playing, pushing the
POWER/VOL control knobwill start the com-
pact disc.
3.1 in (8 cm) diameter discs cannot be used
(even with an adapter).
button:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading slot by pushing the CD insert select
button (1 to 6), then insert the CD.
To insert 6 CDs to the CD changer, push the
LOAD button for more than 1.5 seconds.The inserted slot numbers will illuminate on the
display.
PLAY:
When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with the com-
pact disc loaded with the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.FF (Fast Forward), REW
(Rewind), APS (Automatic
Program Search) FF, APS REW:
When the
(fast forward) or
(rewind)
button is pushed and hold while the compact
disc is being played, the compact disc will play
while fast forwarding or rewinding. When the
button is released, the compact disc will return
to normal play speed.
When the
button is pushed for less than
0.5 second while the compact disc is being
played, the program next to the present one will
start to play from its beginning. Push several
times to skip through programs. The compact
disc will advance the number of times the button
is pushed. (When the last program on the
compact disc is skipped through, the first pro-
gram will be played.) When the
button ispushed for less than 1.5 seconds, the program
being played returns to its beginning. Push
several times to skip back through programs.
The compact disc will go back the number of
times the button is pushed.
You can also skip the program by turning the
TRACK knob.
SCAN:
When the SCAN button is pushed while the CD
is playing, each track will play for about 10
seconds.
To stop scanning, push the SCAN button again.FOLDER FF, REW:
When the FOLDER button is pushed while the
MP3/WMA CD is playing, the folder will forward
(rewind) to the next (previous) folder.
CD PLAY button:
To change CD, push the CD play select button
(1 to 6). You can select if the CD is inserted.RPT (Repeat)/RDM (Random):
When the RPT/RDM button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
4-42
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the selected discs by the EJECT button,
push it for less than 1.5 seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it.
CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.1. Volume control switch
2. MODE select switch
3. POWER on/off switch
4. Memory change⋅Seek and APS switch
STEERING SWITCH FOR AUDIO
CONTROL (if so equipped)The audio system can be operated using the
controls on the steering wheel.POWER on/off switchWith the ignition switch turned to the ACC or
ON position, push the POWER on/off switch to
turn the audio system on or off.
SAA0451
SIC3172
Display screen, heater, air conditioner and audio systems
4-43


06.7.5/Z50-D/V5.0


MODE select switchPush the mode select switch to change the
mode in the sequence of FM, AM, SAT, CD and
Tape.Volume control switchPush up or down the volume control switch to
increase or decrease the volume.
Tuning
Memory change (radio):
Push the tuning switch
or
for less
than 1.5 seconds to change the radio frequency.
Seek tuning (radio):
Push the tuning switch
or
for more
than 1.5 seconds to seek the next or previous
radio station.
APS (Automatic Program Search) FF,
APS REW (tape and CD):
Push the tuning switch
or
for less
than 1.5 seconds to return to the beginning of
the present program or skip to the next program.
Push several times to skip back or skip through
programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-tween programs, the system may not stop in the
desired or expected location.
FF REW (tape or CD):
Push the tuning switch
or
for more
than 1.5 seconds to rewind or fast forward the
tape or to change the playing disc up or down.
To stop the FF or REW function, push the
or
button for less than 1.5 seconds
again.
ANTENNA
Placing the antennaYou can adjust the antenna positions manually.
SAA1236
4-44
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


Removing the antennaYou can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.

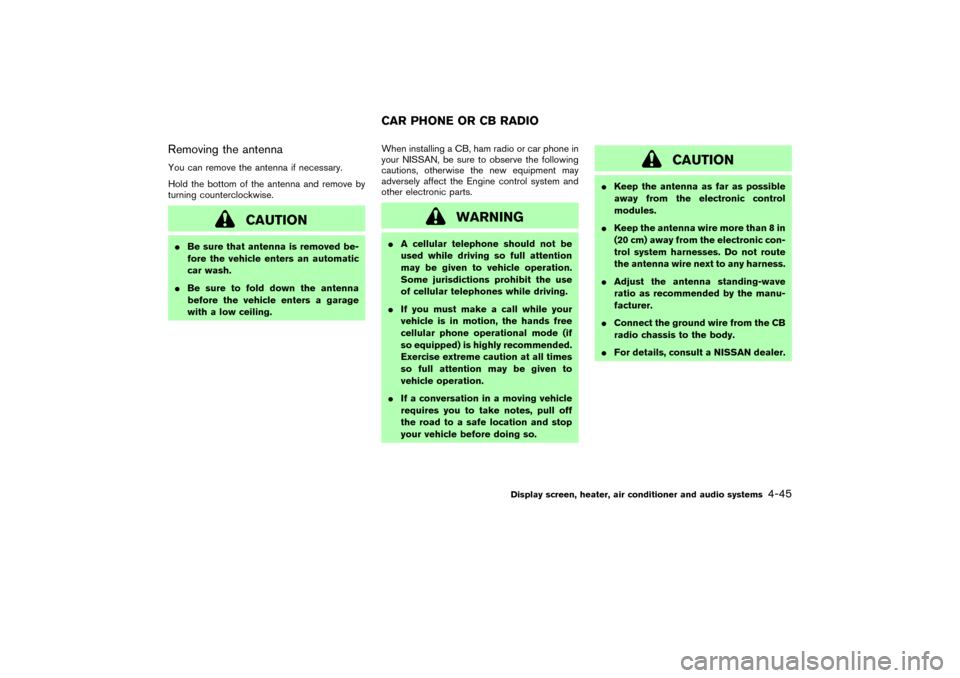

CAUTION

Be sure that antenna is removed be-
fore the vehicle enters an automatic
car wash.

Be sure to fold down the antenna
before the vehicle enters a garage
with a low ceiling.When installing a CB, ham radio or car phone in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION

Keep the antenna as far as possible
away from the electronic control
modules.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.
CAR PHONE OR CB RADIO
Display screen, heater, air conditioner and audio systems
4-45


06.7.5/Z50-D/V5.0
