2007 NISSAN ARMADA display

CRUISE CONTROL
 To activate the cruise control, push the ON.OFF switch. The indicator light in the instrument panel will illuminate.
 To set cruising speed, accelerate the vehicle to the desired speed, push the COAST/SET switch and release it. The SET indicator light in the instrument panel will illuminate.
 To reset at a faster cruising speed, push and hold the ACCEL/RES switch. When the vehicle attains the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch. Release the switch when the vehicle slows to the desired speed.
 To resume a preset speed, push and release the ACCEL/RES switch. The vehicle returns to the last set cruising speed when the vehicle speed is over 24 MPH (39 km/h).
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET indicator light in the instrument panel will go out.
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORSPress the LPD0150 button to lock all doors.
UNLOCK DOORSPress the
lpd0151
button once to unlock the driver’s door only. Press the button again within 5 seconds to unlock all doors.
OPEN WINDOWS Press the
lpd0151
button longer than 3 seconds to open the front windows. (The keyfob is not able to close the windows after opening them.)
POWER LIFT GATE (if so equipped)Press and hold the
WPD0337
1A
button for longer than 0.5 seconds to open or close the power lift gate. The hazard lights will flash and a chime will sound to indicate that the power open or power close sequence has started. If you press the button again, the lift gate will reverse direction immediately; a chime will sound to indicate the reversal.
SILENCING THE HORN BEEP FEATURE
For vehicles without Navigation system:
 To deactivate: Press and hold the LPD0150 and
lpd0151
buttons for at least 2 seconds.
 To activate: Press and hold the LPD0150 and
lpd0151
buttons for at least 2 seconds once more.
For vehicles with Navigation system:
 Refer to the “Display screen, heater, air conditioner and audio” section in your Owner’s Manual for the procedure.
 If you change the horn beep feature with the keyfob, the display screen will not show the
current mode and cannot be used to change the mode. Use the keyfob to return to the
previous mode and re-enable the display screen control.

CONTROL PANEL DISPLAY WITH
N AVIGATION SYSTEM (if so equipped)
TRIP BUTTON
When the TRIP button is pressed, the following modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
 TRIP 2 (Elapsed Time, Driving
Distance, Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation)
 OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by using the joystick and pushing the joystick to the right or left. To reset the maintenance interval, select the RESET key using the joystick and press the ENTER button.
CLOCK SET/ADJUSTMENT
The clock on the display screen can be adjusted using the joystick by the following procedure:  First select SYSTEM SETTINGS from the SETTINGS menu on the display screen.
 Next select CLOCK to enter the CLOCK SETTINGS mode.
 Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for additional information.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF  Push the tilt switch to the UP position 01 to tilt the

sunroof up.
 Push the tilt switch to the DOWN position 02 to tilt the sunroof down.
SLIDING THE SUNROOF  Push the switch toward the OPEN position 03 to fully

open the sunroof.
 Push the switch toward the CLOSE position 04 to fully close the sunroof.
 Push the switch in any direction while the sunroof is sliding open or closed to stop the sunroof in the desired position.
01
02
03
04

01
03
0508
04
02
06
0709
02
01
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON Press the AUTO button 01. Turn the driver’s side temperature control dial 02
to the desired temperature. This will allow the fan speed, air flow distribution and temperature to be automatically maintained.
 Press the AUTO button a second time to turn the passenger’s side temperature controls on or off. This will allow the passenger’s side temperature to be adjusted independently from driver’s side control.
 When AUTO is pressed, AUTO will be displayed. When AUTO is pressed a second time, DUAL will be displayed.
DRIVER’S SIDE TEMPERATURE CONTROL DIALTurn the driver’s temperature control dial left for cold air or right for hot air.
PASSENGER’S SIDE TEMPERATURE CONTROL DIALTurn the passenger’s temperature control dial left for cold air or right for hot air.
AIR FLOW MODE CONTROL BUTTONPress MODE button repeatedly to scroll through the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
Air flows mainly from the defroster vents.
FAN SPEED CONTROL DIALTurn the fan speed control dial to the left (slower) or right (faster) to manually control fan speed. Press AUTO to automatically control fan speed.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS Press the defroster control button to turn the system on. The A/C automatically turns on when the defroster mode is selected.
 Turn the driver’s side temperature control dial left or right to set the desired temperature.
 To set the defroster on high, turn the fan speed dial all the way to the right.
DEFROSTING/DEFOGGING REAR WINDOW AND (if so equipped) OUTSIDE HEATED MIRROR Push the rear window defroster switch on. Push the switch again to manually turn the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTONPress the A/C button to manually turn the A/C on or off.
AIR RECIRCULATION BUTTON Press the air recirculation button to recirculate air inside the vehicle.
 Press the air recirculation button again to turn air recirculation off.
 The air recirculation mode cannot be selected if the air flow control dial is in the defrost position .
03
08
07
05
04
06
09

SEEK/TRACK BUTTON
 To scan quickly through each broadcasting station, press the SEEK/TRACK
button.
 To skip from one track to another on a CD, press the SEEK/TRACK button.
Each time the button is pressed, the CD will advance or skip back one track.
TUNE/FOLDER • CAT BUTTON
To manually tune the radio, press the TUNE/FOLDER • CAT button. If playing a
CD that is formatted with MP3 folders, press the TUNE/FOLDER • CAT button to
scroll through the folder.
PRESET A.B.C BUTTON
Press the PRESET A · B · C button until you reach the desired setting. The radio is
equipped with three separate banks, each with six station presets. You may store
any combination of AM, FM or SAT* radio presets on each bank.
REAR ON.OFF
To turn rear audio controls on, press the REAR ON.OFF button. Press again to turn
the rear controller off.
SPEAKER CONTROL BUTTON
Press this button to turn the rear speakers off and headphones on. Press this
button again to turn the rear seat speakers back on and headphones off.
LOAD BUTTON
LOAD A SINGLE DISC - Press the LOAD button for less than 1.5 seconds. Select
the loading slot by pressing the CD insert select button (1-6), then insert the CD.
LOAD UP TO 6 DISCS - Press and hold the LOAD button for more than 1.5
seconds. The slot numbers (1-6) will illuminate on the display when CDs are
loaded into the changer.
STATION AND CD SELECT BUTTONS
To store a radio station in a preset, you must first select the A, B, or C memory
bank by pressing the PRESET A.B.C button and tuning to the desired AM, FM or
SAT* station. Then, press and hold the desired station select button for at least
2 seconds. When the preset indicator illuminates, a beep will sound, indicating
memorization is complete. To retrieve a previously set station, select the memory
bank where the preset was set, then press the corresponding station select button.

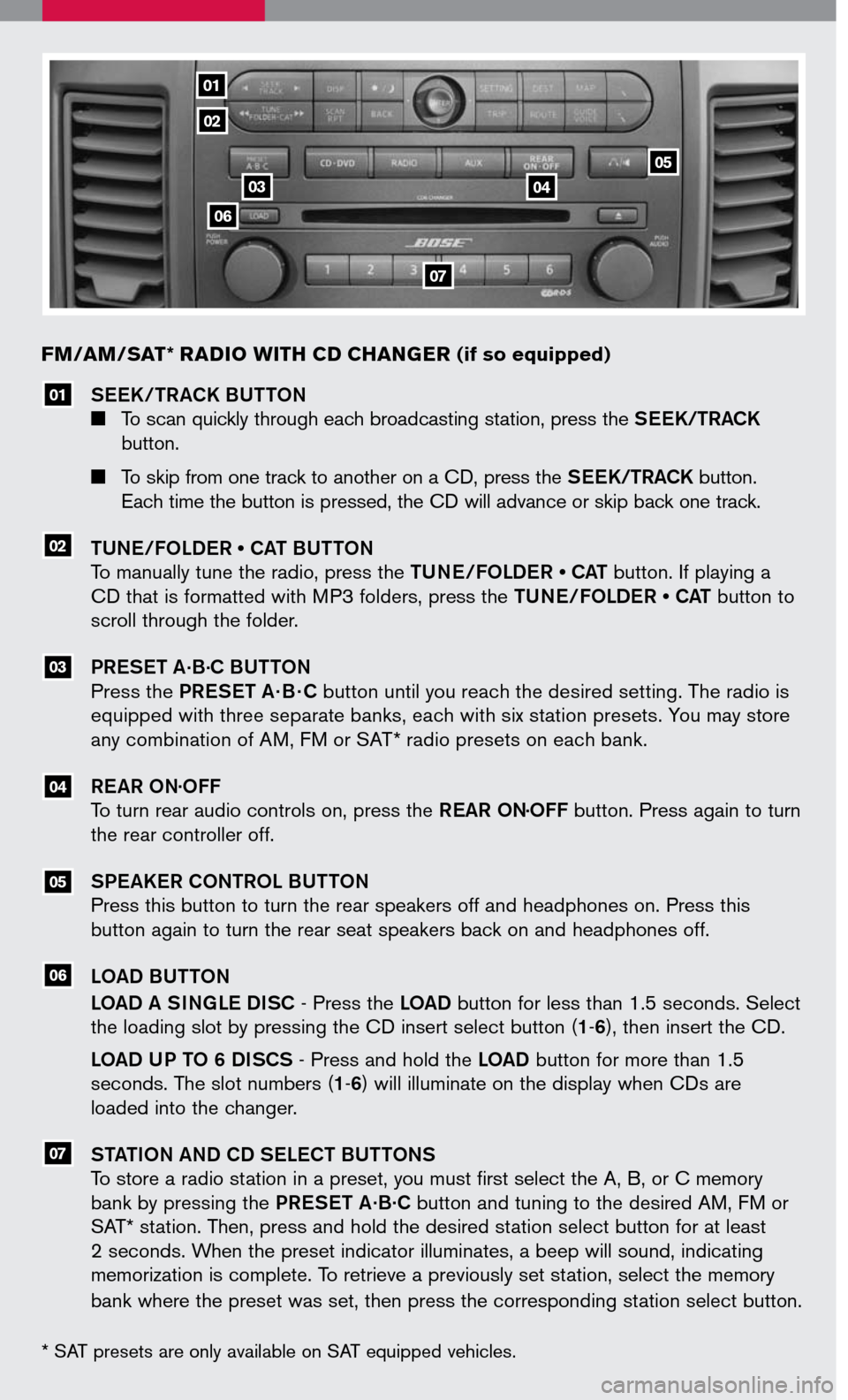

FM/AM/SAT* RADIO WITH CD CHANGER (if so equipped)
05
04
07
06
03
02
01
01
02
0304
06
07
05
* SAT presets are only available on SAT equipped vehicles.
